CRL 316 Brushed Stainless Steel Square Flat Mount Glass Clamp 13/16"
CRL 316 Brushed Stainless Steel Square Flat Mount Glass Clamp 13/16"
Regular price
$62.30 CAD
Regular price
Sale price
$62.30 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# Z91316BS
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description

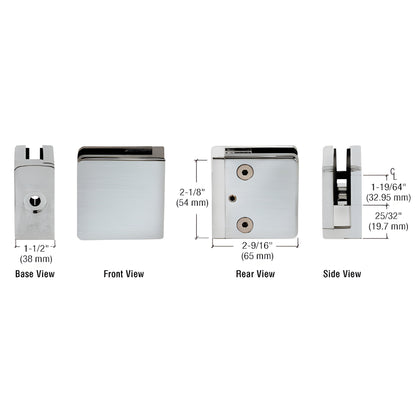

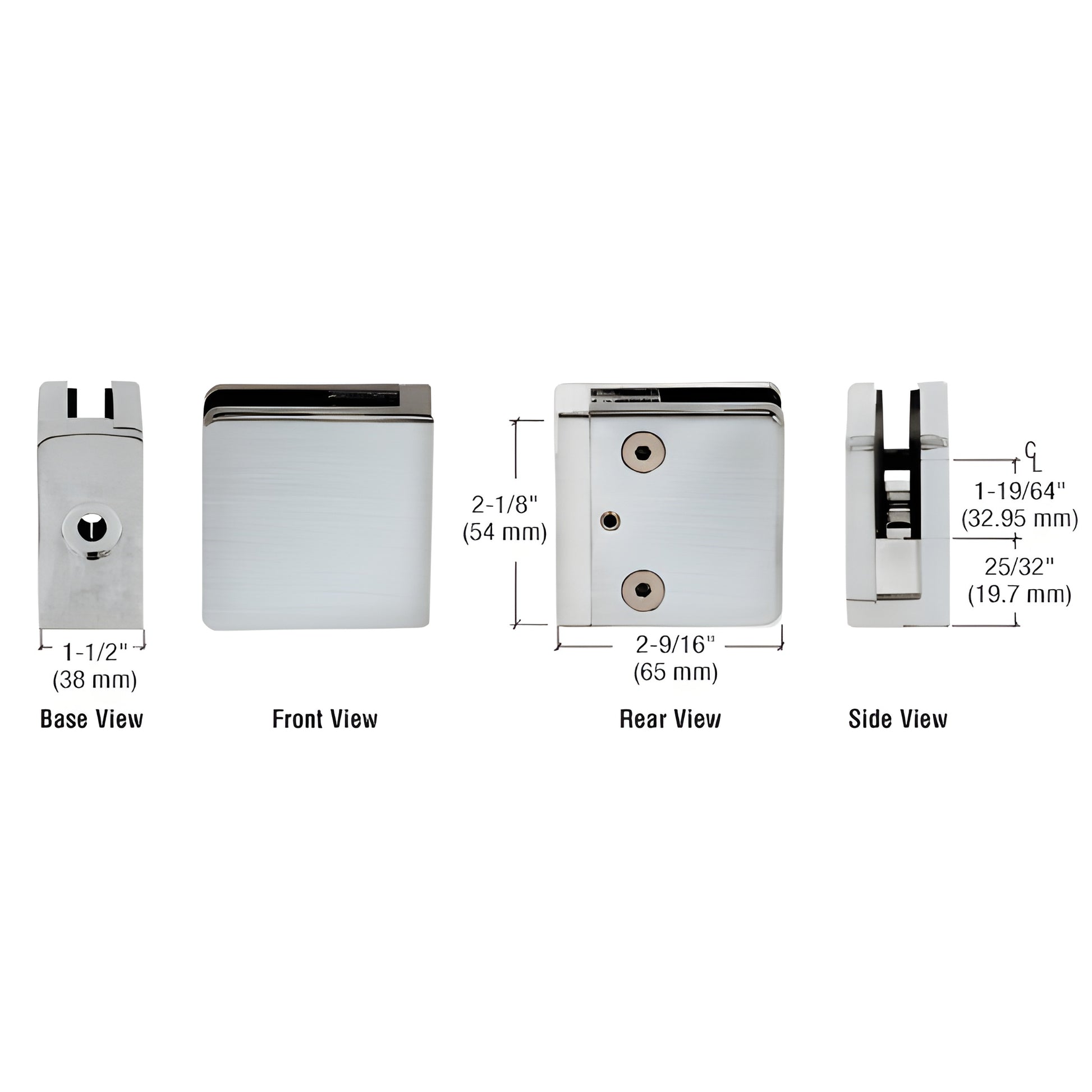

Base Type
Flat
Depth
13/16 in. (21 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
13/16 in. (21 mm)
Height
2-9/16 in. (65 mm)
Material
316 Stainless Steel
Profile
Square
Width
2-1/8 in. (54 mm)
Overview
- For use with square tubing or other flat surfaces
- 316 alloy stainless steel glass clamp
- For 13/16" (20.6 mm) tempered laminated glass (flat surface mounting)
- Use tempered laminated glass; one 7/8" (22 mm) finger notch required
Glass Thickness: 13/16" (20.6 mm)
Base Design: Flat (surface mount)
For Use With: Square tubing or other flat surfaces
Material: 316 alloy stainless steel (marine-grade)
Glass Fabrication: One 7/8" (22 mm) diameter finger notch required. The included steel pin must be used for 13/16" (20.6 mm) laminated glass applications.
Includes: Rubber gaskets and steel pin
Replacement Hardware: CRL P612 for replacement screws
Product Warning:
For interior and exterior installations, CRL recommends pinning each glass panel when the glass is not supported from the bottom edge to prevent panel slippage. Rubber gaskets and steel pins are provided with each clamp.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. Periodic maintenance helps preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the Z91316BS 316 stainless steel glass clamp today to secure 13/16" tempered laminated glass on flat surfaces—contact us or add to cart to get started.
