CRL Aluminum Surface-Mount Door Closer, ANSI Grade 1 Size 3

• Engineered for commercial and residential use
• Dual-valve closing and latching speed control for precise door operation
• Reversible for standard, top-jamb, and parallel-arm installations on aluminum, metal, and wood doors
• Available finishes: Aluminum and Dark Bronze
• ANSI A156.4 Grade 1 performance
• UL Listed

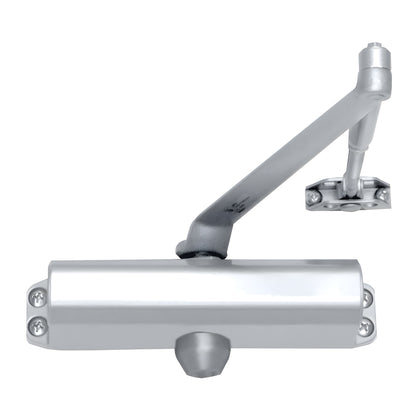

The CRL DC53 Size 3 Surface Mount Door Closer (SKU DC53A) delivers reliable, high-performance door control for commercial and residential projects. The Size 3 spring is ideal for interior doors up to 42" (1.07 m) and exterior doors up to 36" (914 mm) wide, with applicable door weights between 99 and 143 lbs (45–65 kg). An adjustable backcheck protects doors and hardware from wind or violent swings. Independent adjustments for closing and latching speeds ensure smooth, controlled operation—making this an excellent choice as a surface mount door closer for 42-inch doors and other common commercial door sizes. All CRL surface mounted closers are U.L. listed and come with a ten-year warranty.

Each closer ships with a parallel-arm bracket and mounting hardware for universal installation (regular, top-jamb, or parallel arm). Optional accessories—such as Drop Plates and Hold Open Arms—are available for specialized installations.

Increase brand recognition with customized private labeling. CRL DC53, DC54 and DC55 models ship in plain boxes and are ready to be private labeled. To discuss program options and pricing, contact CRL Technical Sales.


Call or order online now to spec the CRL DC53A Size 3 Surface Mount Door Closer for your next project.
