CRL Aluminum ANSI Grade 1 Size 5 Surface-Mount Commercial Door Closer
CRL Aluminum ANSI Grade 1 Size 5 Surface-Mount Commercial Door Closer
Regular price
$90.87 CAD
Regular price
Sale price
$90.87 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DC55A
Shipping Weight: 5.952 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.952 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Length
9-3/4
Case Quantity
10
Certification
ANSI A156.4 Grade 1
Closer Type
Surface Mount
Door Weight
187-264
Finish/Color
Aluminum
Horizontal Mounting Holes
9-1/16
Maximum Door Width - Exterior
42 Inches
Maximum Door Width - Interior
48 Inches
Product Details
Dual Valve Closing and Latching Speed Control
Spring Size
5
UL Listed
Yes
Vertical Mounting Holes Center To Center
3/4
Overview
- Engineered for commercial and residential use
- Dual-valve closing and latching speed control
- Reversible for standard, top-jamb, and parallel-arm installations on aluminum, metal, and wood doors
- Aluminum and dark bronze finishes; custom colors available
- ANSI A156.4 Grade 1
- UL Listed

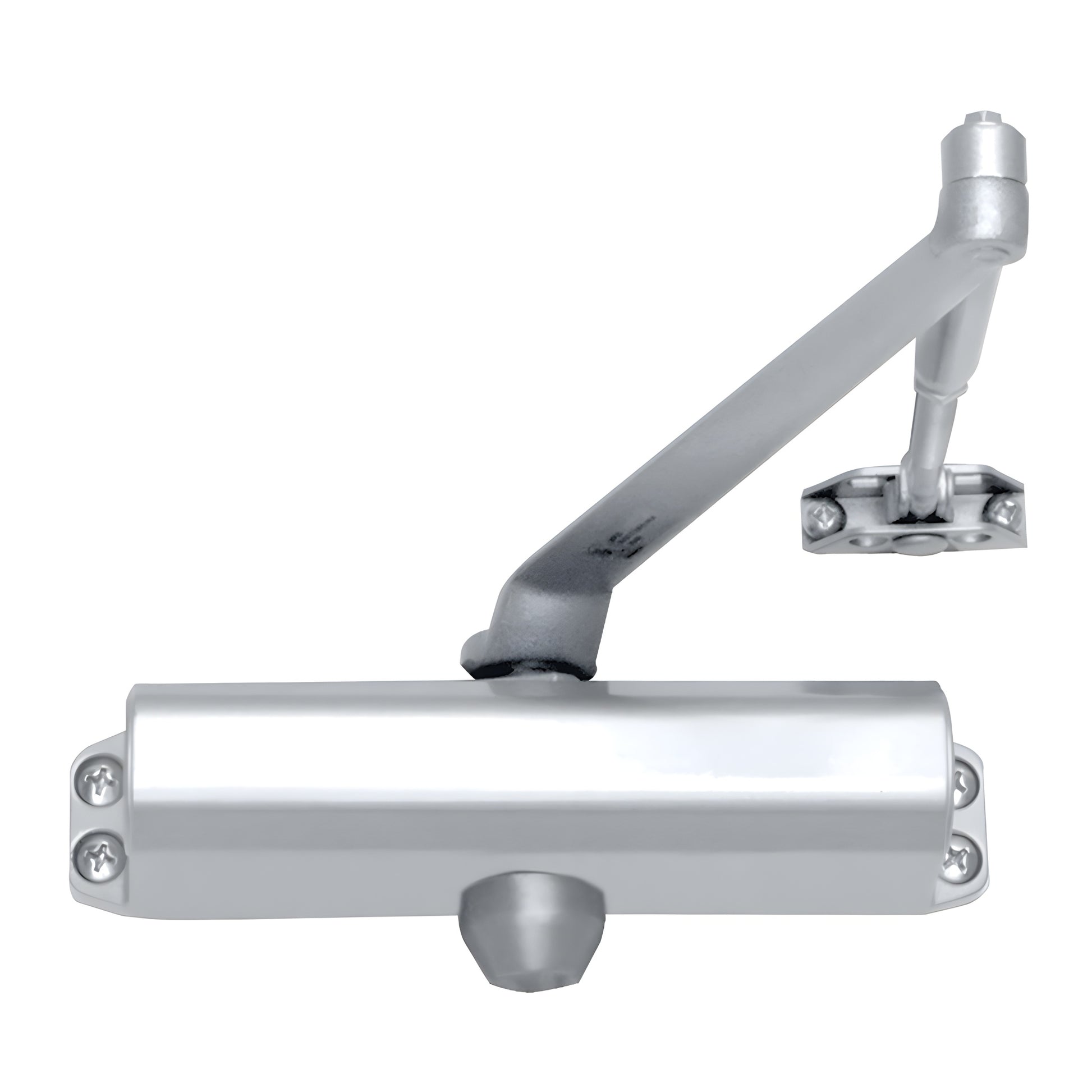

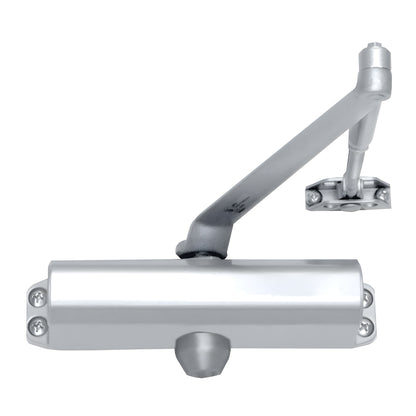

CRL carries a Size 5, CRL DC55 Heavy-Duty Surface Mount Door Closer (SKU: DC55A) designed for demanding commercial door applications. This heavy-duty surface mount door closer fits doors up to 48" (1.22 m) wide and weighing 187–264 lbs (85–120 kg). Features include reversible mounting for top-jamb, parallel-arm or standard installations, variable sweep (closing) speed, adjustable latching-speed trim for secure latching, and an adjustable backcheck to help prevent damage from violent opening due to wind or heavy traffic.
All CRL surface mounted closers are UL listed and backed by a 10-year warranty. A parallel arm bracket and mounting hardware are included for universal installation. Optional accessories such as Drop Plates and Hold Open Arms are available for specialty installs. Increase brand recognition with customized private labeling—CRL DC53, DC54 and DC55 models are available in plain boxes and ready to be private labeled. To discuss program details or pricing contact CRL Technical Sales.
Order the DC55A heavy-duty surface mount door closer for reliable, Grade 1 commercial performance—contact CRL to buy or get a quote.
Specifications
Warranty
