CRL Black Adjustable Glass Shelf Clamp
Item# DL631BL
Shipping Weight: 6.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Gloss Black
Glazing Thickness
1/8 To 15/16
Height
2-1/16
Material
Zinc
Maximum Shelf Depth
10
Pack Quantity
2
Weight Capacity
44
Width
1-9/16
- For Glass or Wood Shelves 1/8" to 15/16" (3 to 24 mm) Thick
- Works with Shelves Up to 10" (254 mm) Protrusion From Wall
- Use Monolithic Tempered Glass

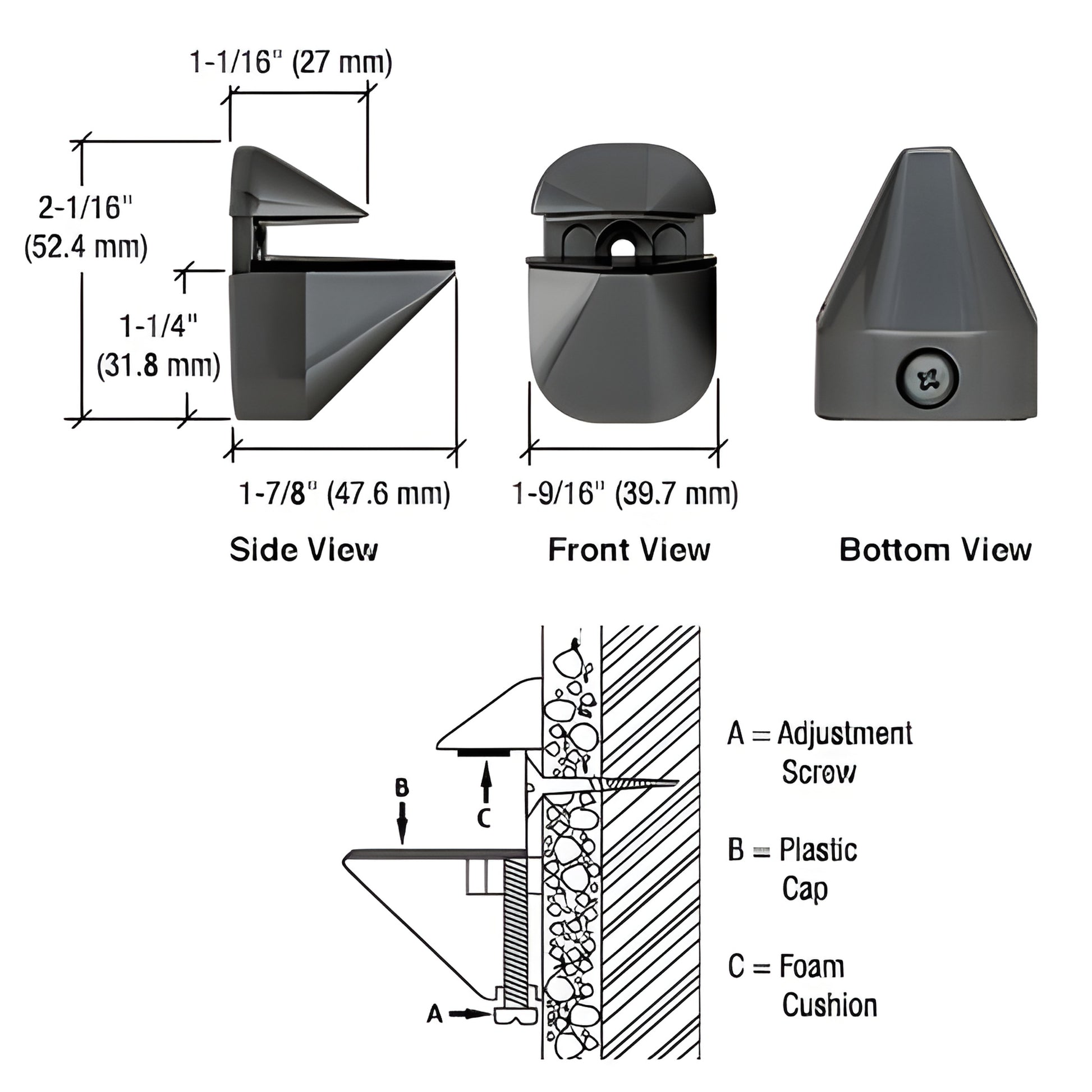

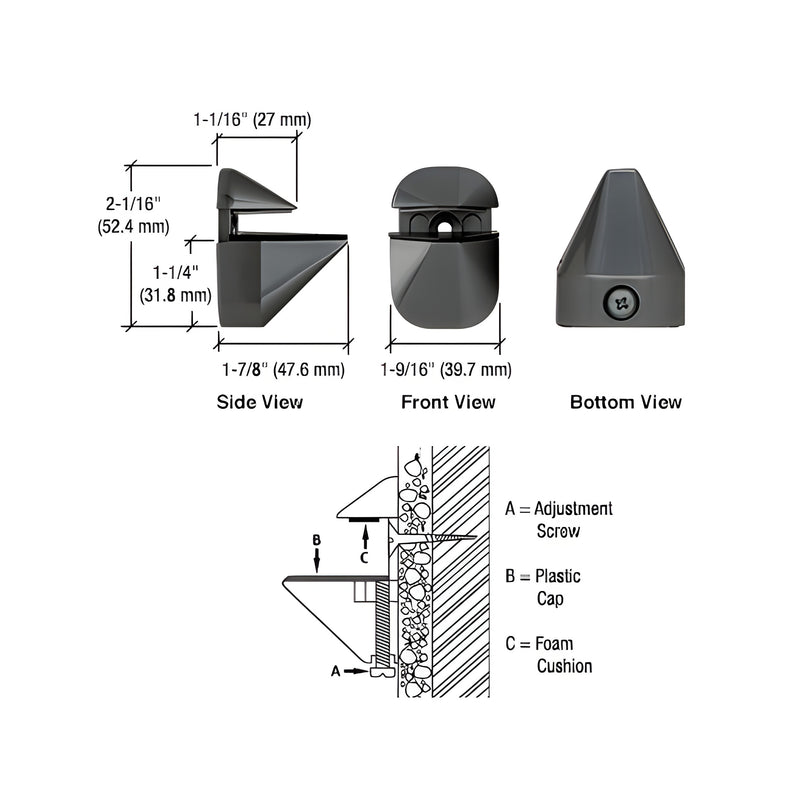

CRL Regular Size Adjustable Shelf Clamps (SKU: DL631BL) are zinc shelf clamps designed for glass and wood shelves 1/8" to 15/16" (3–24 mm) thick and up to 10" (254 mm) deep. These adjustable shelf supports require no glass fabrication and include an adjustment screw to fit varying glass thicknesses—ideal for adjustable glass shelf installation and decorative shelving projects.
The clamp secures to the substrate with the included mounting screw. Maximum recommended load per pair of DL631 Regular Clamps when correctly installed is 44 lbs. (20 kg).
NOTE: Maximum recommended weight for two each of DL661 Heavy-Duty Clamps correctly installed is 50 lbs. (23 kg).
SPECIFICATIONS:
Material: Zinc
Thickness Range: 1/8" to 15/16" (3 to 24 mm)
No Glass Fabrication Required
Includes: Adjusting Screw, Mounting Screw, Foam Gasket
Maximum Shelf Depth and Weight: 10" (254 mm), 44 lbs. (20 kg)
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your monitor settings.
Why choose DL631BL? Durable zinc construction, tool-friendly adjustment screw, and no-glass-fabrication installation make these clamps a reliable choice for glass shelf supports and interior shelving hardware.
