CRL Polished Brass Adjustable Glass Shelf Clamp
Item# DL631BR
Shipping Weight: 7.84 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.84 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Polished Brass
Glazing Thickness
1/8 To 15/16
Height
2-1/16
Material
Zinc
Maximum Shelf Depth
10
Pack Quantity
2
Weight Capacity
44
Width
1-9/16
- For Glass or Wood Shelves 1/8" to 15/16" (3 to 24 mm) Thick
- Work with Shelves Up to 10" (254 mm) Protrusion From Wall
- Use Monolithic Tempered Glass
CRL Regular Size Adjustable Shelf Clamps (SKU: DL631BR) fit 1/8" to 15/16" (3–24 mm) thick glass or wood shelves and support shelf protrusions up to 10" (254 mm). These zinc adjustable shelf clamps require no glass fabrication and are ideal as adjustable shelf supports for glass shelves or wood shelving in retail, residential, and display applications.

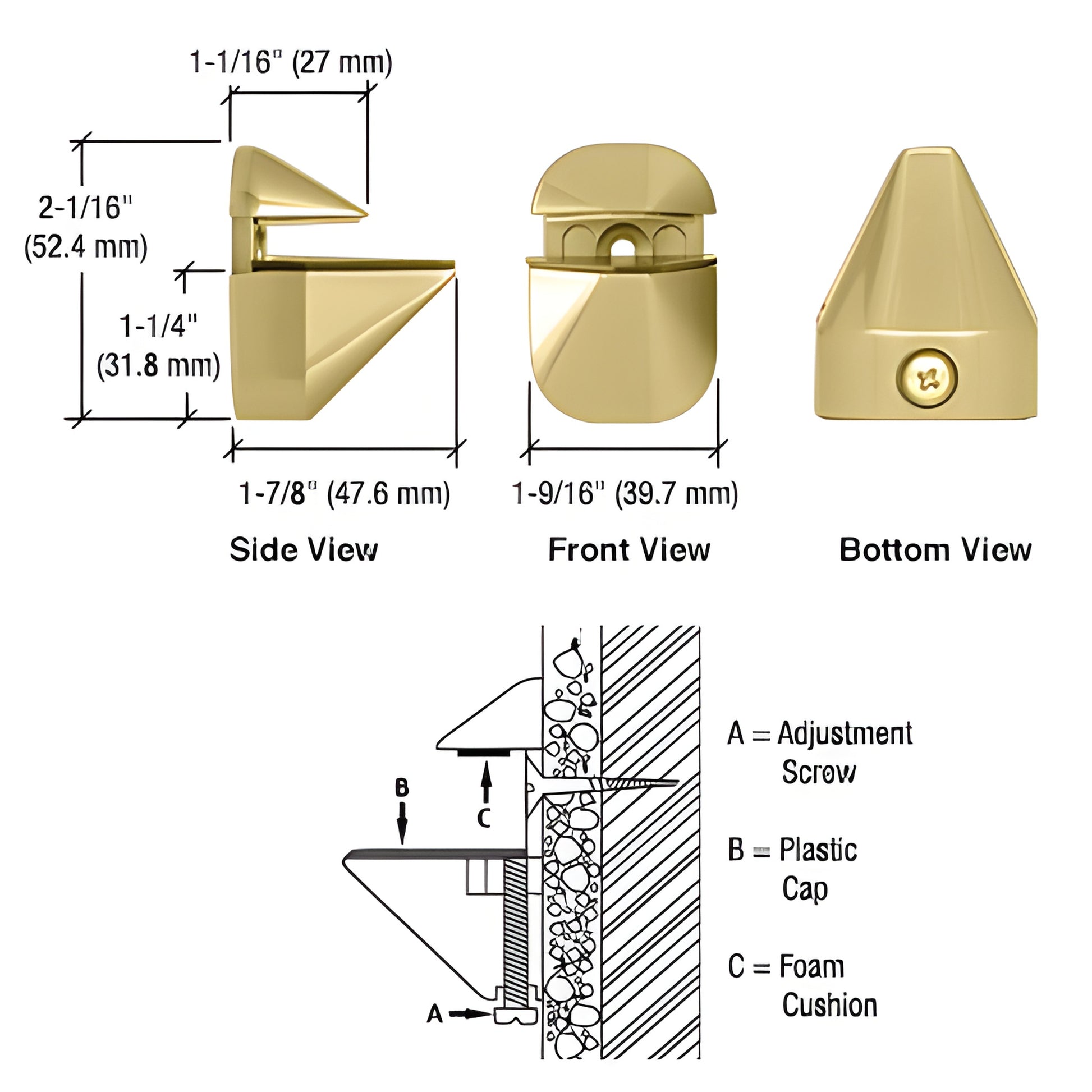

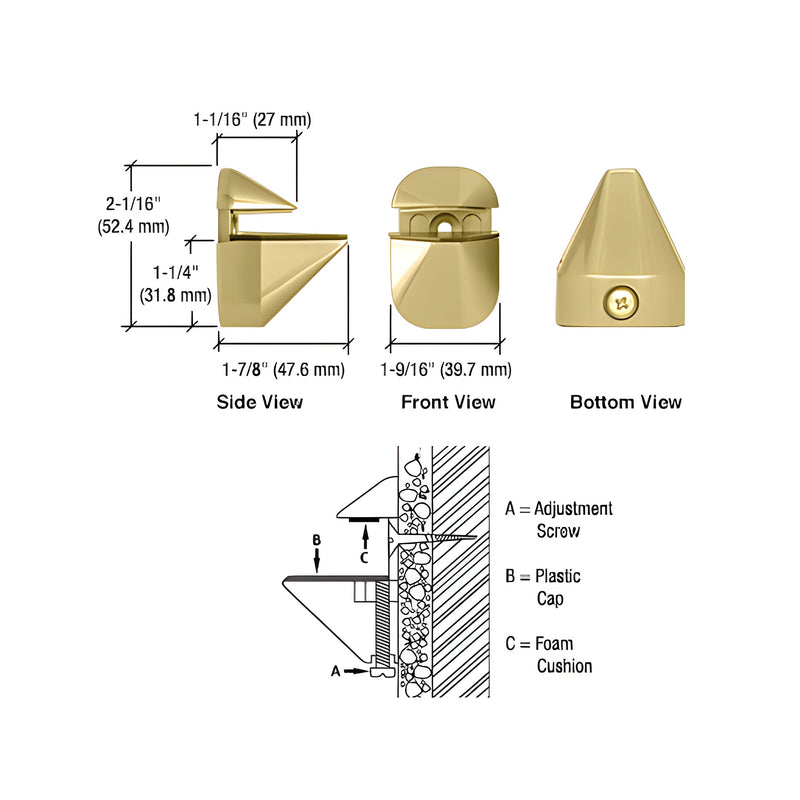

The clamp mounts to the substrate with a single mounting screw (included). An adjustment screw (included) accommodates varying glass thicknesses, and a foam gasket protects the shelf edge. Maximum recommended load for a correctly installed pair of DL631 Regular Clamps is 44 lbs (20 kg).
NOTE: Maximum recommended weight for two each of DL661 Heavy-Duty Clamps correctly installed is 50 pounds (23 kg).
SPECIFICATIONS:
Material: Zinc
Thickness Range: 1/8" to 15/16" (3 to 24 mm)
No Glass Fabrication Required
Includes: Adjusting Screw, Mounting Screw, Foam Gasket
Maximum Shelf Depth and Weight: 10" (254 mm), 44 lbs. (20 kg)
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may tarnish over time. For details, see the Brass Finish Disclaimer in the Technical References section below.
Order DL631BR zinc adjustable shelf clamps for reliable, no-fabrication shelf support — add to cart or contact CRL for bulk pricing and installation guidance.
