CRL
CRL Satin Chrome Adjustable Glass Shelf Clamp
CRL Satin Chrome Adjustable Glass Shelf Clamp
Regular price
$23.47 CAD
Regular price
Sale price
$23.47 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DL631SC
Shipping Weight: 6.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Chrome
Glazing Thickness
1/8 To 15/16
Height
2-1/16
Material
Zinc
Maximum Shelf Depth
10
Pack Quantity
2
Weight Capacity
44
Width
1-9/16
Overview
- For glass or wood shelves 1/8" to 15/16" (3 to 24 mm) thick
- Works with shelves up to 10" (254 mm) protrusion from wall
- Use with monolithic tempered glass

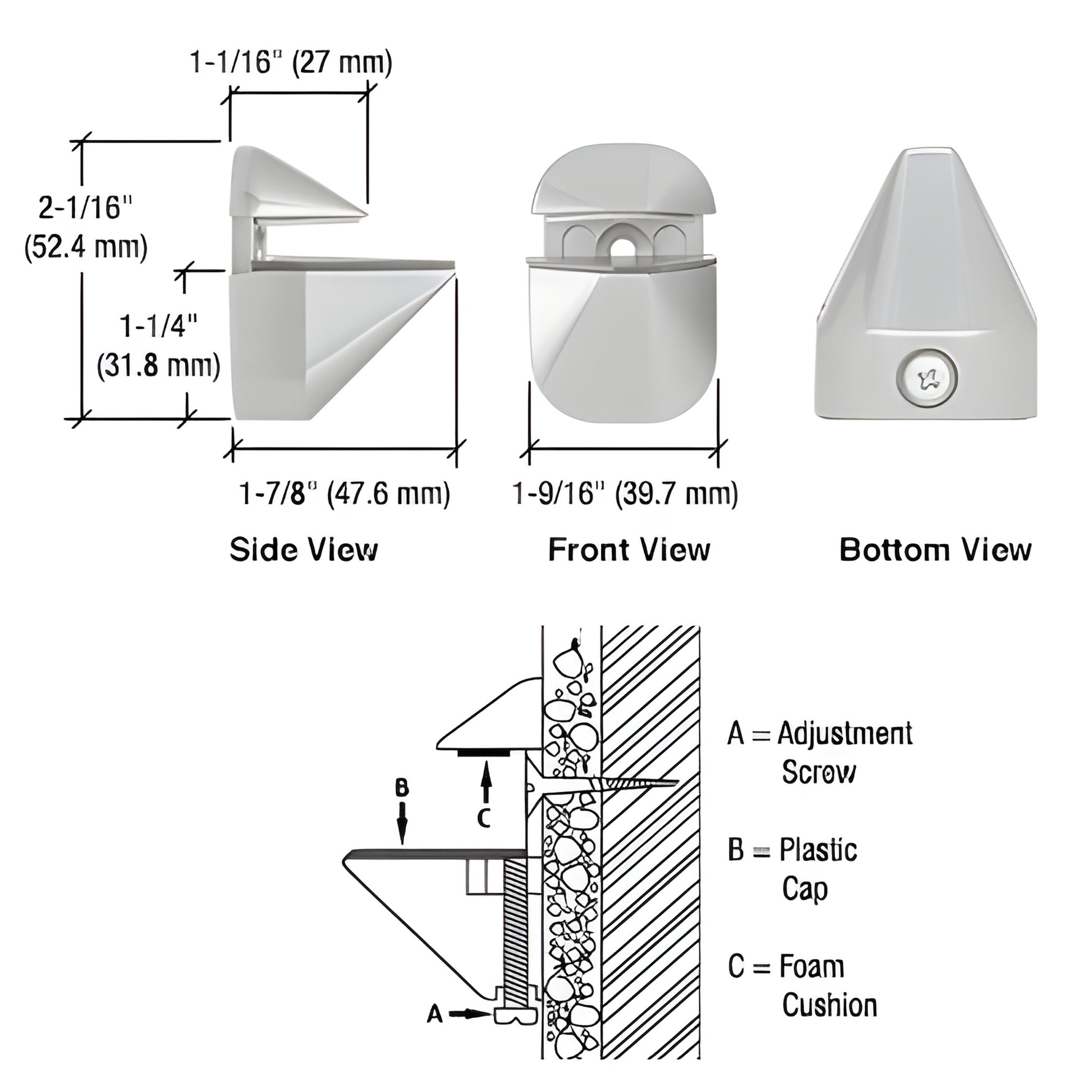

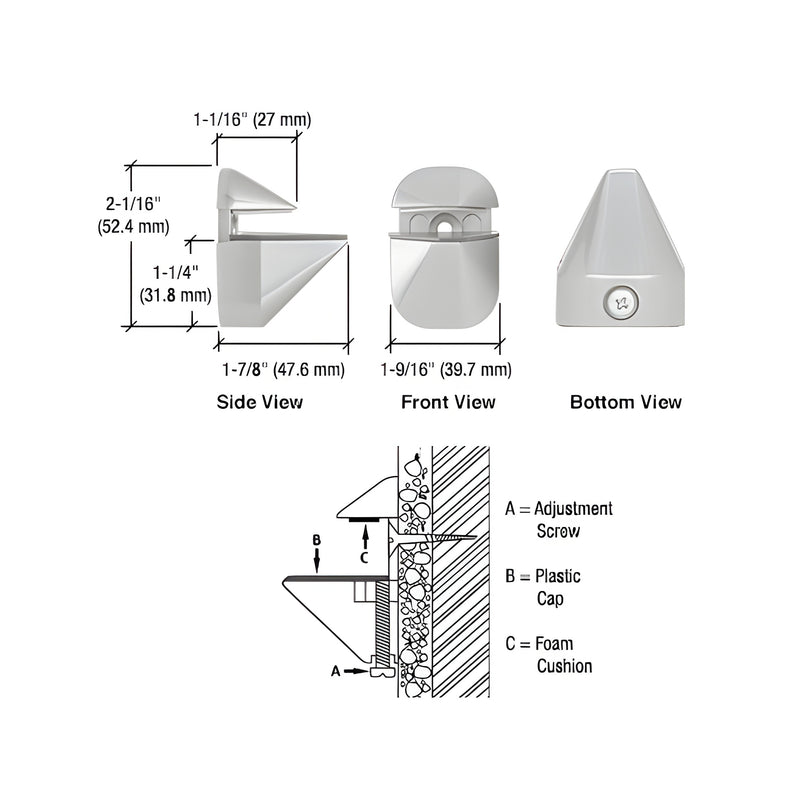

CRL Regular Size Adjustable Shelf Clamps (SKU: DL631SC) fit 1/8" to 15/16" (3 to 24 mm) thick glass or wood shelves and support shelf depths up to 10" (254 mm). Designed for easy installation on a variety of substrates, these zinc clamps require no glass fabrication and include an adjustment screw to accommodate varying shelf thicknesses.
The clamp secures to the substrate with a single mounting screw (included). When properly installed, a pair of DL631 regular clamps supports a maximum recommended weight of 44 lb (20 kg). These zinc adjustable shelf clamps are ideal for frameless glass shelving, retail displays, and residential glass shelving projects where a clean, hardware-minimal look is desired.
NOTE: Maximum recommended weight for two each of DL661 Heavy-Duty Clamps correctly installed is 50 lb (23 kg).
SPECIFICATIONS:
Material: Zinc
Thickness Range: 1/8" to 15/16" (3 to 24 mm)
No glass fabrication required
Includes: Adjusting screw, mounting screw, foam gasket
Maximum Shelf Depth and Weight: 10" (254 mm), 44 lb (20 kg)
