CRL

CRL Polished Chrome Adjustable Glass Shelf Clamp

CRL Polished Chrome Adjustable Glass Shelf Clamp

$23.47 CAD
$23.47 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DL631CH
Shipping Weight: 7.84 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Polished Chrome
Glazing Thickness
1/8 To 15/16
Height
2-1/16
Material
Zinc
Maximum Shelf Depth
10
Pack Quantity
2
Weight Capacity
44
Width
1-9/16

Overview

  • Fits glass or wood shelves 1/8" to 15/16" (3 to 24 mm) thick
  • Supports shelves up to 10" (254 mm) projection from wall
  • Compatible with monolithic tempered glass

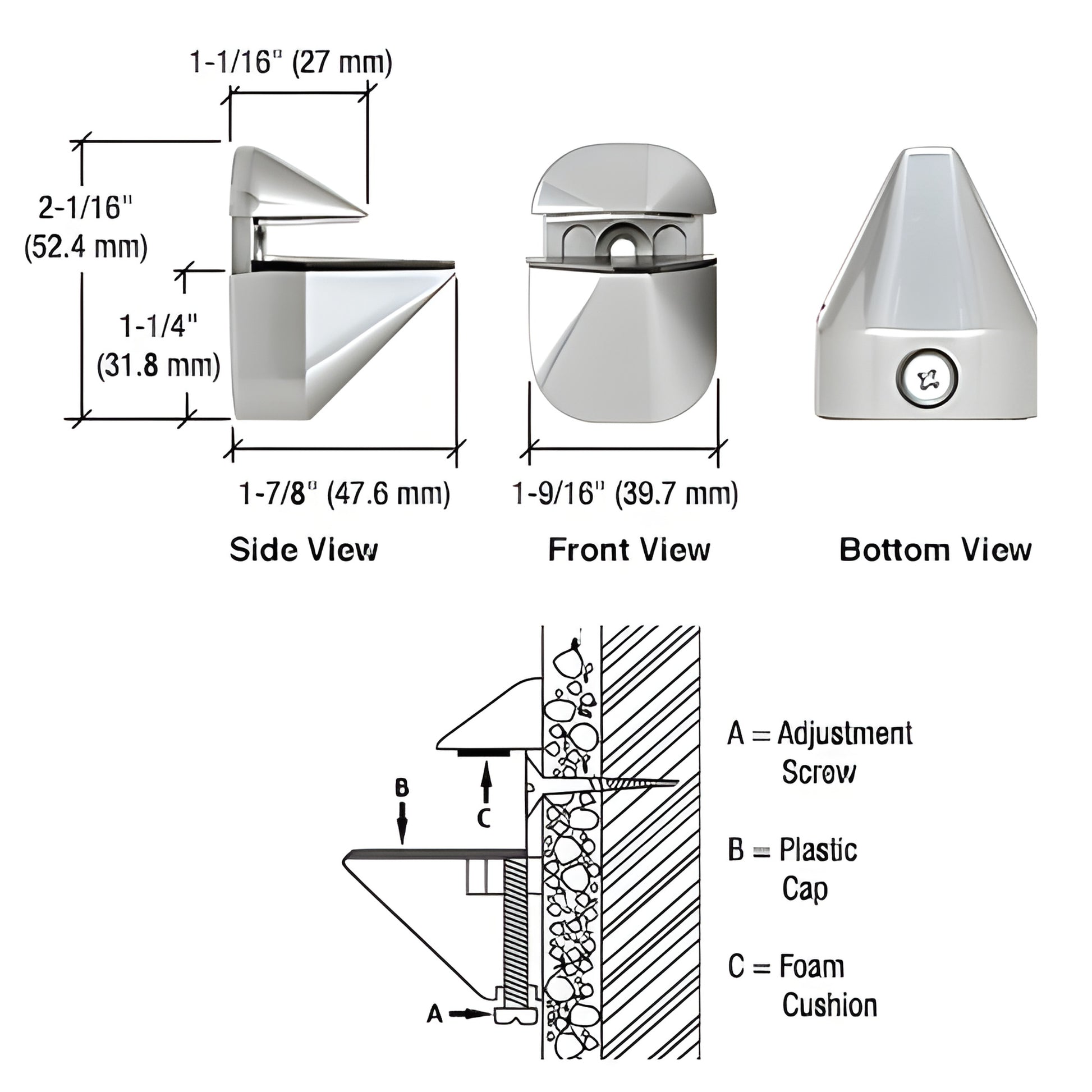

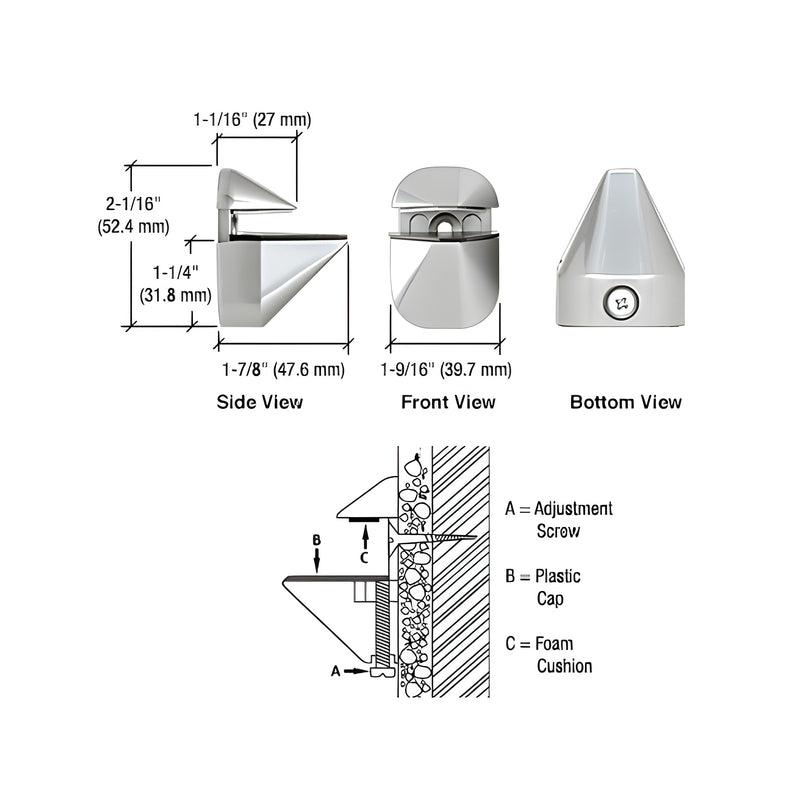

CRL Regular Size Adjustable Shelf Clamps (SKU: DL631CH) secure 1/8"–15/16" (3–24 mm) glass or wood shelves up to 10" (254 mm) deep. Designed for easy installation, each clamp fastens to the substrate with the included mounting screw and uses the supplied adjustment screw to accommodate varying shelf thicknesses. No glass fabrication required—ideal shelf support hardware for tempered glass and wood shelving.

Maximum recommended weight per pair of DL631 Regular Clamps when correctly installed is 44 lbs (20 kg).

NOTE: Maximum recommended weight for two each of DL661 Heavy-Duty Clamps correctly installed is 50 lbs (23 kg).

SPECIFICATIONS:
Material: Zinc
Thickness Range: 1/8" to 15/16" (3 to 24 mm)
No glass fabrication required
Includes: Adjusting screw, mounting screw, foam gasket
Maximum Shelf Depth and Weight: 10" (254 mm), 44 lbs (20 kg)

Most shipping weights are approximate and have not been verified. If exact weight is required for shipping cost calculations, request it before placing your order by contacting CRL Customer Service. Product images show the actual product or a close representation; colors may vary by monitor.



Buy DL631CH adjustable shelf clamps now to upgrade your glass or wood shelving with durable, no-fabrication hardware.
