CRL White Adjustable Clamp for Glass Shelves
CRL White Adjustable Clamp for Glass Shelves
Regular price
$24.86 CAD
Regular price
Sale price
$24.86 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DL631W
Shipping Weight: 6.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Gloss White
Glazing Thickness
1/8 To 15/16
Height
2-1/16
Material
Zinc
Maximum Shelf Depth
10
Pack Quantity
2
Weight Capacity
44
Width
1-9/16
Overview
- For glass or wood shelves 1/8" to 15/16" (3 to 24 mm) thick
- Works with shelves up to 10" (254 mm) protrusion from wall
- Use with monolithic tempered glass; no glass fabrication required

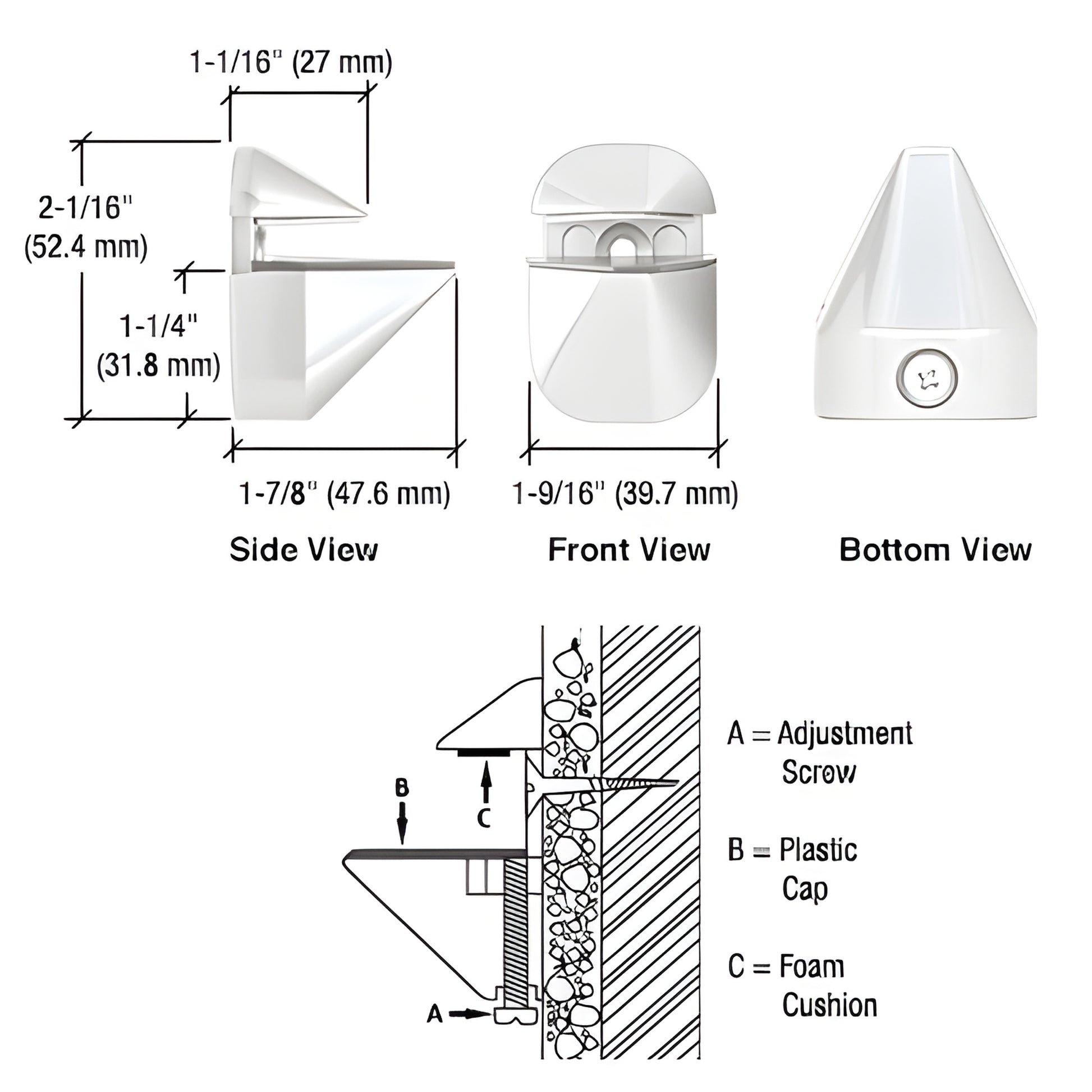

CRL Regular Size Adjustable Shelf Clamps (SKU: DL631W) secure 1/8" to 15/16" (3 to 24 mm) thick glass or wood shelves up to 10" (254 mm) deep. Ideal as adjustable shelf supports for glass shelves and zinc shelf clamps for frameless glass installations.
The clamp mounts to the substrate with one included mounting screw; an included adjustment screw accommodates varying shelf thicknesses. Maximum recommended load per pair of DL631 Regular Clamps when correctly installed is 44 lbs. (20 kg).
NOTE: Maximum recommended weight for two each of DL661 Heavy-Duty Clamps correctly installed is 50 lbs. (23 kg).
SPECIFICATIONS:
Material: Zinc
Thickness Range: 1/8" to 15/16" (3 to 24 mm)
No glass fabrication required
Includes: Adjusting screw, mounting screw, foam gasket
Maximum Shelf Depth and Weight: 10" (254 mm), 44 lbs. (20 kg)
Order DL631W adjustable shelf clamps for a simple, no-fabrication solution to secure glass or wood shelving—add to cart now.
