CRL Black Bronze Anodized 6x10 Right-Hand Center Push Button Lock

• Requires No Electrical Connections
• Complies with A.D.A. Standards
• Five Finishes Available
• Use Monolithic Tempered Glass

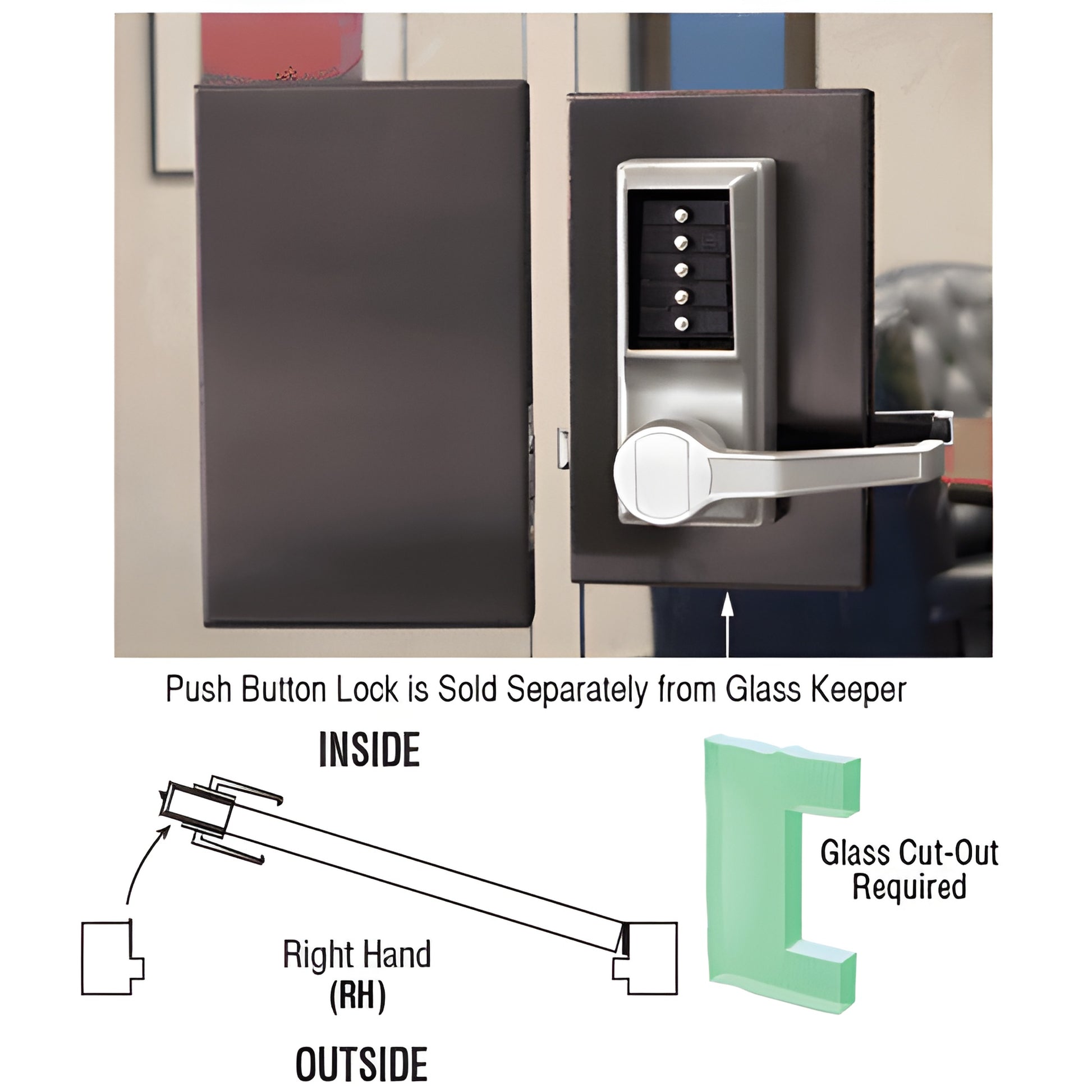

CRL 6" x 10" Center Locks with Deadlatch (SKU: DL610RCDU) provide versatile lock functions and high security for 1/2" (12 mm) monolithic tempered glass doors. Available in five finishes and offered left- or right-handed, these center locks install with a simple glass cut-out—no cement or silicone required—making them ideal for commercial glass door applications. Long-tail keywords: CRL 6x10 center lock deadlatch for glass doors, 1/2 inch tempered glass center lock, ADA-compliant glass door lock.

Office Lock Function: Latchbolt operated by lever on either side (outside lever can be locked by rocker in faceplate) or by key outside. Auxiliary latchbolt deadlocks the main latchbolt to prevent jimmying. Inside lever always retracts mechanism for egress.

Entrance Lock: Latchbolt operated by lever on either side (except when deadbolt is projected). Deadbolt operated by key outside and thumbturn inside. Inside lever retracts both latch and deadbolt for exit.

Passage Lock: Latchbolt operated by lever on either side. Inside lever always permits exiting.

Storeroom Lock: Latchbolt operated by inside lever and by key outside; outside lever is fixed. Auxiliary latchbolt deadlocks main latchbolt to prevent jimmying. Commonly used with electric strikes for secure access control.

Classroom Lock: Latchbolt operated by lever either side except when outside lever is locked by key. Key operates latch and unlocks outside lever. Inside lever always permits egress.

Product Warning:
Black bronze cover plate with satin anodized lock and lever.

Choose the CRL DL610RCDU center lock for secure, easy-to-install, ADA-compliant hardware for 1/2" tempered glass doors. Order now to match your finish and handing.
