CRL Satin Anodized 6x10 Right-Hand Center Push Button Lock w/ Housing

• Requires No Electrical Connections
• Complies with A.D.A. Standards
• Five Finishes Available
• Use Monolithic Tempered Glass

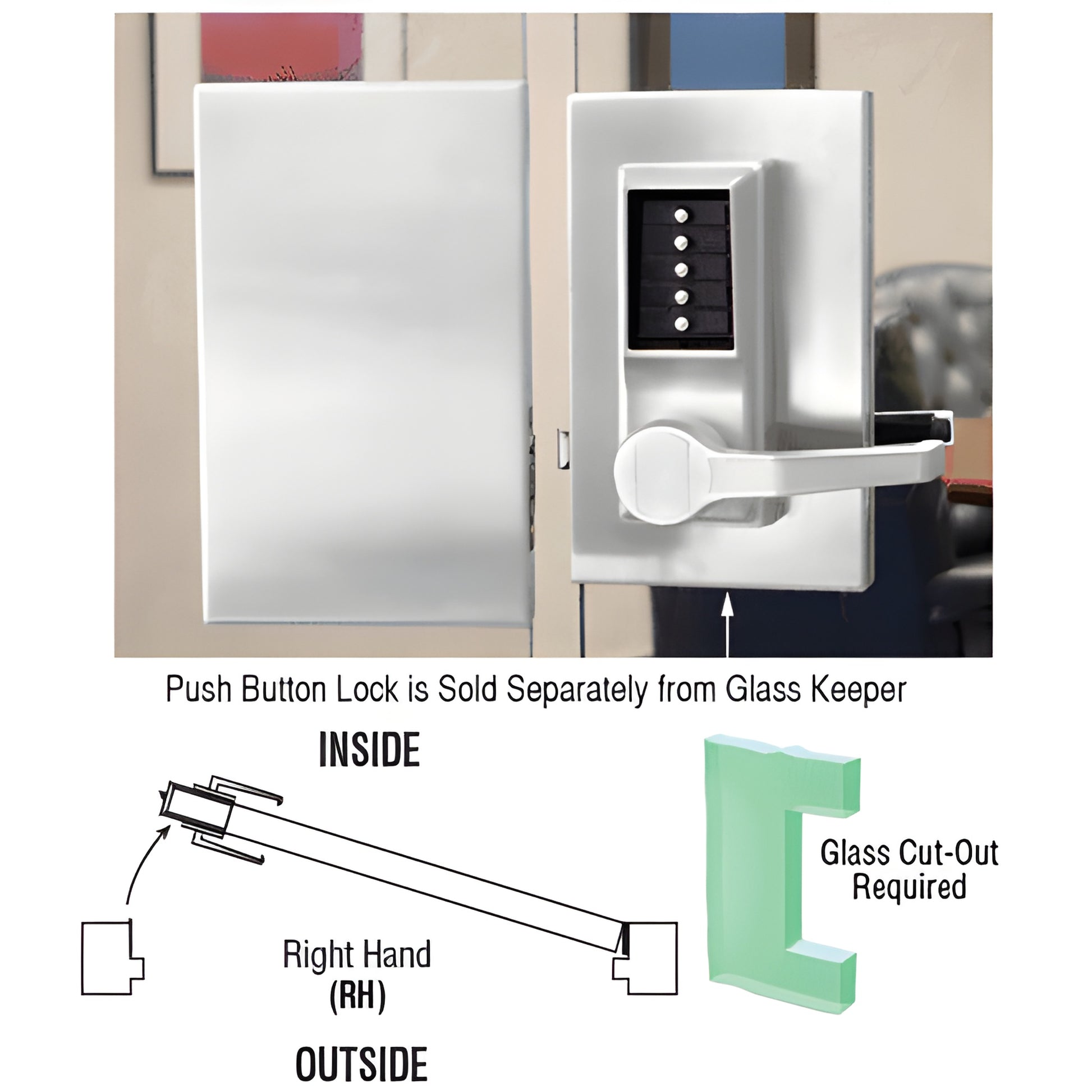

CRL 6" x 10" Center Locks with Deadlatch (SKU: DL610RCSC) offer versatile lock functions and enhanced security for 1/2" (12 mm) heavy glass doors. Available in five finishes and left- or right-handed versions, these center locks require only a simple glass cut-out for installation—no cement or silicone—and are compatible with monolithic tempered glass. Ideal for commercial glass door applications where ADA compliance and easy, non-electrical installation are required.

Office Lock Function: Latchbolt is operated by lever on either side (unless the outside lever is locked by the faceplate rocker) or by key outside. An auxiliary latchbolt deadlocks the main latchbolt to help prevent jimmying. Turning the inside lever always retracts the locking mechanism to allow exiting.

Entrance Lock: Latchbolt operates by lever on either side (except when the deadbolt is projected). Deadbolt operates by key outside and thumbturn inside. Turning the inside lever retracts both latch and deadbolt simultaneously for egress.

Passage Lock: Latchbolt operated by lever on either side. Inside lever always retracts the locking mechanism for egress.

Storeroom Lock: Latchbolt operated by inside lever and by key outside; outside lever is fixed. An auxiliary latchbolt deadlocks the main latchbolt to deter jimmying. Turning the inside lever always retracts the locking mechanism. Commonly used with electric strikes.

Classroom Lock: Latchbolt operated by lever on either side except when the outside lever is locked by key. Key operates latch and unlocks outside lever; inside lever is always operable for egress.

For pricing, finish options, or to order DL610RCSC
