CRL Left-Hand Black Bronze Anodized Bottom Glass Door Patch Fitting
Item# PH10ELDU
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Finish/Color
Black Bronze Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Handing
Left Hand
Insert Type
1NT305L
Pivot Setback
2-3/4
Series
North American
Type
Bottom
With Insert
Yes
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
- 2-3/4" (70 mm) pivot setback for commercial glass doors
- Designed for Herculite™+ style doors
SKU: PH10ELDU
For Use With:
- 3/8" or 1/2" (10 or 12 mm) tempered glass
- Glass fabrication required: one 3/4" (19 mm) diameter hole and corner notch
- Template available at crlaurence.com

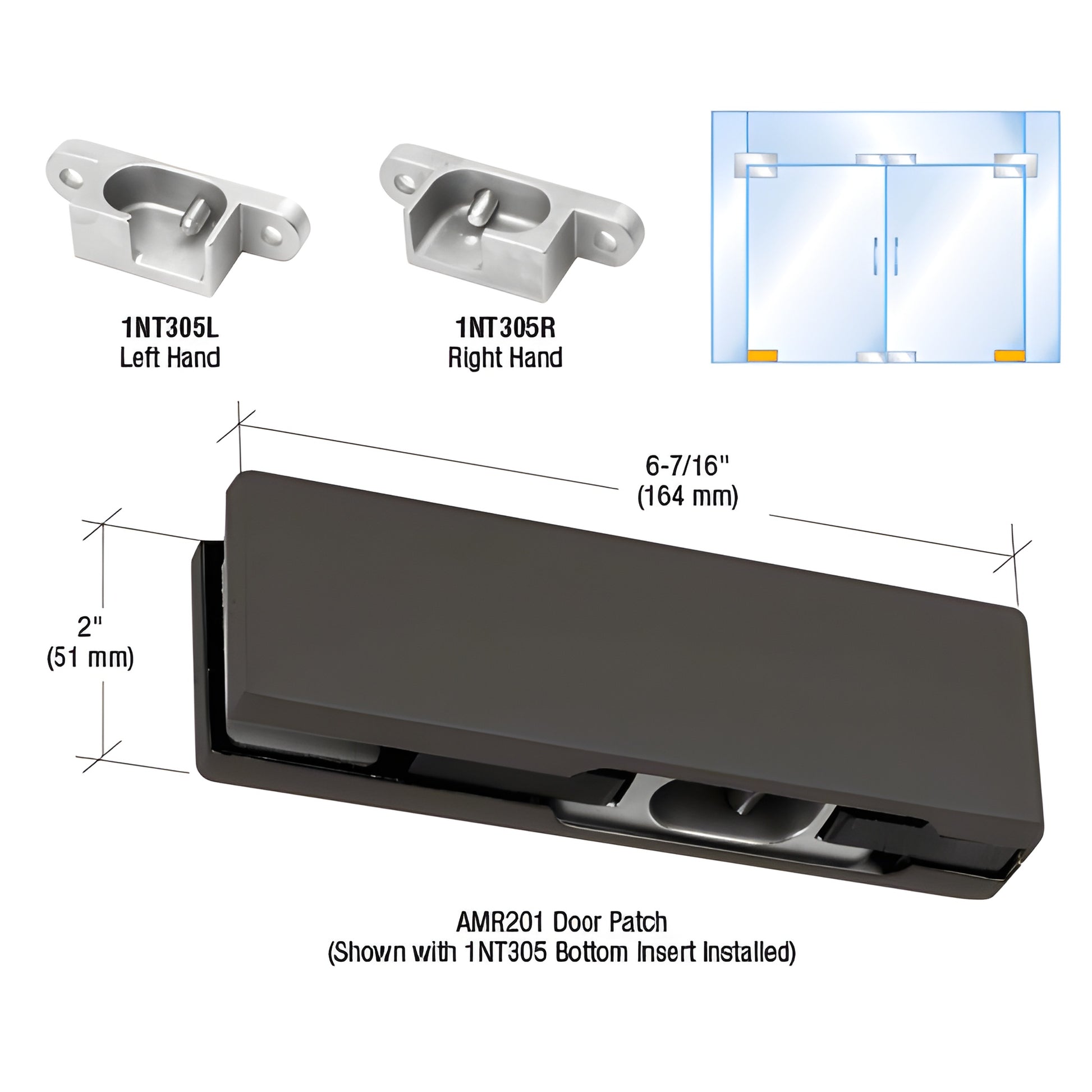

Includes:
- 1 each AMR201 door patch
- 1 each 1NT305L and 1NT305R bottom door patch
- Insert gaskets for 3/8" or 1/2" (10 or 12 mm) glass
Product Warning:
For maximum door size when using this product, CRL follows GANA Guidelines.
Most shipping weights are approximate and may not be verified. If exact weight is required to determine shipping costs before ordering, contact CRL Customer Service. Product images are actual or close representations; colors may vary by monitor settings.
Durable pivot hardware engineered for tempered glass storefront and interior glass doors—order PH10ELDU now to ensure proper glass fabrication and fast installation.
CAD Drawings - dwg
