CRL
CRL Brushed Stainless Steel Left-Hand Bottom Glass Door Patch Fitting
Item# PH10ELBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Handing
Left Hand
Insert Type
1NT305L
Pivot Setback
2-3/4
Series
North American
Type
Bottom
With Insert
Yes
- For 3/8" or 1/2" (10 or 12 mm) tempered glass
- 2-3/4" (70 mm) pivot setback for smooth door swing
- Designed for Herculite™+ style doors—commercial glass door patch kit
For Use With:
- 3/8" or 1/2" (10 or 12 mm) tempered glass
- Glass fabrication required: one 3/4" (19 mm) diameter hole and corner notch
- Template available at crlaurence.com

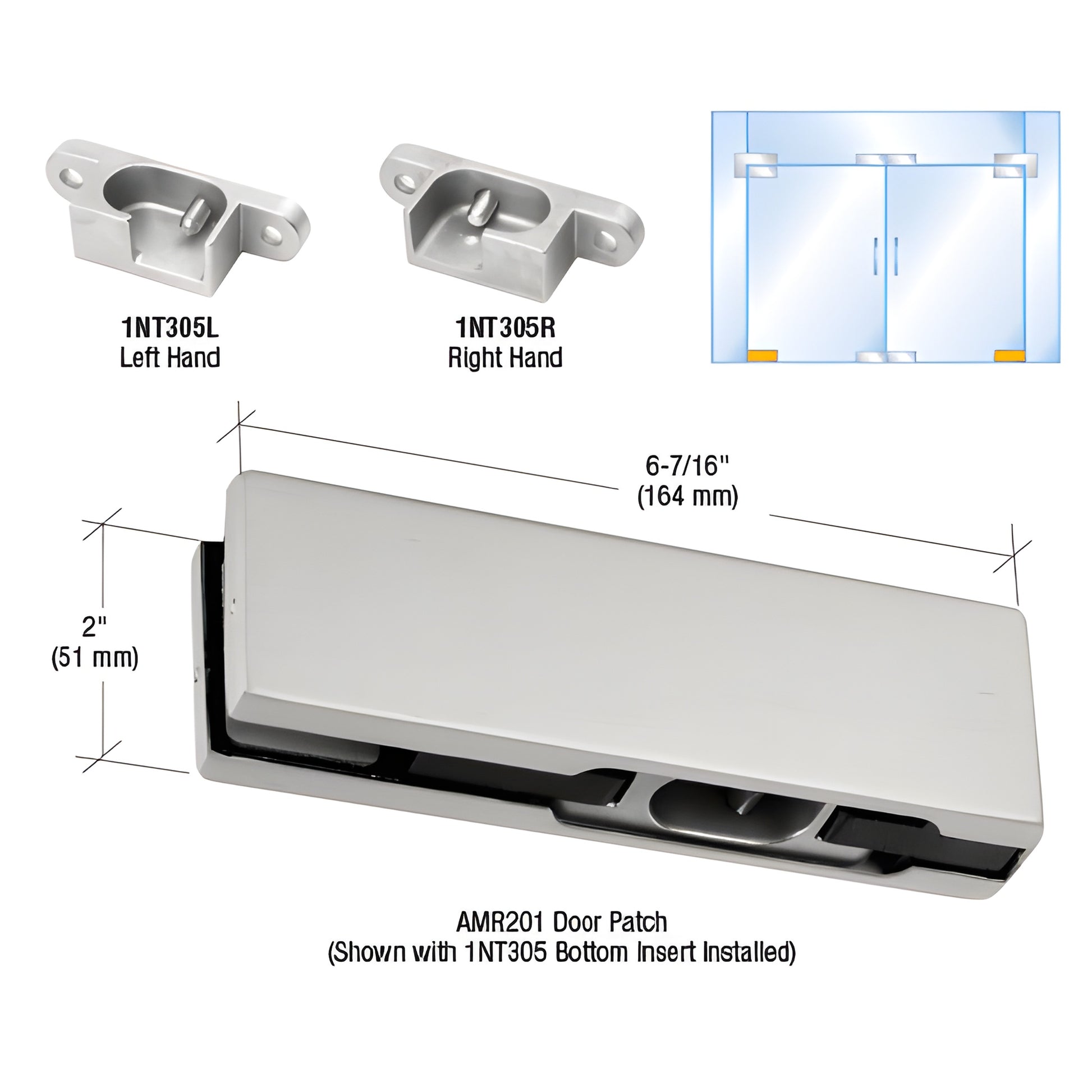

Includes:
- 1 AMR201 door patch
- 1 NT305L and 1 NT305R bottom door patch
- Insert gaskets for 3/8" or 1/2" (10 or 12 mm) glass
Product Warning:
For maximum door size when using this product, CRL follows GANA Guidelines.
Most shipping weights are approximate and have not been verified. If exact weight (for shipping calculation) is required, contact CRL Customer Service prior to ordering. Product images are actual or close representations; colors may vary by monitor.
Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
SKU: PH10ELBS
Why choose this patch kit: Optimized for Herculite™+ commercial glass doors, accommodates both 3/8" and 1/2" tempered glass, and includes all necessary patches and gaskets for installation—ideal for storefront and interior glass door projects.
View template & installation details at CRL or contact Customer Service to order this PH10ELBS patch kit today.
CAD Drawings - dwg
