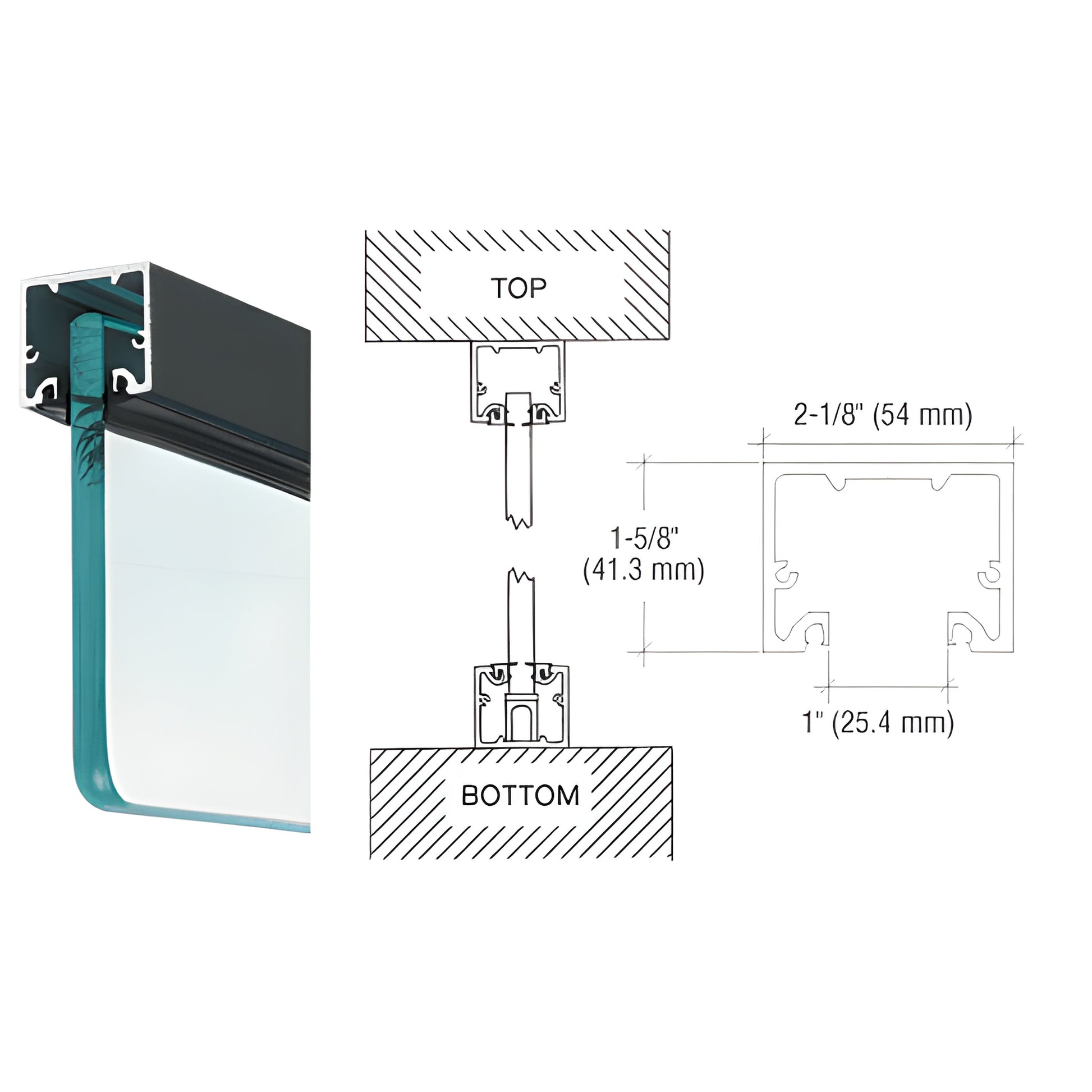

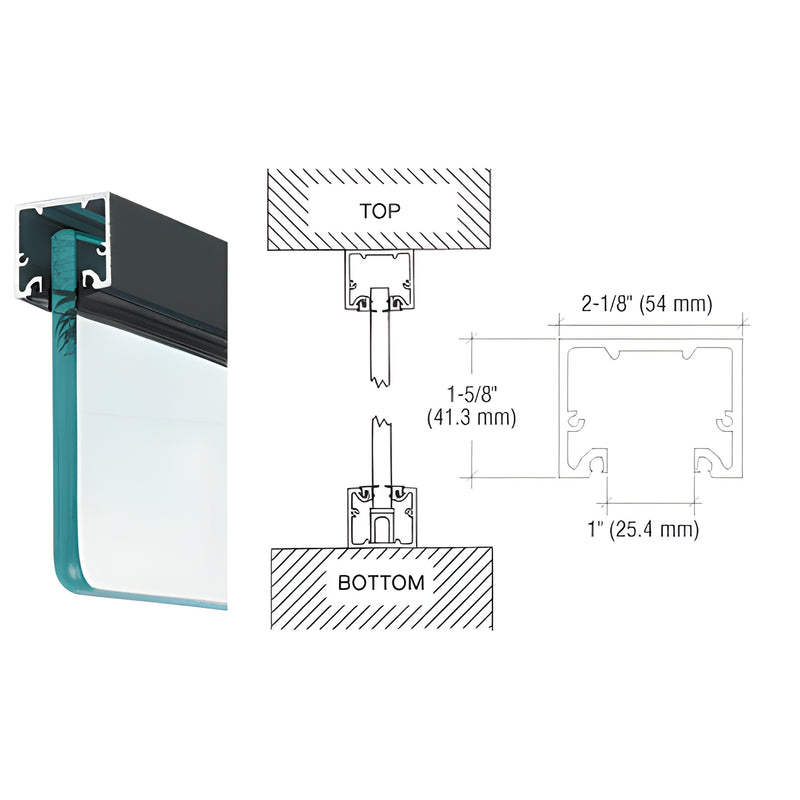

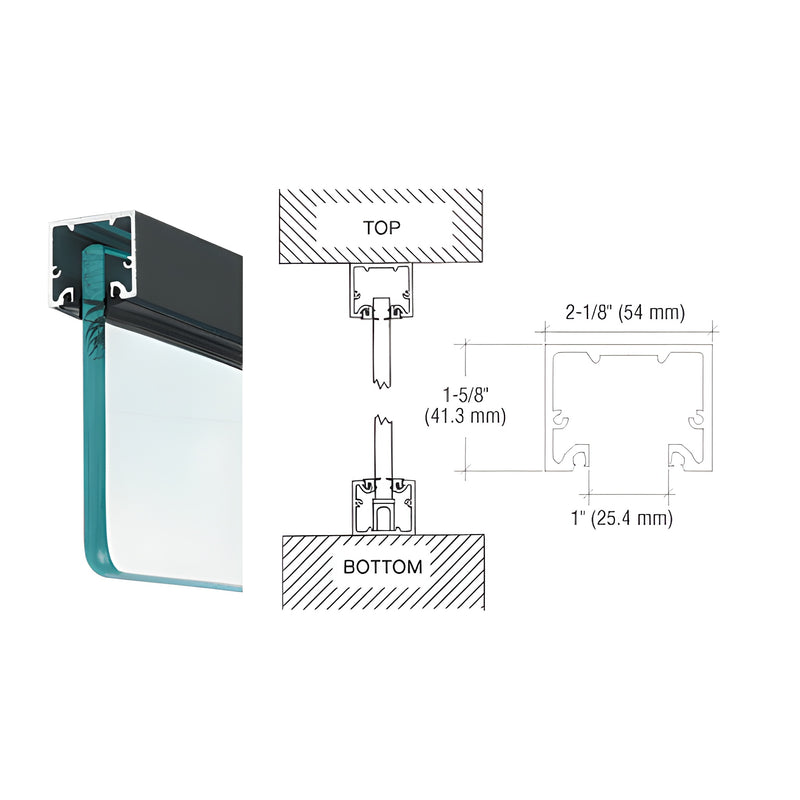

CRL Black Powder-Coat U-Channel w/ Top-Load Gasket 3/4in Glass 120in

• Matches width of door and sidelite rails and channels for 3/8" or 1/2" (10 or 12 mm) and 5/8" or 3/4" (16 and 19 mm) glass
• Designed for monolithic tempered glass
• Accepts roll-in glazing gasket, top pivot block, and snap-in filler strip
• Ready-to-ship Quick Pick models from CRL inventory
• Available in stock lengths, fabricated headers, or header with side pockets for "lift and drop" panel installation

This aluminum extrusion (SKU NH3BLSL) was developed for three primary uses in commercial glass door systems:

(1) As an aluminum U-channel that matches the width of CRL sidelite rails and door rails;

(2) As a narrow header, equal in width to our sidelite and door rails, capable of accepting a top free-swinging pivot to secure the top of the doors;

(3) As an even sight line system: secure the fabricated narrow header to the opening, then attach the sidelite rail to the narrow header using the 1/4" (6 mm) header saddle for a consistent sight line. All drilling, tapping, and fabrication can be completed at manufacture on request to save installation time.

Quick Pick policy: these items are stocked in our centralized service center and ship on the next weekly re-supply truck to your regional CRL service center. If your regional center is out of stock, your order is typically filled within a few days.

Check real-time inventory by clicking the "CHECK STOCK AVAILABILITY" box above.

Order SKU NH3BLSL for a versatile aluminum U-channel / narrow header solution—check stock and ship options to get it fast.
