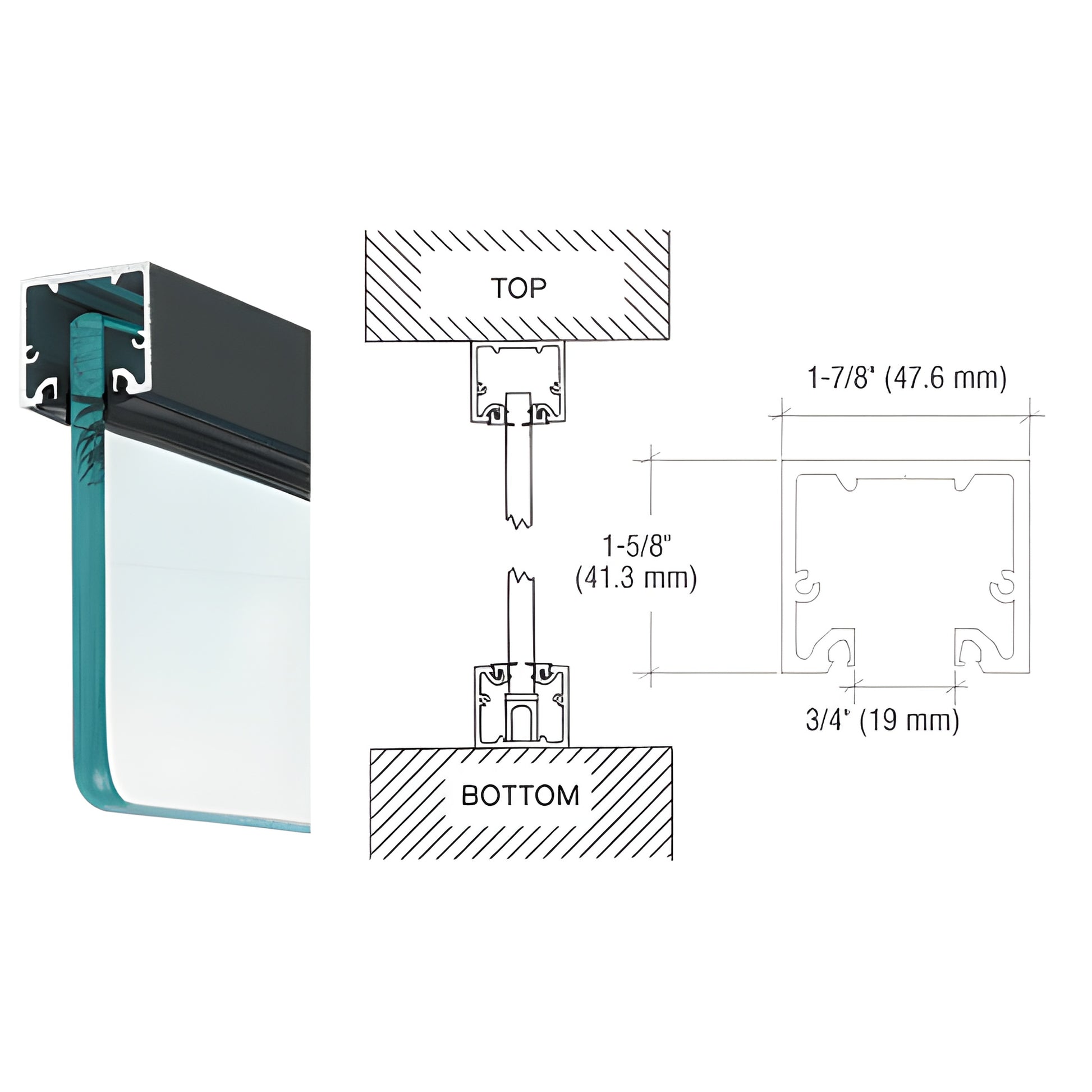

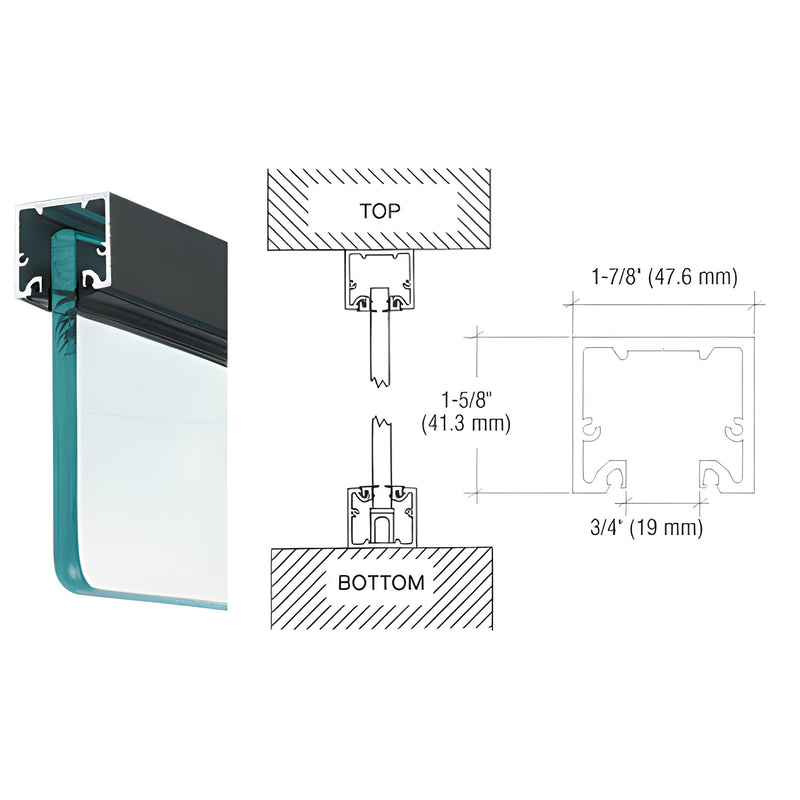

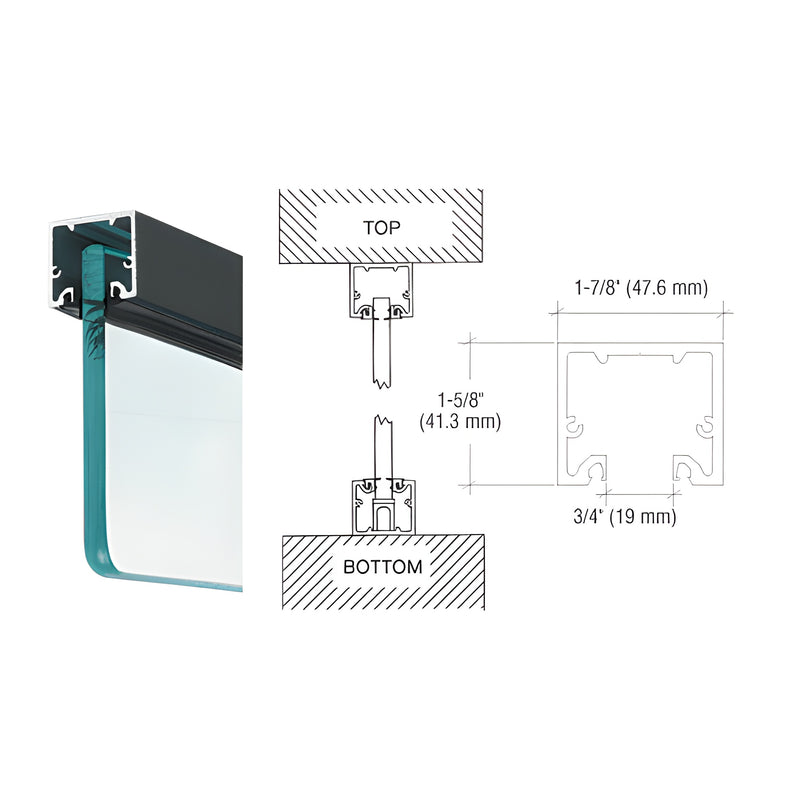

CRL Black Powder-Coat U-Channel w/ Top-Load Gasket 20 ft (3/8-1/2")

• Channels for 3/8" or 1/2" (10 or 12 mm) and 5/8" or 3/4" (16 and 19 mm) glass
• Matches the width of door and sidelite rails for consistent sight line
• Designed for monolithic tempered glass
• Accepts roll-in glazing gasket, top pivot block, and snap-in filler strip
• Ready-to-ship models from CRL inventory (SKU NH2BL240)
• Available in stock lengths, fabricated headers, or headers with side pockets for “lift and drop” panel installation

This aluminum extrusion is engineered for three core uses:
(1) as a U-channel matching CRL sidelite and door rails;
(2) as a narrow header that accepts a top free-swinging pivot to secure the top of doors;
(3) as an even sight line system—install the fabricated narrow header, then secure the sidelite rail to the header using the 1/4" (6 mm) header saddle.

All drilling, tapping, and fabrication can be completed at manufacture to save installation time. As a Quick Pick product, NH2BL240 is stocked at our centralized service center and ships on the next weekly re-supply truck to your regional CRL service center—if your regional center is out of stock, your order can be filled in just a few days. Check current availability by clicking the "CHECK STOCK AVAILABILITY" box above.

Order NH2BL240 today for fast shipping and consistent aluminum glazing profiles—contact CRL for fabrication options or to check stock.
