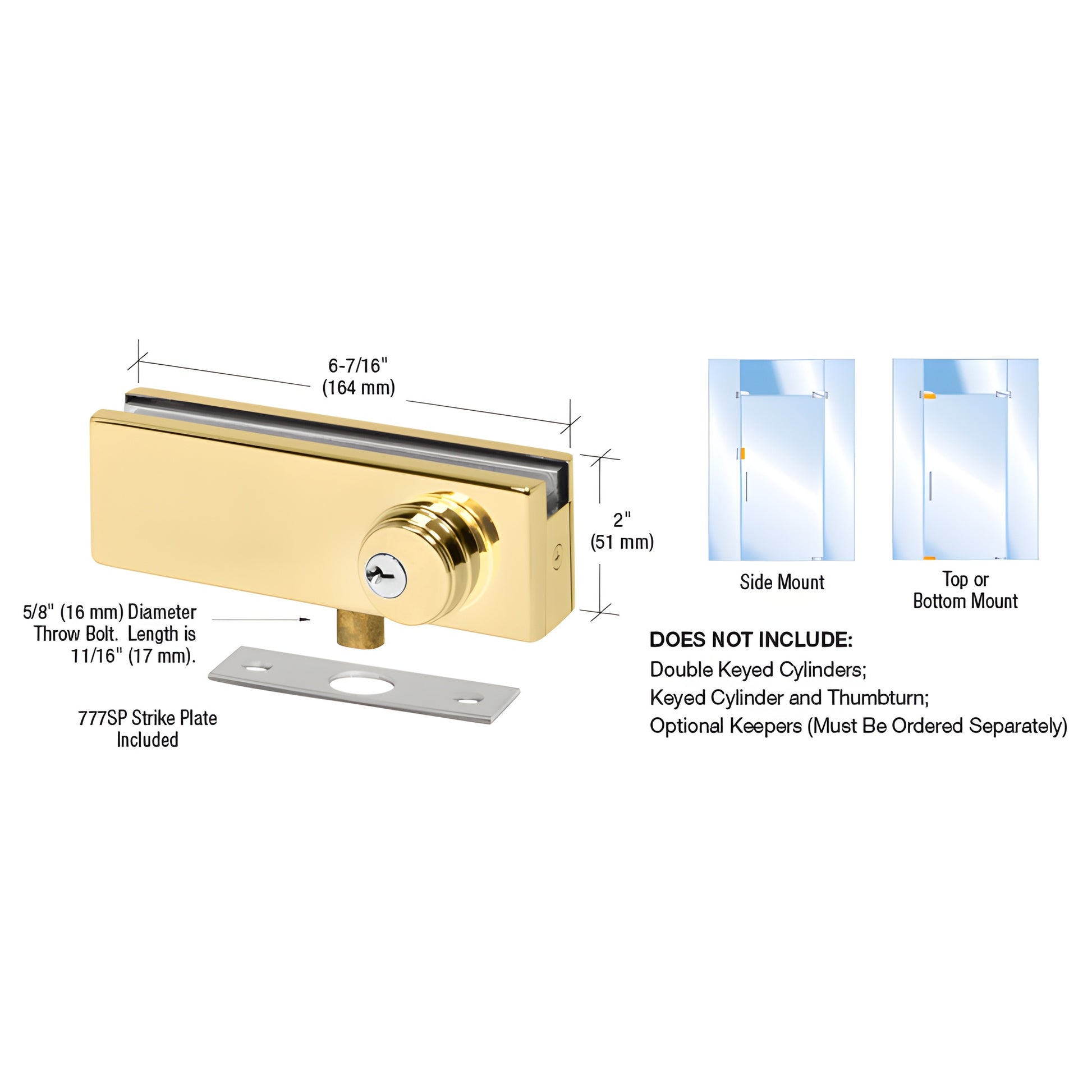

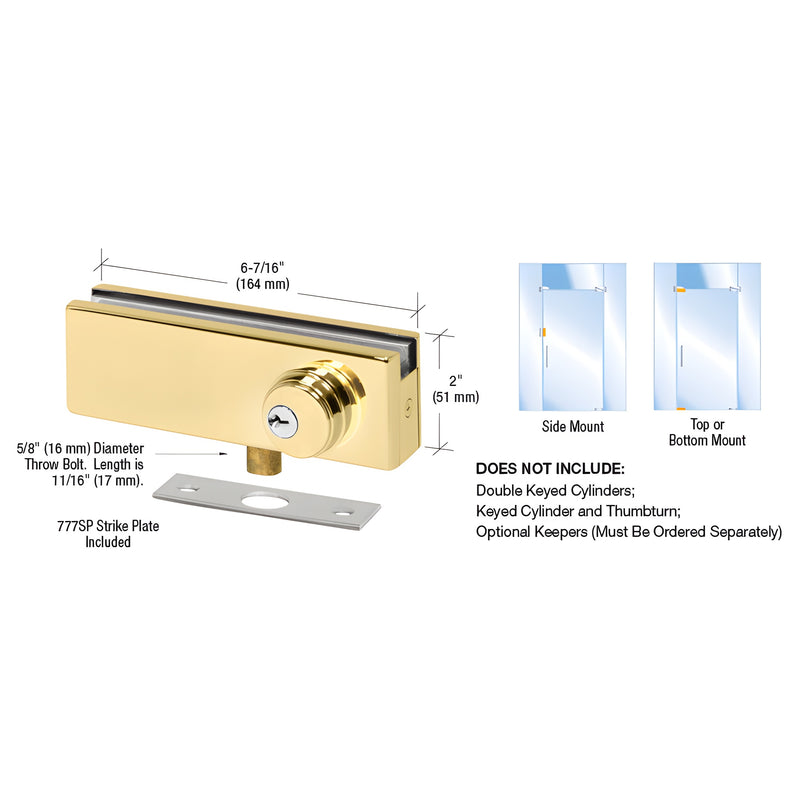

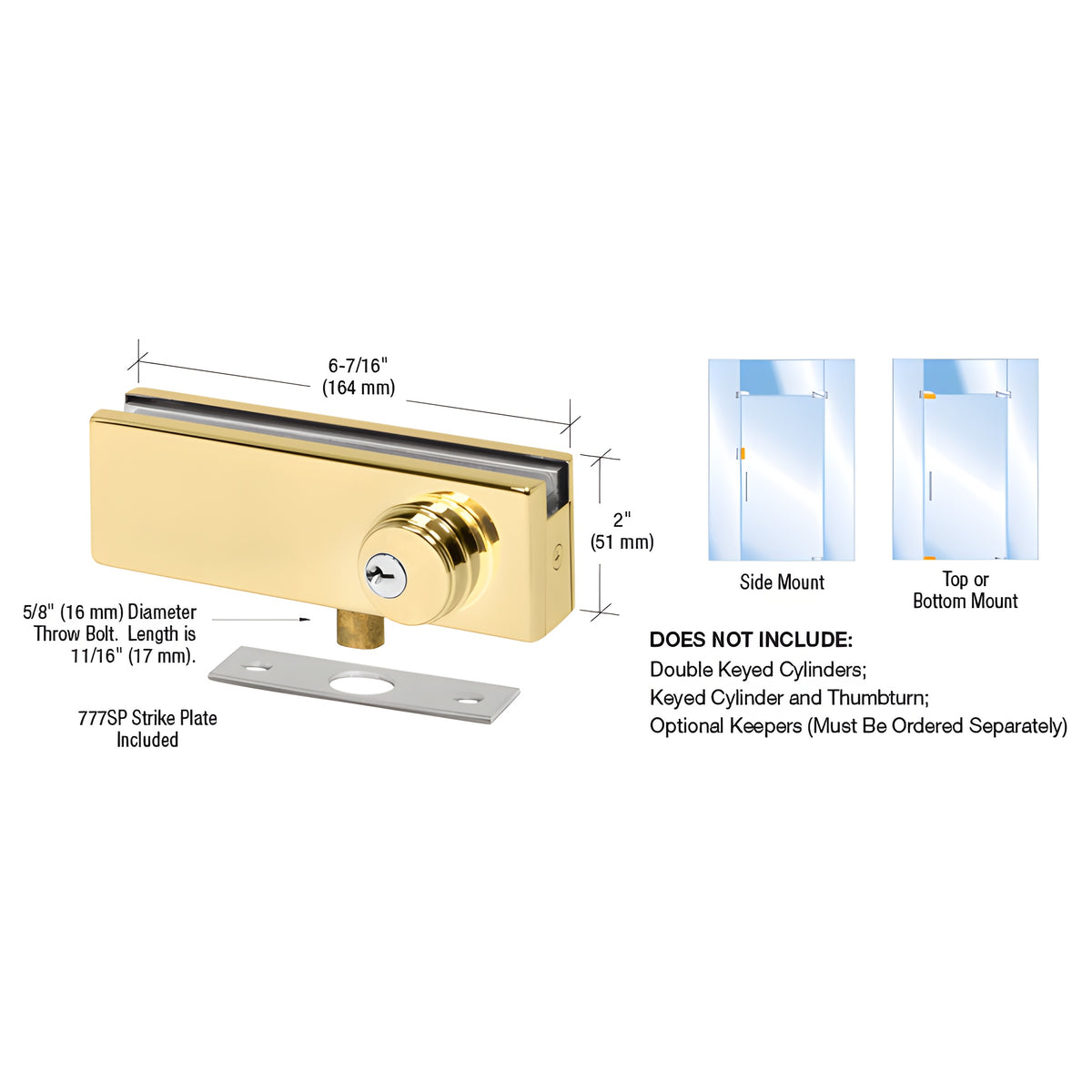

CRL AMR Series Brass Patch Lock for Frameless Glass Doors

• High Density Cast Body with Lock Mechanism
• Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
• Five Architectural Finishes

The CRL American Style Patch Lock (SKU: AMR205BR) is a versatile patch lock for glass doors and glass panels. Mount top, bottom, or on the vertical edge and secure to a jamb using the supplied Keeper. For sidelite or panel installations use the AMR206 Sidelite Mount Keeper. Optional keepers such as AMR207 and AMR208 are available to accommodate most commercial and architectural glass door installations.


NOTE: Lock cylinders are not included and must be ordered separately.

Optional cylinders: AMR205CC Double Keyed Cylinder or AMR205CT Single Keyed Cylinder with Thumbturn.

GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) Diameter Hole and One Corner Notch
Side Mount:
One 3/4" (19 mm) Diameter Hole and One U-Cutout (Hole on Top)

COMES WITH:
Template and Instructions

DOES NOT INCLUDE:
Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)

DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.


Product Warning:

Cylinders are optional and not included with lock body.
