- High-density cast body with lock mechanism
- Gaskets fit 3/8" or 1/2" (10 or 12 mm) glass
- Available in five architectural finishes

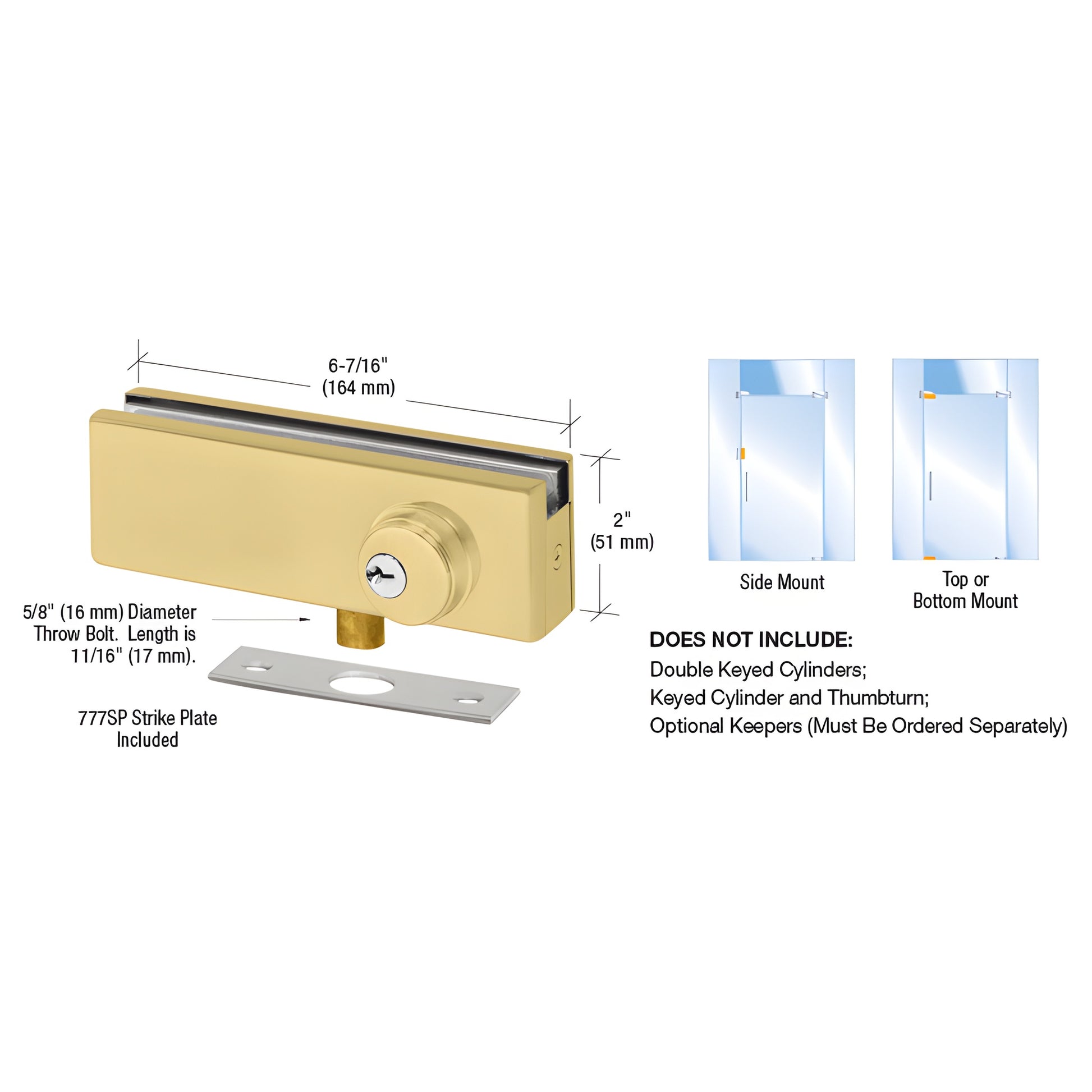

The
CRL American Style Patch Lock (SKU: AMR205SB) is a versatile patch lock for frameless and framed glass doors. Mounts on the top or bottom of a door or on the vertical edge and secures to a jamb with the supplied Keeper. Use the
AMR206 Sidelite Mount Keeper to attach to a glass panel, or choose optional keepers such as
AMR207 and
AMR208 to suit most installation types.
Note: Lock body shipped without cylinders. Order cylinders separately.
Optional cylinders:
AMR205CC double keyed or
AMR205CT single keyed with thumbturn.
Glass fabrication required:
Top or bottom mount:
One 3/4" (19 mm) diameter hole and one corner notch.
Side mount:
One 3/4" (19 mm) diameter hole and one U-cutout (hole on top).
Comes with:
Template and instructions.
Does not include:
Double keyed cylinders; keyed cylinder/thumbturn; optional keepers (must be ordered separately).
Double door application:
For pairs, a bottom patch lock is required on the inactive leaf to properly secure the doors.
Product warning:
Cylinders are optional and not included with the lock body.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before ordering. Product images are actual product or close representations; colors may vary based on monitor settings.
Brass Finish Advisory:
Brass is durable but prone to oxidation, which can cause a tarnished appearance over time. See the Brass Finish Disclaimer in Technical References for care and maintenance details.
