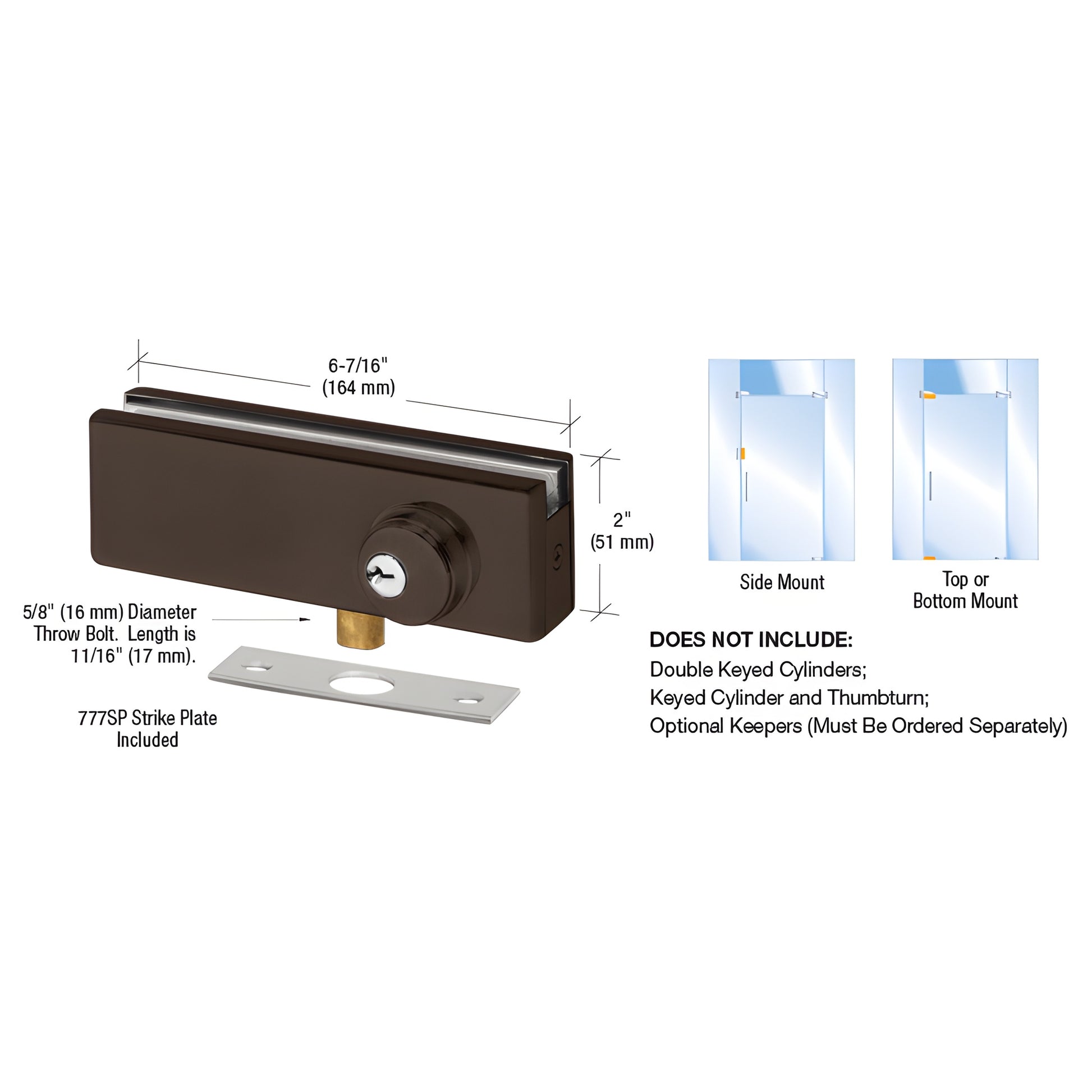

CRL AMR Series Black Bronze Patch Lock for Glass Doors

• High-density cast body with secure lock mechanism
• Includes gaskets for 3/8" or 1/2" (10 or 12 mm) glass
• Available in five architectural finishes

The CRL American Style Patch Lock (SKU: AMR205DU) is a versatile glass door patch lock designed for top, bottom or side mounting on frameless glass doors. It can be mounted on the vertical edge and secured to a jamb using the supplied Keeper, or attached to a glass sidelite with the AMR206 Sidelite Mount Keeper. Optional keepers such as AMR207 and AMR208 accommodate most installation types.


NOTE: Cylinders not included; order separately.

Optional cylinders: AMR205CC double-keyed cylinder or AMR205CT single-keyed cylinder with thumbturn.

GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) diameter hole and one corner notch.
Side Mount:
One 3/4" (19 mm) diameter hole and one U-cutout (hole on top).

COMES WITH:
Template and installation instructions.

DOES NOT INCLUDE:
Cylinders (double-keyed or keyed/turn); optional keepers (must be ordered separately).

DOUBLE DOOR APPLICATION:
For double-door installations, install a bottom patch lock on the inactive leaf to properly secure the door pair.


Product Warning:

Cylinders are optional and not included with the lock body.
