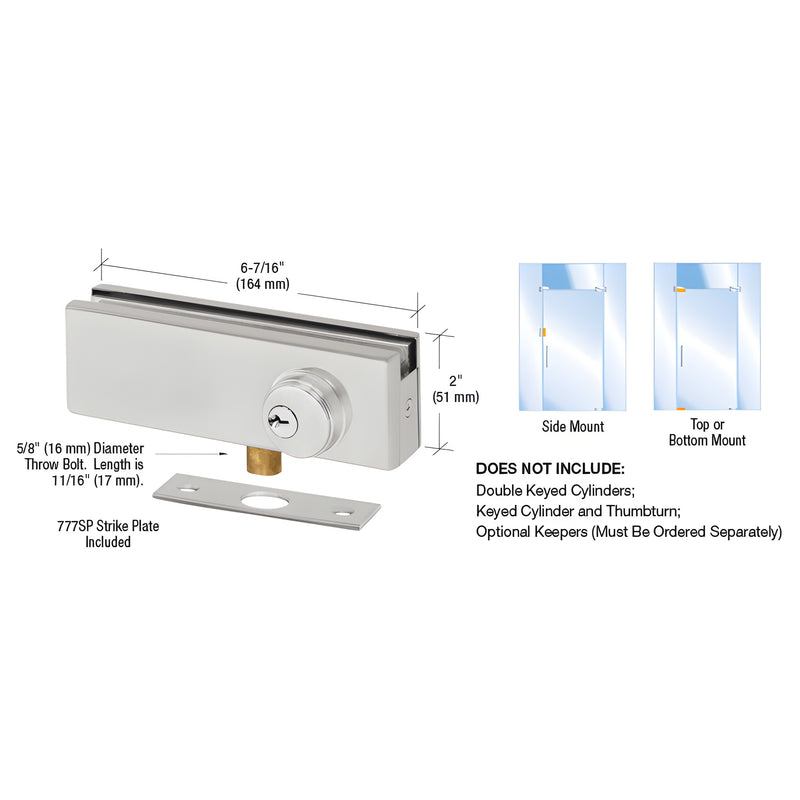

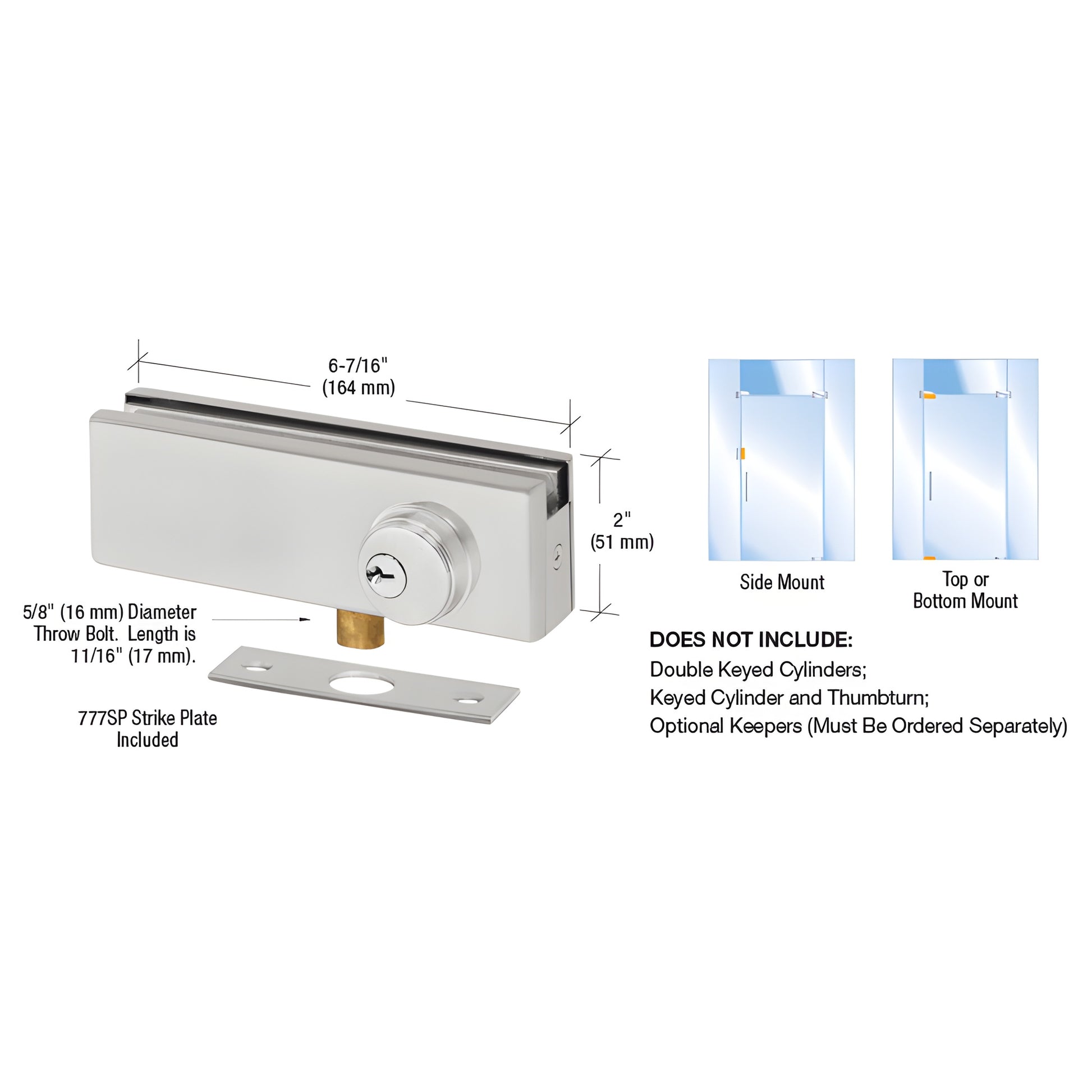

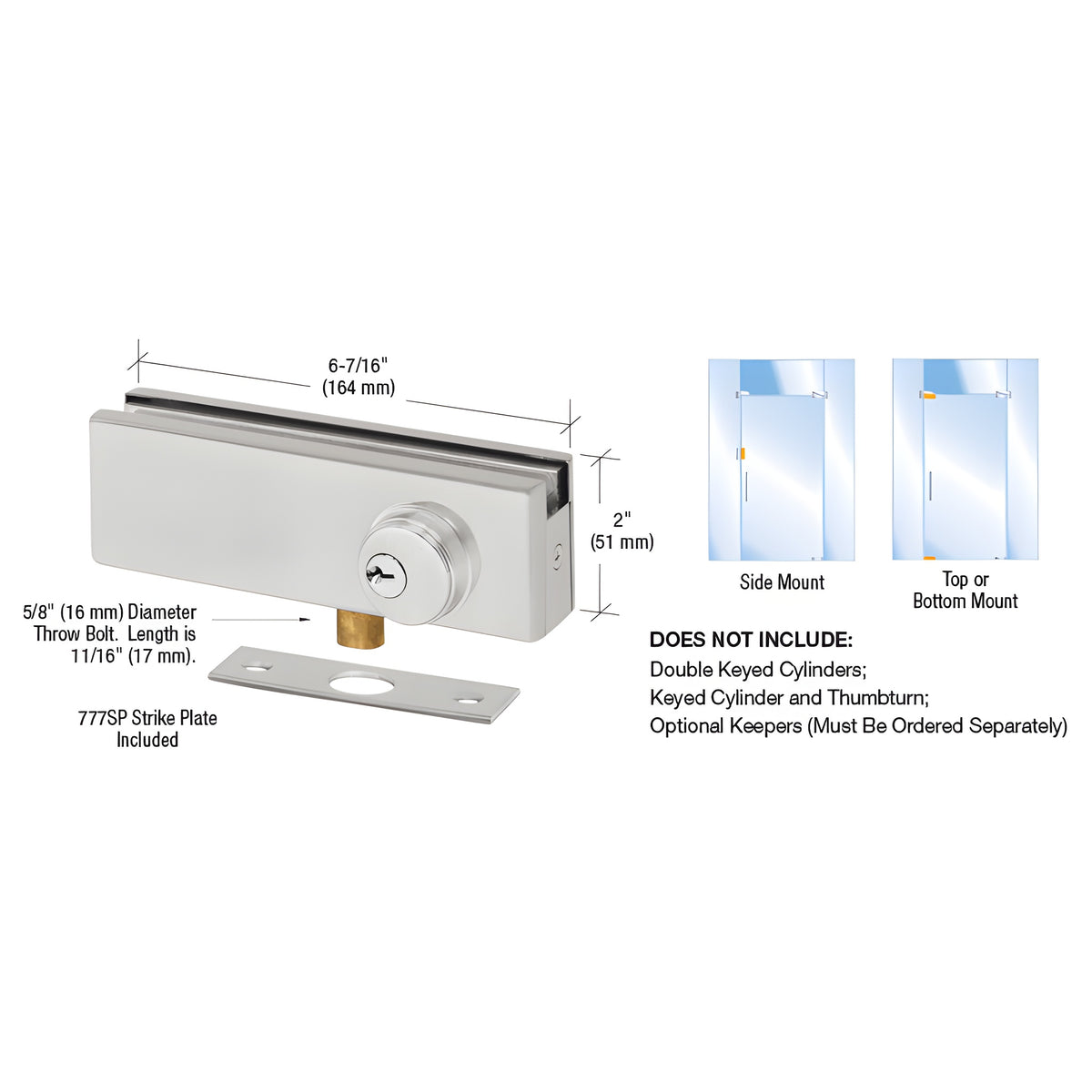

CRL AMR Series Satin Anodized Glass Door Patch Lock

• High-density cast body with secure lock mechanism
• Gaskets fit 3/8" or 1/2" (10 or 12 mm) glass panels
• Available in five architectural finishes

The CRL American Style Patch Lock (SKU: AMR205A) is an architectural glass door patch lock engineered for top, bottom or side mounting on frameless glass doors. Install on the vertical edge and secure to a jamb with the supplied Keeper, or mount to a glass sidelite using the AMR206 Sidelite Mount Keeper. Optional keepers such as AMR207 and AMR208 expand compatibility for most installation types.

Note: Lock cylinders are not included and must be ordered separately.

Optional cylinders: AMR205CC double-keyed cylinder or AMR205CT single-keyed cylinder with thumbturn.

Glass fabrication required:
Top or Bottom Mount:
One 3/4" (19 mm) diameter hole and one corner notch.
Side Mount:
One 3/4" (19 mm) diameter hole and one U-cutout (hole on top).

Comes with:
Template and installation instructions.

Does not include:
Double-keyed cylinders; keyed cylinder/thumbturn; optional keepers (order separately).

Double door application:
For paired doors, a bottom patch lock is required on the inactive leaf to properly secure the pair.

Product warning:

Cylinders are optional and not included with the lock body.


Order the AMR205A glass door patch lock or contact CRL for installation support and compatible cylinder options.
