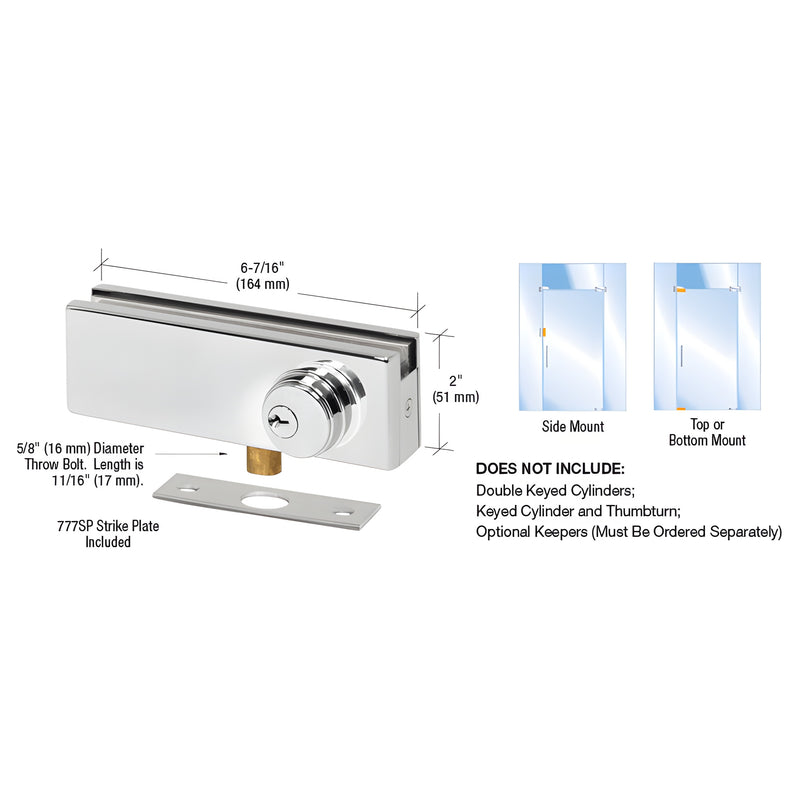

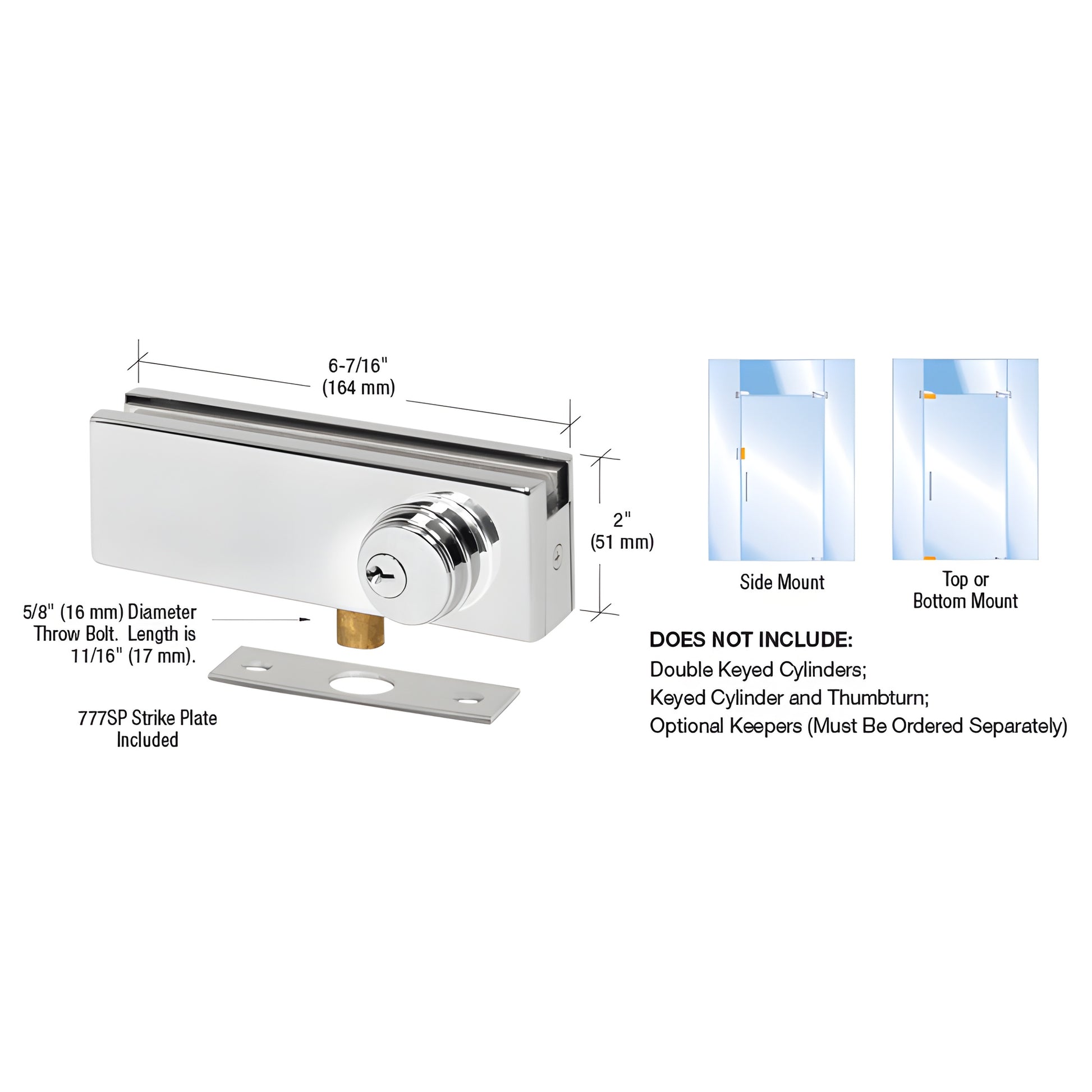

CRL AMR Series Polished Stainless Patch Lock for Glass Doors

• High Density Cast Body with Lock Mechanism — durable patch lock for frameless glass doors
• Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
• Five Architectural Finishes for design flexibility

The CRL American Style Patch Lock (SKU: AMR205PS) installs on the top or bottom of doors and can be mounted on the vertical door edge and secured to a jamb using the supplied Keeper. For sidelites or glass panel mounting use the AMR206 Sidelite Mount Keeper. Optional keepers such as AMR207 and AMR208 accommodate most installation types for frameless glass doors and patch lock door hardware.


NOTE: Cylinders are not included and must be ordered separately.

Optional cylinders are available: AMR205CC double keyed cylinders or AMR205CT single keyed cylinder with thumbturn.

GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) Diameter Hole and One Corner Notch
Side Mount:
One 3/4" (19 mm) Diameter Hole and One U-Cutout (Hole on Top)

COMES WITH:
Template and Instructions

DOES NOT INCLUDE:
Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)

DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.


Product Warning:

Cylinders are optional and not included with lock body.

Stainless Steel Advisory:
