CRL Brass Edge Grip Clamp for 3/8" Glass

• For 3/8" (10 mm) material thickness
• No drilling required in glass or panel materials — holds panels without face holes
• Designed for corners and edges of panels
• Supplied with an EGCS socket head cap screw

CRL's Edge Grips deliver a clean, low-profile way to mount decorative panels, signage, or glass without drilling through the face material. These edge grips grip 3/8" panels securely and allow quick installation and adjustment, making them ideal for interior wall panels, glass signage, and display fixtures. The 1-1/4" (32 mm) diameter grips are available in brass, chrome, satin chrome, 316 brushed stainless, and gun metal finishes and are compatible with CRL standoffs. For heavier panels, use Edge Grips at the top, bottom, and sides for maximum support. SKU: EG38BR.


NOTE: To attach an Edge Grip directly to a substrate use Cat. No. 12X112PHPSMS (No. 12 x 1-1/2" pan head Phillips sheet metal screw). Screws should be installed into wood blocking where possible. Edge Grips are recommended for rectangular or square panels only.

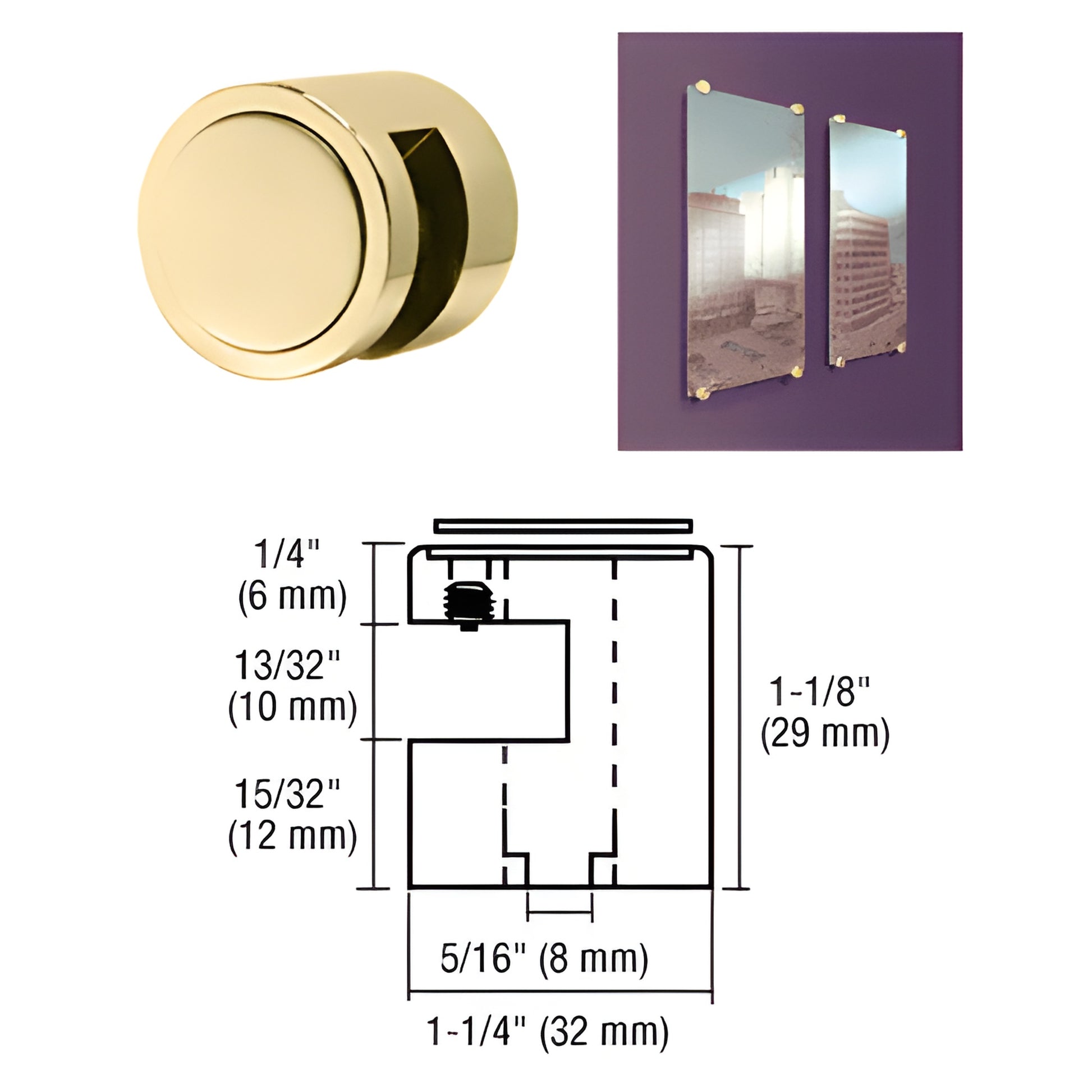

Edge Grip Specs:
Diameter: 1-1/4" (32 mm)
EG14BS Length: 1-1/16" (27 mm)
EG38 Length: 1-1/8" (28.6 mm)
EG12 Length: 1-3/16" (30.1 mm)

Replacement cover disks are available for repairs or replacements.


Product Warning:

For maximum support of heavier panels, install CRL Edge Grips at the top, bottom, and sides.
