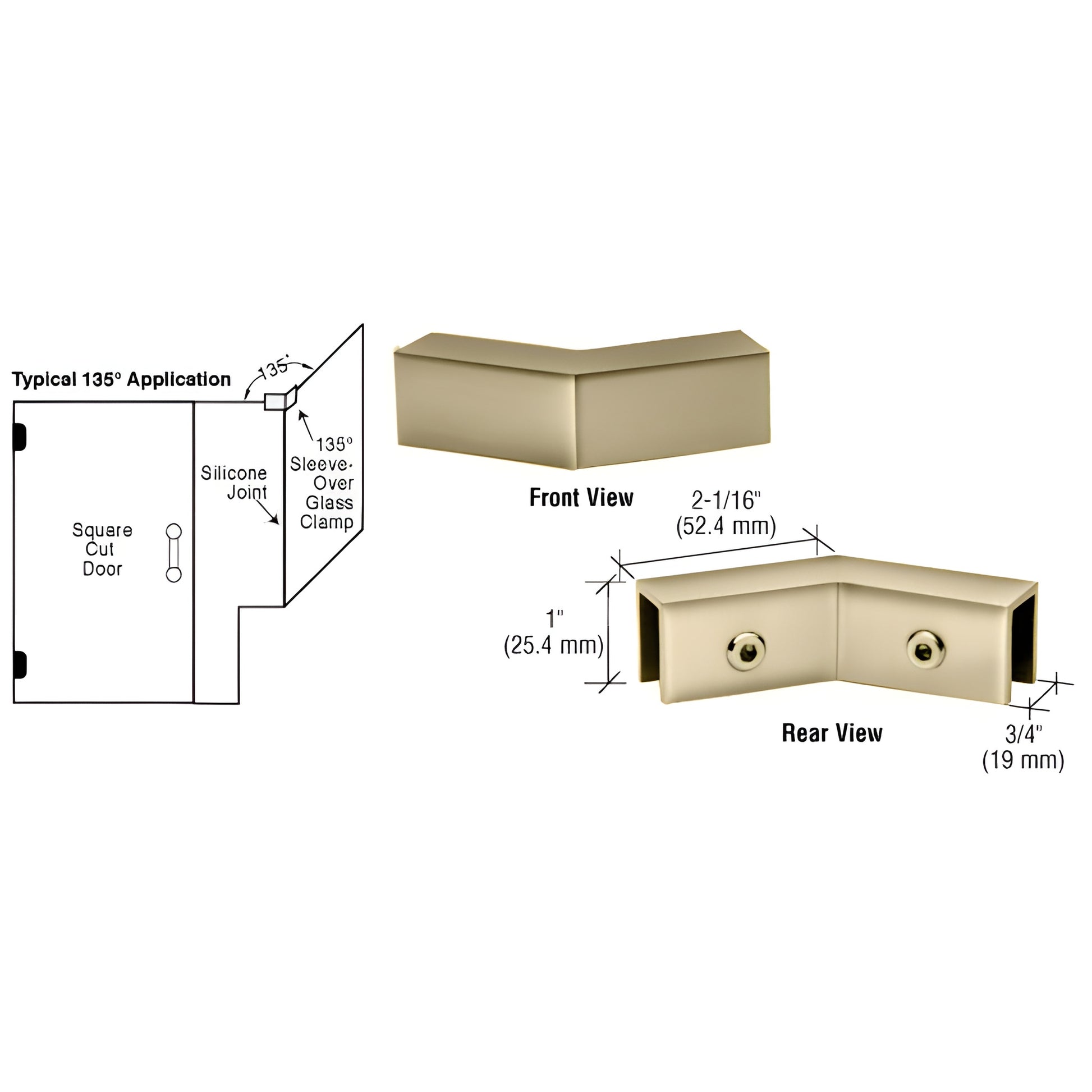

CRL 135° Brushed Bronze Sleeve-Over Glass Clamp for Frameless Showers

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Solid brass construction
• Use with monolithic tempered glass
• Assists with shear forces on frameless glass panels
• Holds glass panels in position while sealant cures

CRL Sleeve Over Glass Clamps are engineered as mechanical fasteners for frameless glass applications, reducing shear load on glass panels without special glass fabrication. Ideal for frameless glass shower clamps and other architectural glass installs, these solid brass sleeve-over clamps secure panels using nylon-tipped Allen set screws and can temporarily hold panels while silicone sealant cures (sealant provides water resistance and final pull strength).

P612 replacement screws

SPECIFICATIONS:

• Material: Solid brass
• Glass thickness range: 5/16" to 1/2" (8 to 12 mm)
• No glass fabrication required — clamps tighten with nylon-tipped Allen screws
• Includes: gaskets
• Replacement hardware: CRL P612 (replacement screws)

NOTE: These clamps are not intended to replace headers or support bars. For load-bearing requirements and design guidance, contact CRL Frameless Shower Technical Sales Department. Suitable for both square-cut and mitered panels.

Product Warning:
These clamps are not designed to take the place of headers or a support bar.

SKU: S0GC135BBRZ — Order now to secure solid brass sleeve-over glass clamps for frameless shower and architectural glass installations.
