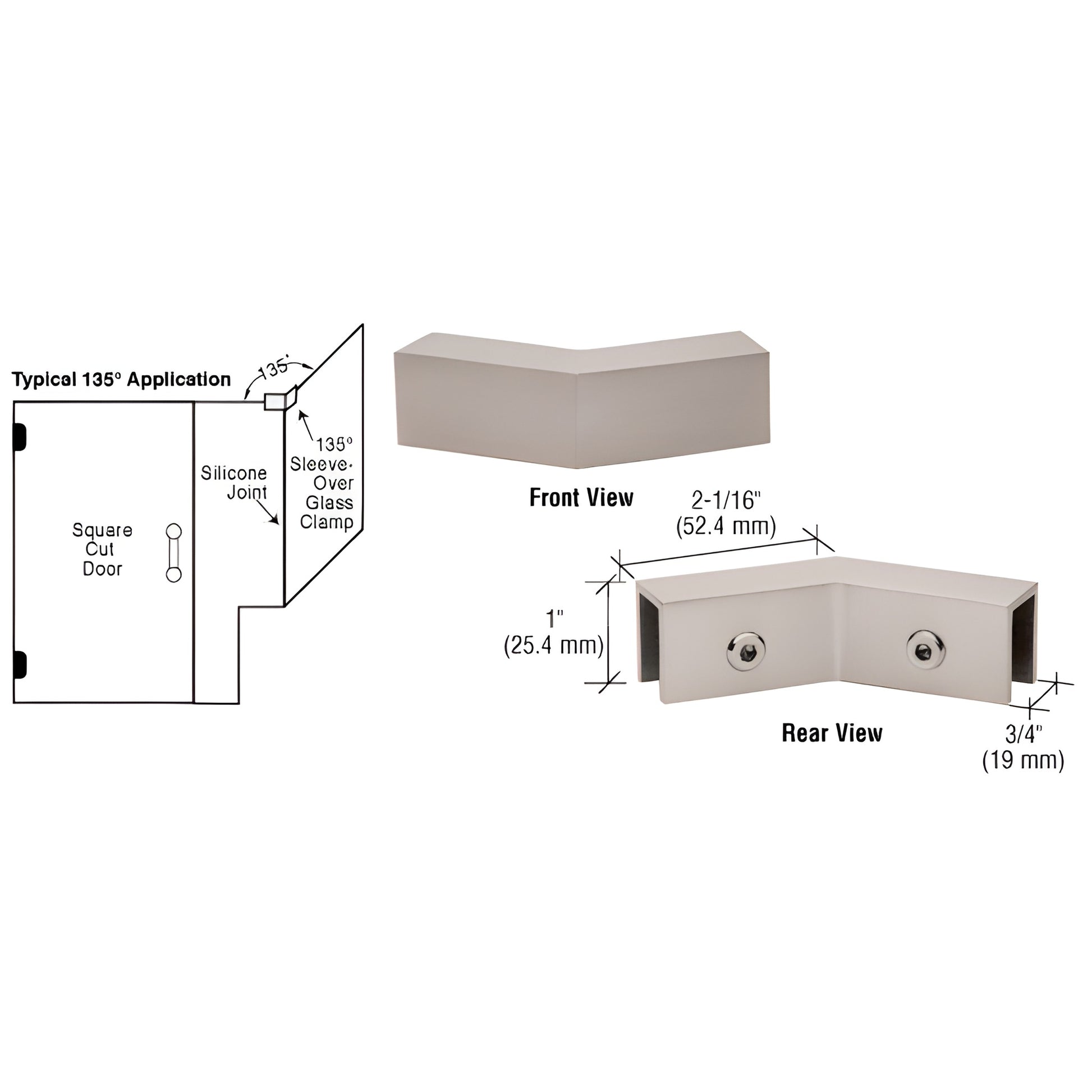

CRL 135° Brushed Nickel Sleeve-Over Glass Clamp for Tempered Glass

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Solid brass construction
• Use with monolithic tempered glass
• Assists with shear forces on glass panels
• Holds glass panels in position while sealant cures

CRL Sleeve Over Glass Clamps (SKU: S0GC135BN) provide a mechanical fastener for frameless shower glass panels, stabilizing edges and covering shear forces without requiring special glass fabrication. These solid brass clamps are ideal for frameless shower installations using monolithic tempered glass and act as a temporary glass panel stabilizer while silicone sealant cures. Clamps secure with nylon-tipped Allen set screws for reliable, non-marring tightening.

P612 replacement screws

SPECIFICATIONS:

• Material: Solid brass
• Glass thickness range: 5/16" to 1/2" (8 to 12 mm)
• No glass fabrication required — clamps tighten using nylon-tipped Allen screws
• Includes gaskets
• Replacement hardware: CRL P612 replacement screws

NOTE: These clamps are not designed to replace headers or a support bar. For design guidance or to confirm use on square-cut or mitered panels, contact CRL Frameless Shower Technical Sales Department.

Product Warning:

These clamps are not designed to take the place of headers or a support bar.

Order SKU S0GC135BN now to secure solid-brass frameless shower glass clamps for your next installation.
