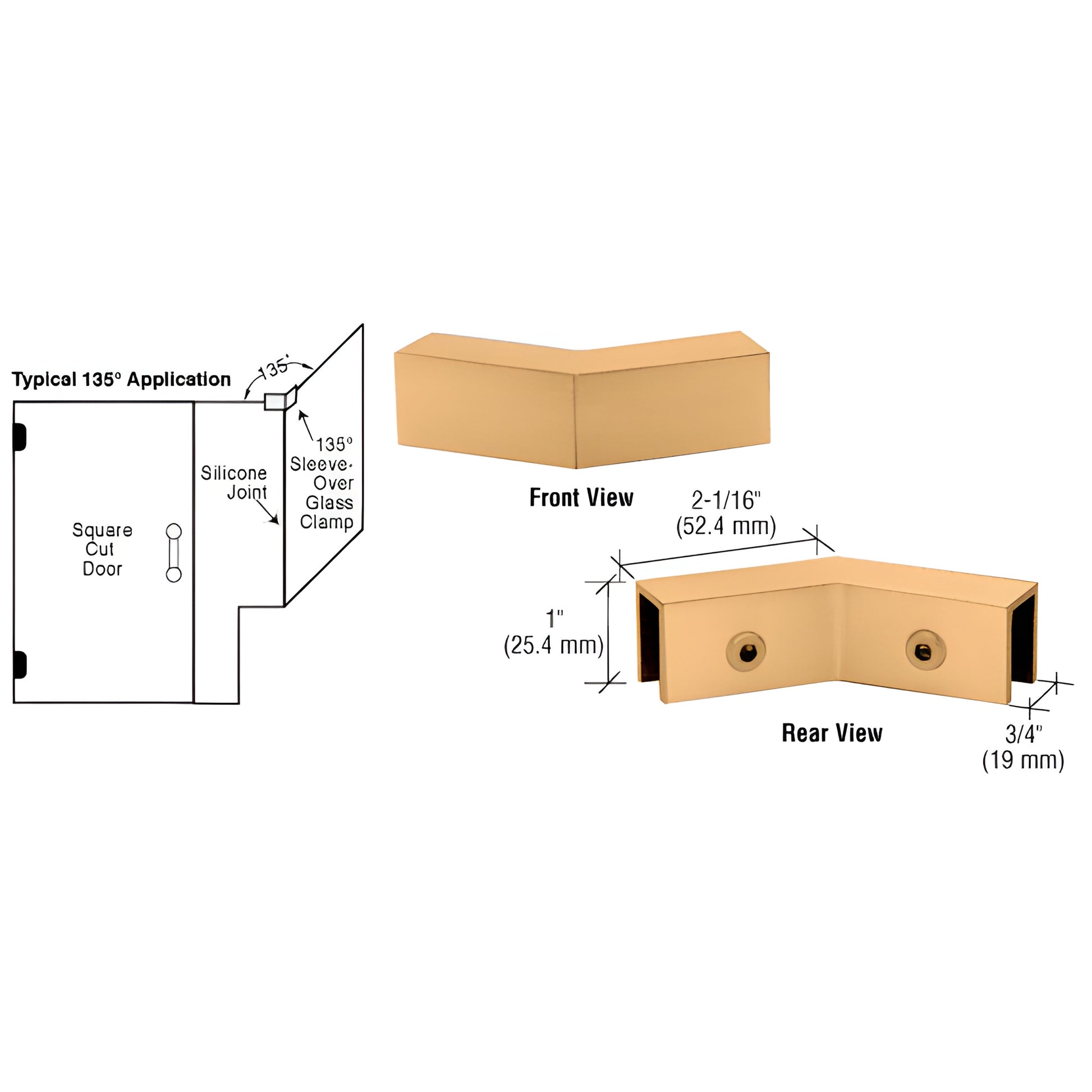

CRL 135° Satin Brass Sleeve-Over Glass Clamp for Railings
Item# S0GC135SB
Shipping Weight: 6.08 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6.08 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Satin Brass
Glass To Glass Angle
135
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Material
Brass
Mounting Type
Glass To Glass
- For 5/16" to 1/2" (8 to 12 mm) thick glass
- Solid brass construction
- Use with monolithic tempered glass
- Assists with shear forces on glass panels
- Holds glass panels in position while sealant cures
CRL Sleeve Over Glass Clamps (SKU: S0GC135SB) are heavy-duty brass glass clamps engineered to provide a mechanical fastener that resists shear forces on frameless shower and glass partition panels. No special glass fabrication is required—nylon-tipped Allen set screws tighten the clamp without glass modification. Use these clamps to stabilize panels while silicone sealant cures; the cured sealant provides water-tight joints and long-term pull strength. Clamps include gaskets to protect glass edges.
P612 replacement screws
SPECIFICATIONS:
- Material: Solid brass
- Glass thickness range: 5/16" to 1/2" (8 to 12 mm)
- No glass fabrication required (nylon-tipped Allen screws)
- Includes: gaskets
- Replacement hardware: CRL P612 replacement screws
NOTE: These clamps are not designed to replace headers or support bars. Contact CRL Frameless Shower Technical Sales for load-support guidance. Suitable for both square-cut and mitered panels.
Product Warning
These clamps are not intended to substitute for structural headers or support bars.
Most shipping weights are approximate. If exact weight is required to determine shipping costs, contact CRL Customer Service before ordering. Product images are representations; colors may vary by monitor settings.
Brass Finish Advisory:
Although durable, brass can oxidize and develop a tarnished appearance over time. See the Brass Finish Disclaimer in Technical References for care and maintenance guidance.
Optimize your frameless shower installation with these solid brass glass clamps—order now or contact CRL for technical support.
