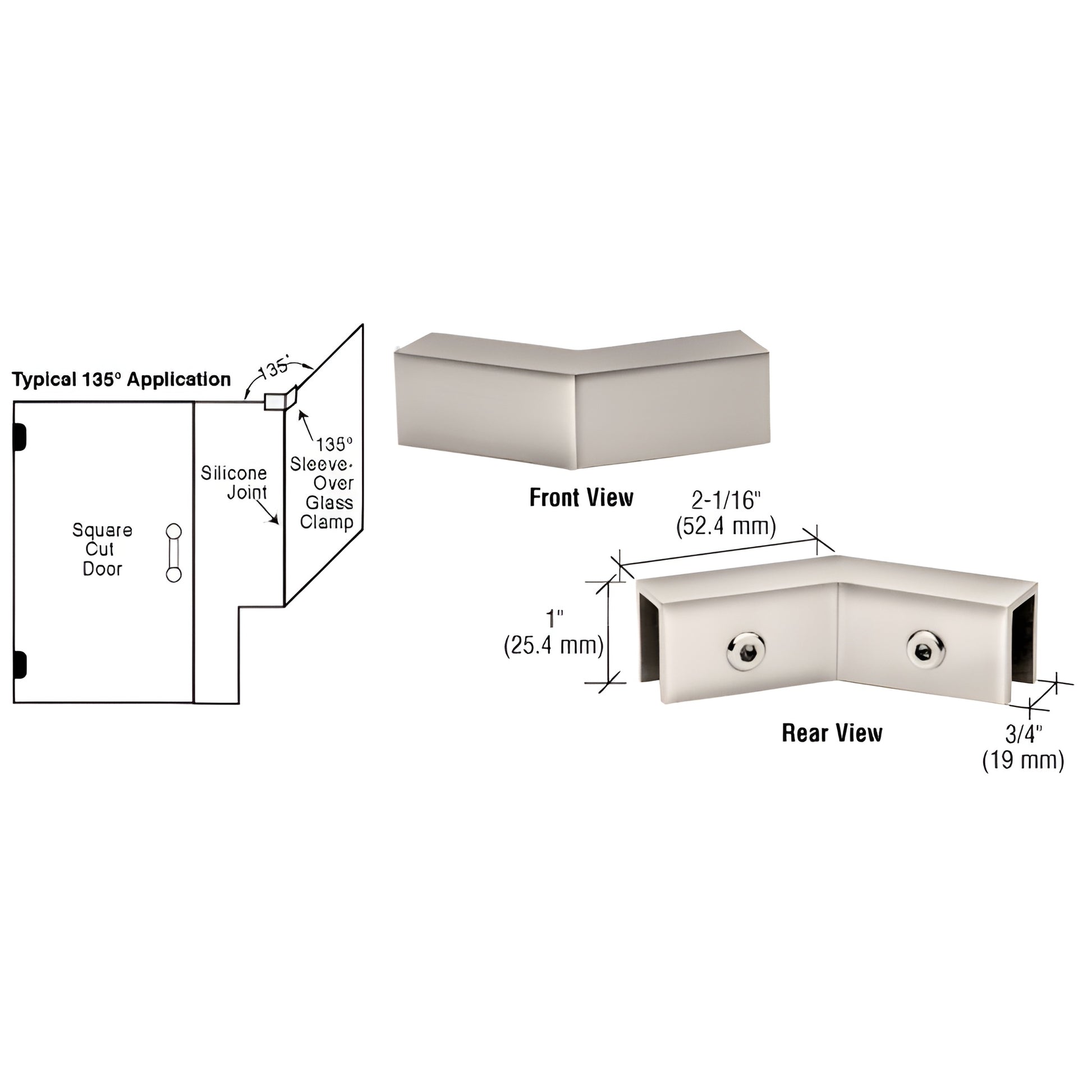

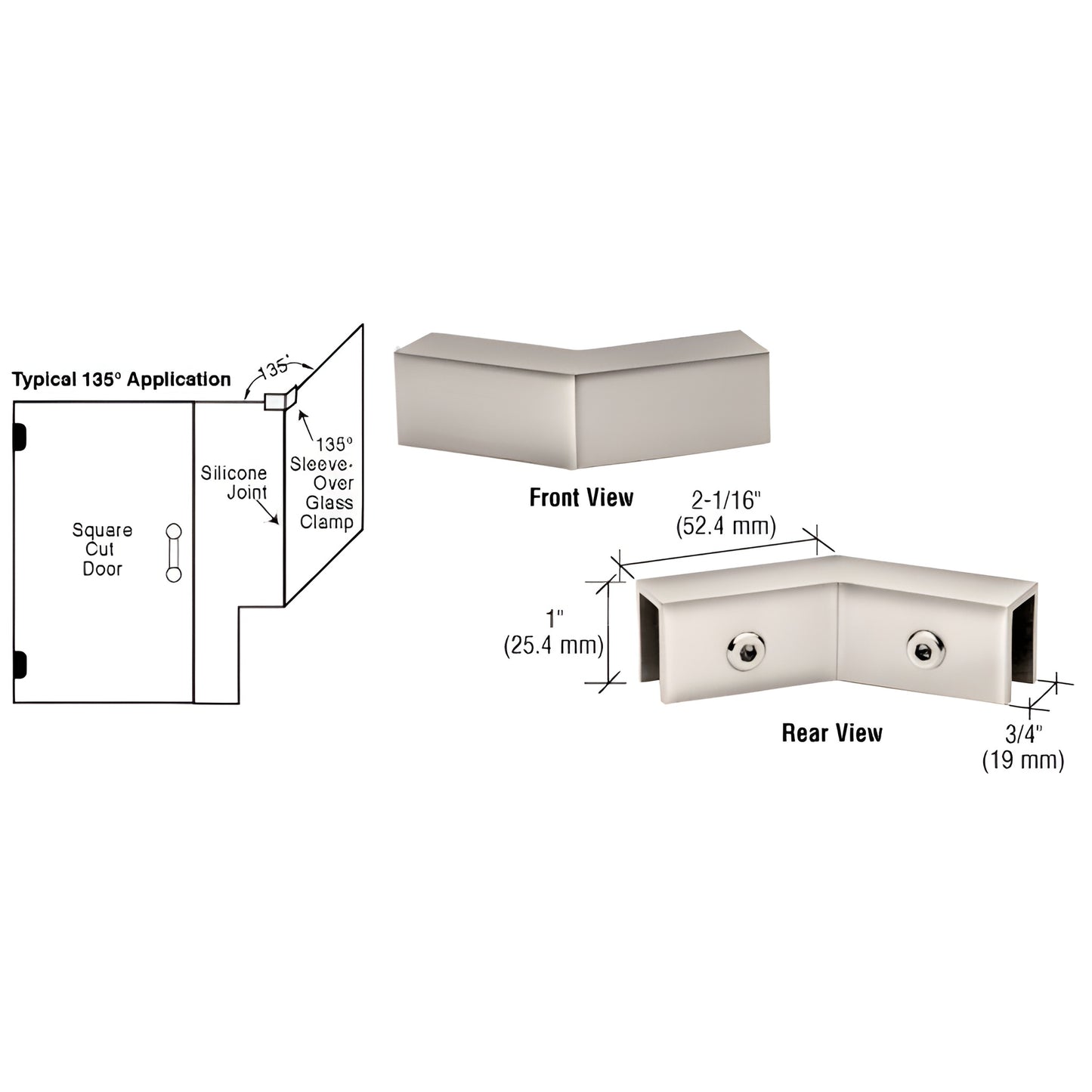

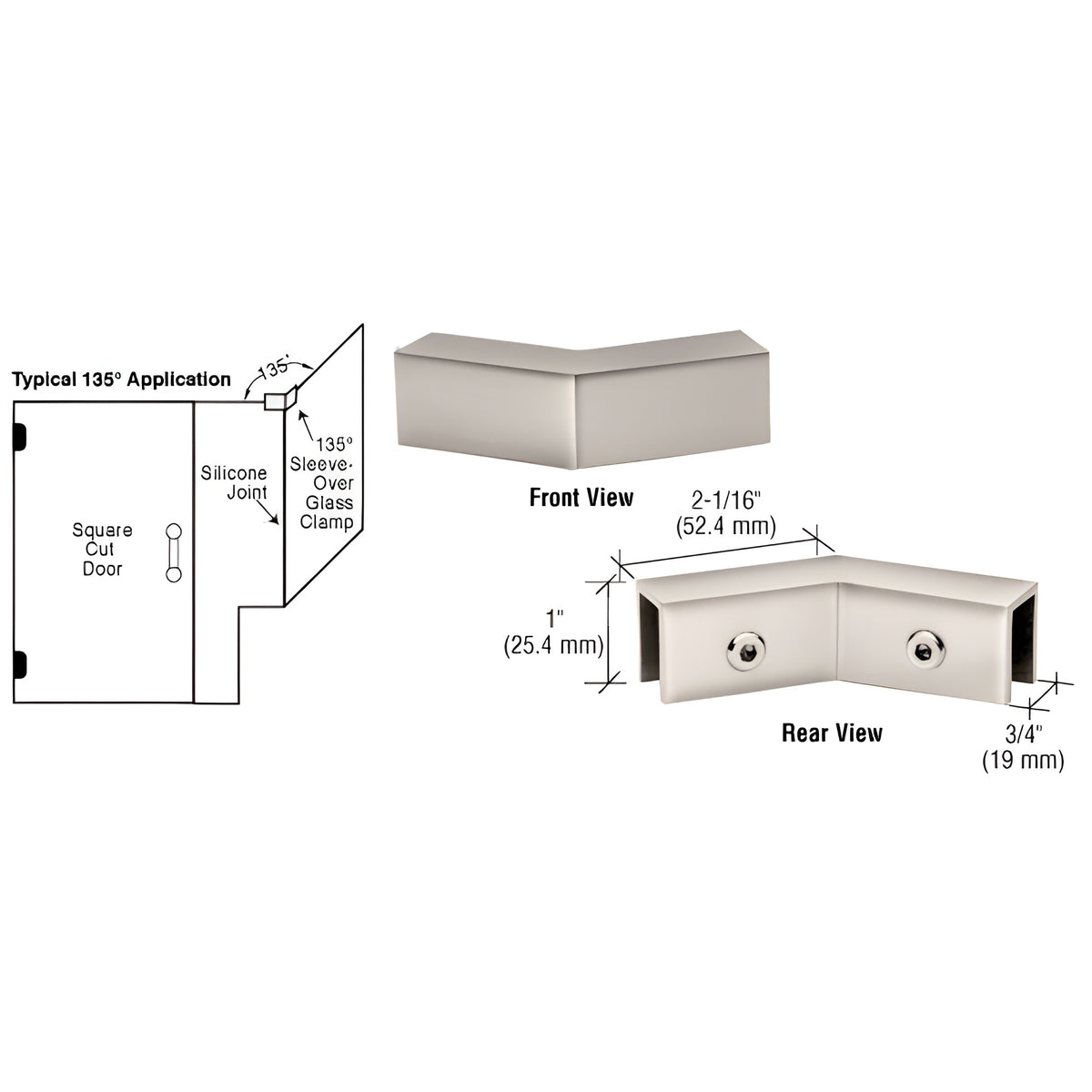

CRL Polished Nickel 135° Sleeve-Over Glass Clamp for Railings

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Solid brass construction
• Use with monolithic tempered glass
• Assists with shear forces on glass panels
• Holds glass panels in position while sealant cures

CRL Sleeve Over Glass Clamps provide a mechanical fastener for frameless shower and glass railing applications, reducing shear load on joints without special glass fabrication. Ideal for securing monolithic tempered glass during silicone cure time, the clamps work with the sealant (which prevents water leakage and provides final pull strength) and are tightened using nylon‑tipped Allen set screws for a secure, non‑marring hold.

P612 replacement screws

SPECIFICATIONS:

• Material: Solid brass
• Glass thickness range: 5/16" to 1/2" (8 to 12 mm)
• No glass fabrication required — clamps tighten using nylon‑tipped Allen screws
• Includes: gaskets
• Replacement hardware: CRL P612 screws

NOTE: These clamps are not designed to replace headers or support bars. Suitable for square‑cut or mitered panels. Contact CRL Frameless Shower Technical Sales for design guidance and load requirements.

Product Warning
These clamps do not substitute for structural support such as headers or support bars.

SKU: S0GC135PN — Order CRL sleeve over glass clamps for reliable, non‑invasive glass panel support. Contact us to buy or request technical assistance.
