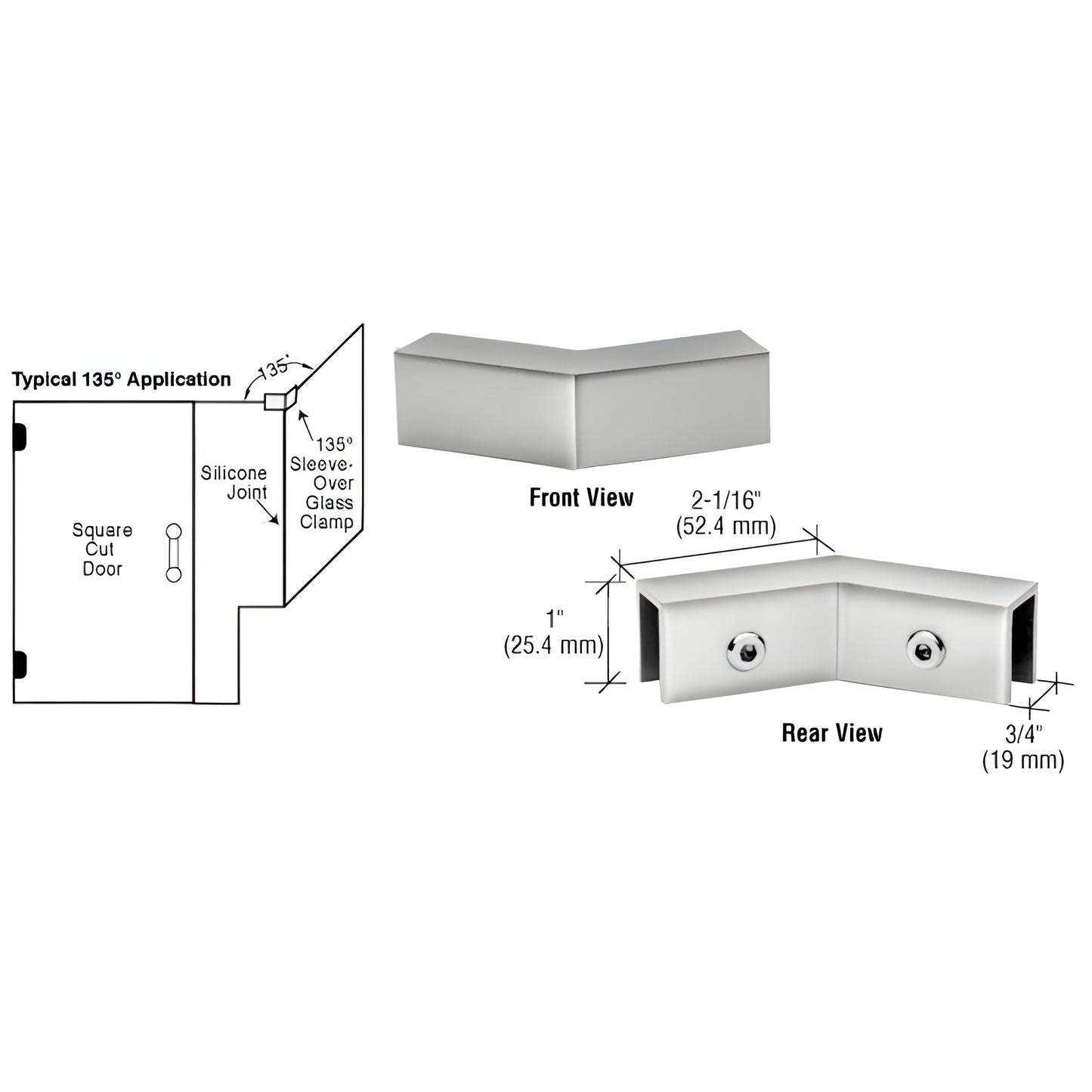

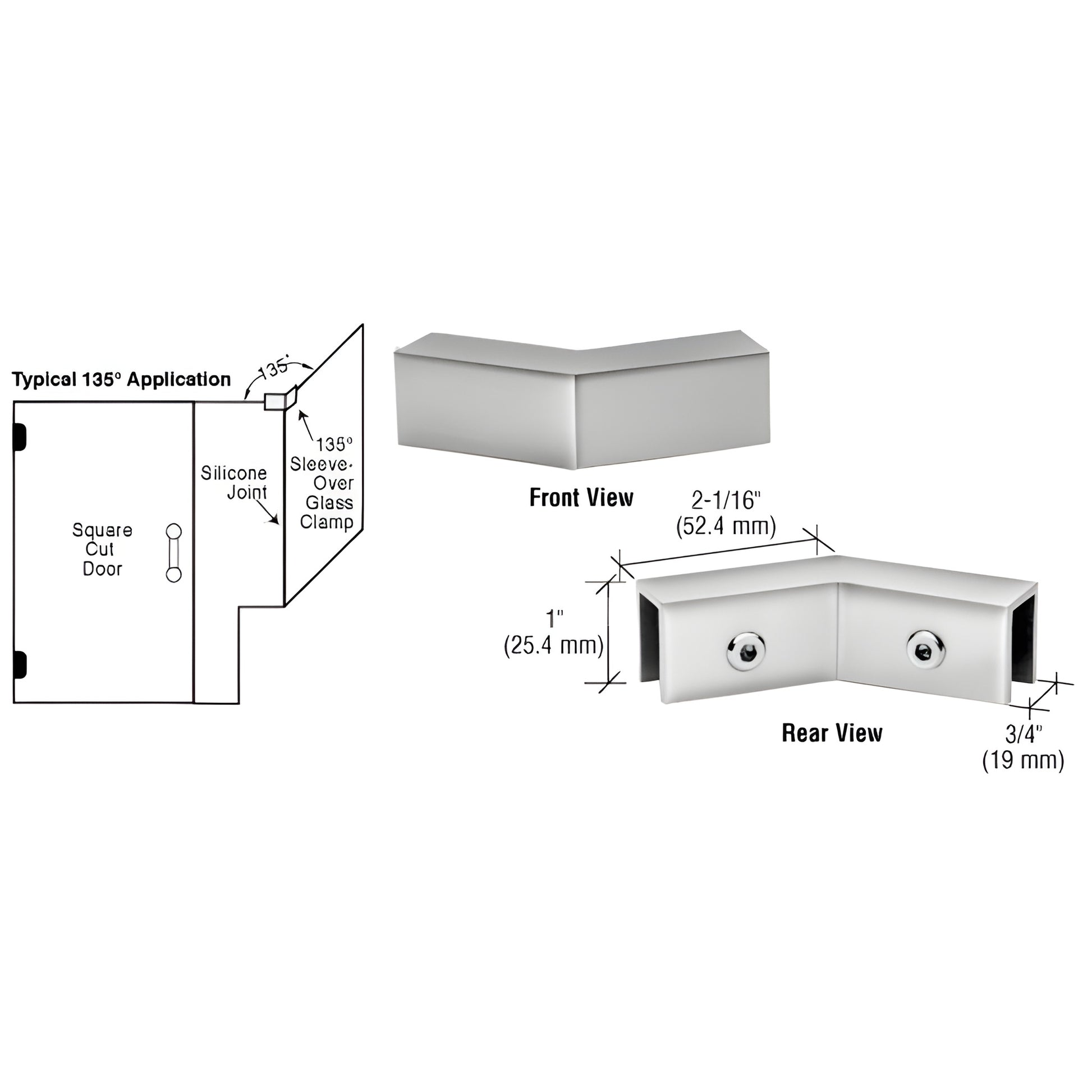

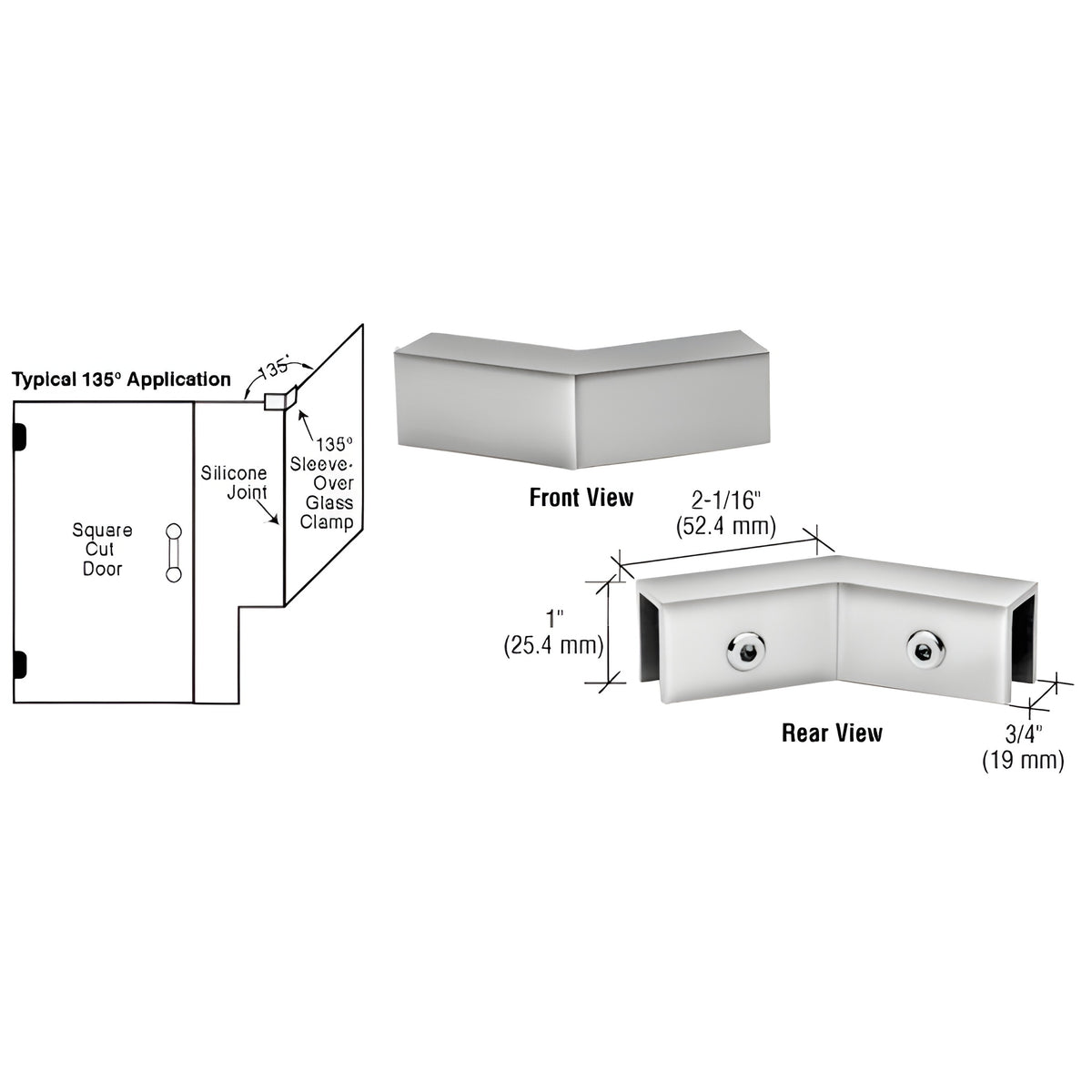

CRL Polished Chrome 135° Sleeve-Over Glass Clamp for Frameless Glass

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Solid brass construction
• Use with monolithic tempered glass
• Assists with shear forces on glass panels
• Holds glass panels in position while sealant cures

CRL Sleeve Over Glass Clamps (SKU: S0GC135CH) are frameless shower glass clamps designed to provide a mechanical fastener that absorbs shear forces on tempered glass panels. No special glass fabrication is required—clamps tighten using nylon-tipped Allen set screws. Use these solid brass glass clamps to secure panels while silicone sealant cures, preventing water leakage and maintaining panel alignment until the sealant achieves full bond strength.

P612 replacement screws available for maintenance and field service.

SPECIFICATIONS:

• Material: Solid brass
• Glass thickness range: 5/16" to 1/2" (8 to 12 mm)
• No glass fabrication required; clamps secure with nylon-tipped Allen screws
• Includes gaskets
• Replacement hardware: CRL P612 replacement screws

NOTE: These clamps are not designed to replace headers or a support bar. For installations requiring structural support, contact CRL Frameless Shower Technical Sales Department. Suitable for both square-cut and mitered panels.

Product Warning

These clamps are not designed to take the place of headers or a support bar.

Why choose these frameless shower glass clamps? Solid brass construction resists corrosion, fits 8–12 mm tempered glass, and secures panels during silicone curing—ideal for frameless shower and glass partition installations requiring reliable temporary support. Order SKU S0GC135CH or contact CRL for technical assistance.
