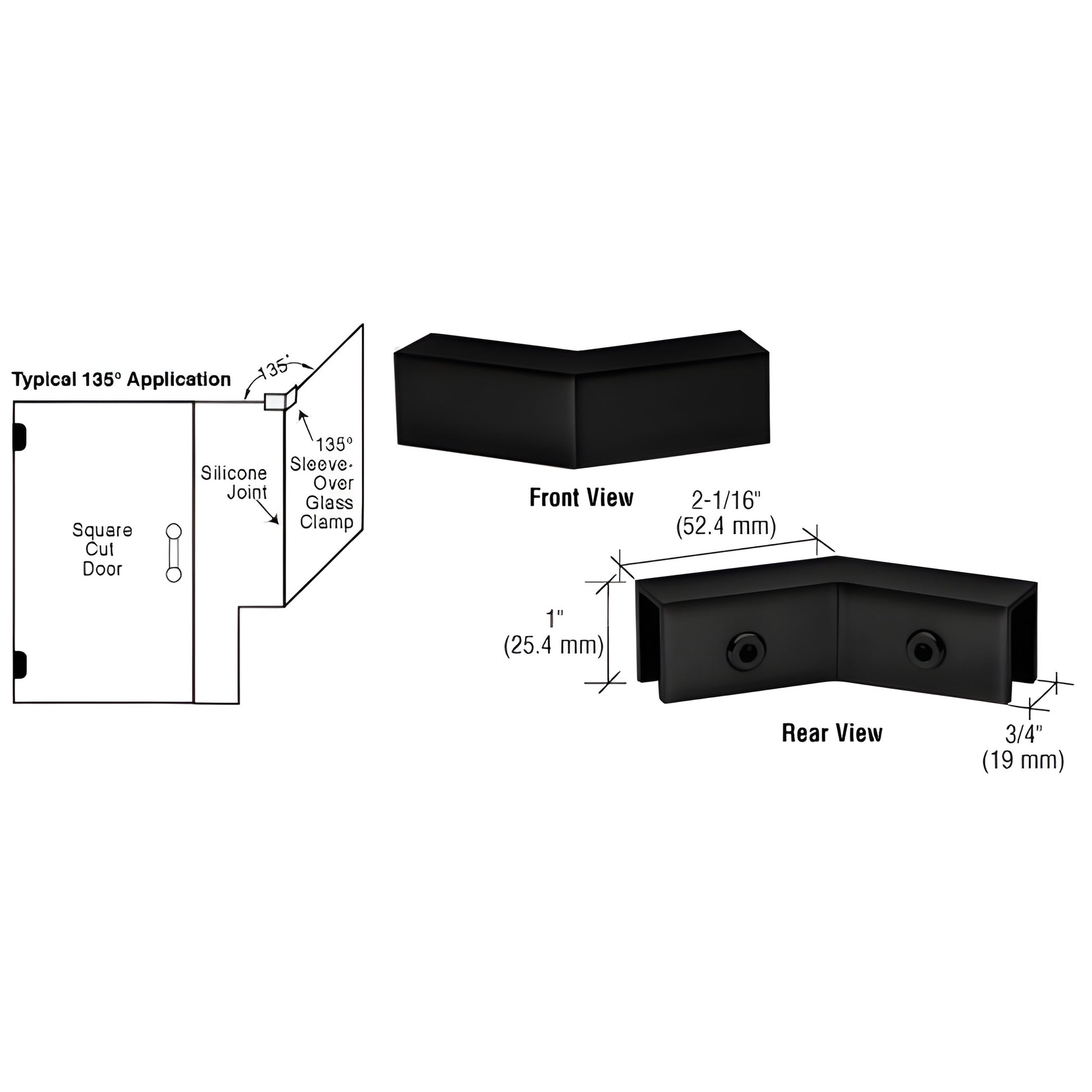

CRL Matte Black 135° Sleeve-Over Glass Clamp (Frameless)

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Solid brass sleeve-over glass clamp
• Use with monolithic tempered glass
• Assists with shear forces and holds panels while sealant cures
• No special glass fabrication required
• Secures with nylon-tipped Allen set screws
• Includes gaskets; replacement screws: CRL P612
• SKU: S0GC135MBL

CRL Sleeve Over Glass Clamps provide a durable mechanical fastener for frameless shower and glass railing installations. Made from solid brass, these sleeve-over clamps grip 5/16"–1/2" (8–12 mm) monolithic tempered glass without special edge machining. They stabilize panels during silicone cure, help resist shear loads, and are tightened with nylon-tipped Allen set screws to protect glass edges.

Key differentiators: solid brass construction for corrosion resistance, no glass fabrication needed, included gaskets for a secure seal, and compatibility with CRL P612 replacement screws.

Specifications:

• Material: Solid brass
• Glass thickness range: 5/16"–1/2" (8–12 mm)
• Recommended glass: Monolithic tempered glass
• Includes: Gaskets
• Replacement hardware: CRL P612 (replacement screws)

Note / Warning: These clamps are not designed to replace headers or support bars. They stabilize panels and assist shear resistance but should not be relied on as the primary structural support. Can be used on square-cut or mitered panels. For structural questions, contact CRL Frameless Shower Technical Sales.

Order the S0GC135MBL solid brass sleeve-over clamp today to secure 5/16"–1/2" tempered glass panels—contact CRL for technical support or place your order now.
