CRL Brushed Bronze Square Fixed Panel Glass Clamp, Small Leg
Item# SGC037BBRZ
Shipping Weight: 8.48 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.48 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Brushed Bronze
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)

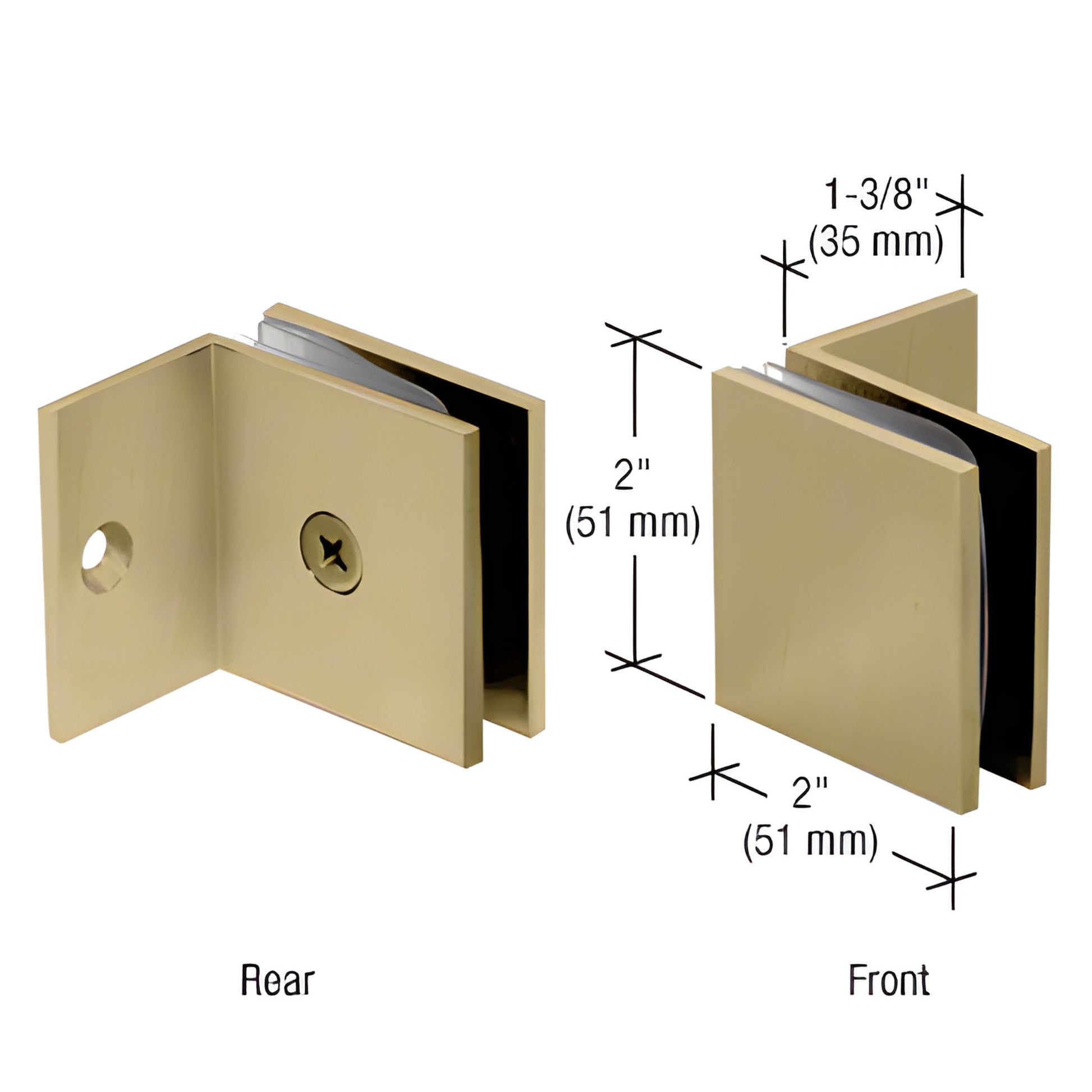

Height
2 in. (51 mm)
Leg Width
1-3/8 in. (35 mm)
Material
Brass
Mounting Type
Wall Mount
Width
2 in. (51 mm)
- Clamps contribute to an "all-glass" appearance
- Requires 3/4" (19 mm) hole in glass
- Small 90° leg provides extra secure mounting surface
- Use monolithic tempered glass

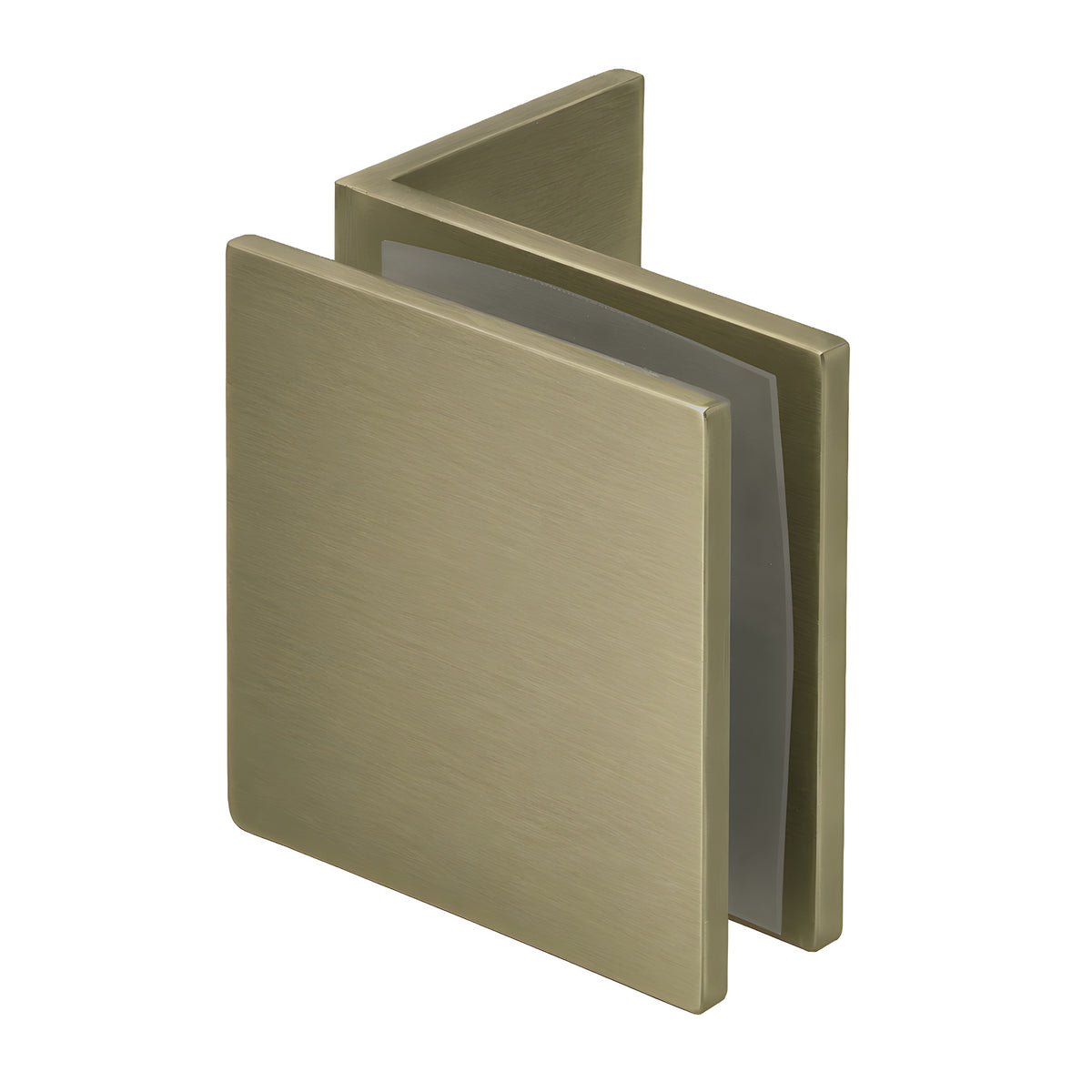

CRL Fixed Panel Square Clamp (With Small Leg) — SKU: SGC037BBRZ
Mounts directly to wall, ceiling or floor to secure vertical fixed glass panels. Designed for monolithic tempered glass, the clamp leaves a 3/16" (5 mm) clearance between glass and wall. Clear silicone can be used for a clean, water-tight seal. The small 90° leg adds extra strength for secure installation.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 requires notch; SCU4, SGC037, and SGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
Most shipping weights are approximate and have not been verified. If exact weight or shipping costs are required to complete your order, please contact CRL Customer Service before submitting your order. Product images show the actual product or a close representation; colors may vary depending on your monitor.
Order the SGC037BBRZ fixed panel square clamp for secure, low-profile mounting of tempered glass panels.
