CRL Oil Rubbed Bronze Fixed Panel Square Clamp With Small Leg

Product Details

• Clamps Contribute to 'All-Glass' Appearance
• Requires 3/4" (19 mm) Hole in Glass
• Small 90 Degree Leg Provides Extra Secure Mounting Surface
• Use Monolithic Tempered Glass

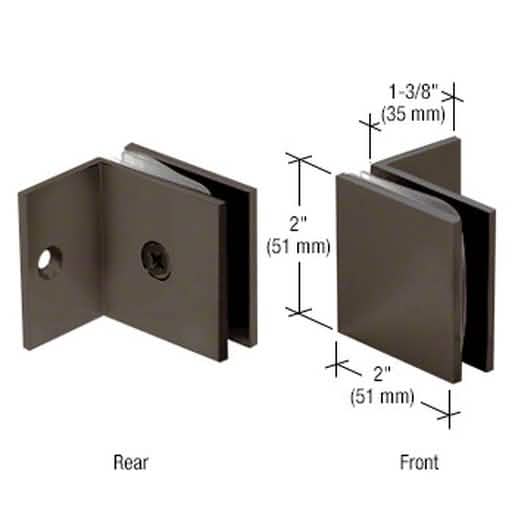

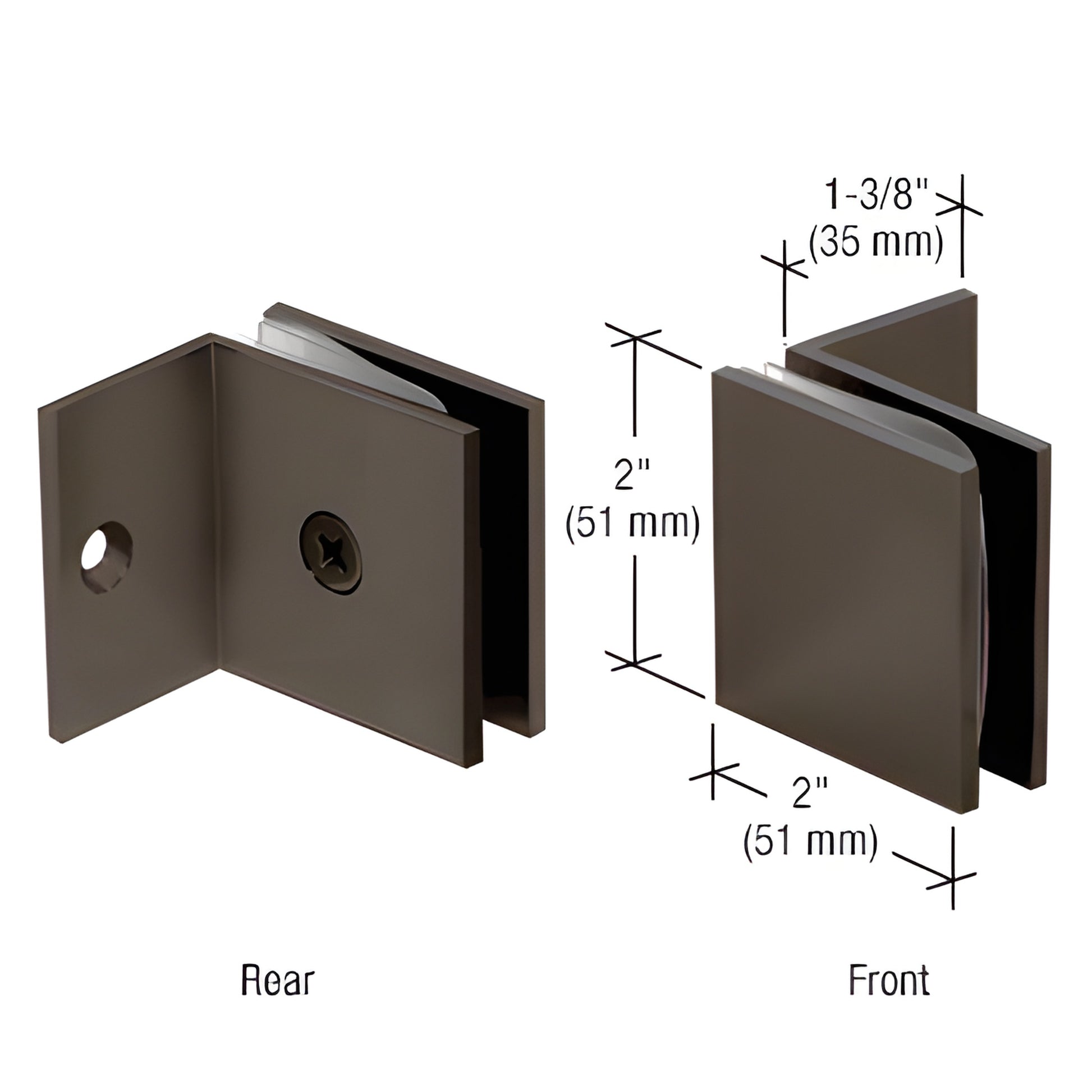

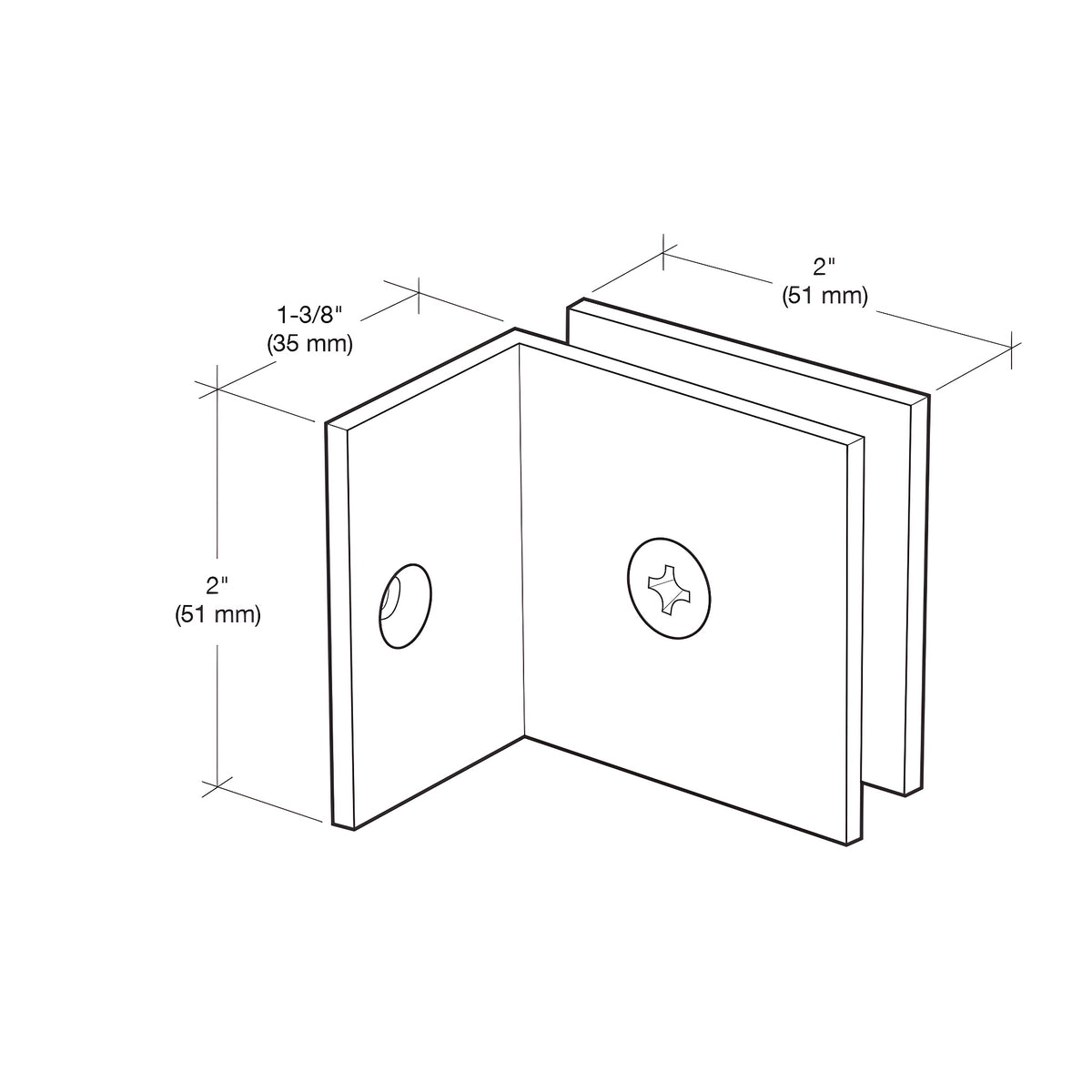

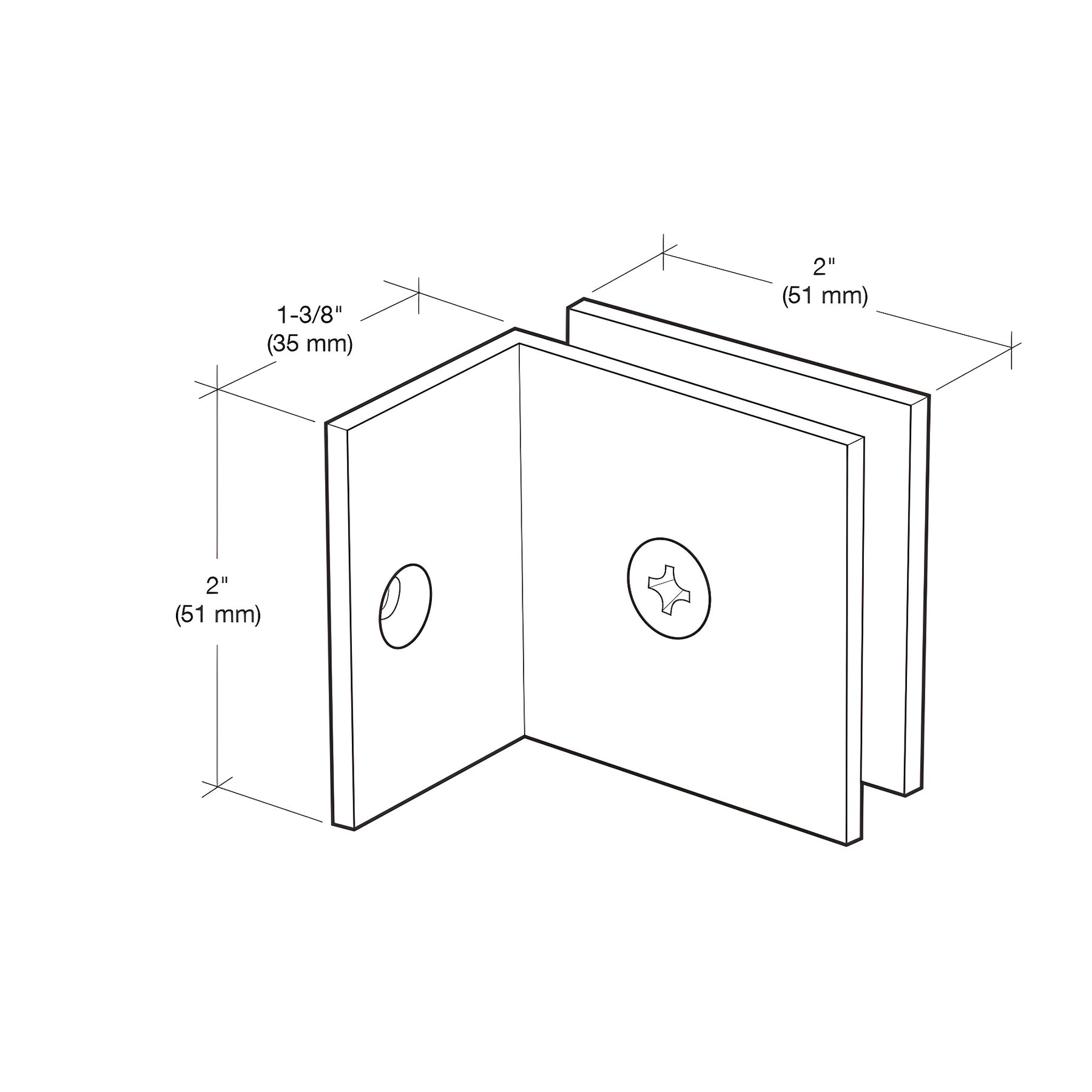

CRL Fixed Panel Square Clamp (With Small Leg) mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 3/16" (5 mm). Clear silicone can be used to provide a clean, water-tight seal. 90 degree leg provides extra strength.

SPECIFICATIONS:

Materials: Solid Brass

Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)

Glass Fabrication Required: SGCU1 Requires Notch; SCU4, SGC037, and SGC039 Require 3/4" (19 mm) Holes

Includes: Mounting Screws and Gaskets
