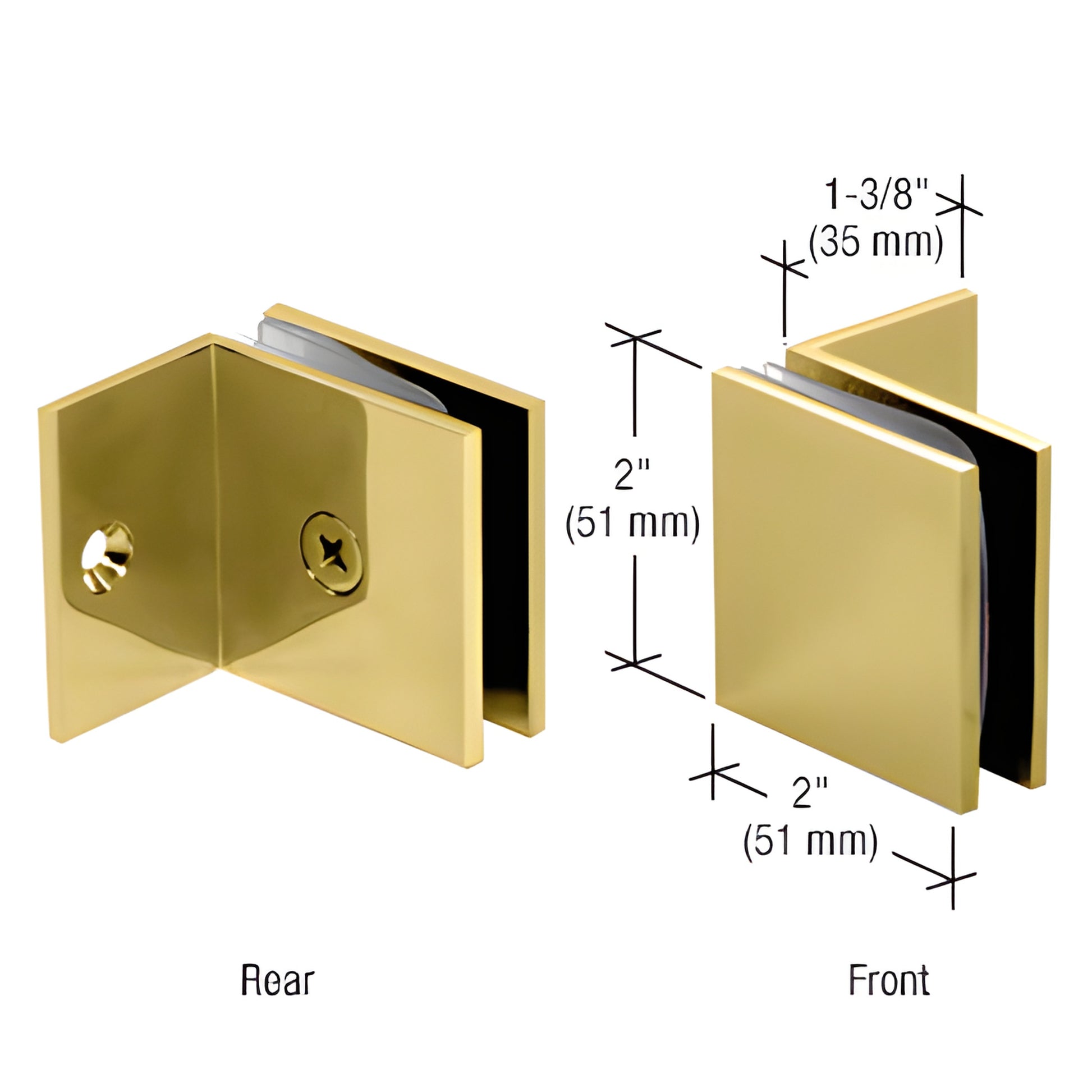

CRL Polished Brass Square Clamp for Glass Panel, Small Leg
Item# SGC037BR
Shipping Weight: 8.288 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.288 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Polished Brass
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)

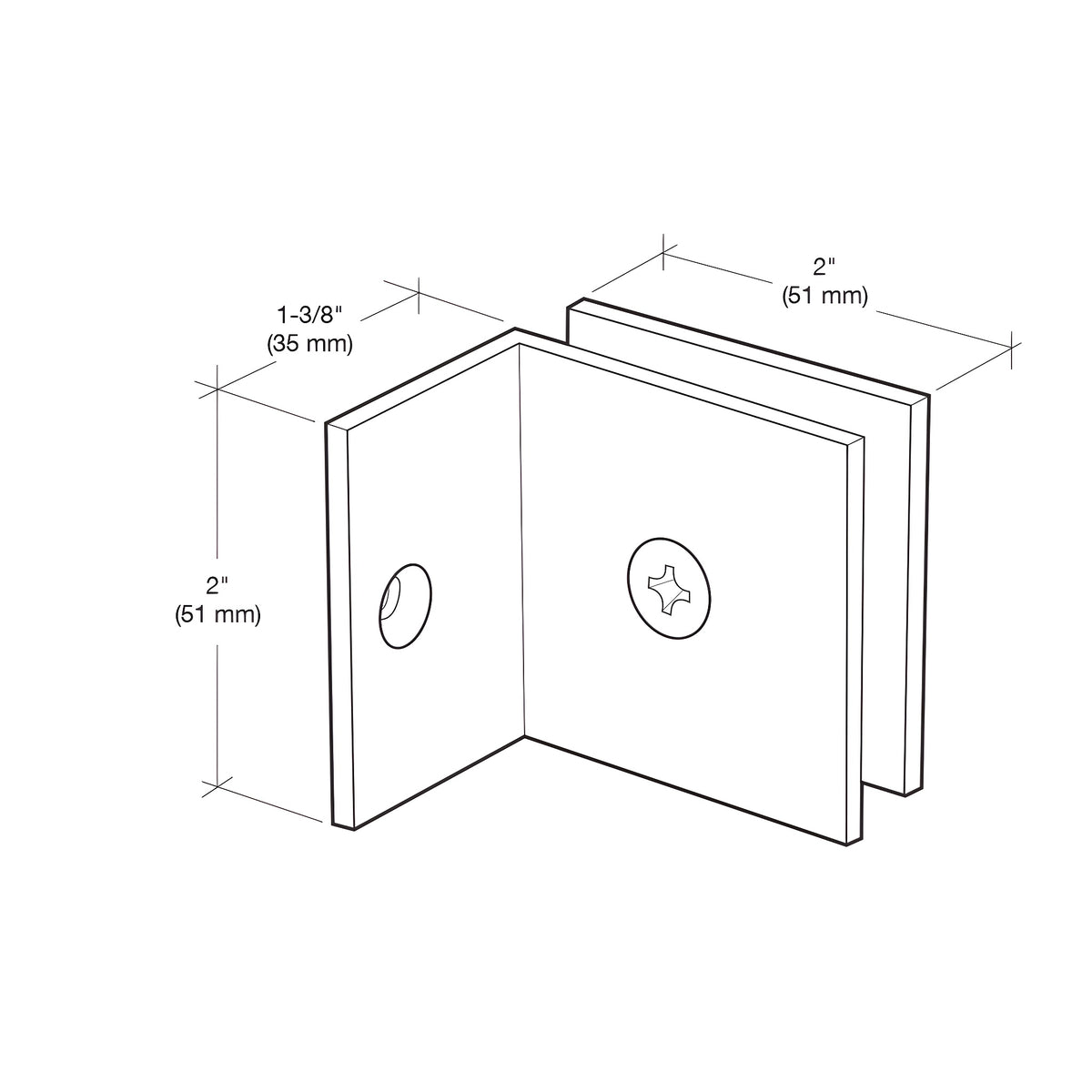

Height
2 in. (51 mm)
Leg Width
1-3/8 in. (35 mm)
Material
Brass
Mounting Type
Wall Mount
Width
2 in. (51 mm)
- Clamps contribute to an "all-glass" appearance for frameless shower and glass panel installations
- Requires 3/4" (19 mm) hole in tempered glass
- Small 90° leg provides extra secure mounting surface for vertical fixed glass panels
- Designed for use with monolithic tempered glass
CRL Fixed Panel Square Clamp (With Small Leg) — SKU: SGC037BR mounts directly to wall, ceiling, or floor to secure vertical fixed glass panels in frameless shower enclosures and storefront glazing. Clearance between the glass and wall is 3/16" (5 mm). Use clear silicone for a clean, water-tight seal. The small 90° leg adds strength and stability for high-use applications.
SPECIFICATIONS:
Materials: Solid brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 requires notch; SCU4, SGC037, and SGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
Most shipping weights are approximate. If exact weight is required to determine shipping costs, contact CRL Customer Service prior to ordering. Product images are actual or close representations; colors may vary by monitor.
Brass Finish Advisory:
Brass is durable but can oxidize over time, which may cause a tarnished appearance regardless of initial packaging or storage. See the Brass Finish Disclaimer in Technical References for care and maintenance.
Why choose SGC037BR: Solid brass construction, small 90° leg for added strength, and a discreet profile that helps achieve a true frameless, all-glass look for showers and glass partitions.
Order SGC037BR today or contact CRL Customer Service for fabrication and installation guidance.
