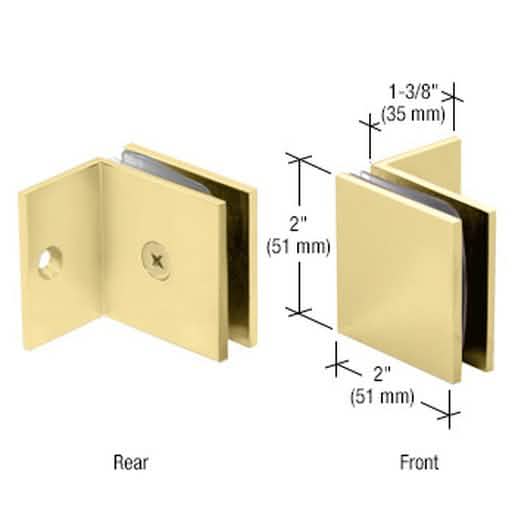

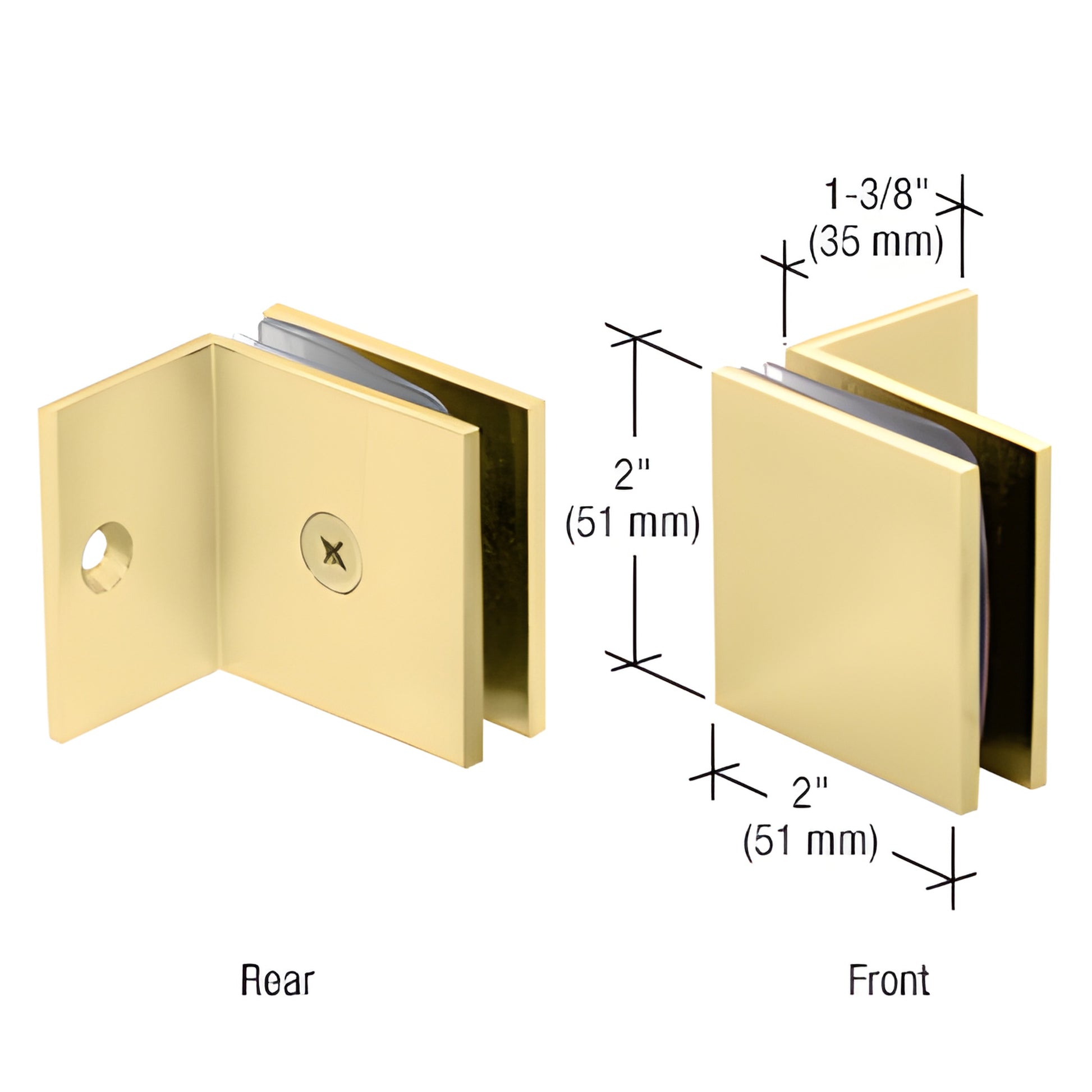

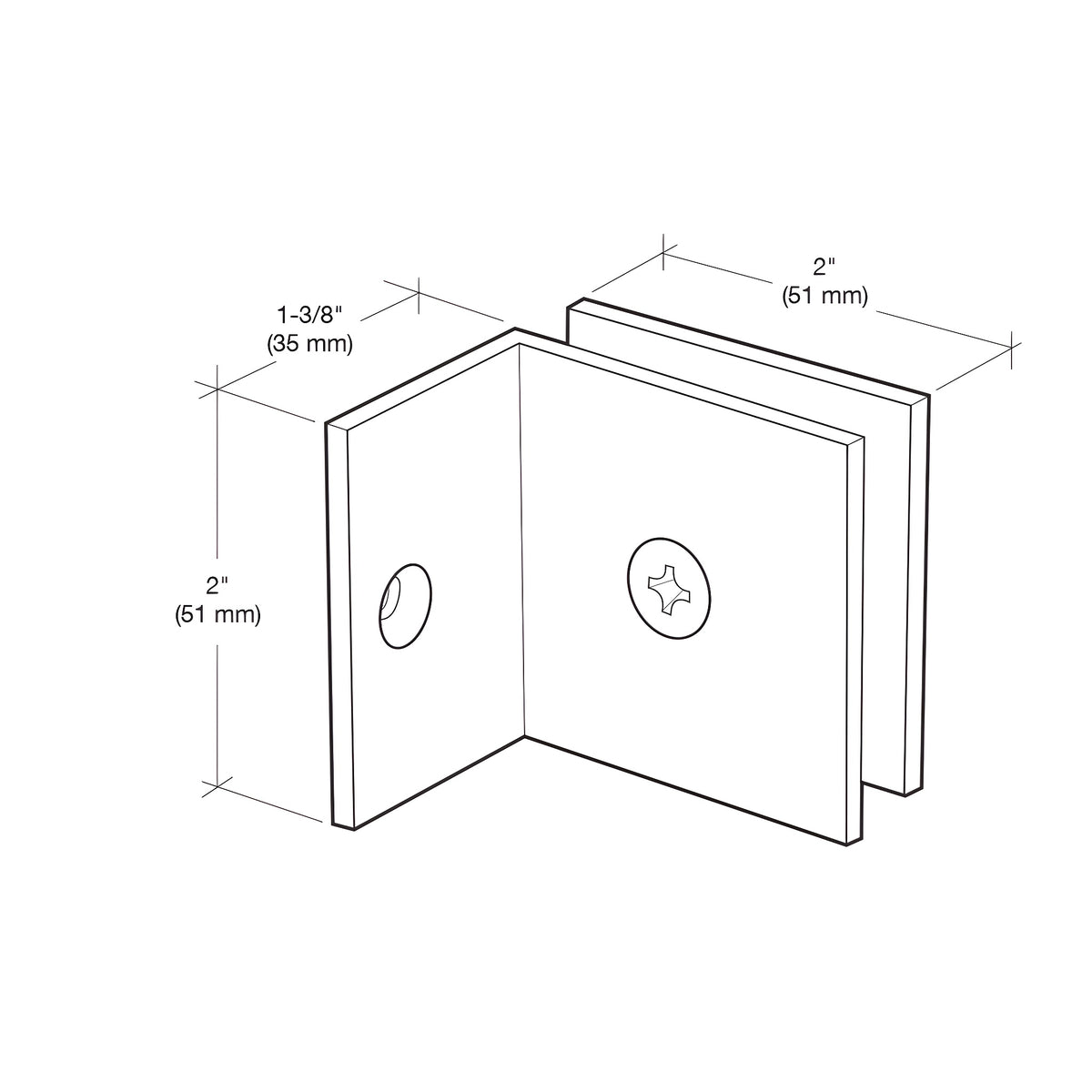

CRL Satin Brass Square Glass Clamp for Fixed Panel (Small Leg)
CRL Satin Brass Square Glass Clamp for Fixed Panel (Small Leg)
Regular price
$42.24 CAD
Regular price
Sale price
$42.24 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGC037SB
Shipping Weight: 8.288 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.288 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Satin Brass
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Height
2 in. (51 mm)
Leg Width
1-3/8 in. (35 mm)
Material
Brass
Mounting Type
Wall Mount
Width
2 in. (51 mm)
Overview
- Clamps contribute to an "all-glass" appearance for frameless installations
- Requires 3/4" (19 mm) hole in glass
- Small 90° leg provides extra secure mounting surface and strength
- Use with monolithic tempered glass
CRL Fixed Panel Square Clamp (With Small Leg) — SKU SGC037SB mounts directly to wall, ceiling, or floor to secure vertical fixed glass panels. Clearance between glass and wall is 3/16" (5 mm). Use clear silicone for a clean, watertight seal. The small 90° leg increases mounting strength while preserving a near "all-glass" aesthetic.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 requires notch; SCU4, SGC037, and SGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
Brass Finish Advisory:
Brass is durable but can oxidize over time, which may cause a tarnished appearance regardless of initial packaging or storage. See the Brass Finish Disclaimer in the Technical References for care and maintenance tips.
Ideal for: frameless shower glass clamps, brass glass clamps for showers, 3/8"–1/2" tempered glass panels.
Add SGC037SB to your project cart or contact CRL for more information and installation guidance.
