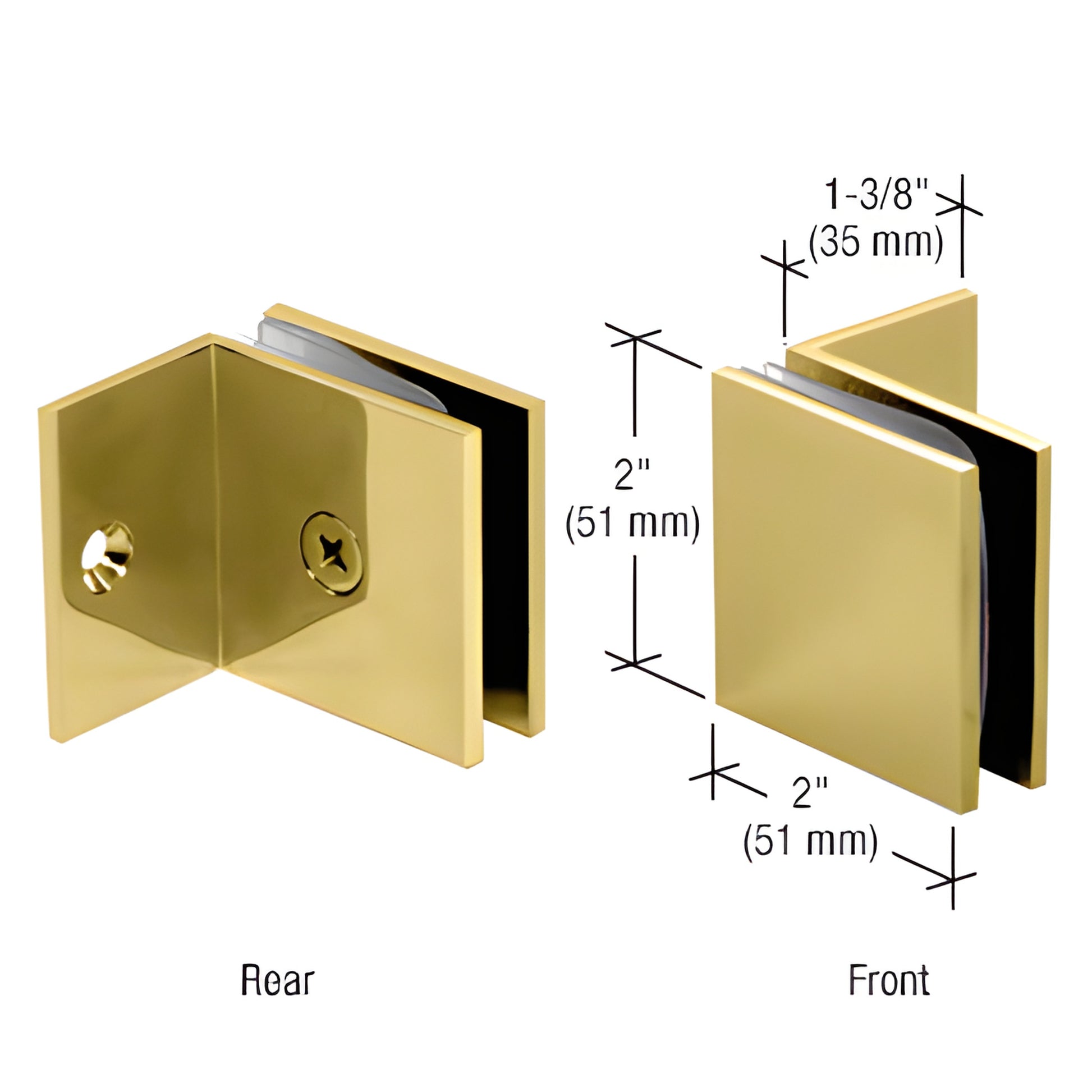

CRL Unlacquered Brass Fixed Glass Panel Square Clamp Small Leg
CRL Unlacquered Brass Fixed Glass Panel Square Clamp Small Leg
Regular price
$49.83 CAD
Regular price
Sale price
$49.83 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGC037ULBR
Shipping Weight: 8.48 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.48 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Unlacquered Brass
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)

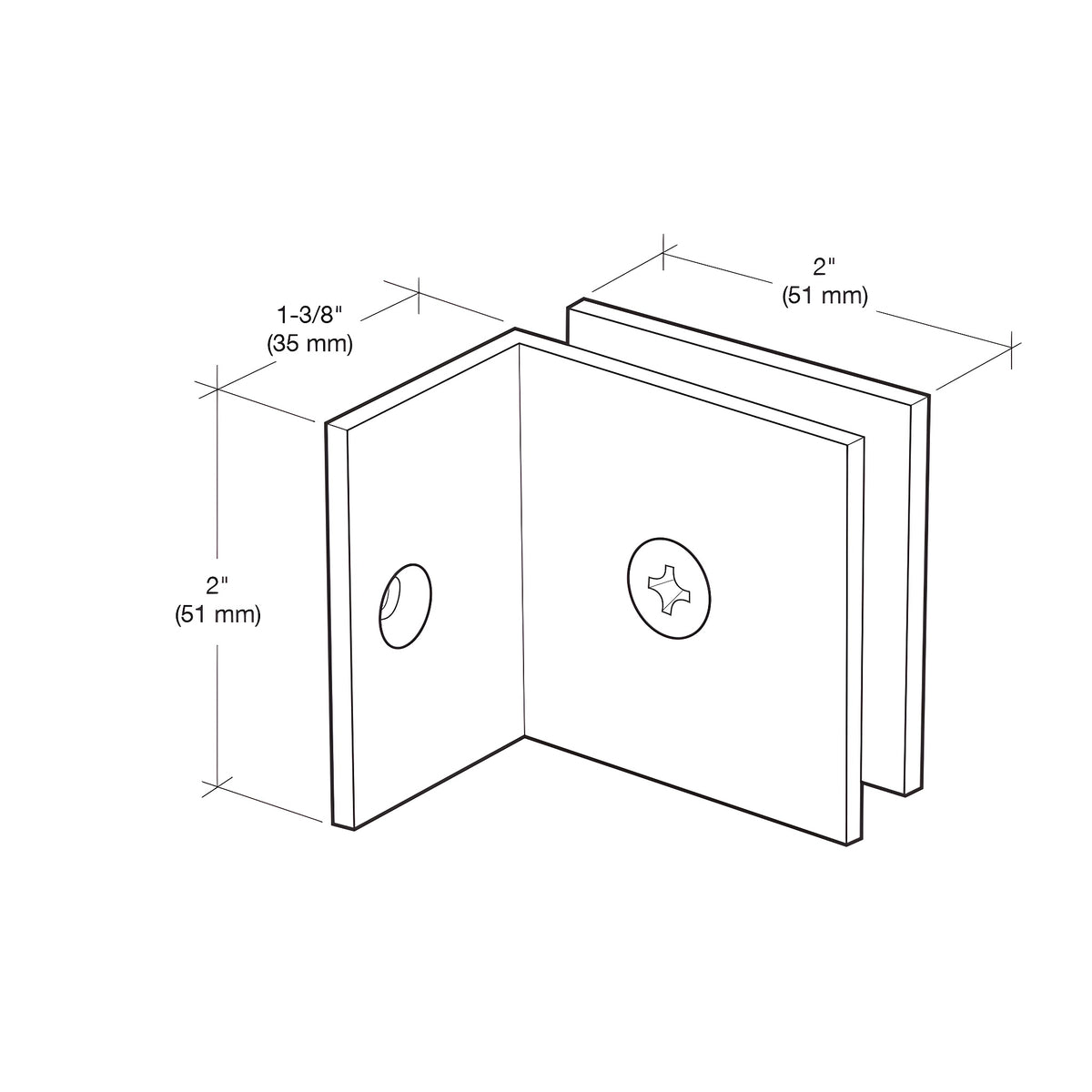

Height
2 in. (51 mm)
Leg Width
1-3/8 in. (35 mm)
Material
Brass
Mounting Type
Wall Mount
Width
2 in. (51 mm)
Overview
- Clamps contribute to an "all-glass" appearance
- Requires 3/4" (19 mm) hole in glass
- Small 90° leg provides extra secure mounting surface
- Use with monolithic tempered glass
CRL Fixed Panel Square Clamp (With Small Leg) — SKU SGC037ULBR mounts directly to wall, ceiling or floor to secure vertical fixed glass panels. Designed for monolithic tempered glass, the clamp leaves a 3/16" (5 mm) clearance to the wall; clear silicone creates a clean, water-tight seal. The compact 90° leg gives increased mounting strength while preserving a minimal, all-glass look—ideal for glass shower enclosures and frameless glass partitions.
SPECIFICATIONS:
Materials: Solid brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 requires notch; SCU4, SGC037, and SGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
Brass Finish Advisory:
Brass is durable but can oxidize and develop a tarnished appearance over time regardless of initial packaging or storage. For care and maintenance details, view the Brass Finish Disclaimer in the Technical References section.
Order SGC037ULBR today to secure frameless glass panels with a low-profile solid brass clamp—contact CRL for quantity pricing or technical assistance.
