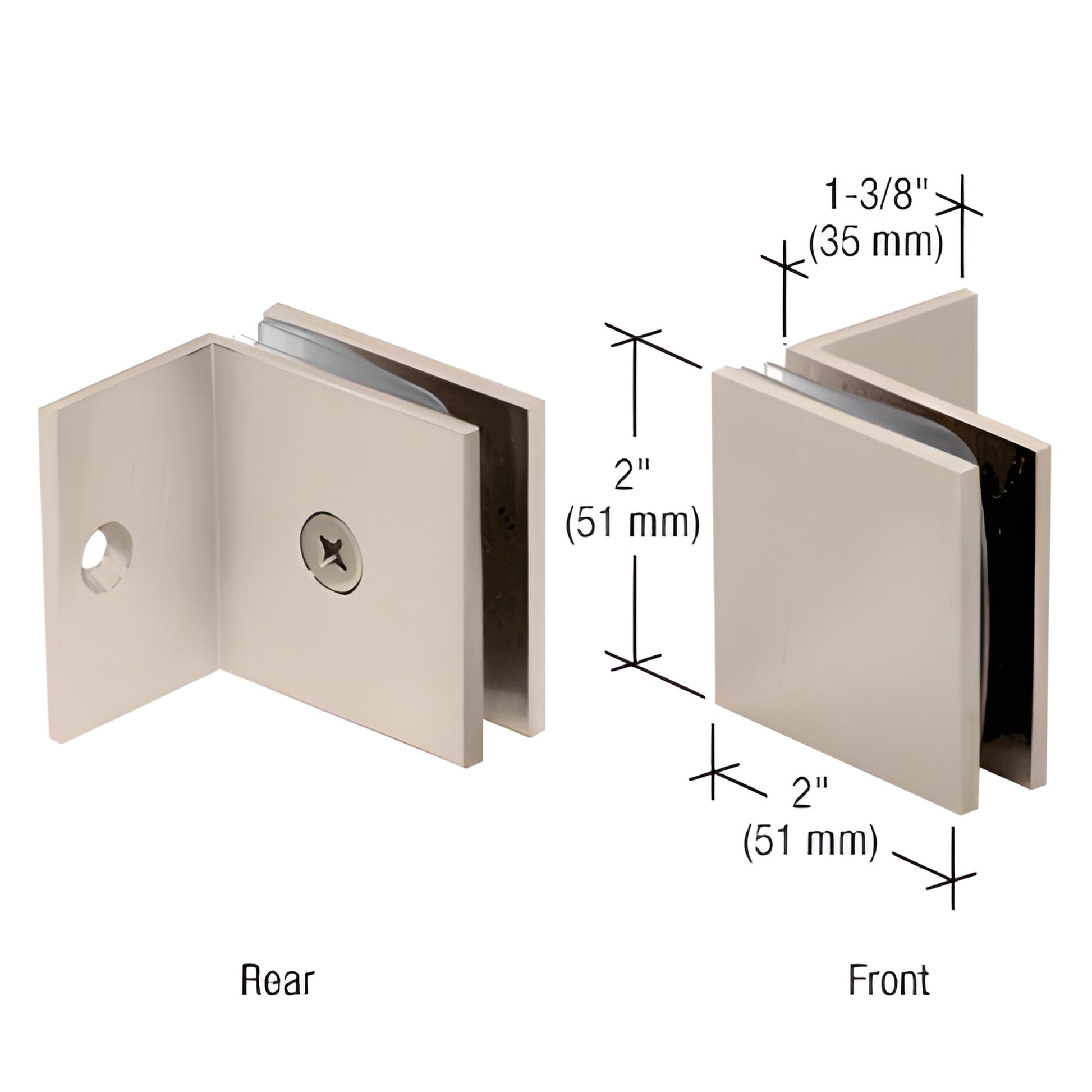

CRL Brushed Nickel Square Clamp for Fixed Glass Panel, Small Leg
CRL Brushed Nickel Square Clamp for Fixed Glass Panel, Small Leg
Regular price
$33.57 CAD
Regular price
Sale price
$33.57 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGC037BN
Shipping Weight: 8.48 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.48 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Brushed Nickel
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)

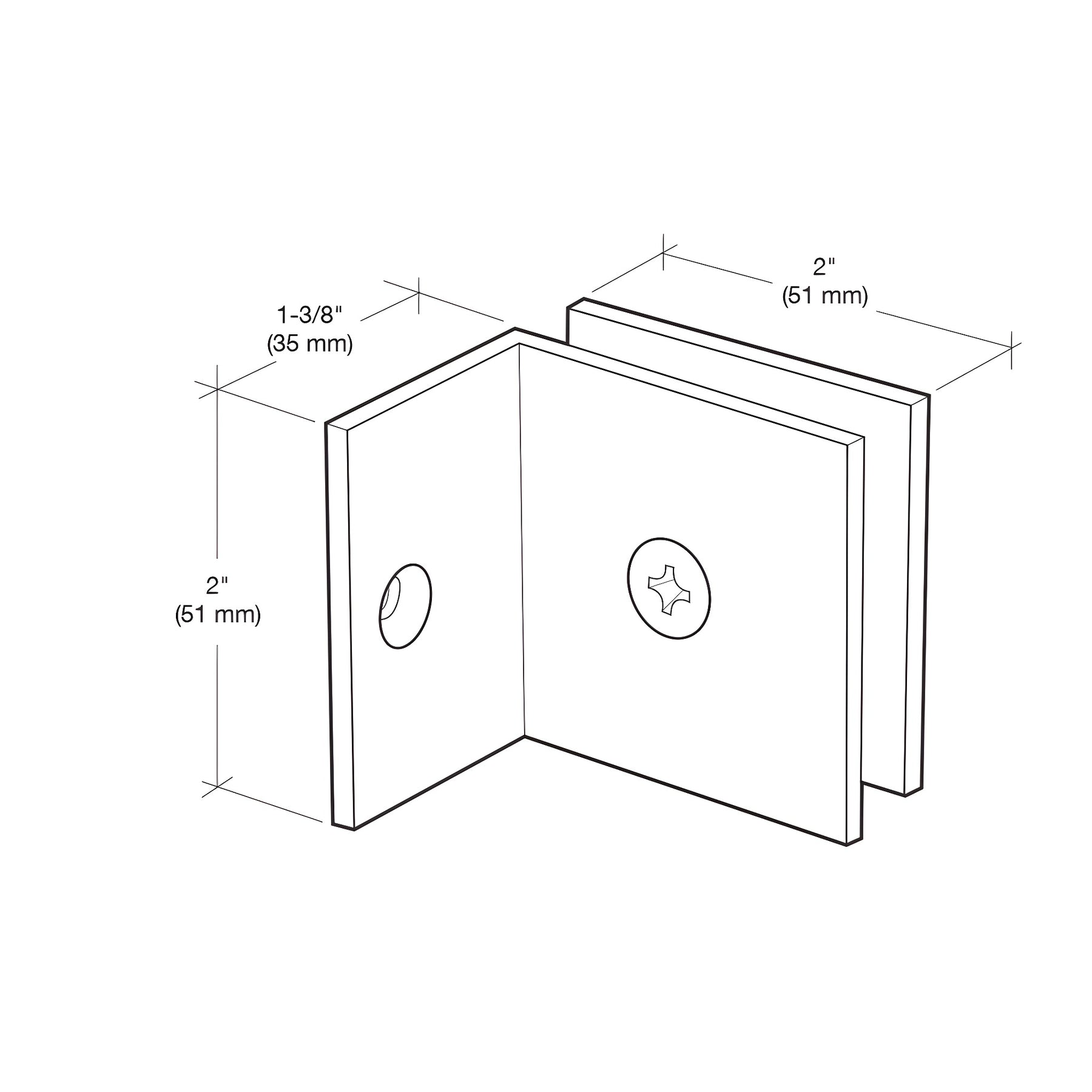

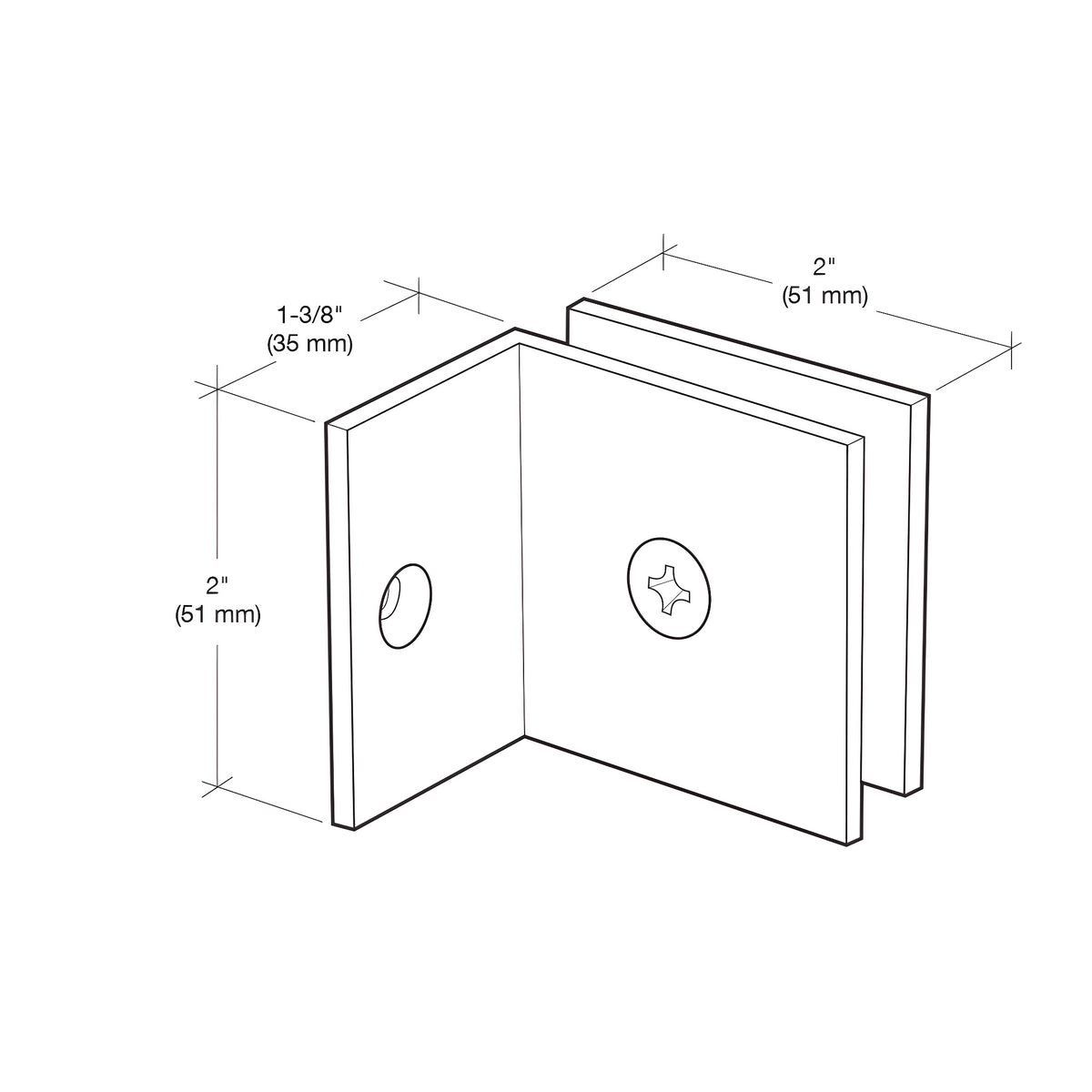

Height
2 in. (51 mm)
Leg Width
1-3/8 in. (35 mm)
Material
Brass
Mounting Type
Wall Mount
Width
2 in. (51 mm)
Overview
- Clamps contribute to an "all-glass" appearance
- Requires 3/4" (19 mm) hole in glass
- Small 90° leg provides extra secure mounting surface
- Use monolithic tempered glass
CRL Fixed Panel Square Clamp (With Small Leg) — SKU: SGC037BN mounts directly to the wall, ceiling, or floor to secure vertical fixed glass panels for showers and glass partitions. Designed for a minimal 3/16" (5 mm) clearance between glass and wall; use clear silicone for a clean, water-tight seal. The small 90° leg adds strength and a more secure mounting surface for high-traffic or wet environments.
SPECIFICATIONS:
Materials: Solid brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 requires notch; SCU4, SGC037, and SGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
