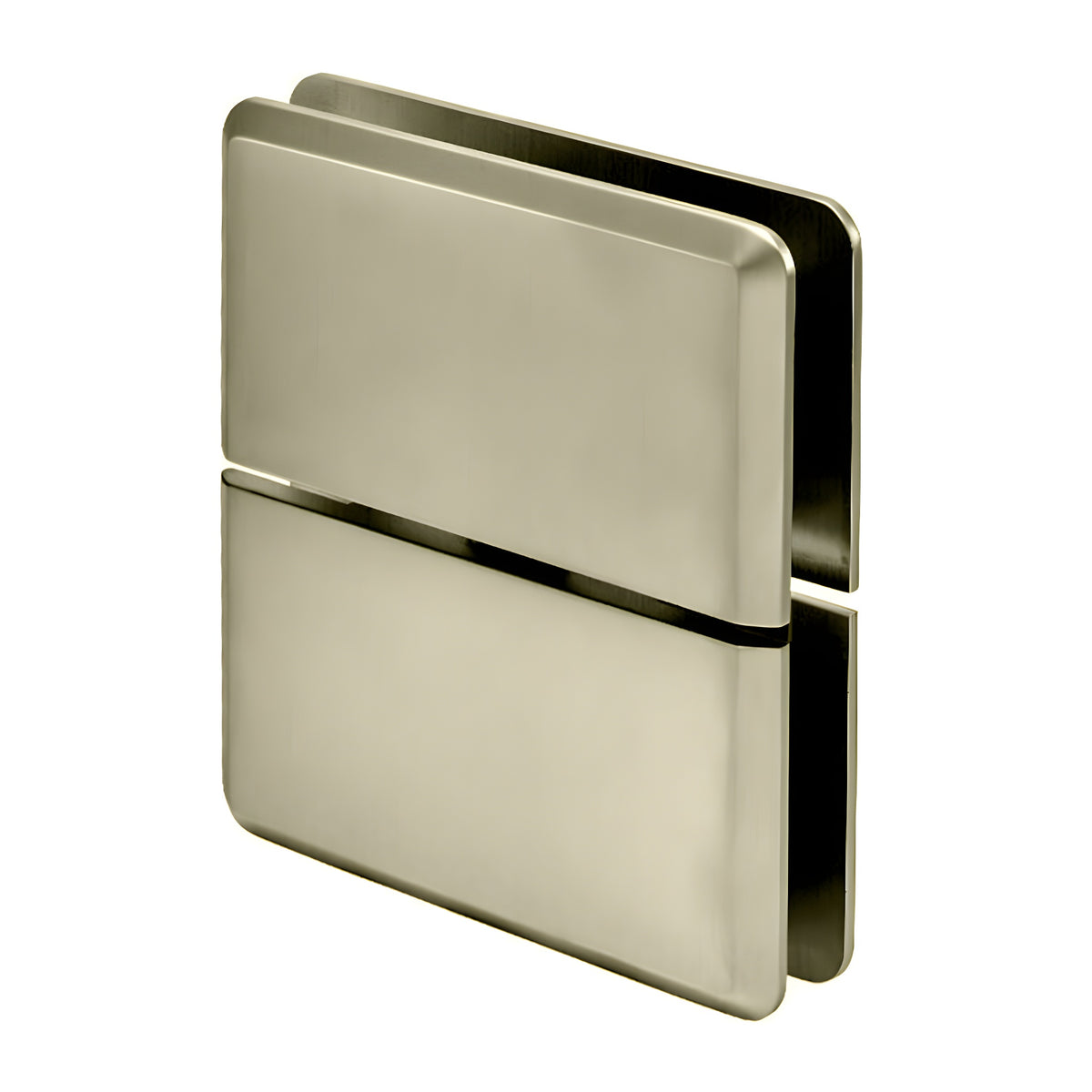

CRL Prima 02 Brushed Bronze Glass-to-Glass Frameless Shower Hinge

• Glass-to-Fixed Transom Mount
• Self-Centering with Optional 5° Pivot Pin Set
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use with Monolithic Tempered Safety Glass
• U.S. Patent 5,297,313

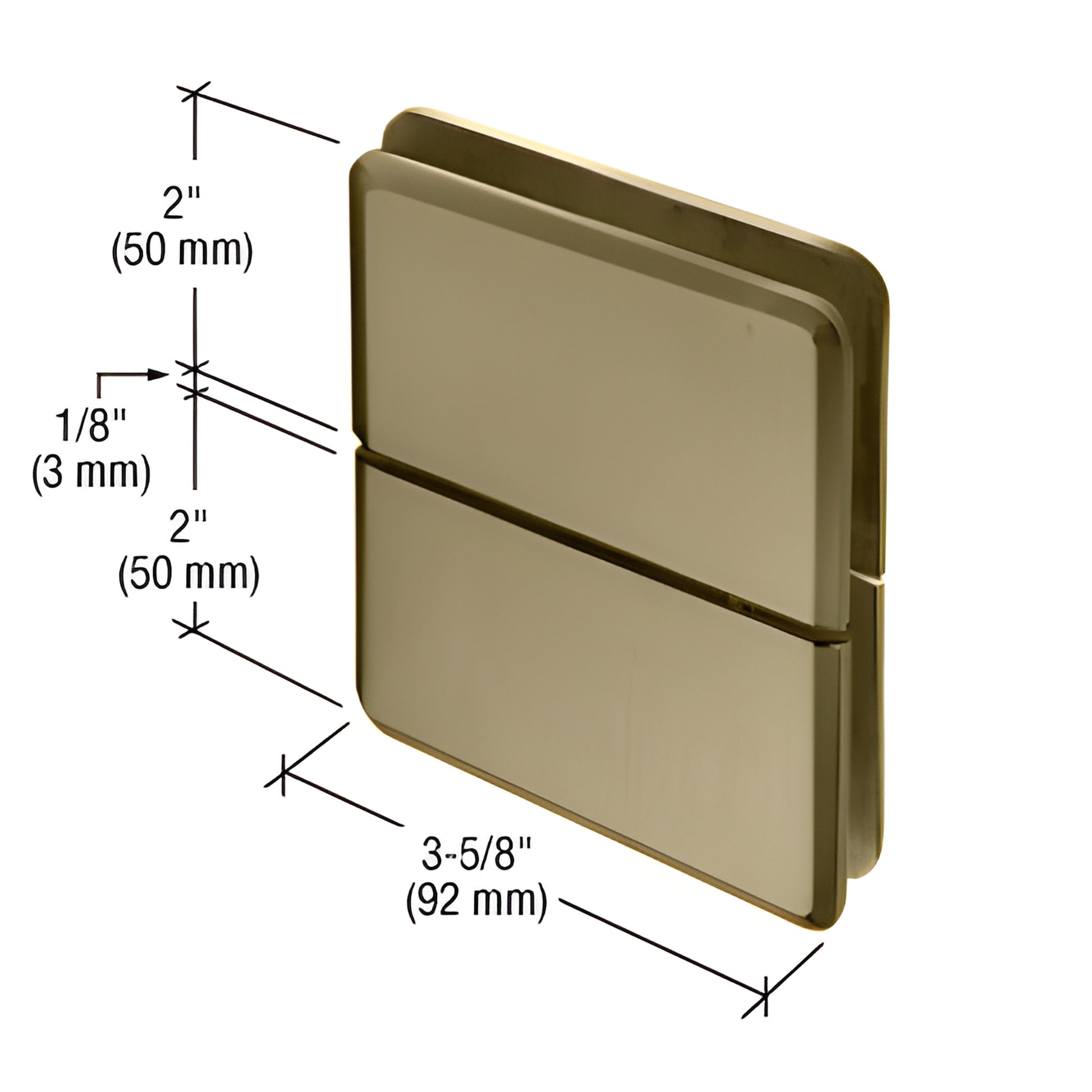

CRL Prima Series Pivot Hinges — SKU: PPH02BBRZ are precision solid-brass glass-to-fixed transom pivot hinges engineered for 5/16" to 3/8" (8 to 10 mm) tempered safety glass. Designed for residential and hotel shower enclosures, these pivot hinges offer inset mounting to create clearance for towel bars and other projections while showcasing more glass thanks to a top-and-bottom mount design. Self-centering operation uses four springs for reliable return and maximum retention strength. Optional Cat. No. P1VP1N 5° pre-set pivot pin sets can be ordered separately to alter door closing position by 5°; pre-set 5° hinge models are also available from stock.

Key differentiators:

• Solid brass construction for corrosion resistance and long life
• Self-centering full-rotation hinge with four-spring retention
• Top-and-bottom mount reduces glass cut-outs vs. standard side-mount hinges
• Patented design (U.S. Patent 5,297,313) and backed by a 3 year warranty

Optional 5° Pivot Pin Set (Prima, Cardiff, Rondo, Shell Series): Sold as a set (top and bottom). Insert before installation or retrofit after installation to change the closing position by 5°. Not included with hinge purchase.

Performance Using Two Hinges: For 5/16"–3/8" (8–10 mm) glass, two hinges support up to 100 lbs (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top and bottom mount design shows more glass and reduces cut-outs compared to side-mount glass-to-glass hinges. PPH01 can mount floor & ceiling or floor & header.
Construction: Solid Brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: PPH135 also requires two holes; PPH07 requires cut-out for hinge and hole for clamp
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313

Custom finishes are available on request. Contact the CRL Technical Sales Department for custom finishes or technical approval for non-standard applications. Use only the template included with this hinge—cut-out dimensions may differ from other brands.
