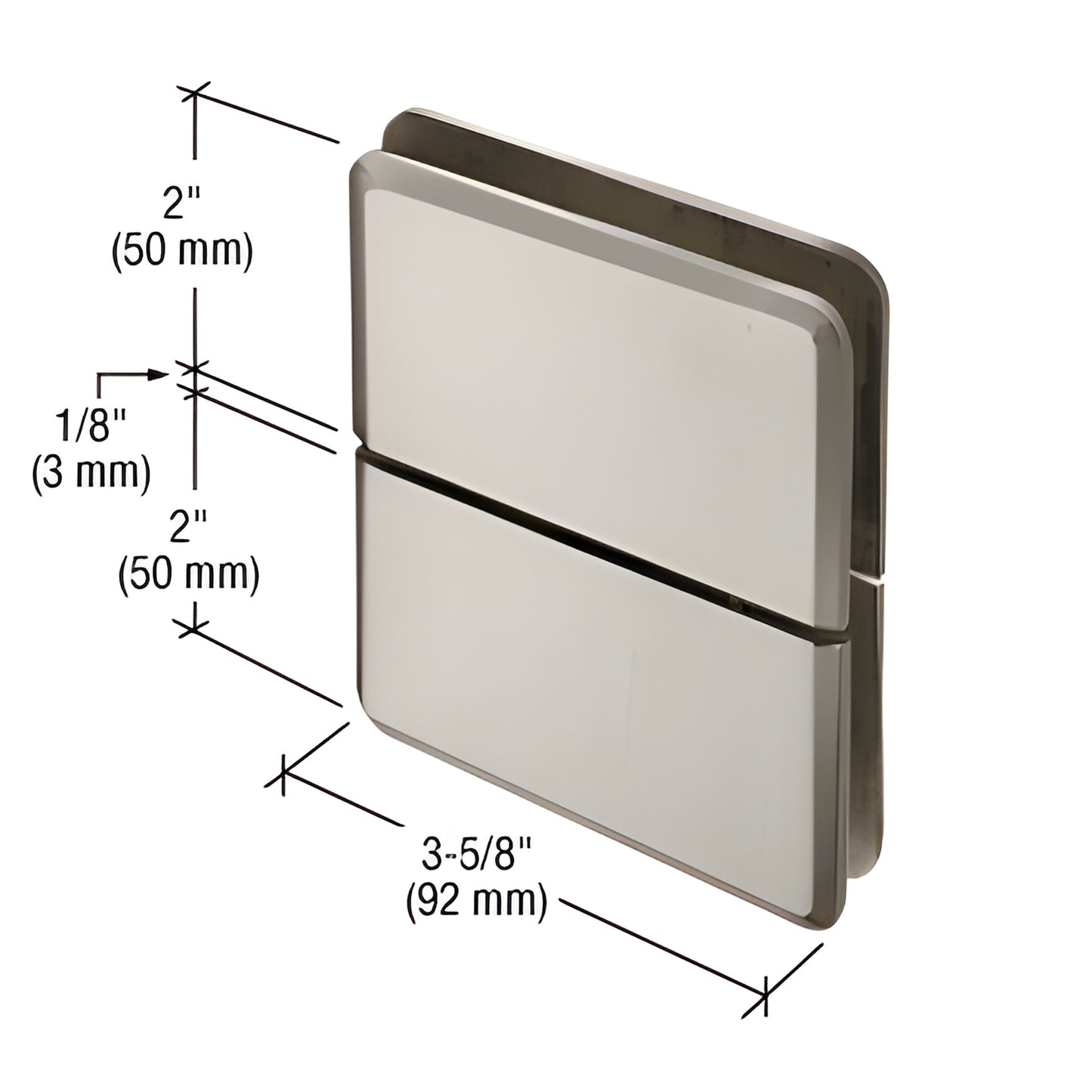

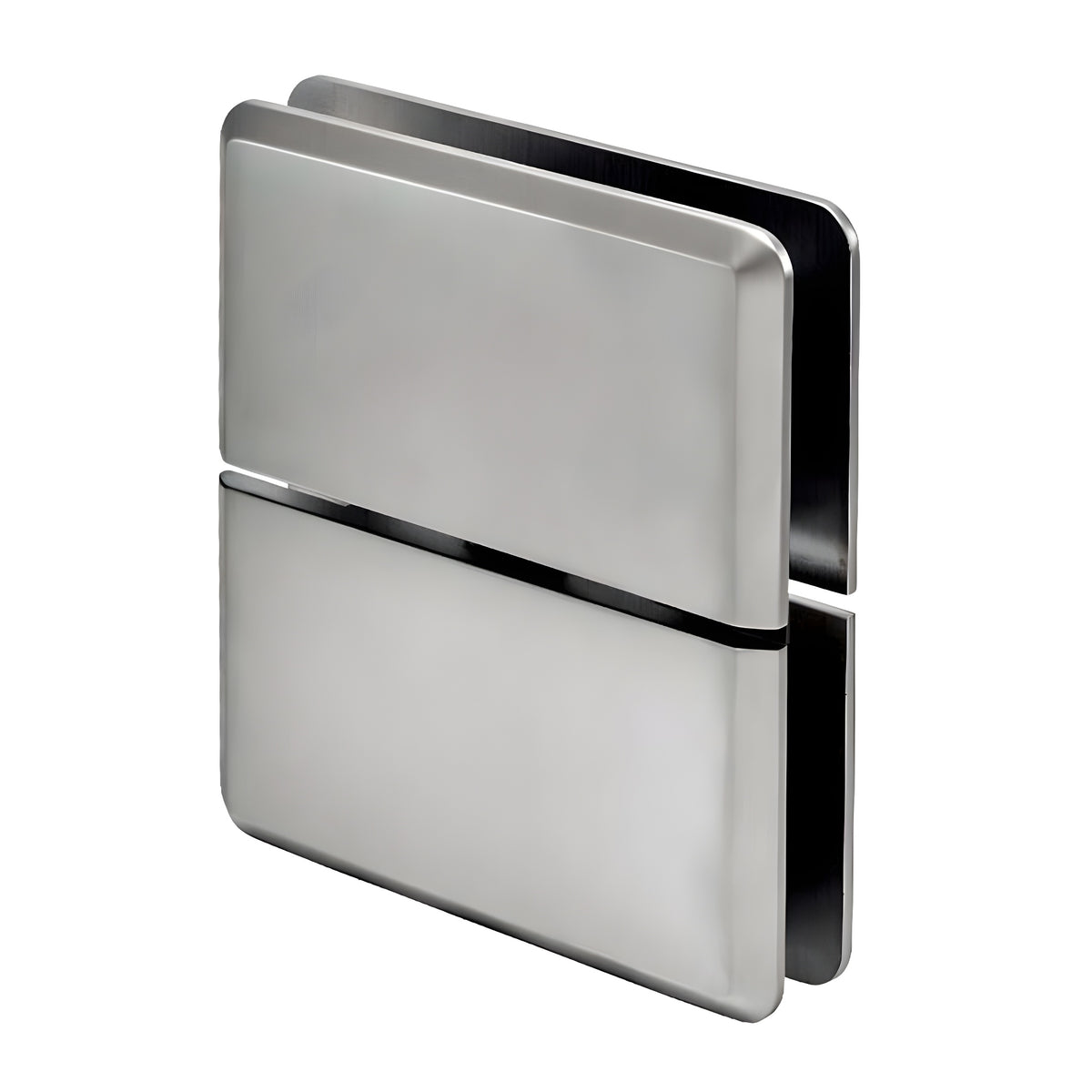

CRL Prima 02 Brushed Nickel Glass-to-Glass Shower Hinge

• Glass-to-Fixed Transom Mount
• Self-Centering with Optional 5° Pivot Pin Set
• Available in several premium finishes (custom finishes on request)
• 3 Year Warranty
• For use with monolithic tempered safety glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges (SKU: PPH02BN) are engineered for 5/16" to 3/8" (8–10 mm) tempered safety glass and expand application options for frameless shower doors and glass-to-fixed transom installations. Pivot-style hinges carry most weight at the bottom and can be inset from the wall to provide clearance for towel bars and other projections. Prima hinges are self-centering with four internal springs for reliable retention. Optional Cat. No. P1VP1N 5° pre-set pivot pin sets may be ordered separately; pre-set 5° hinge models are also available from stock.

Optional 5° Pivot Pin Set (Prima, Cardiff, Rondo, Shell Series): alters door closing position by 5°. Pins can be installed before install or retrofitted afterward. Sold as a top-and-bottom set. Not included with hinge purchase.

Performance using two hinges: With 5/16"–3/8" (8–10 mm) glass, the hinge configuration will support up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design exposes more glass and reduces required cut-outs vs. standard side-mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor-to-ceiling or floor-to-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: PPH135 also requires two holes; PPH07 requires cut-out for hinge plus hole for clamp
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313

Custom finishes available on request—contact CRL Technical Sales for lead times and pricing.

Product Warning:

CRL Shower Door Hinges are designed for residential and hotel shower applications. For other uses, obtain approval from CRL Shower Door Technical Sales. Use only the template provided with this hinge—cut-out dimensions may differ from other brands.
