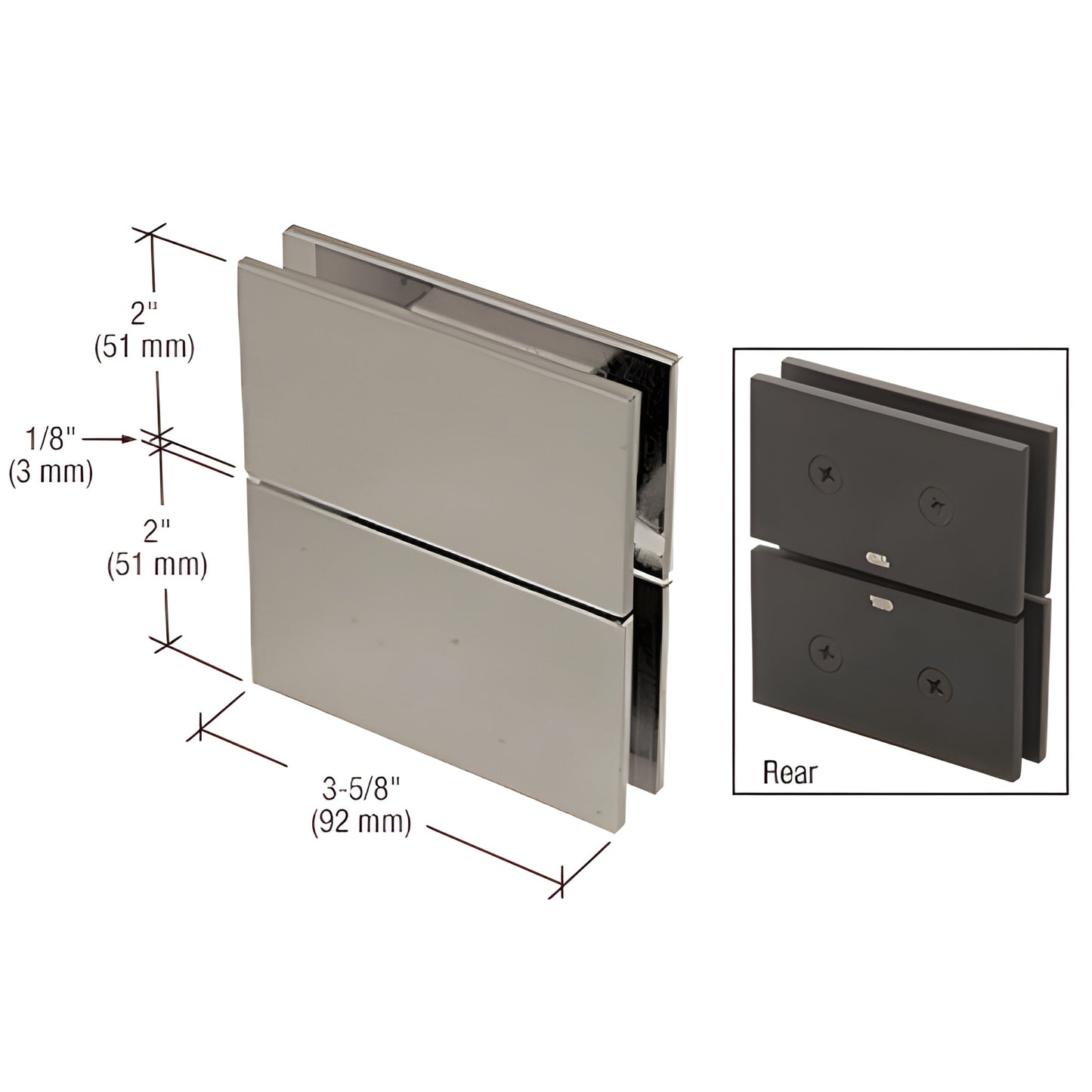

CRL Cardiff Brushed Nickel Glass-to-Glass Frameless Shower Hinge

• Glass-to-Fixed Transom Mount
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass
• U.S. Patent 5,297,313

CRL Cardiff Series Pivot Hinges (SKU: CAR02BN) are engineered for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass and expand application options for glass shower doors and fixed transom installations. Pivot-style hinges support the door weight at the bottom, allow inset installation for clearance around towel bars and projections, and reduce required glass cut-outs compared to standard side-mount glass-to-glass hinges. These self-centering hinges use four springs for strong retention and offer full rotation swing for shower doors. Compatible with CRL’s Deluxe Header System for partial-height enclosures.

NOTE: Optional 5º Pre-Set Pivot Pin Sets (sold separately) shift the door closing position by 5º and may be installed before or retrofitted after installation. Sold as a set of two (top and bottom). Not included with hinge purchase.

Capacity with Two Hinges: With two hinges on 5/16" or 3/8" glass, supports up to 100 lbs. (45 kg) and a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top-and-bottom mount design shows more glass and reduces cut-outs vs. side-mount hinges. Cat. No. CAR01 can be mounted floor-and-ceiling or floor-and-header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Patent: U.S. Patent No. 5,297,313

Product Warning:

CRL Shower Door Hinges are intended for residential or hotel shower use. For other uses, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—CRL cut-out dimensions may differ from other brands.


Enhance your glass shower installation with the Cardiff Series pivot hinge (CAR02BN) — order or request a quote today.
