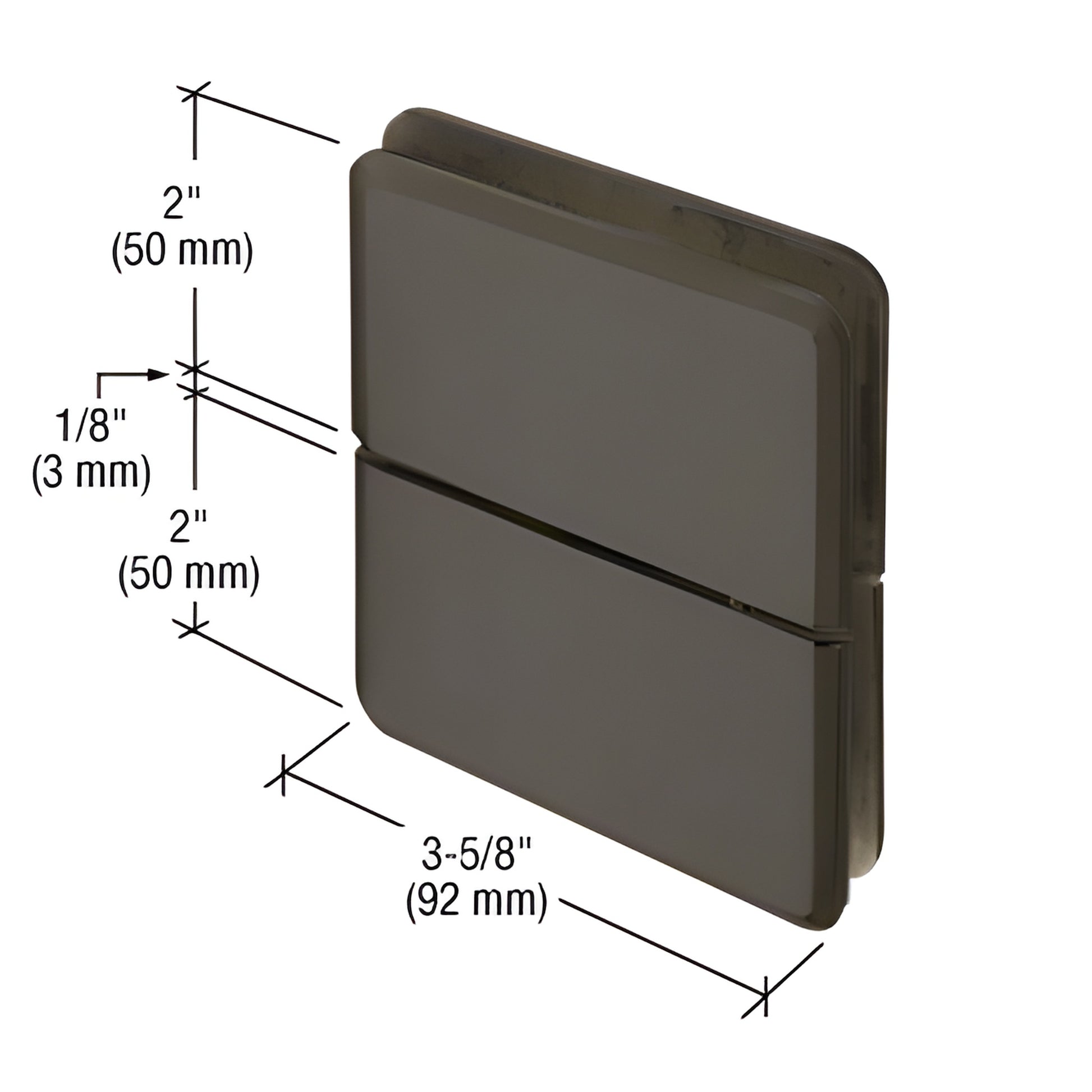

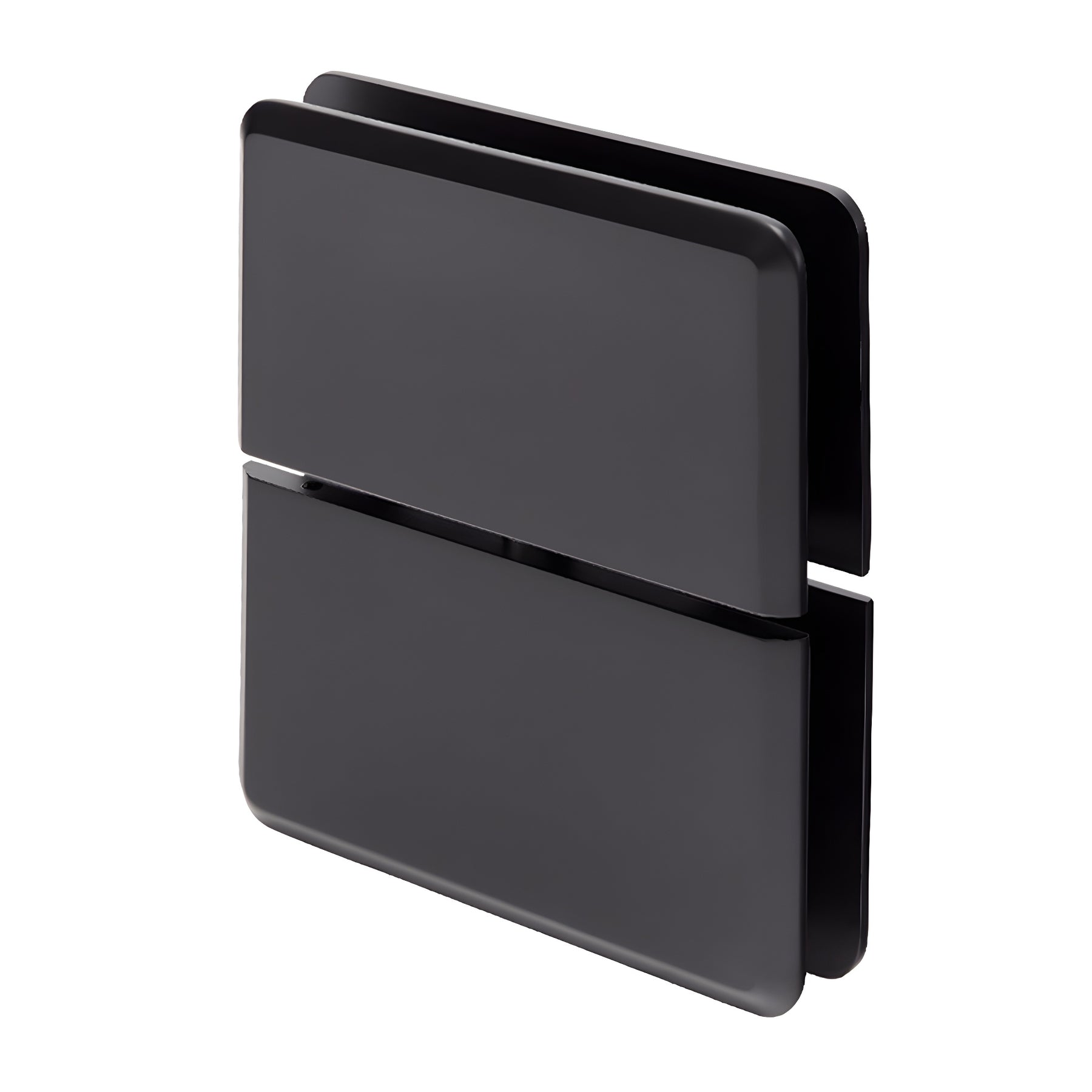

CRL Prima 02 Oil Rubbed Bronze Frameless Shower Glass-to-Glass Hinge

• Glass-to-Fixed Transom Mount
• Self-Centering with Optional 5° Pivot Pin Set
• Available in several durable finishes
• 3 Year Warranty
• Use with monolithic tempered safety glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges (SKU: PPH020RB) are precision glass-to-fixed transom pivot hinges engineered for 5/16" to 3/8" (8–10 mm) tempered safety glass. Designed for shower door and glass partition applications, these solid brass pivot hinges carry most of the door weight on the bottom and can be inset from the wall to provide clearance for towel bars and other projections. The Prima Series is self-centering with four retention springs for dependable closing and long-term performance—ideal when you need a low-profile, high-strength pivot hinge for frameless shower doors and glass enclosures.

Optional 5° Pivot Pin Set (Cat. No. P1VP1N): Change the door closing position by 5°. Pivot pins install before or after installation and are sold as a top-and-bottom set. Not included with hinge purchase. Pre-set 5° hinge models are available from stock.

Performance with Two Hinges: Using two hinges on 5/16"–3/8" glass, the hinge pair will support up to 100 lbs (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design maximizes visible glass and reduces the number of cut-outs versus standard side-mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor-and-ceiling or floor-and-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: PPH135 model also requires two holes; PPH07 model requires cut-out for hinge and hole for clamp
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313

Custom finishes available—contact the CRL Technical Sales Department for powder coat or specialty finish options.

Product Warning:

CRL Shower Door Hinges are intended for residential or hotel shower use. For other uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out
