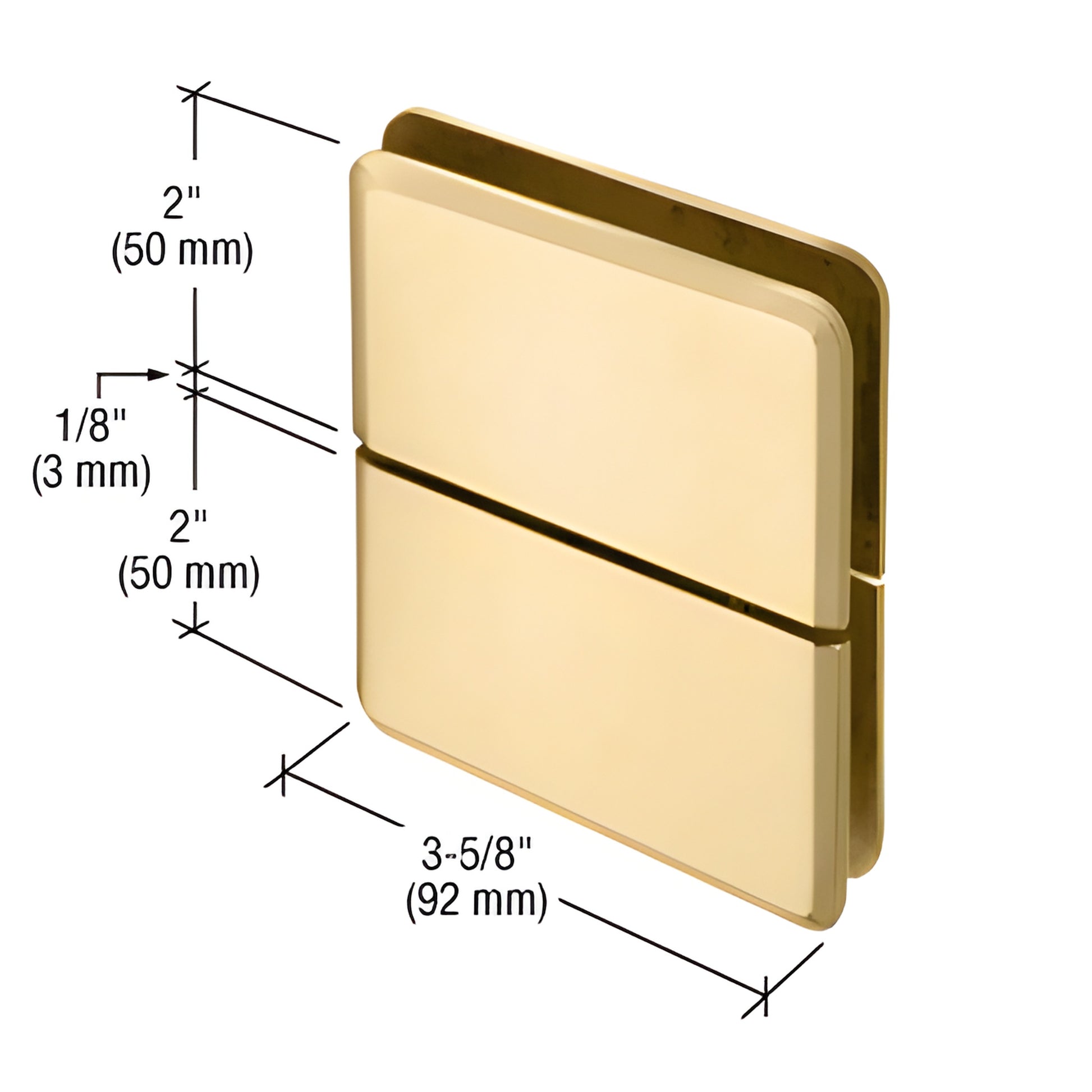

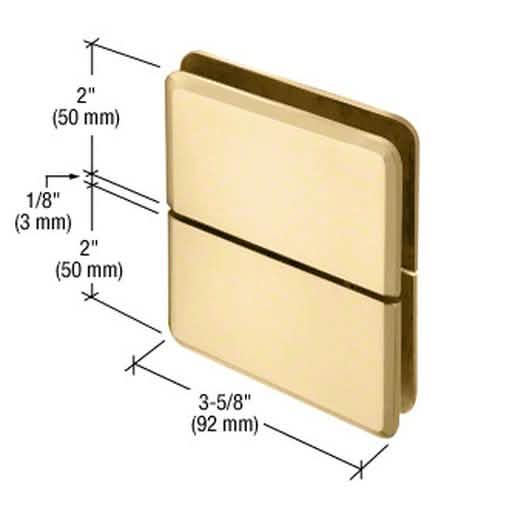

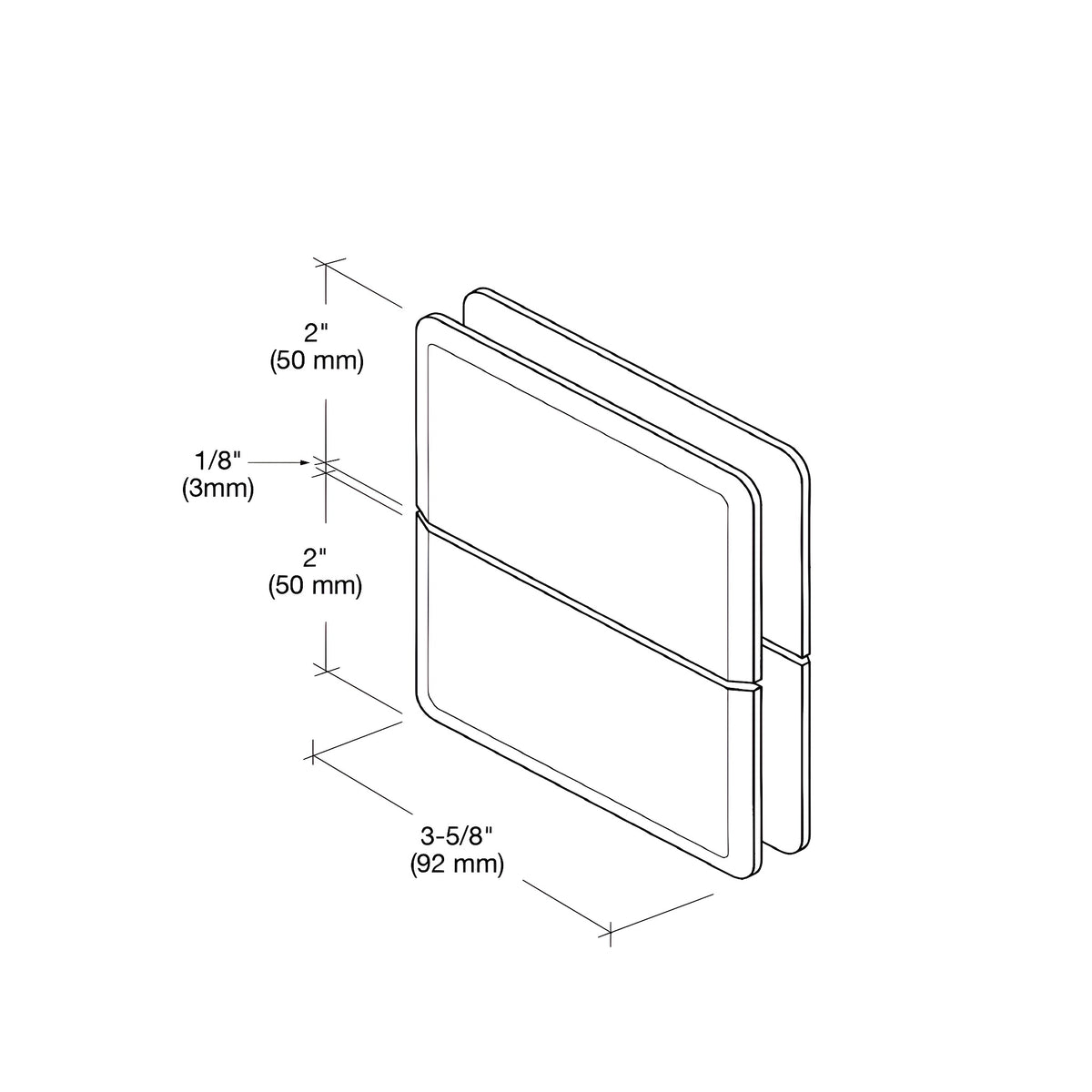

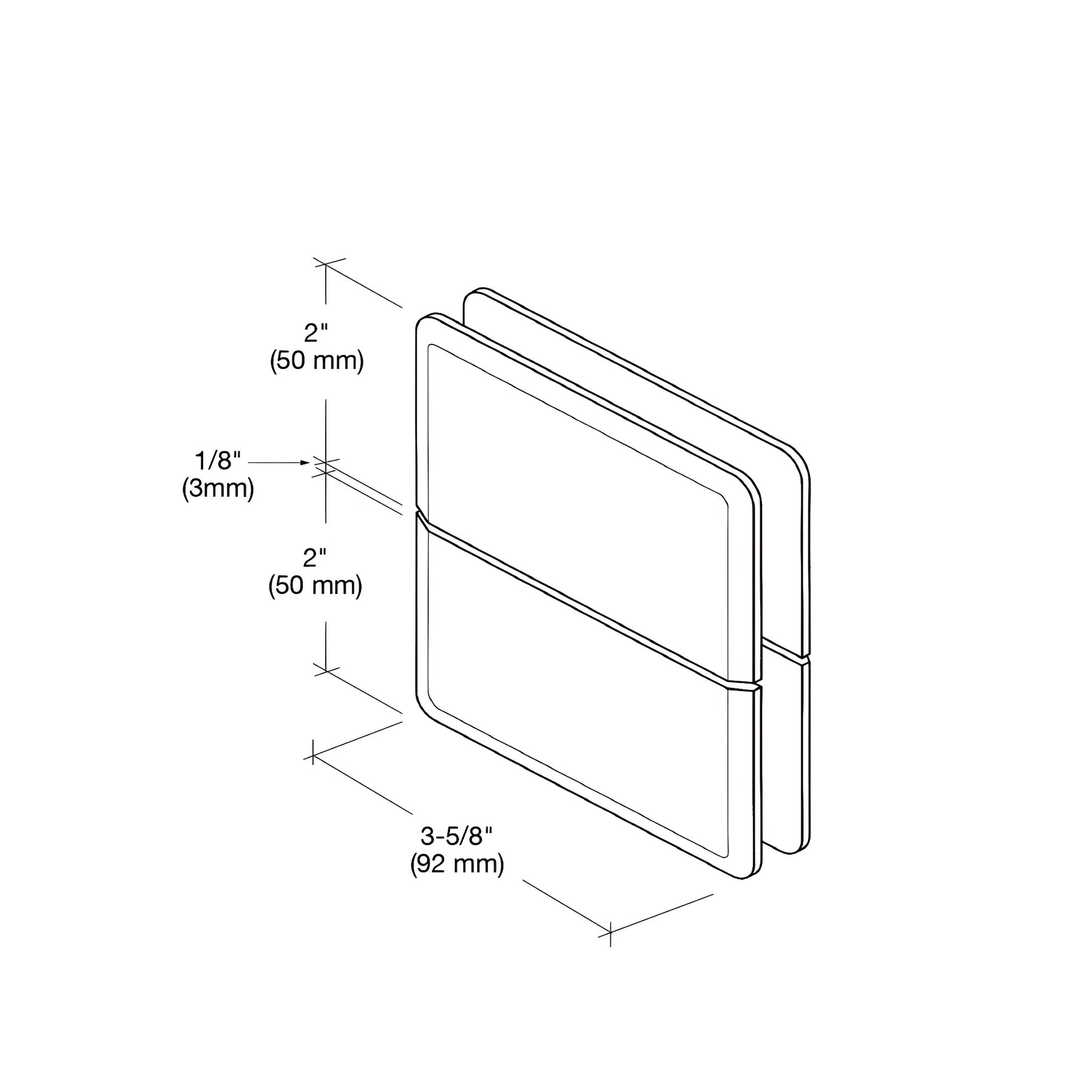

CRL Prima 02 Satin Brass Frameless Shower Door Glass-to-Glass Hinge

• Glass-to-Fixed Transom Mount
• Self-Centering with Optional 5 Degree Pivot Pin Set
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass
• U.S. Patent 5,297,313

SKU: PPH02SB

CRL Prima Series Pivot Hinges are glass-to-fixed transom pivot hinges engineered for 5/16" to 3/8" (8–10 mm) tempered safety glass. These self-centering pivot hinges use four springs for maximum retention strength and carry the majority of the door weight on the bottom—allowing the door to be inset from the wall for clearance of towel bars and other projections. Solid brass construction and full-rotation hinge swing deliver durable performance for residential and hotel shower enclosures.

Key differentiators: Solid brass construction, top-and-bottom mount design to show more glass, reduced cut-outs compared to standard side-mount glass-to-glass hinges, and patented design (Patent No. 5,297,313).

Optional 5° Pivot Pin Set (Cat. No. P1VP1N): Available separately to alter door closing position by 5 degrees. Sold as a set (top and bottom). Can be inserted prior to installation or retrofitted after installation. Pre-set 5° hinge models are also available from stock. (Not included with hinge purchase.)

Using two hinges: With 5/16"–3/8" glass (8–10 mm), two hinges hold up to 100 lbs (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:

Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass

Special Features: Top and bottom mount design shows more glass and reduces required cut-outs vs. side-mount hinges. Cat. No. PPH01 can be mounted floor-and-ceiling or floor-and-header. PPH06 adapts to the EZ-Adjust Header System (adapter included with that model).

Construction: Solid Brass

Hinge Swings: Full rotation

Closing Type: Self-centering within 15° of the closed position

Cut-Out Required: PPH135 also requires two holes; PPH07 requires cut-out for hinge and hole for clamp

Includes: Gaskets, screws, and glass fabrication dimensions

Patent: This hinge series is patented (Patent No. 5,297,313).

Custom finishes are available on request. Contact
