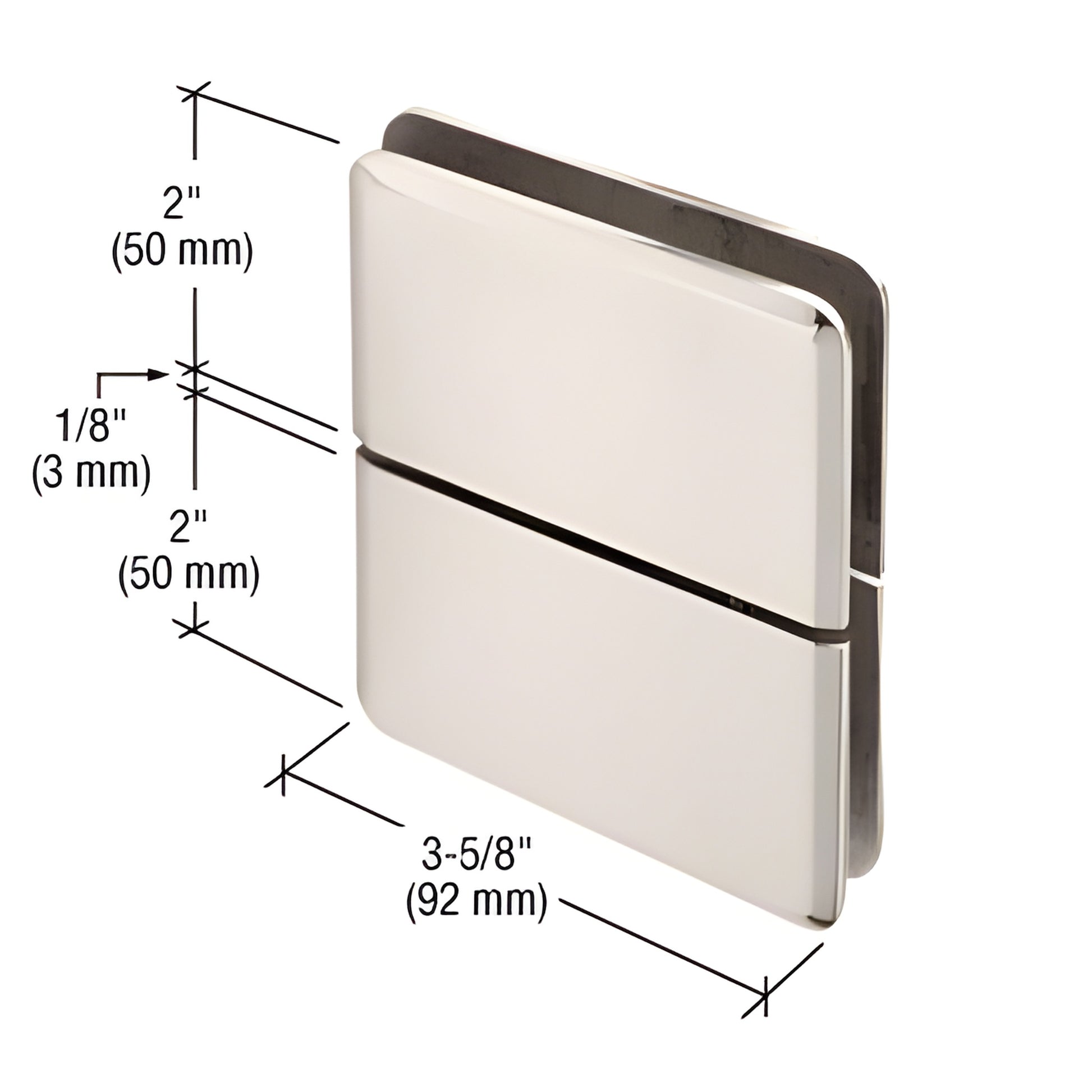

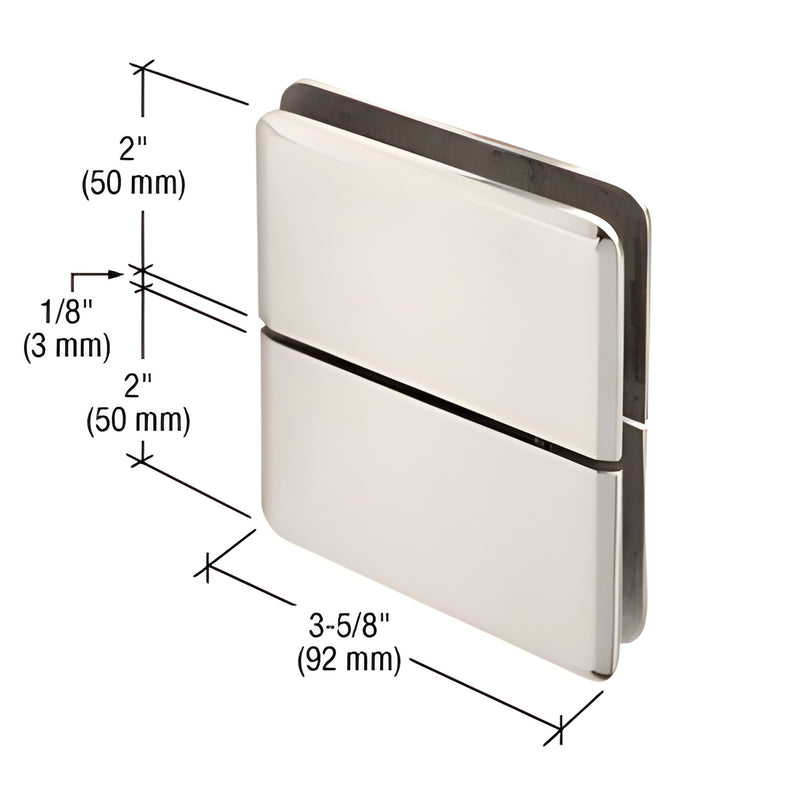

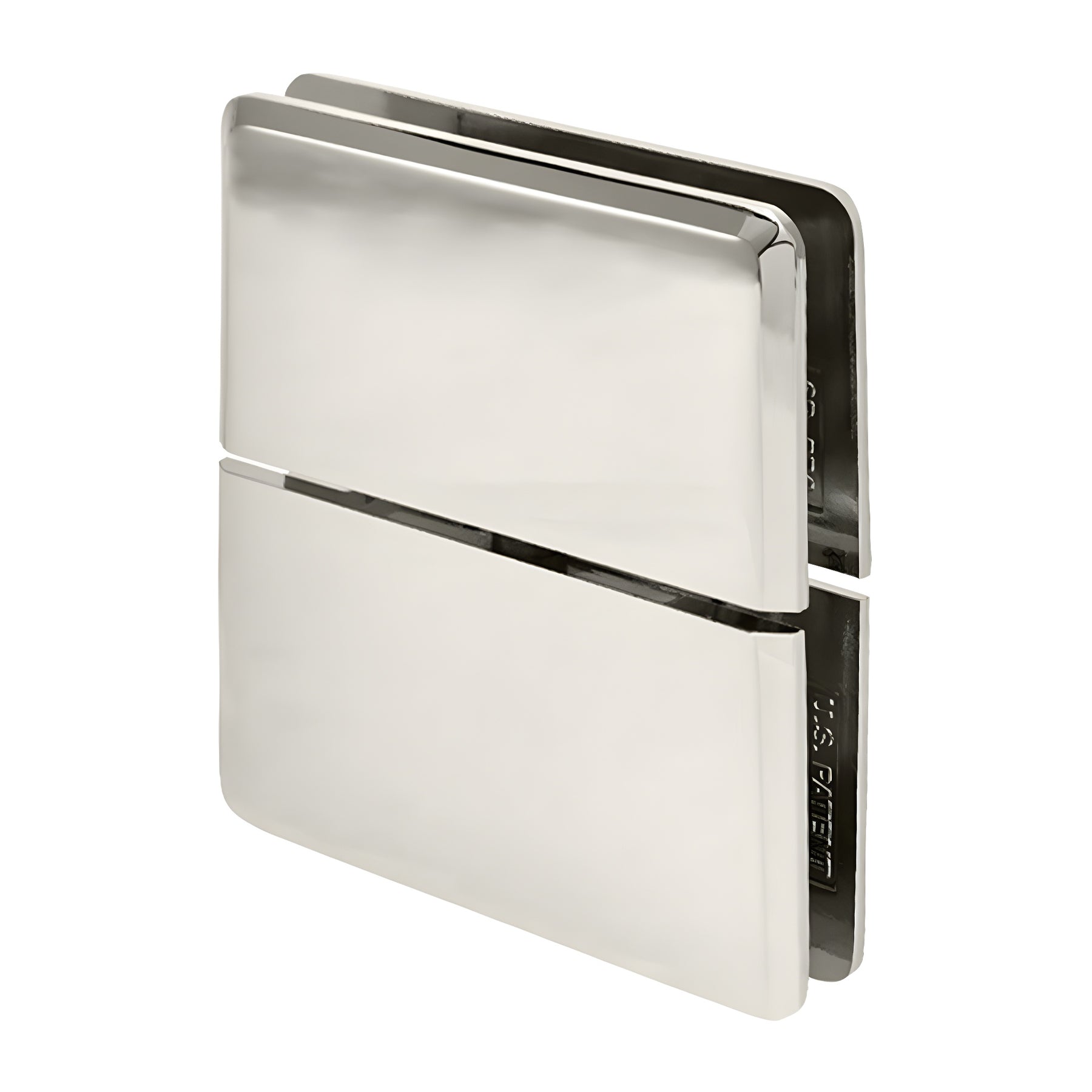

CRL Prima 02 Polished Nickel Frameless Shower Door Hinge

• Glass-to-Fixed Transom Mount
• Self-Centering with Optional 5 Degree Pivot Pin Set
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges (SKU: PPH02PN) are engineered for 5/16" to 3/8" (8–10 mm) tempered safety glass and expand application options for shower doors and glass partitions. These glass-to-fixed transom pivot hinges carry most of the door weight at the bottom and can be inset from the wall to allow clearance for towel bars and other projections. The Prima Series is self-centering with four springs for strong retention. Optional Cat. No. P1VP1N 5° Pre-Set Pivot Pin Sets are available separately; select pre-set 5° hinge models are stocked. PPH01 adapts to the Deluxe Header System for partial-height enclosures; PPH06 is compatible with the EZ-Adjust Header System and includes the required adaptor.

Optional 5° Pivot Pin Set (Prima, Cardiff, Rondo, Shell Series): Adjust the door closing position by 5° using a top-and-bottom pivot pin set. Pins may be installed before or retrofitted after installation. Sold as a pair; not included with hinge purchase. Pre-set 5° hinge models are available from stock.

Load Capacity (two hinges): For 5/16"–3/8" (8–10 mm) glass the pair will support up to 100 lbs (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design exposes more glass and reduces required cut-outs versus standard side-mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor-to-ceiling or floor-to-header.
Construction: Solid Brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: PPH135 also requires two holes; PPH07 requires cut-out for hinge plus hole for clamp.
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,
