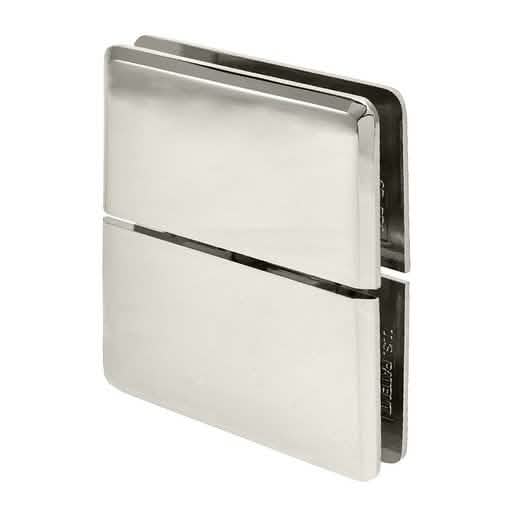

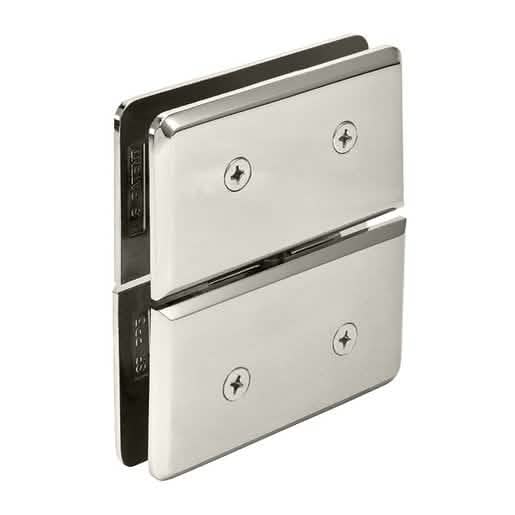

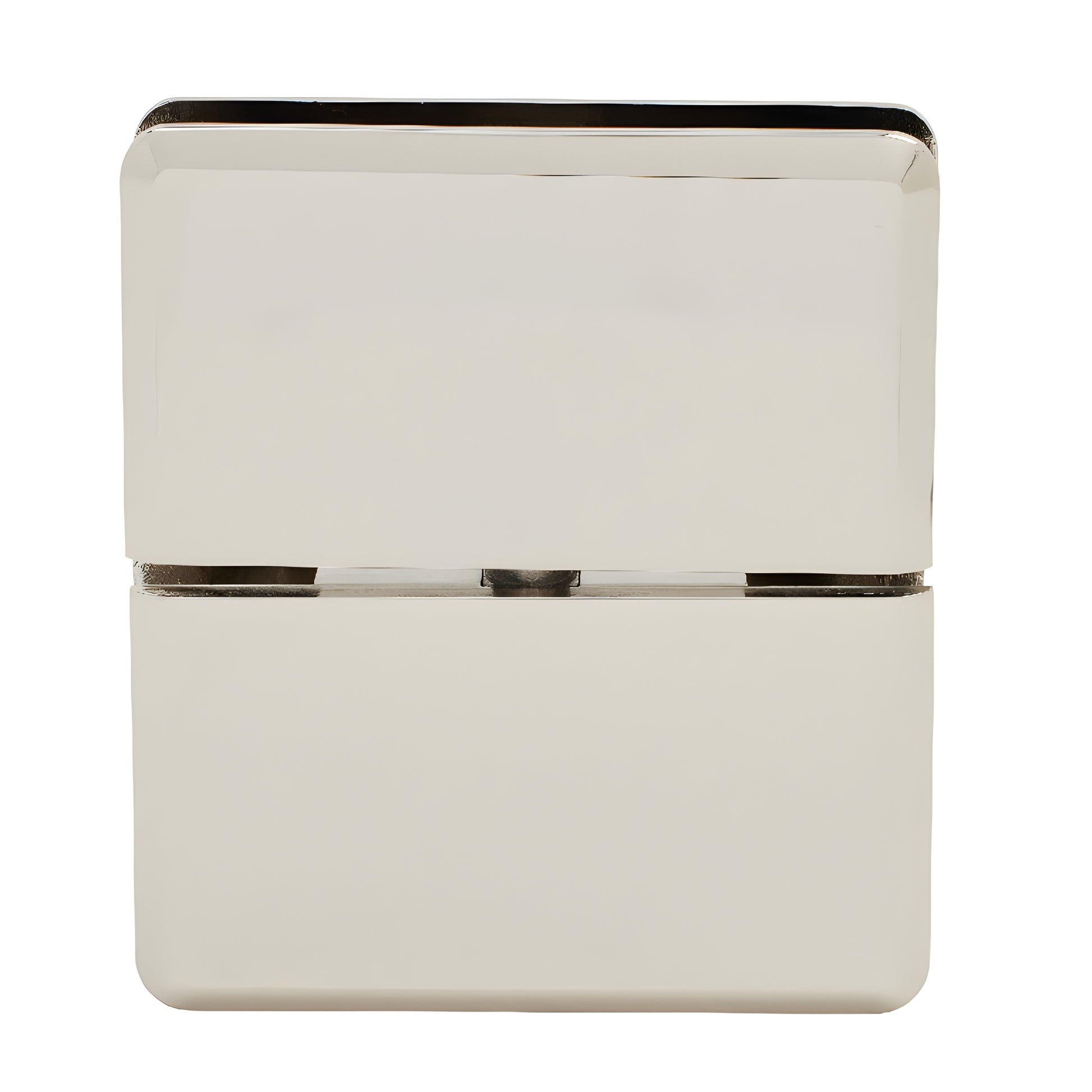

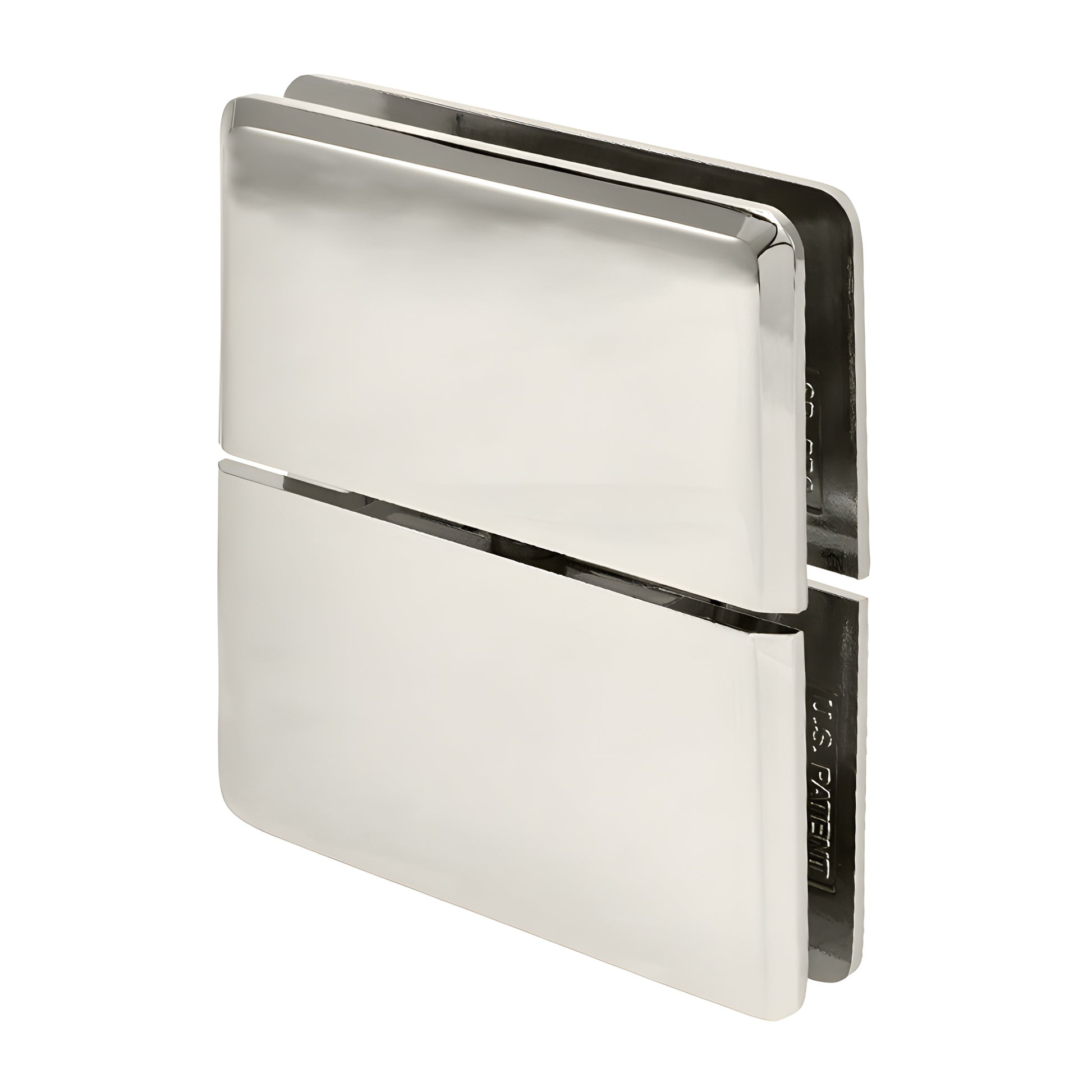

CRL Senior Prima 02 Polished Nickel Glass-to-Glass Shower Door Hinge

• Glass-to-Fixed Transom Mount
• For use with 1/2" (12 mm) glass
• Available in several beautiful finishes
• 3 year warranty
• Use monolithic tempered safety glass
• U.S. Patent 5,297,313

Advantages of CRL Senior and Junior Prima Hinges include carrying the majority of the door weight on the bottom and the ability to inset from the wall to provide clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount pivot hinge is ideal for doors with fixed transoms above them and can be placed vertically for movable transom installations. These pivot hinges are self-centering with four springs for maximum retention strength.

Models and compatibility: SRPPH01 is adaptable to the Deluxe Header System. SRPPH06 is compatible with the EZ-Adjust Header System and includes an adaptor. The Junior Prima Series adapts to the Junior Header Kit.

SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass, the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).

JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass, the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).

SPECIFICATIONS:
Glass Thickness:
Senior Prima — 1/2" (12 mm) tempered safety glass
Junior Prima — 1/4" (6 mm) tempered safety glass
Special Feature: Top and bottom mount allows more glass exposure and can reduce glass fabrication costs versus side-mount glass-to-glass hinges that require more cut-outs.
Construction: Solid brass
Hinge Swings: Full rotation pivot hinge
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: Senior and Junior Prima hinges are patented (Patent No. 5,297,313)

Custom finishes available on request. Contact the CRL Technical Sales Shower Door Department for custom color and finish options.
