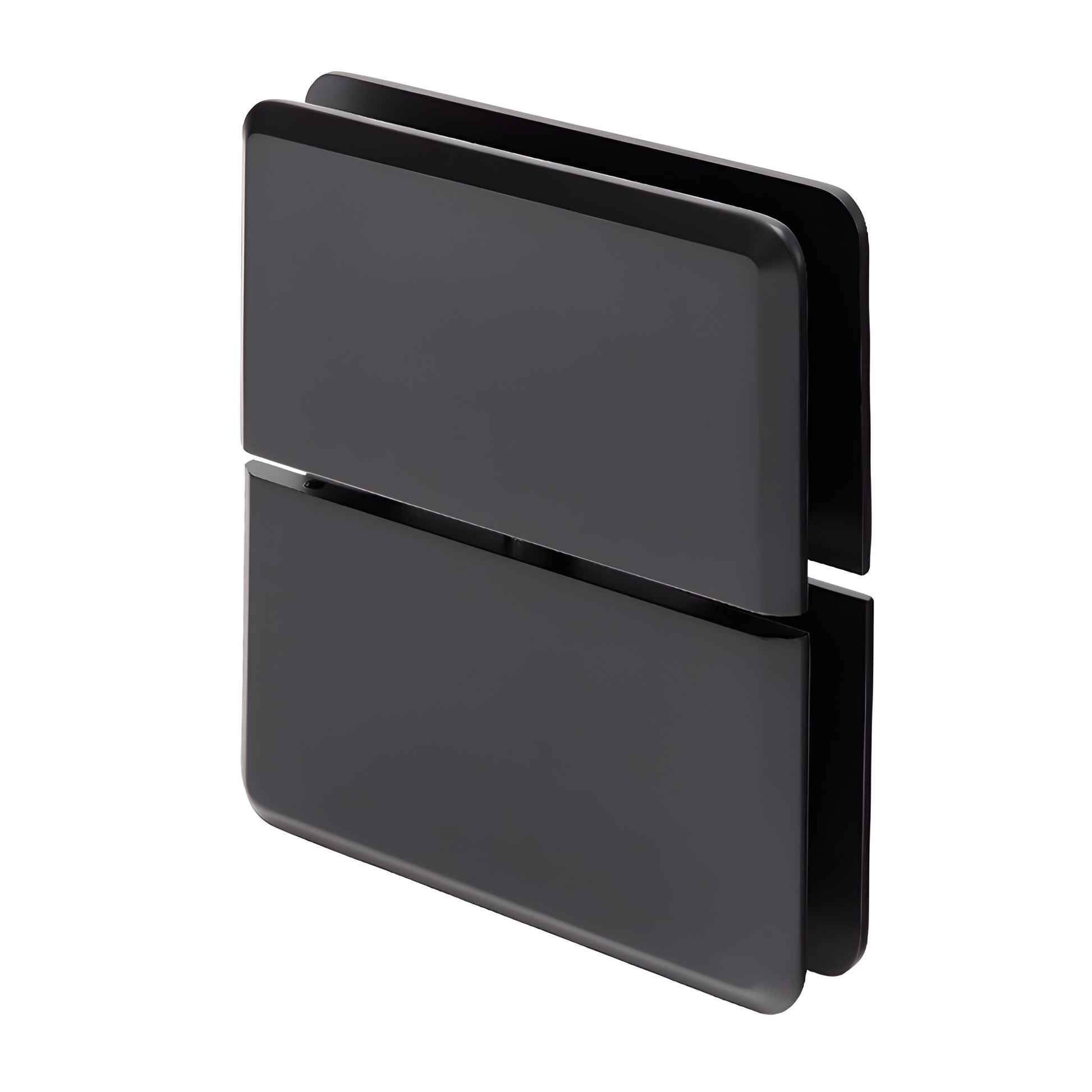

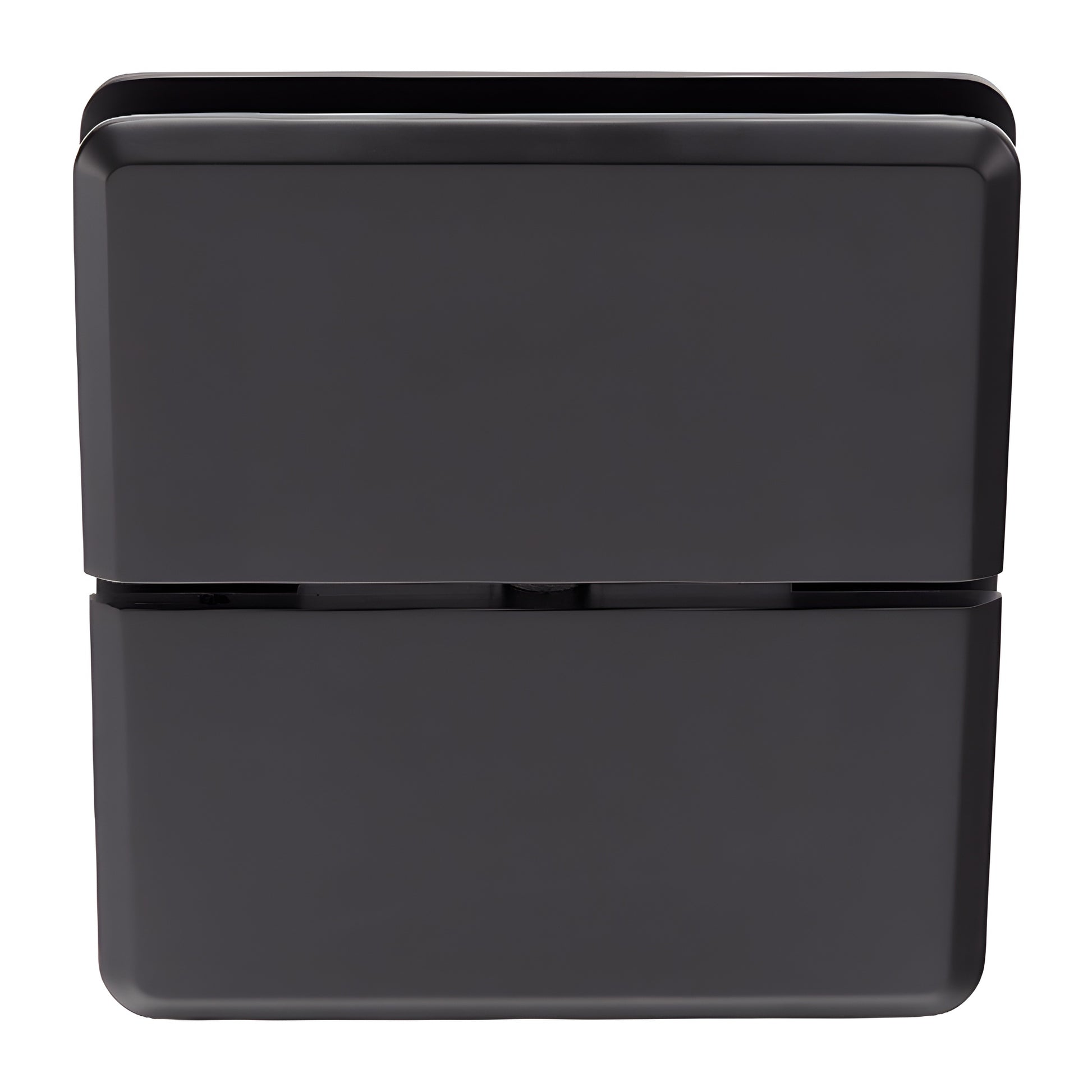

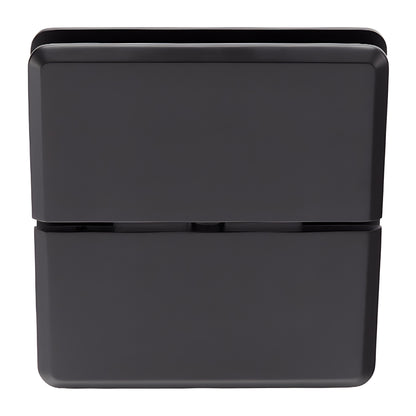

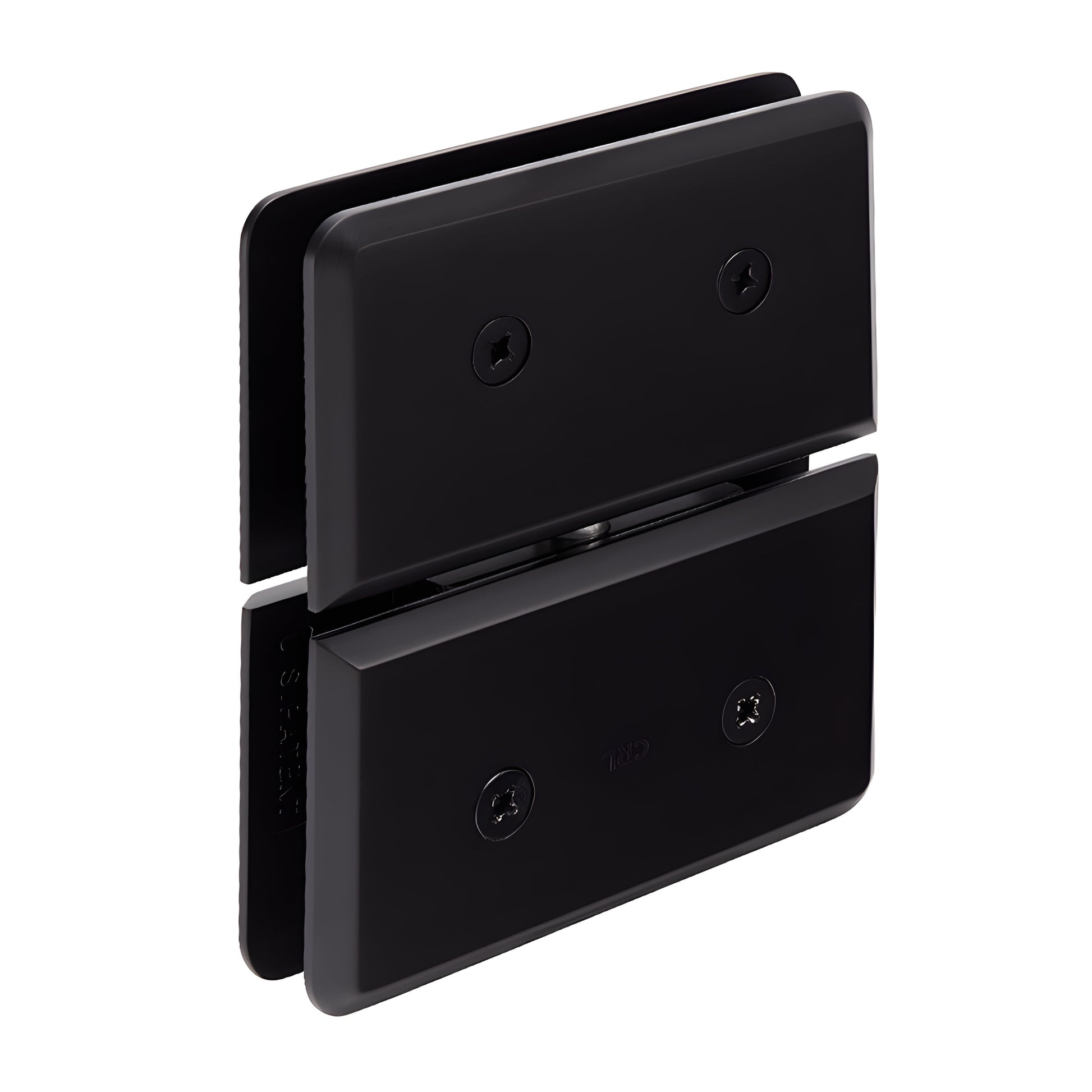

CRL Senior Prima 02 Oil Rubbed Bronze Glass-to-Glass Shower Hinge

• Glass-to-Fixed Transom Mount for shower doors
• For use with 1/2" (12 mm) glass and compatible 1/4" (6 mm) glass applications
• Available in several durable finishes; custom finishes available on request
• 3 Year Warranty
• Use with monolithic tempered safety glass
• U.S. Patent 5,297,313

Overview — CRL Senior and Junior Prima Hinges

CRL Senior and Junior Prima pivot hinges are glass-to-fixed transom mount hinges engineered for shower doors and transom installations. These self-centering pivot hinges employ four springs for maximum retention and carry the majority of weight on the bottom, allowing the hinge to be inset from the wall to provide clearance for towel bars and other projections. When mounted vertically, either style can be used in movable transom installations.

Compatibility & Models

• SRPPH01 model: adaptable to CRL Deluxe Header System
• SRPPH06 model: compatible with CRL EZ-Adjust Header System and includes the required adapter
• Junior Prima Series: adaptable to CRL Junior Header Kit

Performance & Capacity

SENIOR PRIMA: With two hinges on 1/2" (12 mm) tempered safety glass, supports up to 145 lbs (66 kg); max door width 36" (914 mm).

JUNIOR PRIMA: With two hinges on 1/4" (6 mm) tempered safety glass, supports up to 62 lbs (28 kg); max door width 28" (711 mm).

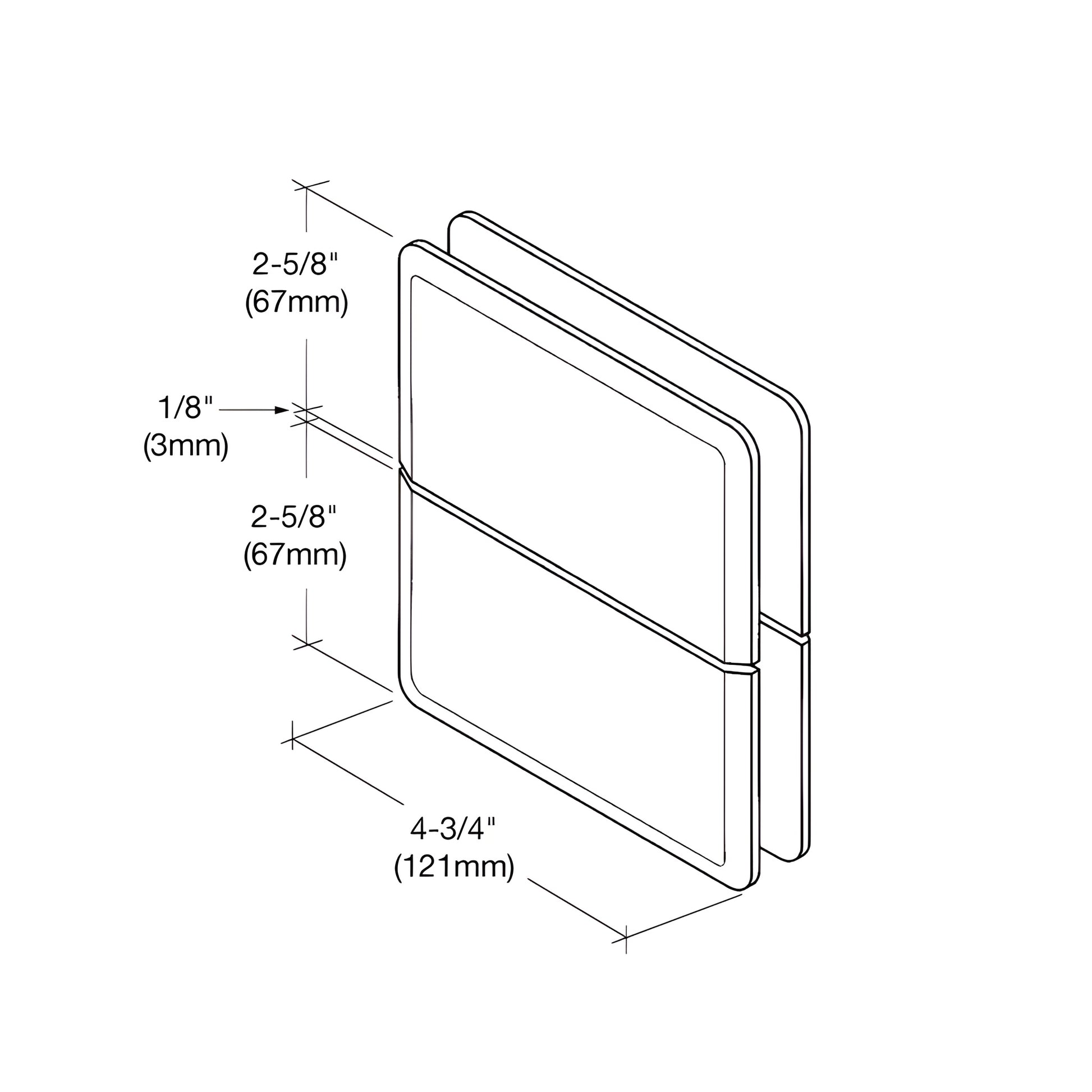

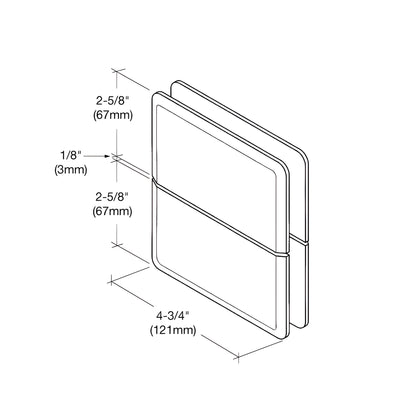

Specifications

• Glass Thickness: Senior Prima — 1/2" (12 mm) tempered safety glass; Junior Prima — 1/4" (6 mm) tempered safety glass
• Special Feature: Top and bottom mount maximizes glass exposure and can reduce glass fabrication costs versus side-mount glass-to-glass hinges that require additional cut-outs
• Construction: Solid brass
• Hinge Swings: Full rotation
• Closing Type: Self-centering within 15° of closed position
• Includes: Gaskets, screws, and glass fabrication dimensions (cut-out required)
• Patent: Senior and Junior Prima Hinges — U.S. Patent No
