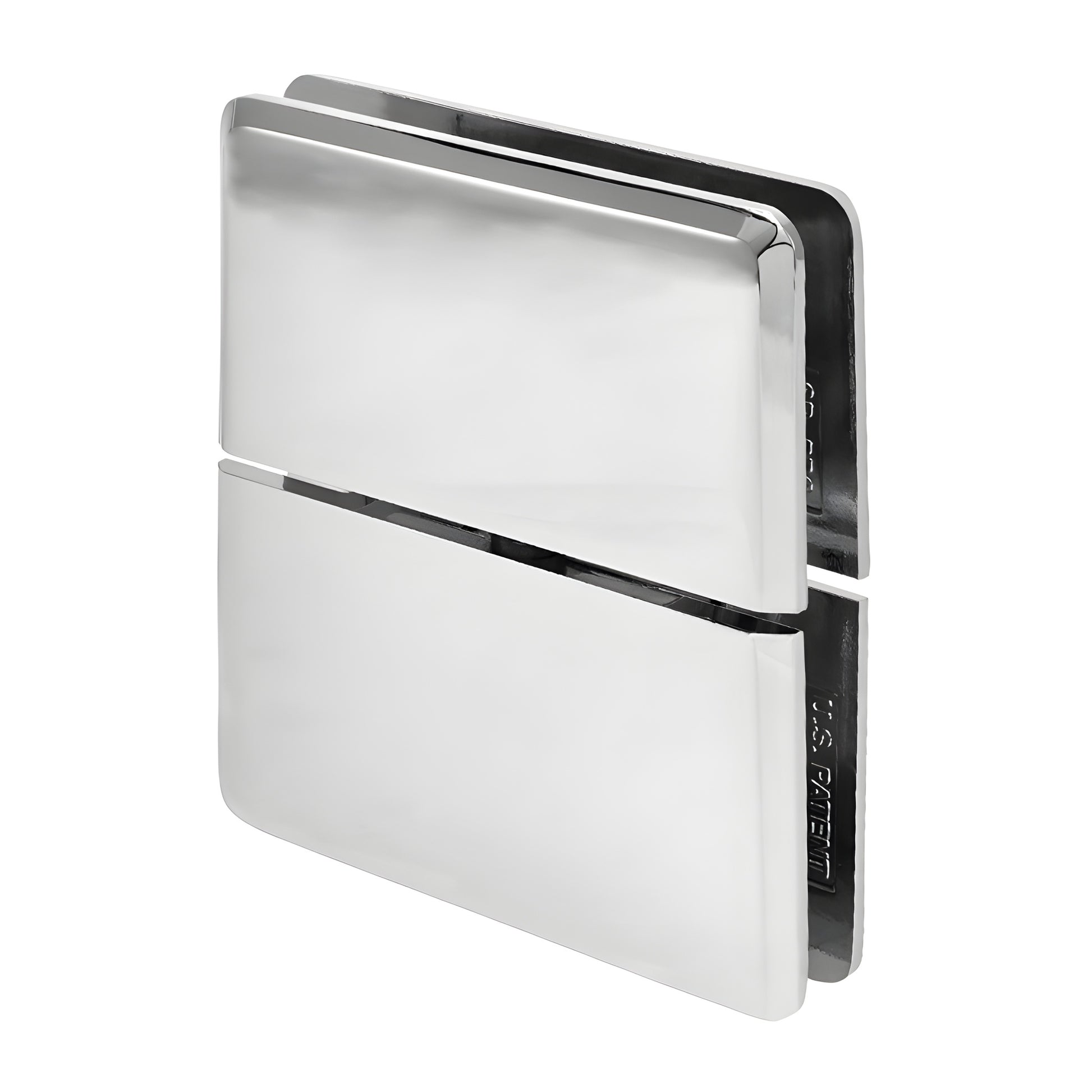

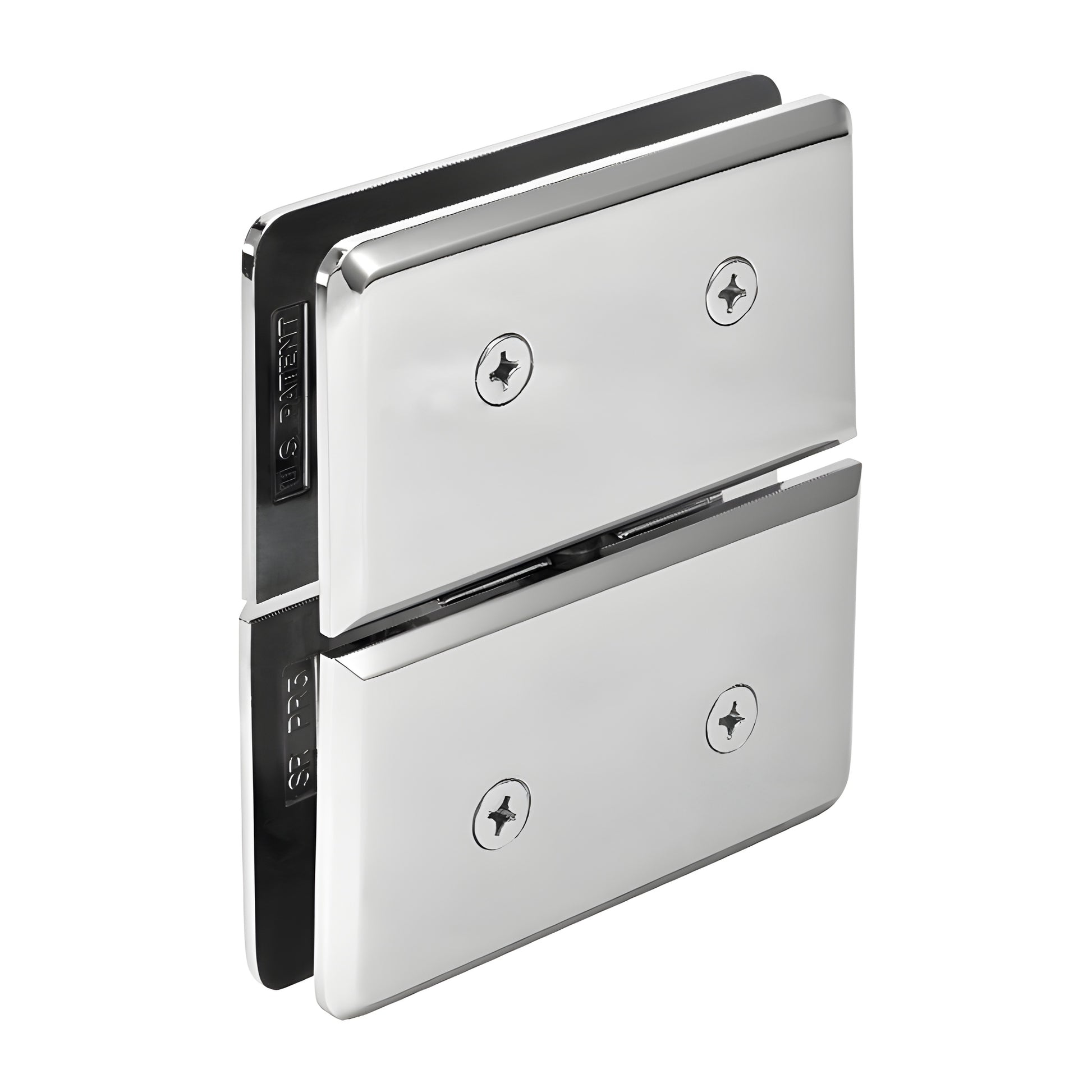

CRL Senior Prima 02 Glass-to-Glass Shower Door Hinge Polished Chrome

• Glass-to-Fixed Transom Mount Pivot Hinge
• For use with 1/2" (12 mm) glass
• Available in several finishes (custom finishes available on request)
• 3 Year Warranty
• Use monolithic tempered safety glass
• U.S. Patent 5,297,313

Advantages of CRL Senior and Junior Prima Hinges include weight carried mainly on the bottom hinge and the ability to inset from the wall to provide clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is designed for doors with fixed transoms above them and can be used vertically in movable transom installations. These pivot hinges are self-centering with four springs for maximum retention strength.

Model notes: the SRPPH01 is adaptable to the Deluxe Header System; the SRPPH06 is compatible only with the EZ-Adjust Header System and includes the EZ-Adjust adaptor. The Junior Prima Series adapts to the Junior Header Kit. SKU: SRPPH02CH.

SENIOR PRIMA: With two hinges on 1/2" (12 mm) tempered safety glass, supports up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).

JUNIOR PRIMA: With two hinges on 1/4" (6 mm) tempered safety glass, supports up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).

SPECIFICATIONS:

• Glass Thickness:
  • Senior Prima: 1/2" (12 mm) tempered safety glass
  • Junior Prima: 1/4" (6 mm) tempered safety glass
• Special Feature: Top and bottom mount maximizes exposed glass and can reduce glass fabrication costs versus side-mount glass-to-glass hinges.
• Construction: Solid brass
• Hinge Swings: Full rotation
• Closing Type: Self-centering within 15° of closed position
• Cut-Out: Required — use only the template included with this hinge
• Includes: Gaskets, screws, and glass fabrication dimensions
• Patent: Senior and Junior Prima Hinges are patented (Patent No. 5,297,313)

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department for finish and compatibility questions.
