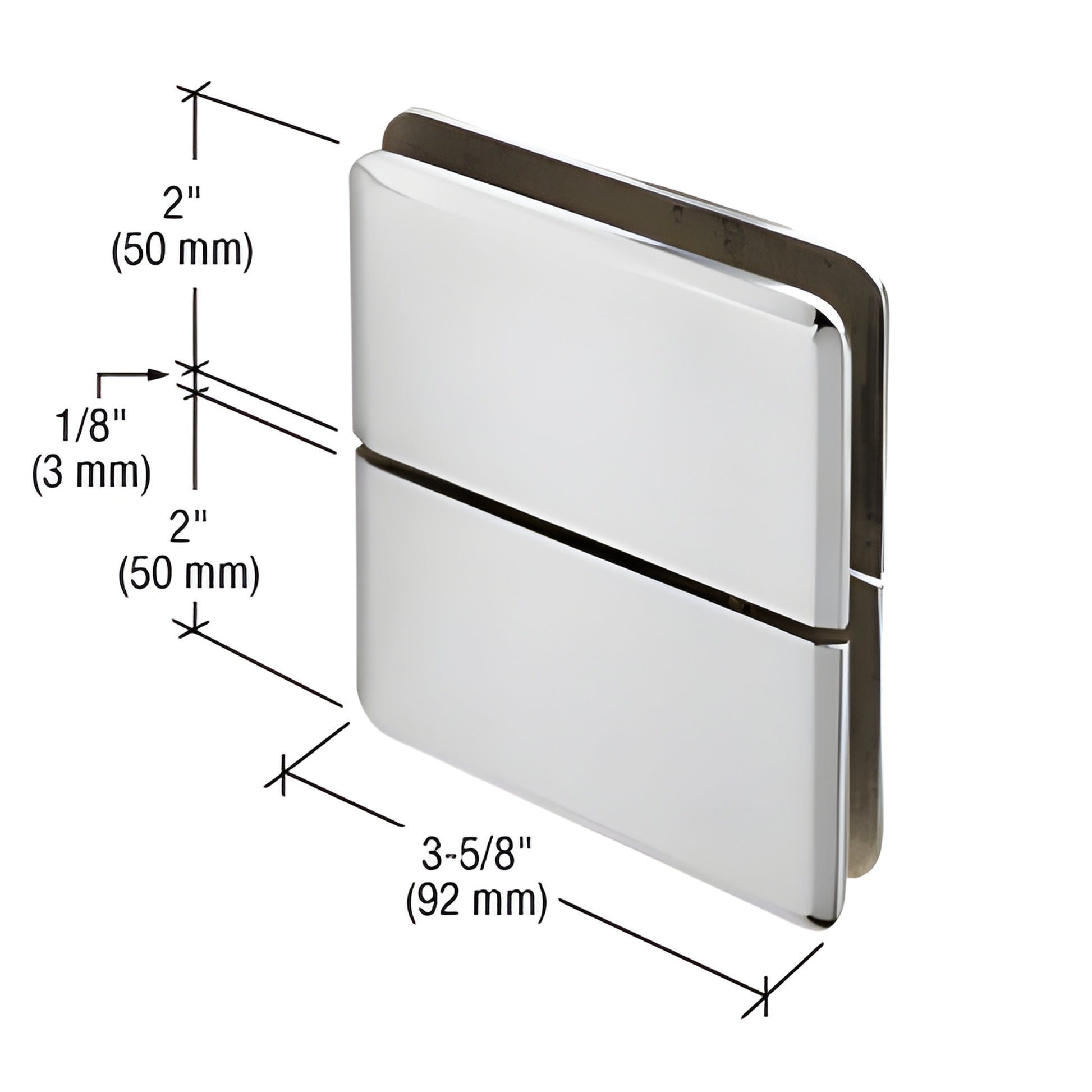

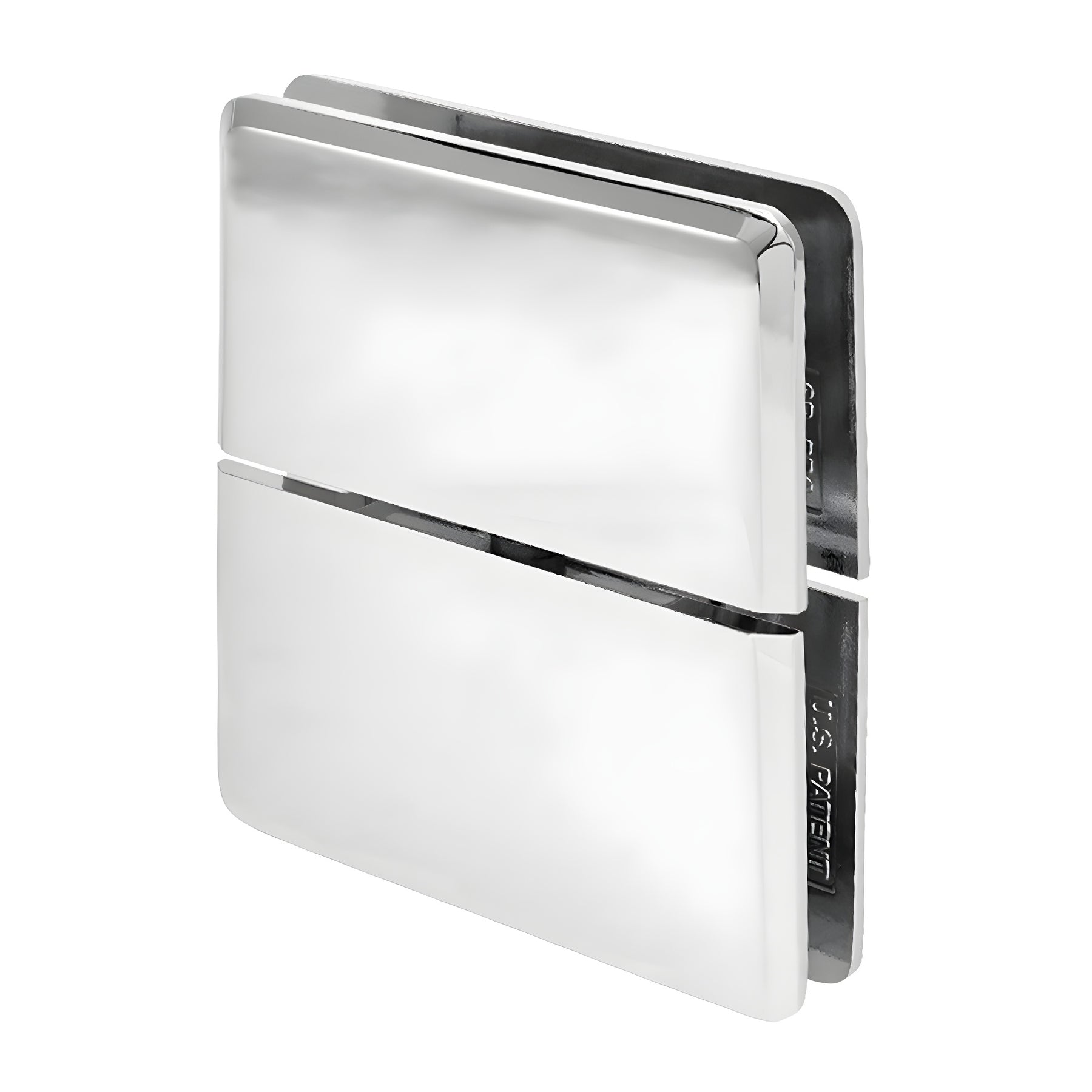

CRL Prima 02 Polished Chrome Glass-to-Glass Shower Door Hinge

• Glass-to-Fixed Transom Mount
• Self-Centering with Optional 5 Degree Pivot Pin Set
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges are engineered for 5/16" to 3/8" (8 to 10 mm) tempered safety glass and expand application options for shower enclosures and glass-to-fixed transom installations. Pivot-style hinges transfer most weight to the bottom and can be inset from the wall to provide clearance for towel bars and other projections. Prima hinges are self-centering with four springs for secure retention. Optional Cat. No. P1VP1N 5° pre-set pivot pin sets may be ordered separately; some pre-set 5° hinge models are stocked. The PPH01 adapts to the Deluxe Header System for partial-height enclosures; PPH06 is compatible only with the EZ-Adjust Header System and includes the required adaptor.

Optional 5 degree Pivot Pin set (for Prima, Cardiff, Rondo, and Shell Series): Change the door closing position by 5° with retrofit or pre-install pivot pins. Sold as a set (top and bottom). Not included with hinge purchase. Pre-set 5° hinge models are available from stock.

Using two hinges with 5/16" to 3/8" (8 to 10 mm) glass: supports up to 100 lbs (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top-and-bottom mount design maximizes visible glass and reduces required cut-outs versus standard side-mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor/ceiling or floor/header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: (PPH135 also requires two holes; PPH07 requires cut-out for hinge and hole for clamp)
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313

Custom finishes available on request. Contact the CR
