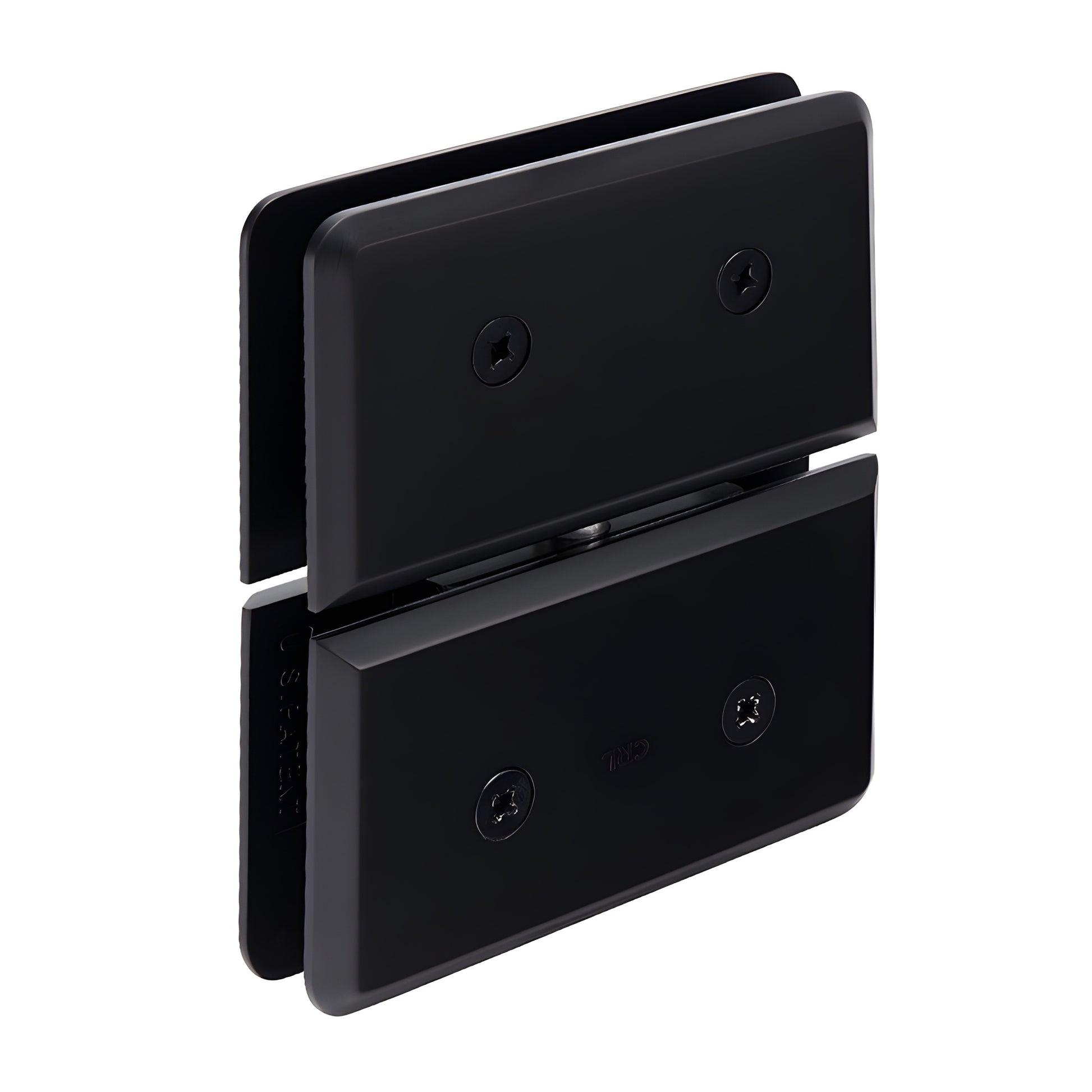

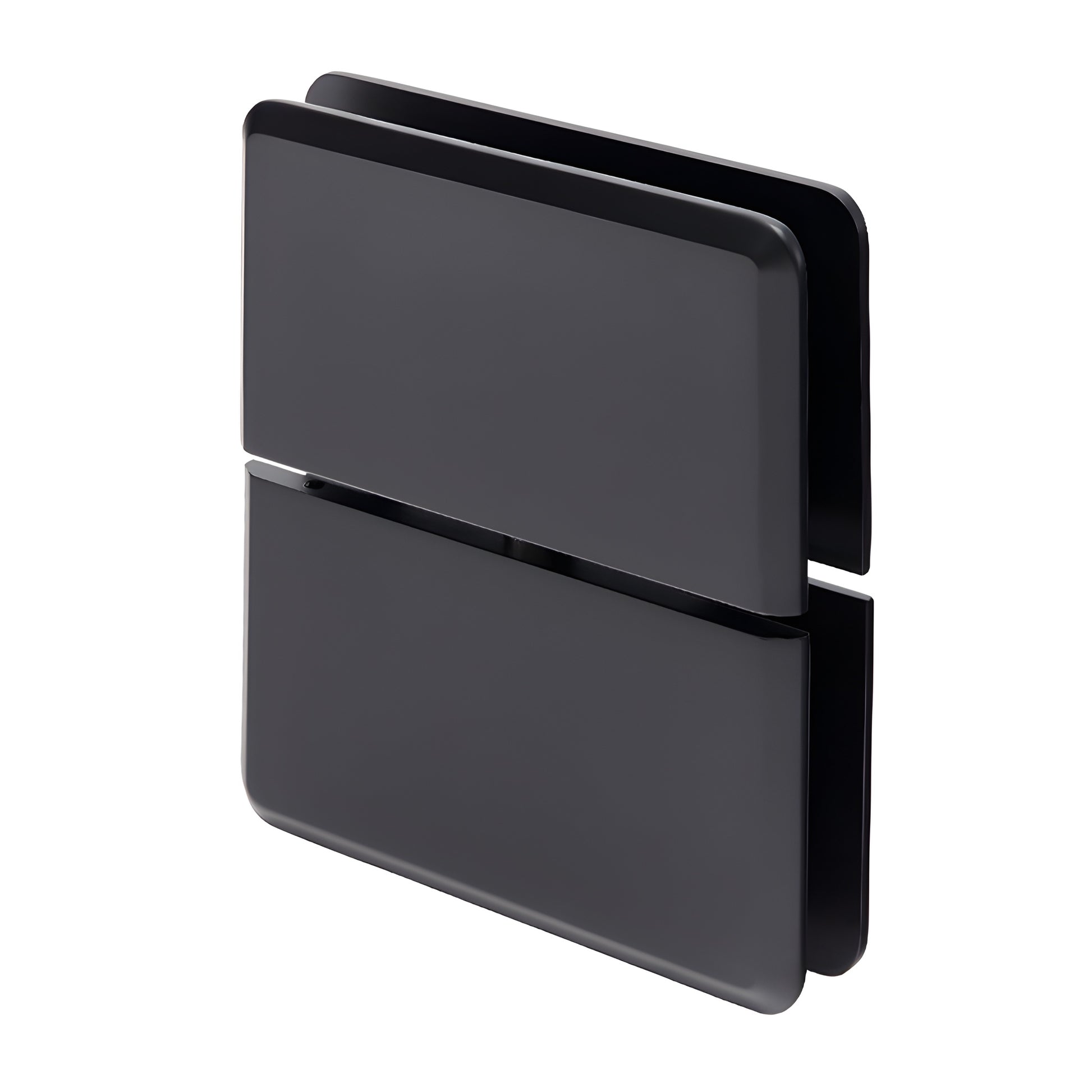

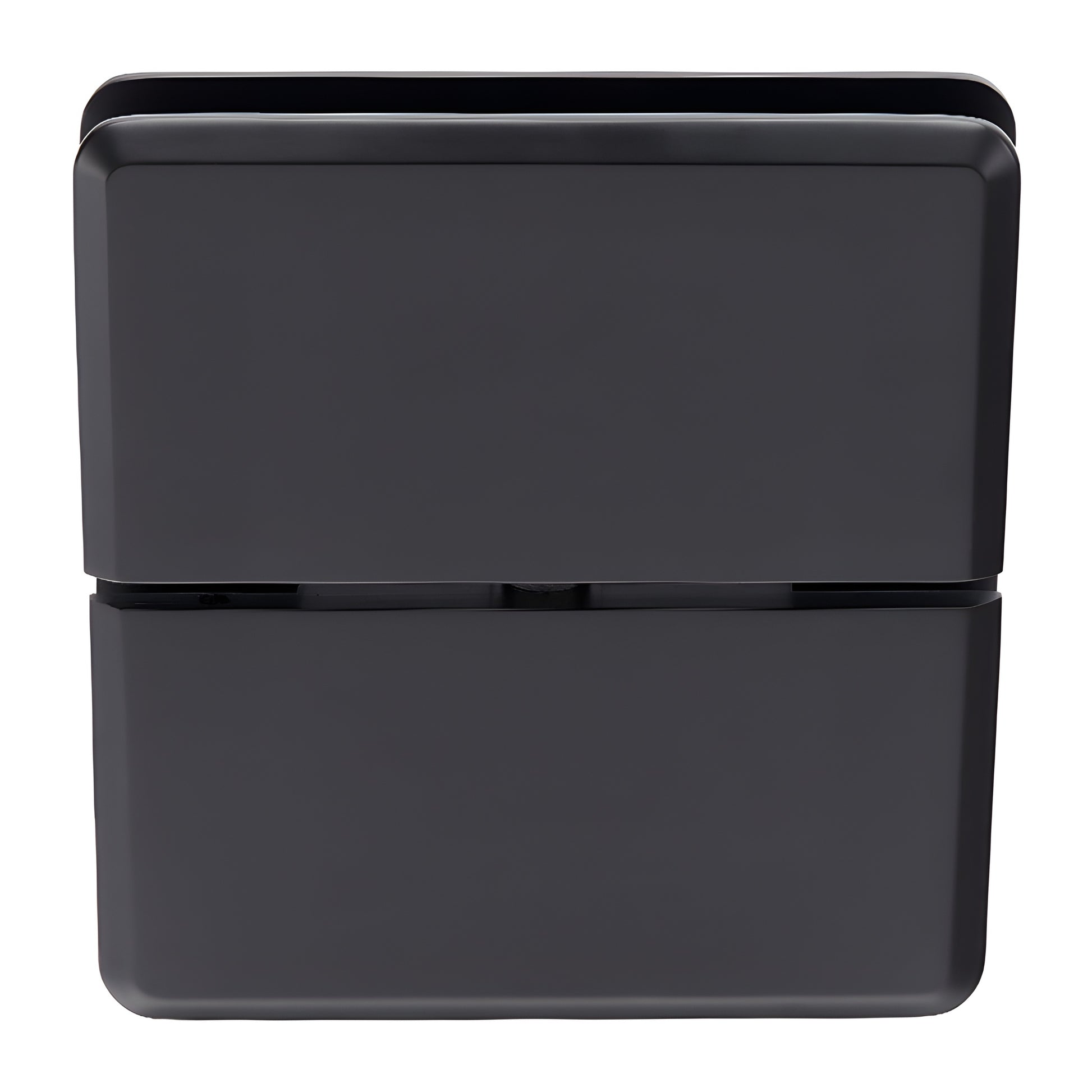

CRL Senior Prima 02 Matte Black Glass-to-Glass Shower Hinge

• Glass-to-Fixed Transom Mount Pivot Hinge
• For use with 1/2" (12 mm) glass (see Senior Prima specification)
• Available in several durable finishes; custom finishes available on request
• 3 Year Warranty
• Designed for monolithic tempered safety glass
• U.S. Patent 5,297,313
• SKU: SRPPH02MBL

Overview: CRL Senior and Junior Prima pivot hinges are glass-to-fixed transom mount hinges engineered for tempered safety glass shower doors and transom applications. These self-centering pivot hinges feature four retention springs for maximum holding strength and are designed to carry most of the door weight at the bottom, allowing inset installation that preserves clearance for towel bars and other projections.

Key Differentiators: Self-centering pivot action; top-and-bottom mount for more visible glass exposure and reduced glass fabrication cut-outs compared with side-mount glass-to-glass hinges; solid brass construction for corrosion resistance; patented design (Patent No. 5,297,313).

Compatibility Notes: SRPPH01 adapts to the Deluxe Header System. SRPPH06 includes an adapter for the EZ-Adjust Header System (only compatible with EZ-Adjust). Junior Prima Series adapts to the Junior Header Kit.

SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass, holds up to 145 lbs. (66 kg) with maximum door width of 36" (914 mm). Ideal for heavier framed or frameless shower doors and transom-mounted pivot doors.

JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass, holds up to 62 lbs. (28 kg) with maximum door width of 28" (711 mm). Suitable for lighter residential shower doors.

SPECIFICATIONS:
Glass Thickness:
Senior Prima — 1/2" (12 mm) tempered safety glass
Junior Prima — 1/4" (6 mm) tempered safety glass
Special Feature: Top-and-bottom mount increases glass exposure and can reduce glass fabrication costs versus side-mount glass-to-glass hinges.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Patented: Senior and Junior Prima Hinges (Patent No. 5,297,313)

Custom finishes available — contact the CRL Technical Sales Shower
