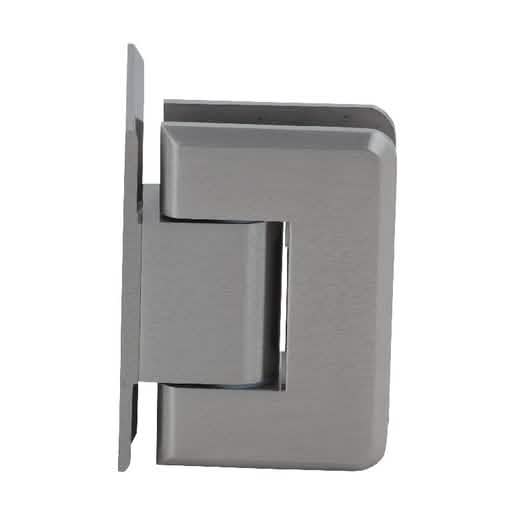

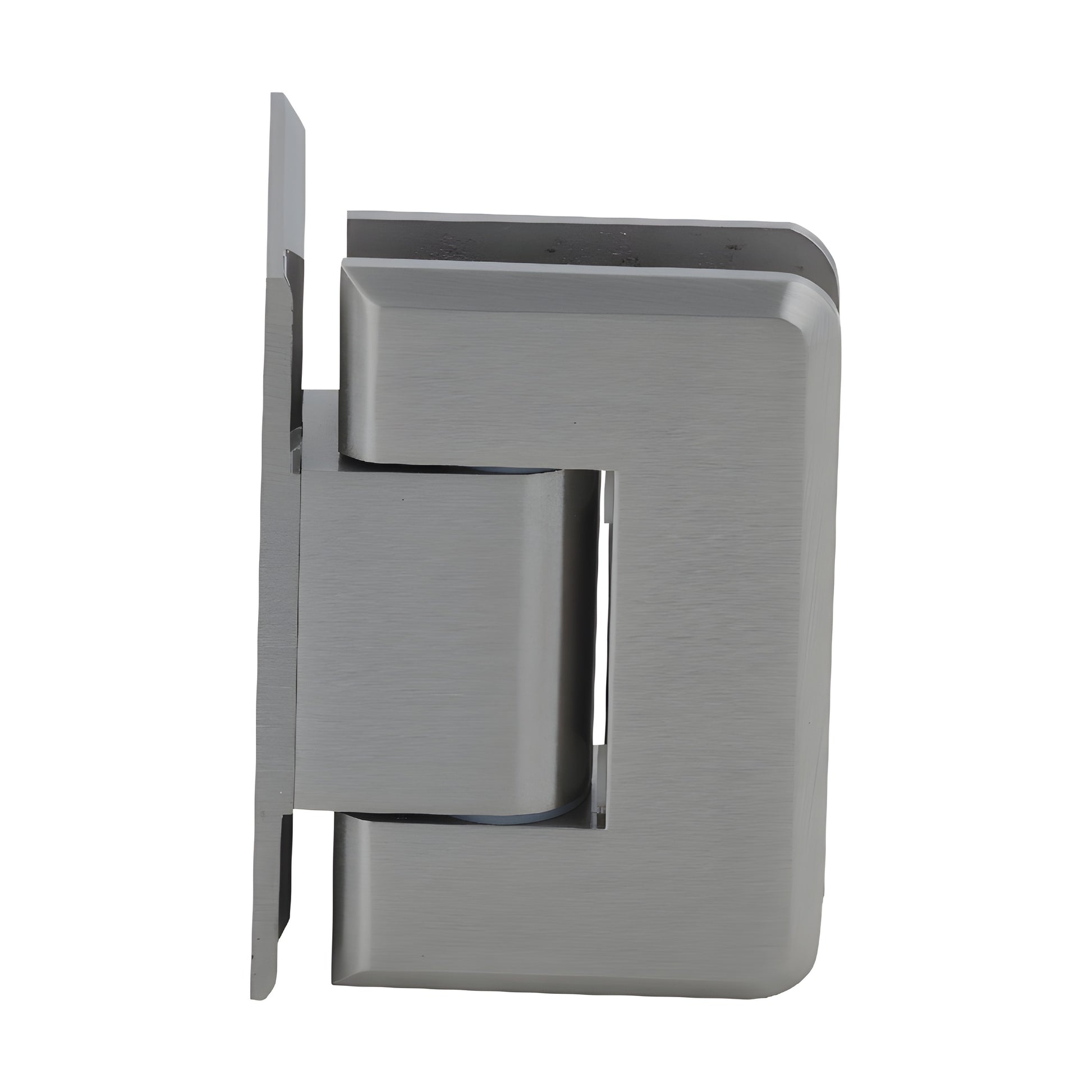

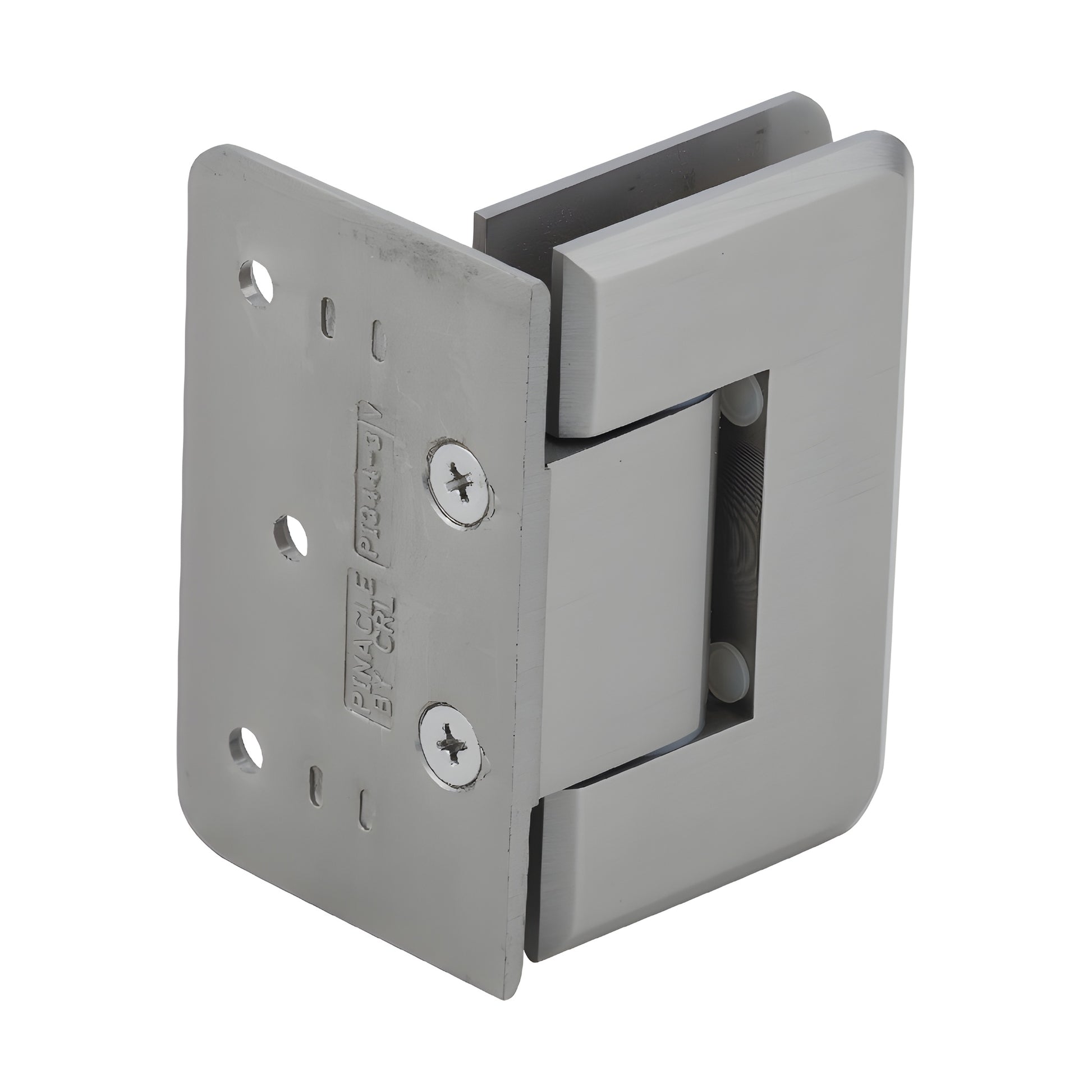

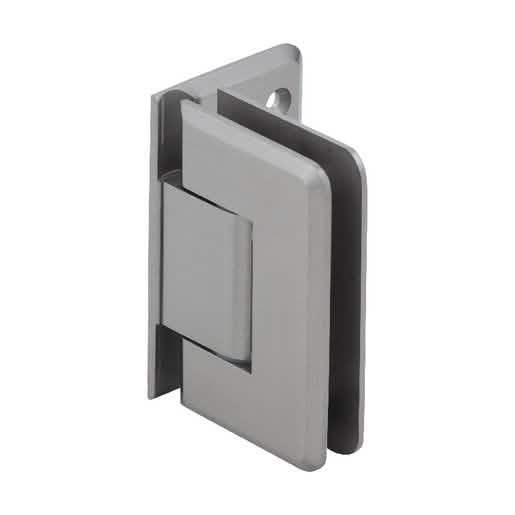

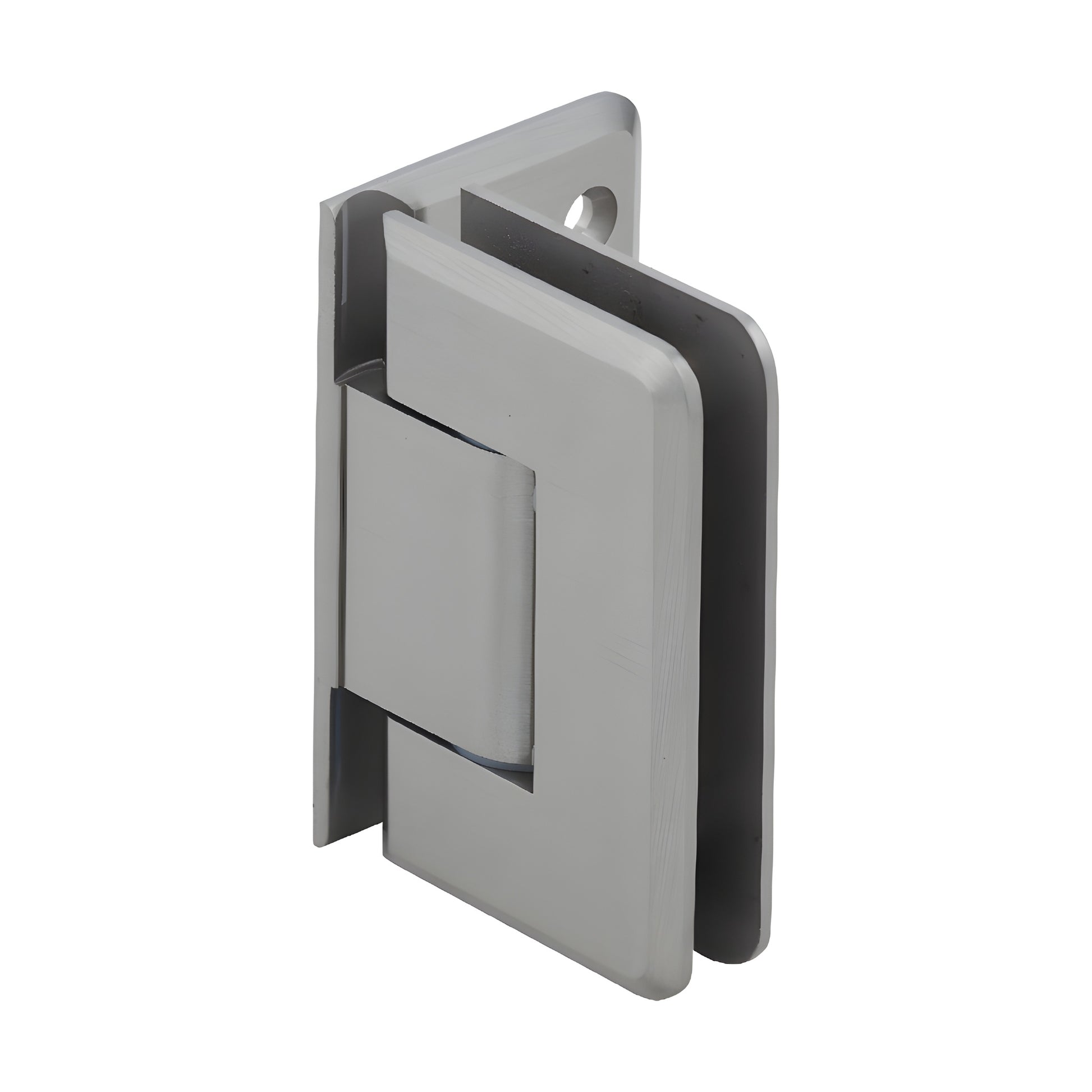

CRL Pinnacle Brushed Nickel Adjustable Shower Glass Wall Hinge

• Adjustable to any angle up to 90° without removing door
• Available in several durable finishes
• Three-year warranty
• Adjustable wall-mount offset back plate
• Designed for monolithic tempered glass

CRL Adjustable Pinnacle Series Hinges

The Pinnacle Adjustable hinge lets you fine-tune door closing after installation. Loosen the Allen set screws, rotate the door to the desired closed position, then retighten—the hinge self-centers when within 15° of closed. Doors can swing 90° inward and 90° outward from the factory position; adjusting the hinge will change the available swing in that direction. For outward-swinging doors on a clear jamb, you can set a 5° inward close for a snug jamb seal.

Load Capacity

Using two hinges with 5/16"–1/2" (8–12 mm) tempered glass: up to 80 lbs (36 kg), max door width 28" (711 mm).
Using three hinges with 5/16"–1/2" (8–12 mm) tempered glass: up to 120 lbs (54 kg), max door width 32" (813 mm).

SPECIFICATIONS:

Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Adjustable to any angle up to 90° without removing the door
Construction: Solid brass
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required

Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack sold separately for use with 5/16" (8 mm) tempered glass. Replacement Hardware:

• P102** - Wall plate replacement screws
• P615** - Cover plate replacement screws

Notes:

Door glass width may require alteration from standard clearance deductions when adjusting angles—call for details. Custom finishes available on request; contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use only. For other applications, obtain approval from the CRL
