CRL Pinnacle Adjustable Offset Wall-Mount Hinge - Oil-Rubbed Bronze

• Adjustable to any angle up to 90° without removing door
• Available in several beautiful finishes
• Three year warranty
• Adjustable wall-mount offset back plate
• Designed for monolithic tempered glass

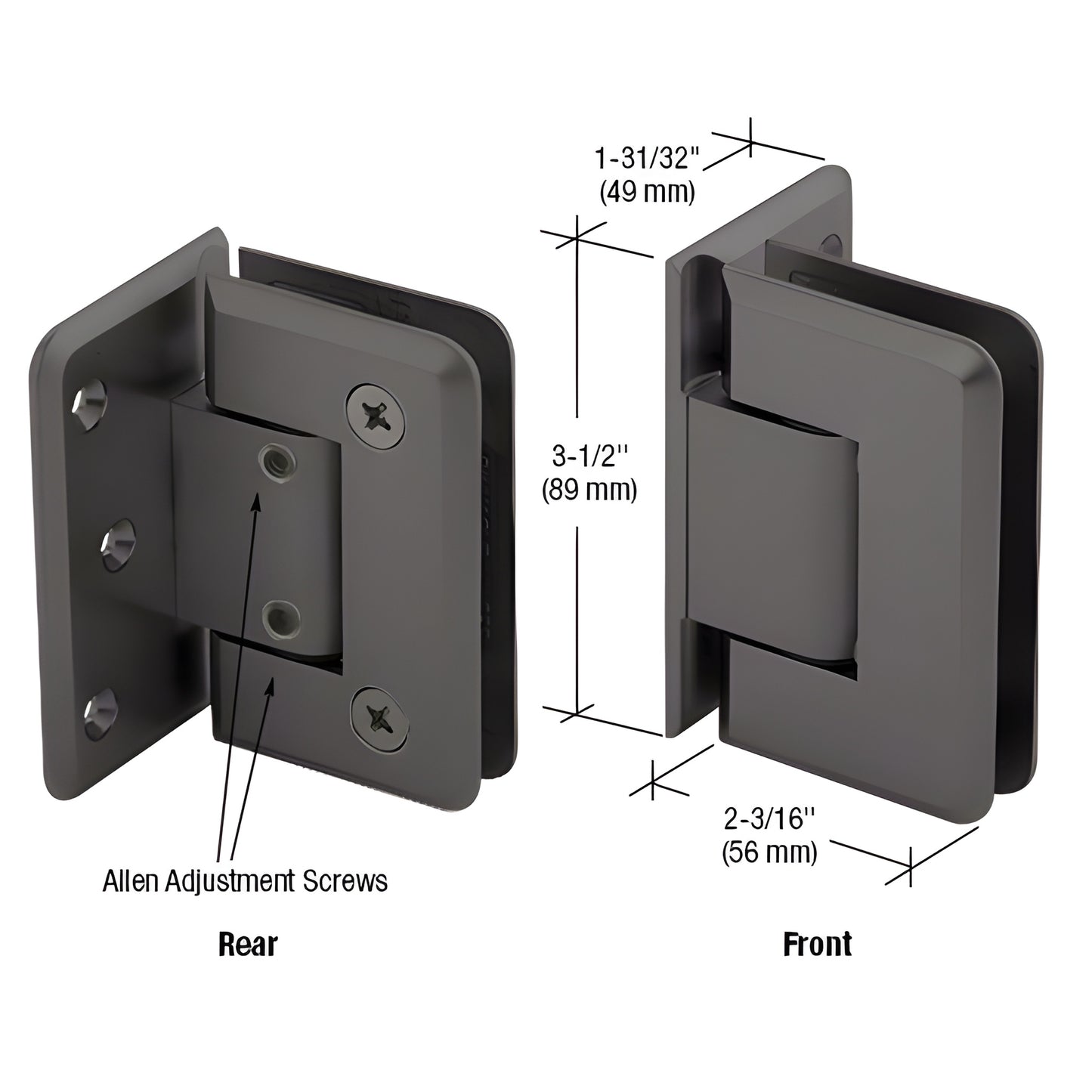

CRL Adjustable Pinnacle Series Hinges improve on the popular Pinnacle hinge with post-install adjustment—set the desired closing angle (up to 90°) after the door is hung. Loosen the Allen set screws, rotate the door to the preferred closed position, then tighten; the door will self-center to that position. The hinge allows a 90° swing inward and 90° outward (adjusting from factory position may reduce swing in that direction). For outward-swing doors using a clear jamb, you can set the hinge to close 5° into the shower for a snug seal.

Load Capacity
Using two hinges with 5/16" to 1/2" (8–12 mm) tempered glass: supports up to 80 lbs (36 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 5/16" to 1/2" (8–12 mm) tempered glass: supports up to 120 lbs (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:

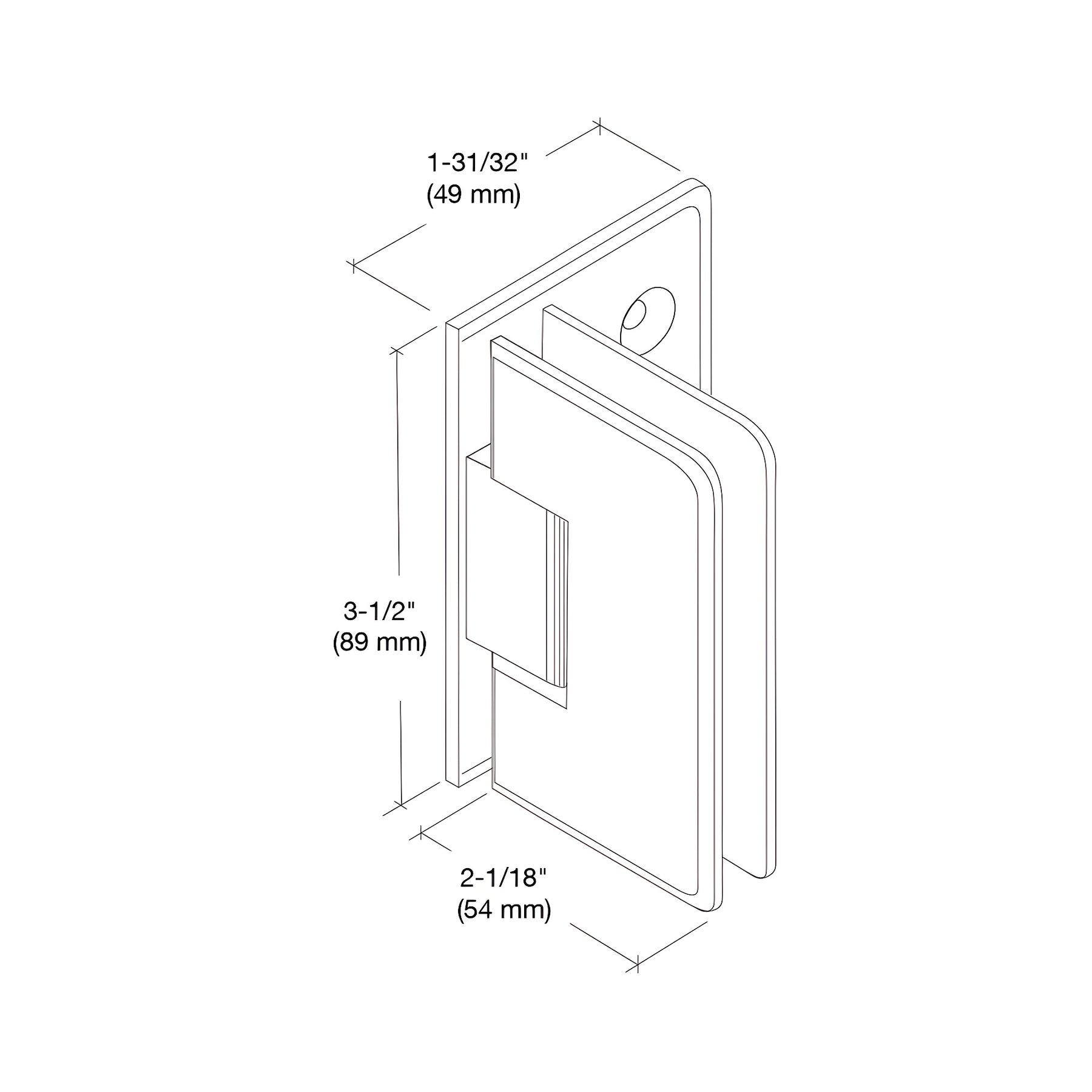

Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Adjustable to any angle up to 90° without removing the door
Construction: Solid brass (durable, corrosion-resistant shower hinge)
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack must be purchased separately for use with 5/16" (8 mm) tempered glass.
Replacement Hardware:

• P102** – wall plate replacement screws
• P615** – cover plate replacement screws

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes available on request. Contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut
