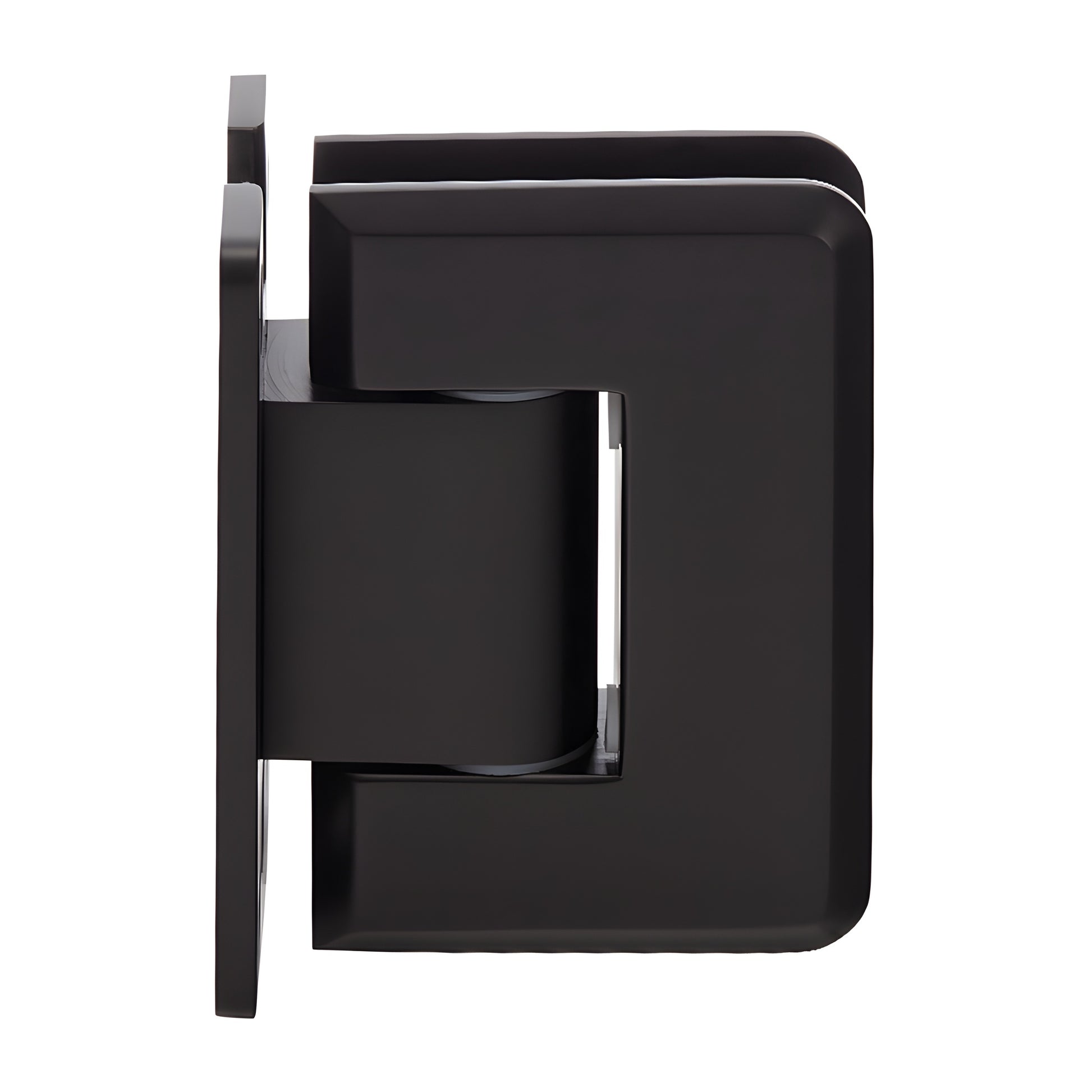

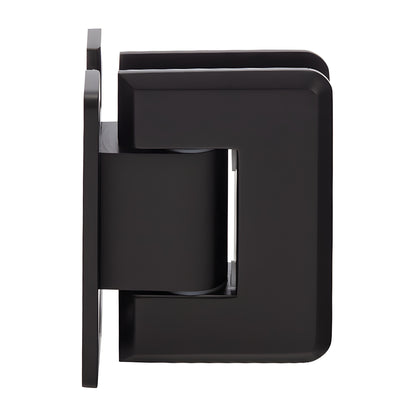

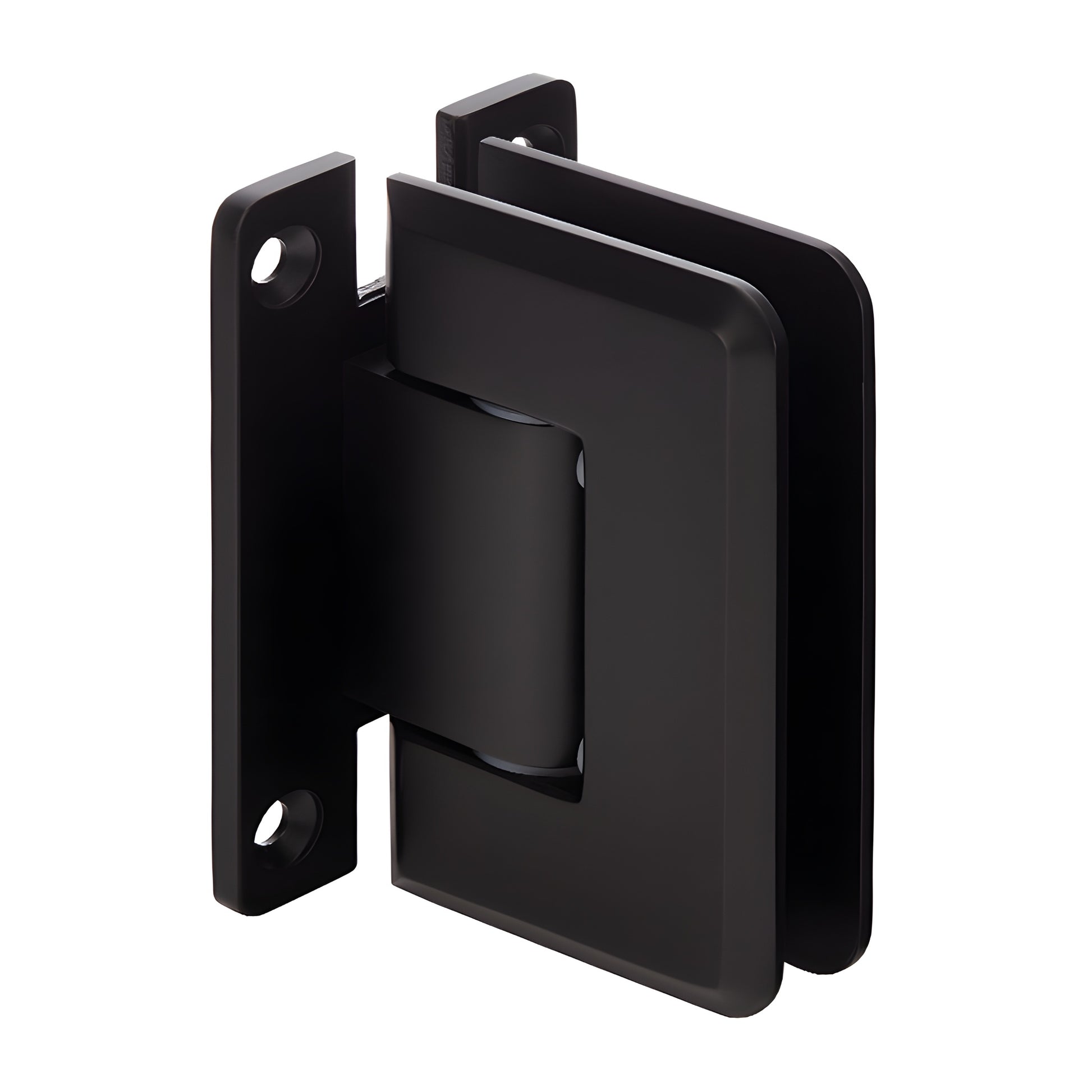

CRL Pinnacle 337 Adjustable Wall H-Back Hinge - Oil-Rubbed Bronze

• Adjustable to any angle up to 90° without removing door
• Available in several beautiful finishes
• Three year warranty

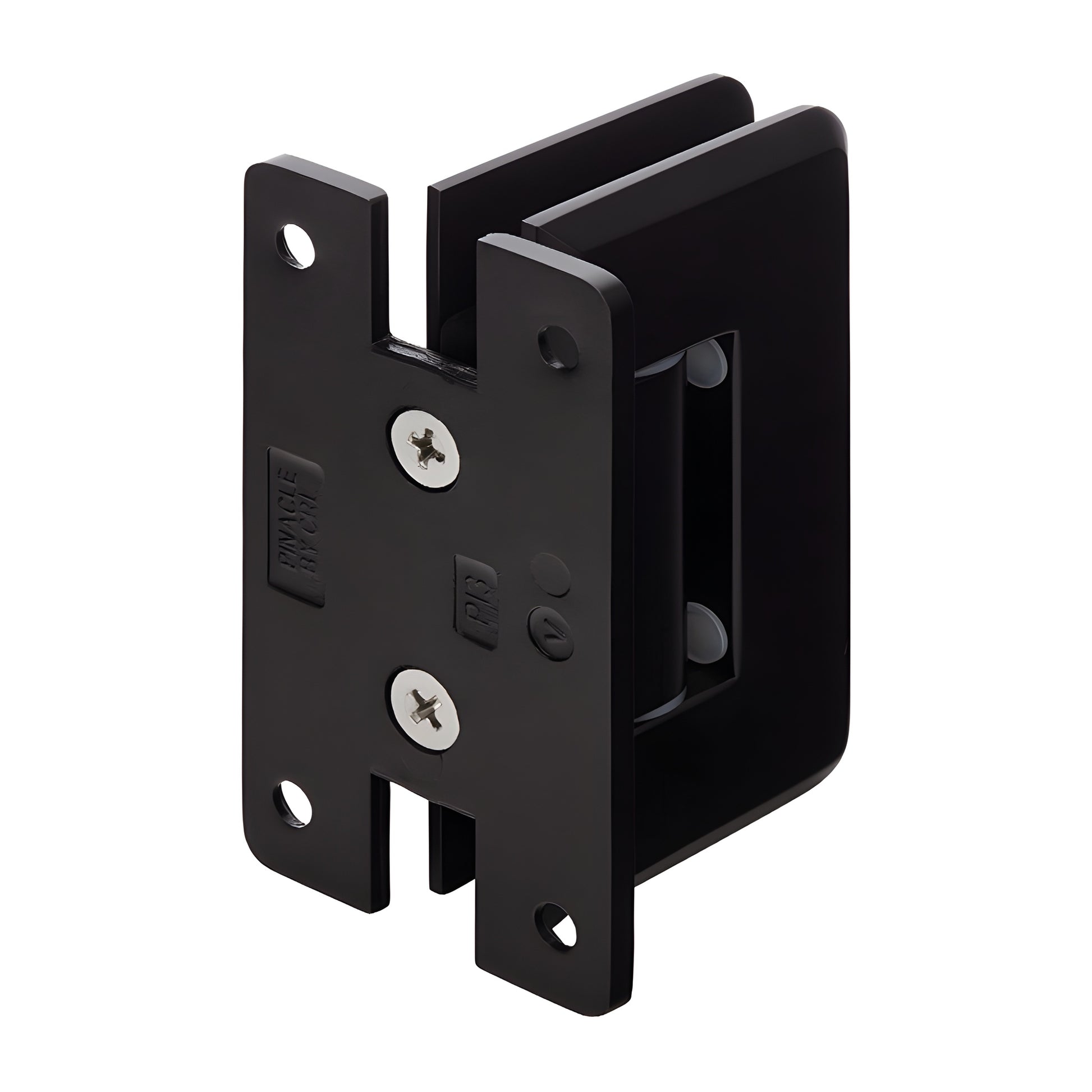

• Adjustable wall-mount "H" back plate
• Designed for monolithic tempered glass

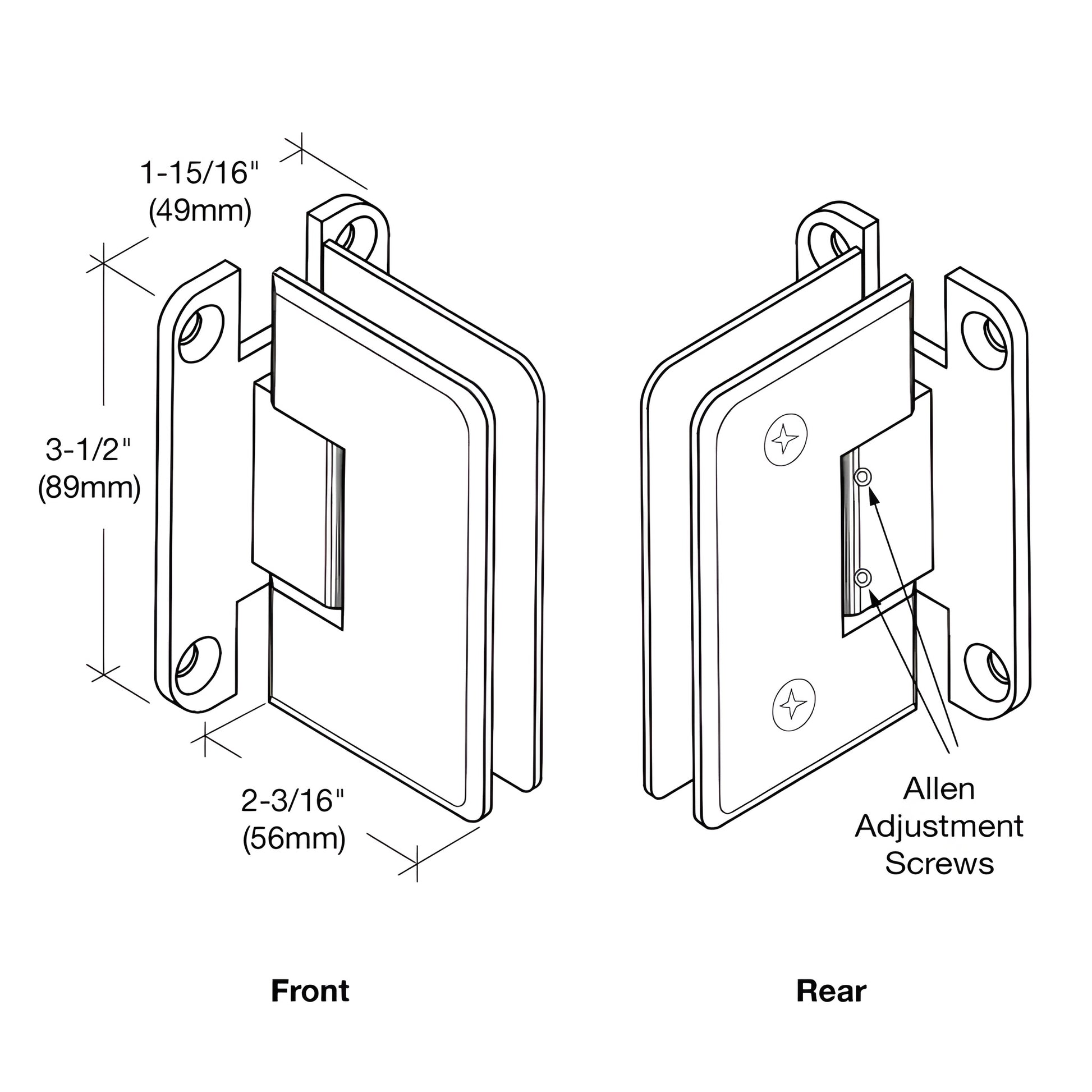

CRL Adjustable Pinnacle Series Hinges upgrade the popular Pinnacle Hinge with post-install angle adjustment for precise alignment. After hanging the door, loosen the Allen set screws, rotate the door to the desired closed position and re-tighten—your door self-centers to the set position. The hinge allows swing up to 90° inward and 90° outward (adjusting away from the factory position will reduce the full swing in that direction). For outward-swing installations using a clear door jamb, you can set the hinge to close 5° inside the shower for a snug jamb seal. Ideal long-tail keywords: adjustable glass shower door hinge, Pinnacle Series hinge for tempered glass shower doors, self-centering shower hinge.

Load & Glass Capacity
Using two hinges: For 5/16" to 1/2" (8–12 mm) tempered glass, holds up to 80 lb (36 kg); maximum door width 28" (711 mm).

Using three hinges: For 5/16" to 1/2" (8–12 mm) tempered glass, holds up to 120 lb (54 kg); maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to any angle up to 90° without removing the door
Construction: Solid brass
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack must be purchased separately for use with 5/16" (8 mm) tempered glass.

Replacement Hardware:

• P102** - Wall plate replacement screws
• P615** - Cover plate replacement screws

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes available on request. Contact the CRL Technical Sales Shower Door Department.
