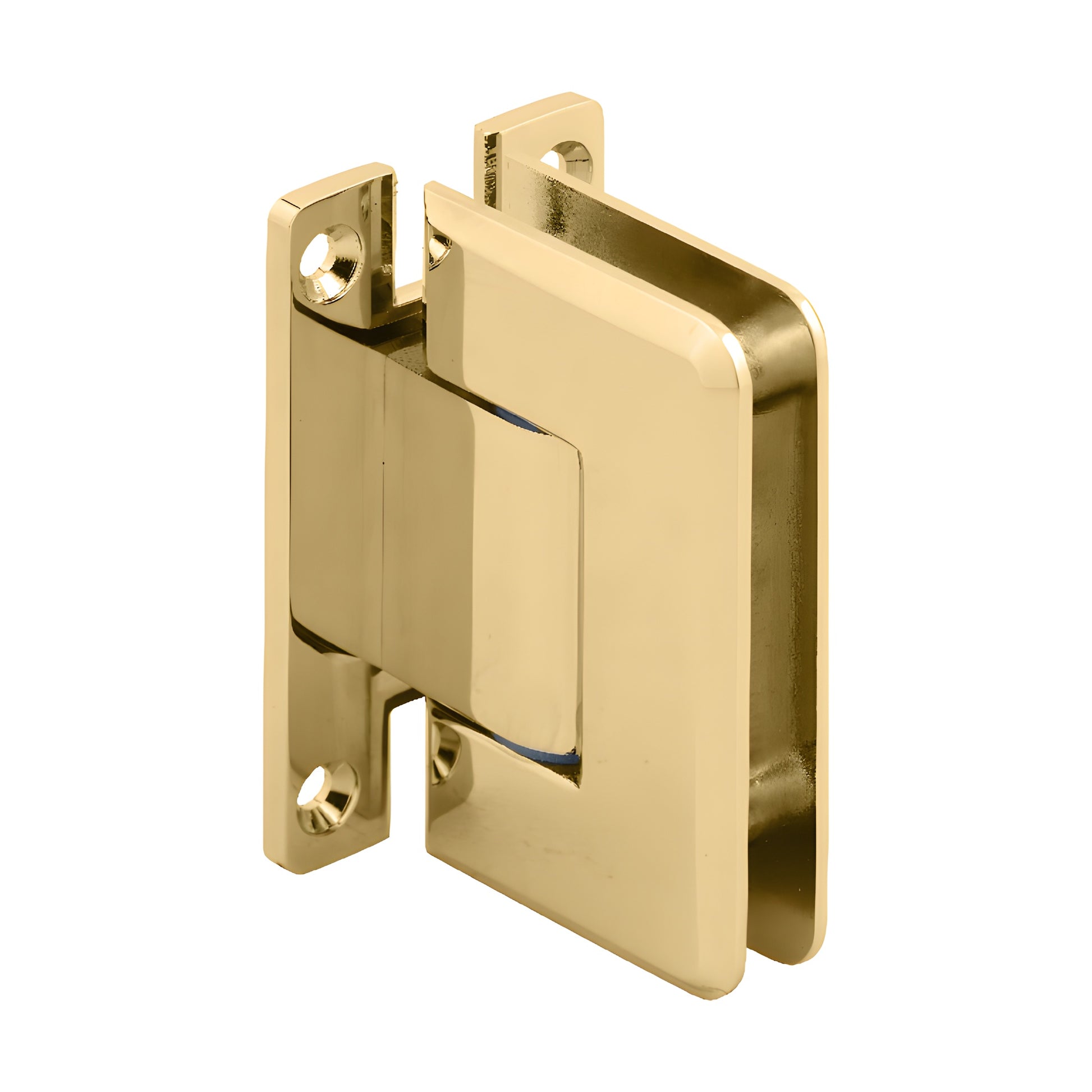

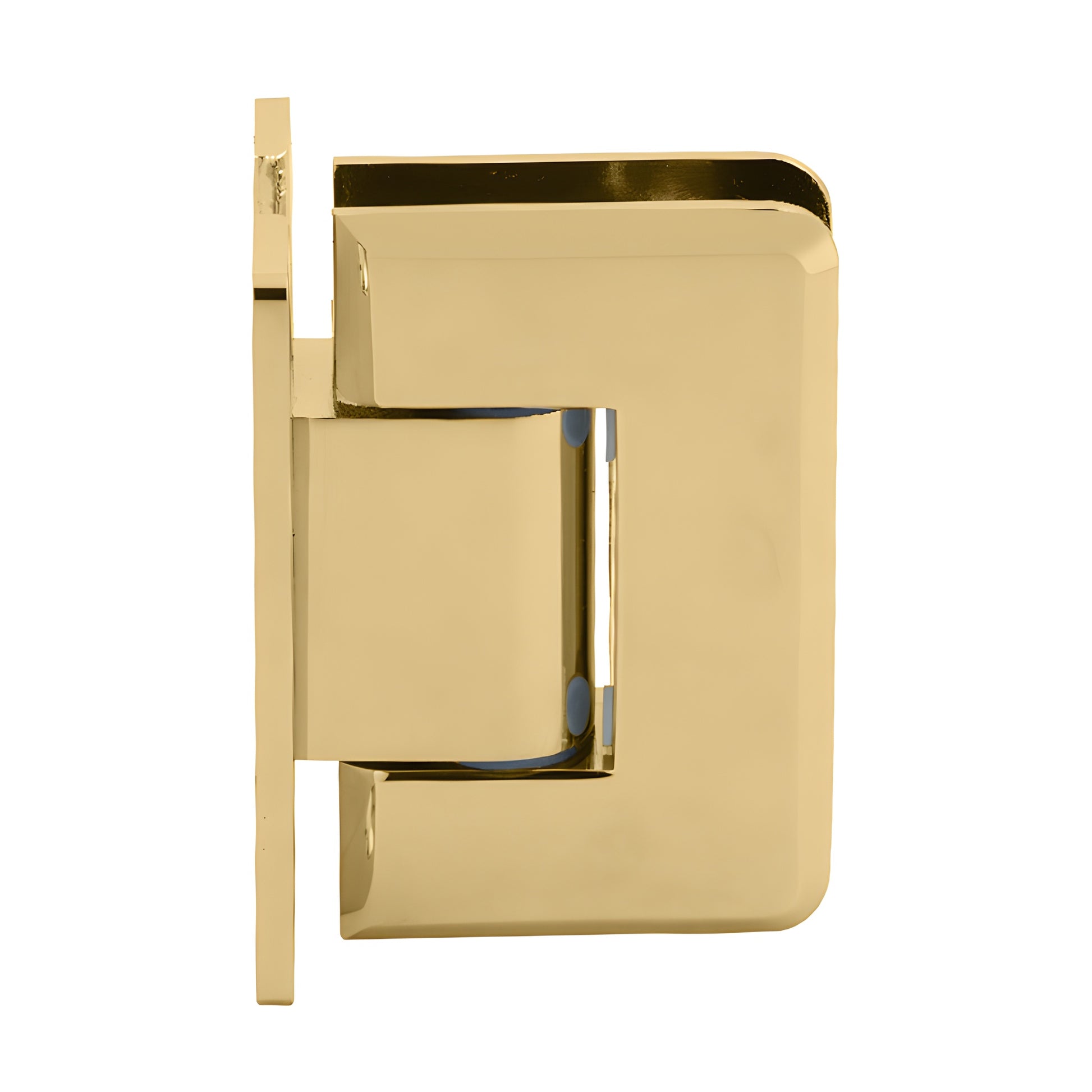

CRL Pinnacle 337 Polished Brass H-Back Adjustable Hinge for Glass Door

• Adjustable to any angle up to 90° without removing the door
• Available in several durable finishes
• Three-year warranty

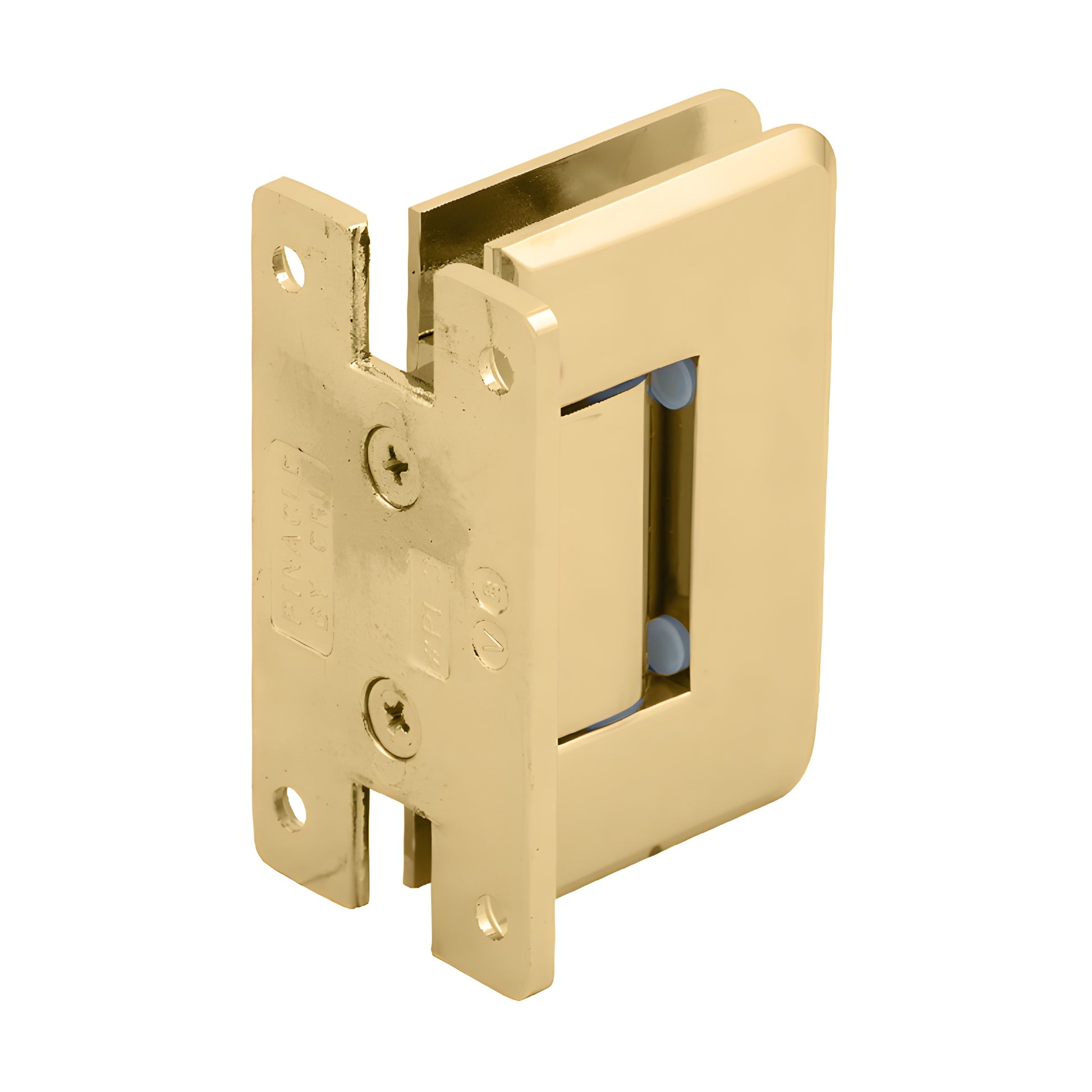

• Adjustable wall mount "H" back plate
• Use with monolithic tempered safety glass

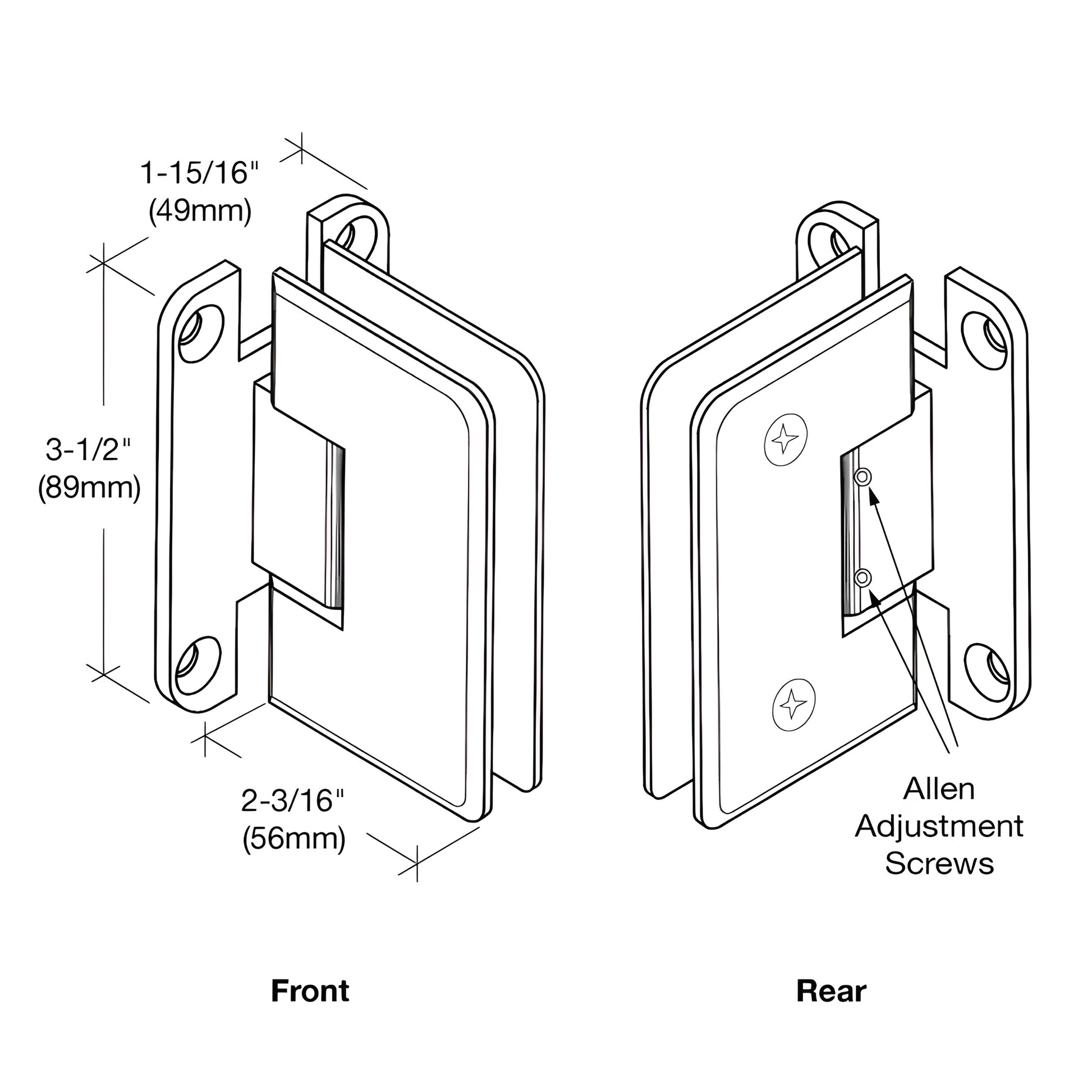

CRL Adjustable Pinnacle Series Hinges (SKU: P1N337BR) upgrade the popular Pinnacle Hinge with post-installation angle adjustment. After hanging the door, loosen the Allen set screws, rotate the door to the desired closed position, then retighten—your door will self-center to that position. The hinge supports both inward and outward swing; factory-set swing is 90° in and 90° out (adjusting from factory set position reduces swing in that direction). For outward-pulling doors with a clear jamb, the hinge can be set to close 5° inside the shower to seal snugly against the jamb.

Performance:
Using two hinges with 5/16"–1/2" (8–12 mm) tempered glass: holds up to 80 lbs (36 kg), maximum door width 28" (711 mm).

Using three hinges with 5/16"–1/2" (8–12 mm) tempered glass: holds up to 120 lbs (54 kg), maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Adjustable to any angle up to 90° without removing the door
Construction: Solid brass — durable brass shower door hinge for long service life
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position — ideal as a self-centering shower hinge
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack must be purchased separately for use with 5/16" (8 mm) tempered glass.
Replacement Hardware:

• P102** - Wall plate replacement screws
• P615** - Cover plate replacement screws

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes available on request. Contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential and hotel shower use. For other uses, obtain approval from the CRL Shower Door
