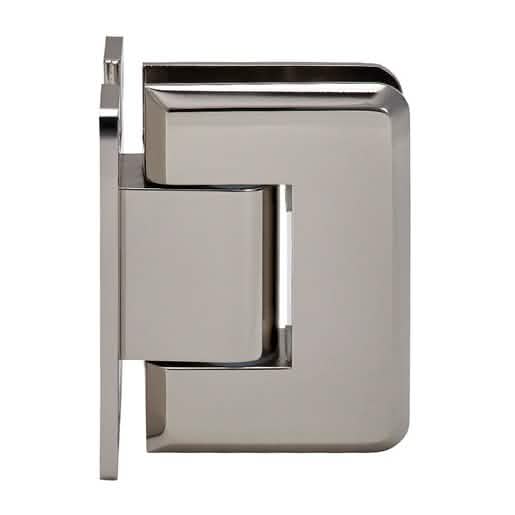

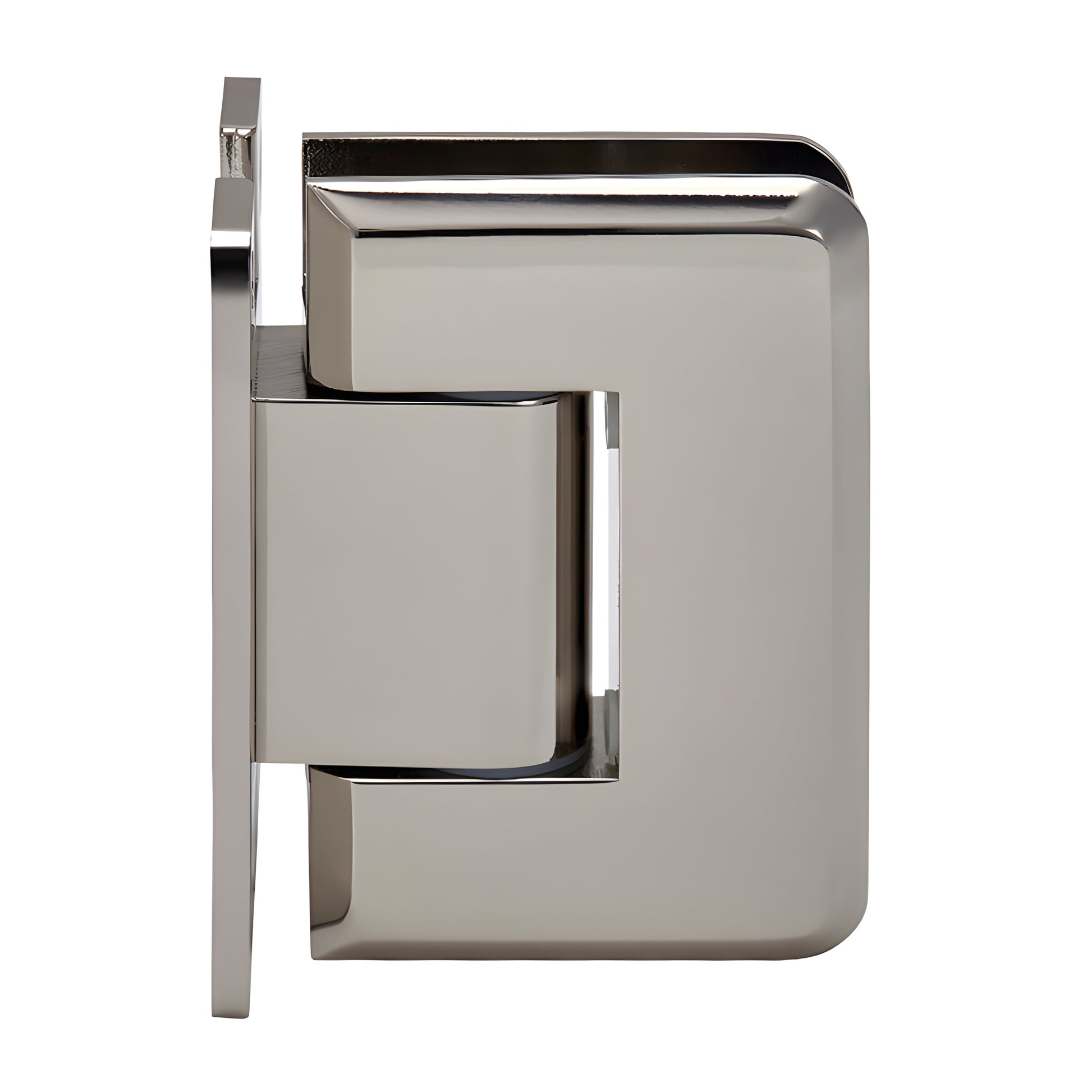

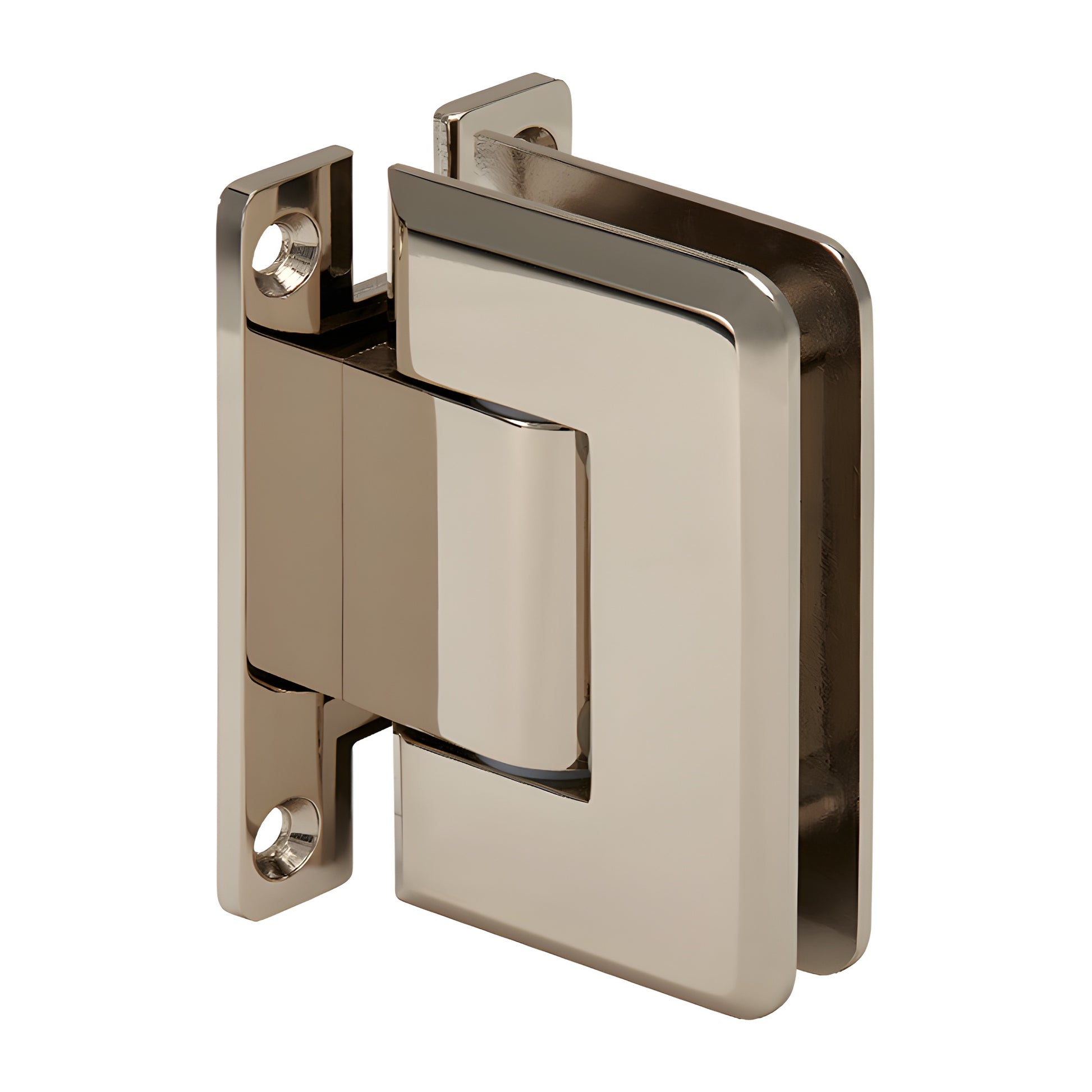

CRL Pinnacle 337 Polished Nickel Adjustable H-Back Wall Hinge

• Adjustable to any angle up to 90° without removing door
• Available in several beautiful finishes
• Three year warranty

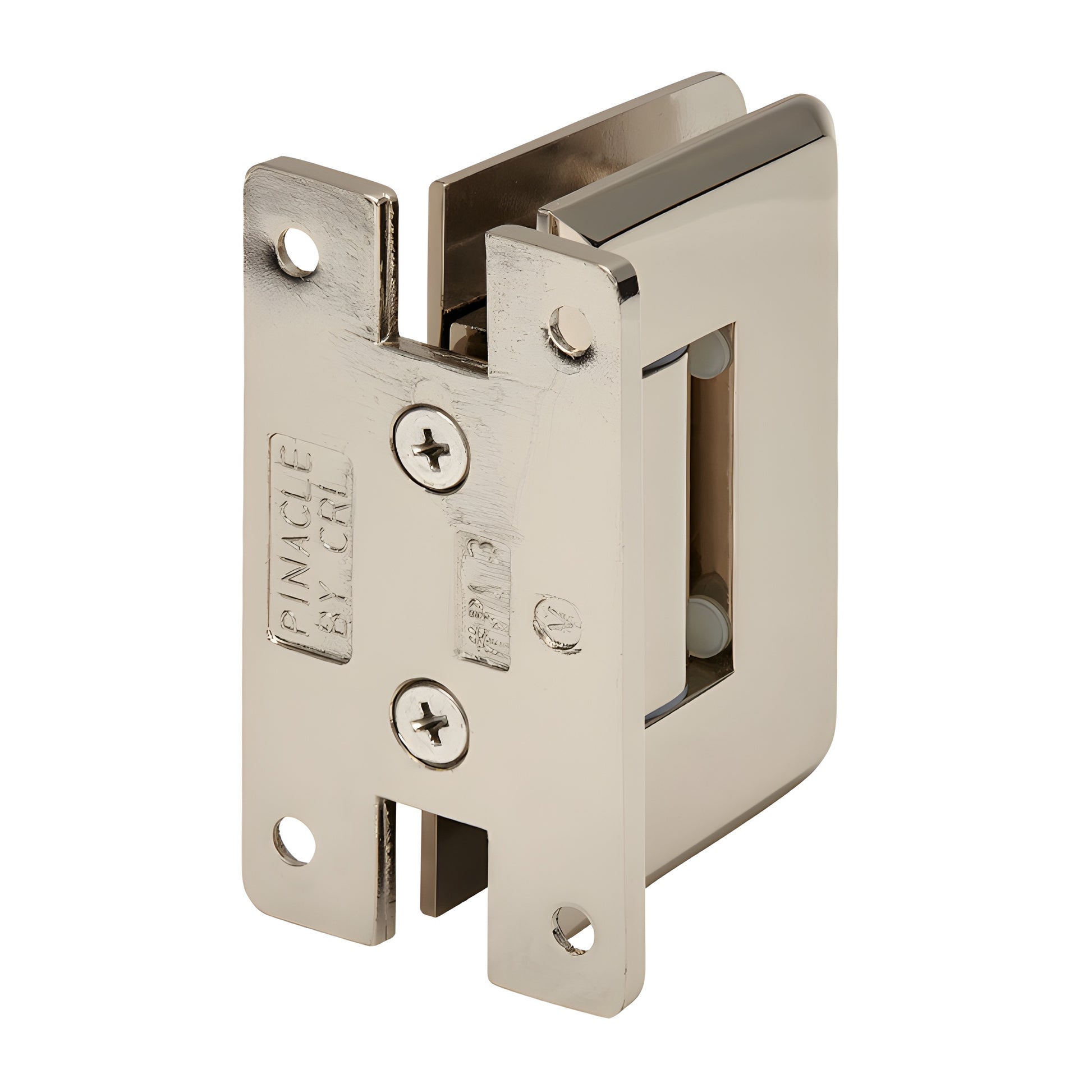

• Adjustable wall mount "H" back plate
• Designed for monolithic tempered glass

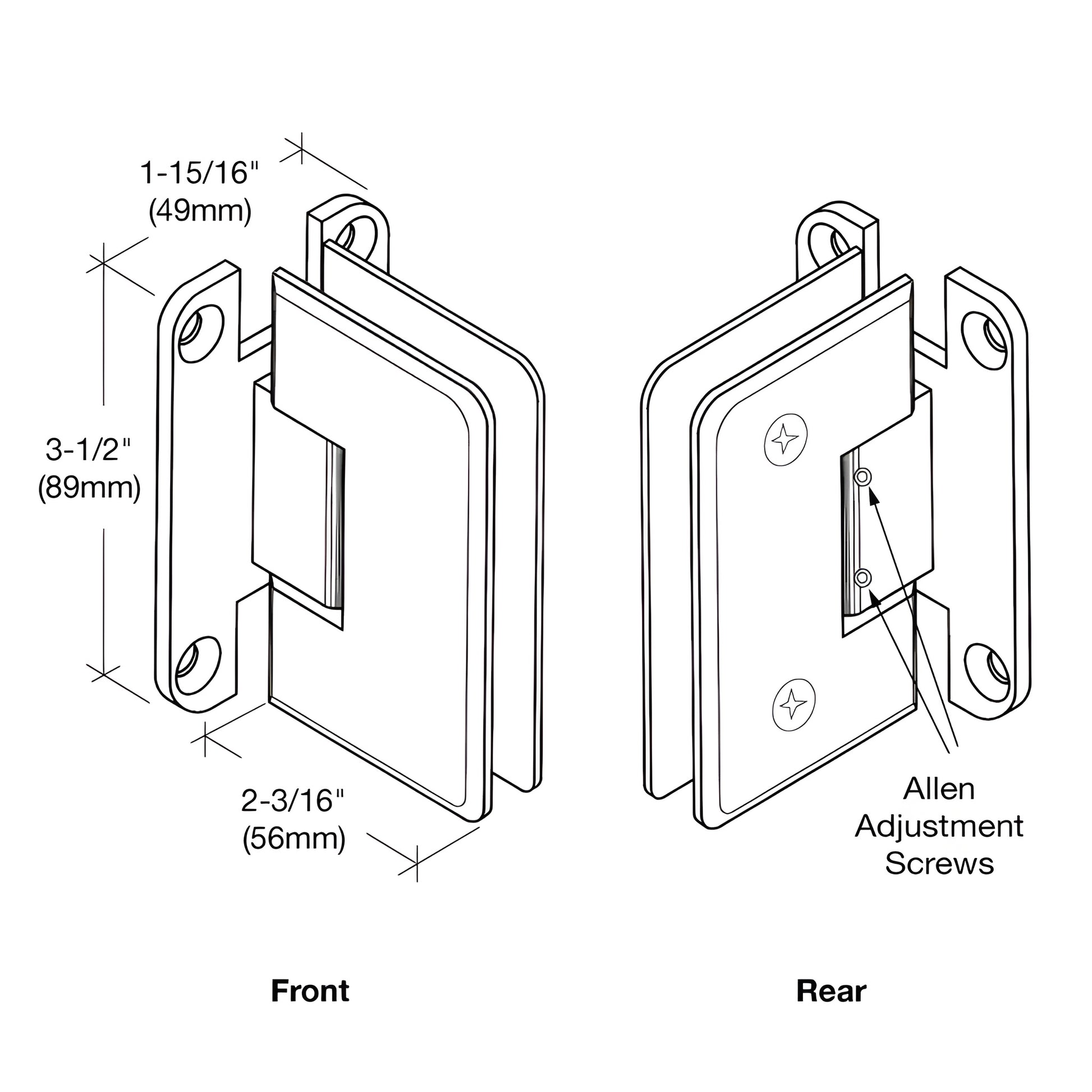

CRL Adjustable Pinnacle Series Hinges elevate the Pinnacle hinge with on‑door, post‑installation angle adjustment for precise alignment. After hanging the door, loosen the Allen set screws, rotate the door to the desired closed position, then tighten the screws— the hinge self‑centers to that position. The hinge allows up to 90° swing inward and 90° outward (adjusting from the factory set position reduces swing range in that direction). For outward‑swing installations (clear door jambs), you can set the hinge to close 5° inside the shower for a snug seal against the jamb.

Performance
Using two hinges: For 5/16"–1/2" (8–12 mm) tempered safety glass, supports up to 80 lbs (36 kg); maximum door width 28" (711 mm).
Using three hinges: For 5/16"–1/2" (8–12 mm) tempered safety glass, supports up to 120 lbs (54 kg); maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Adjustable to any angle up to 90° without removing the door (post‑installation adjustment)
Construction: Solid brass for durability and corrosion resistance
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self‑centering when within 15° of closed position
Cut‑Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack must be purchased separately for use with 5/16" (8 mm) tempered glass.
Replacement Hardware:

• P102** - Wall plate replacement screws
• P615** - Cover plate replacement screws

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut‑out dimensions for CRL hinges may not match other brands.
