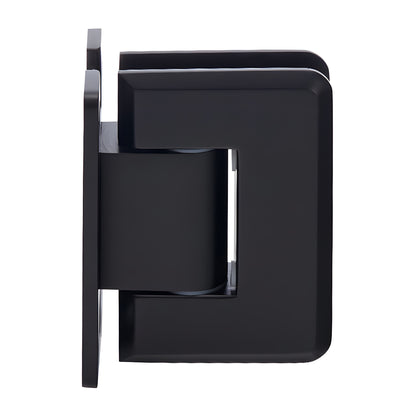

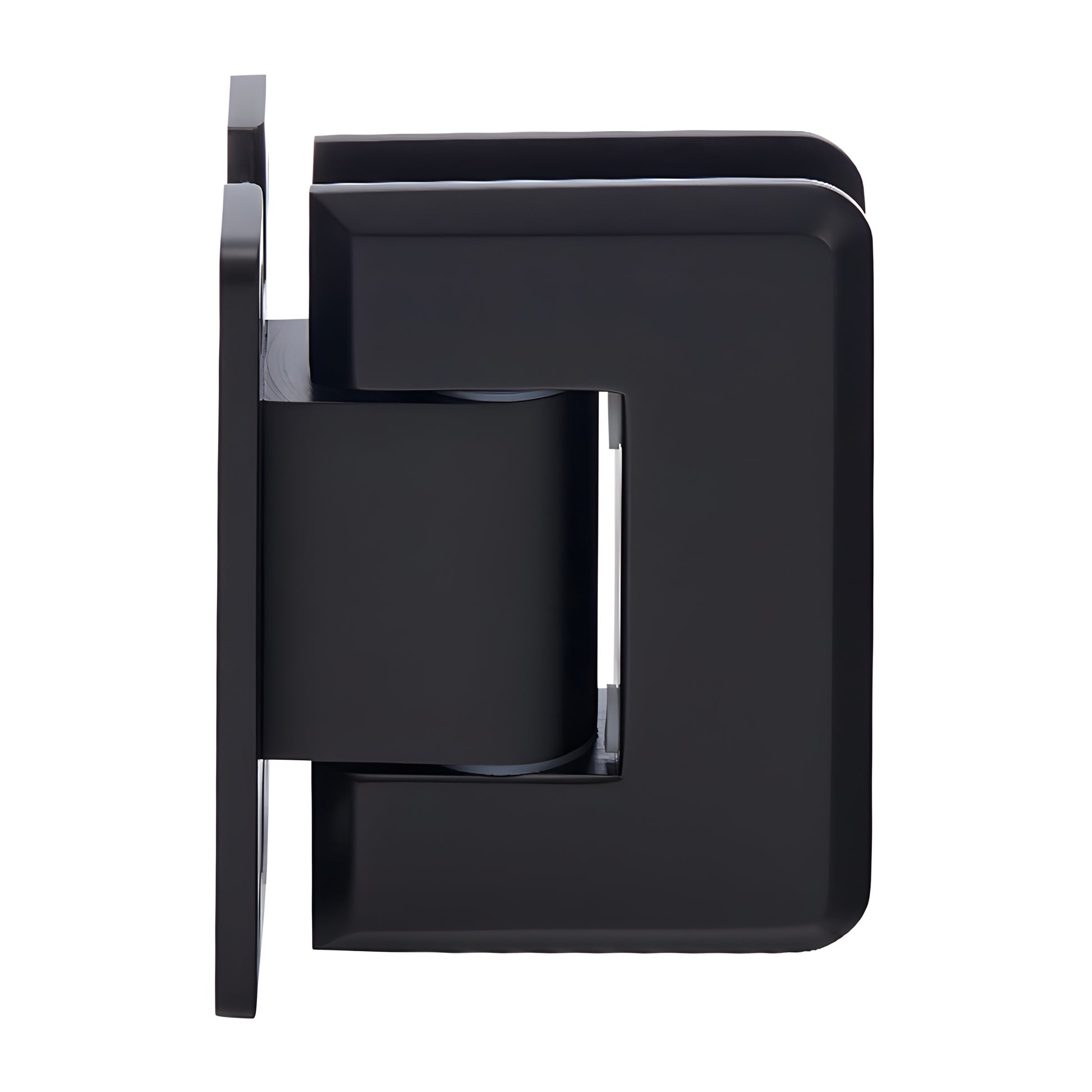

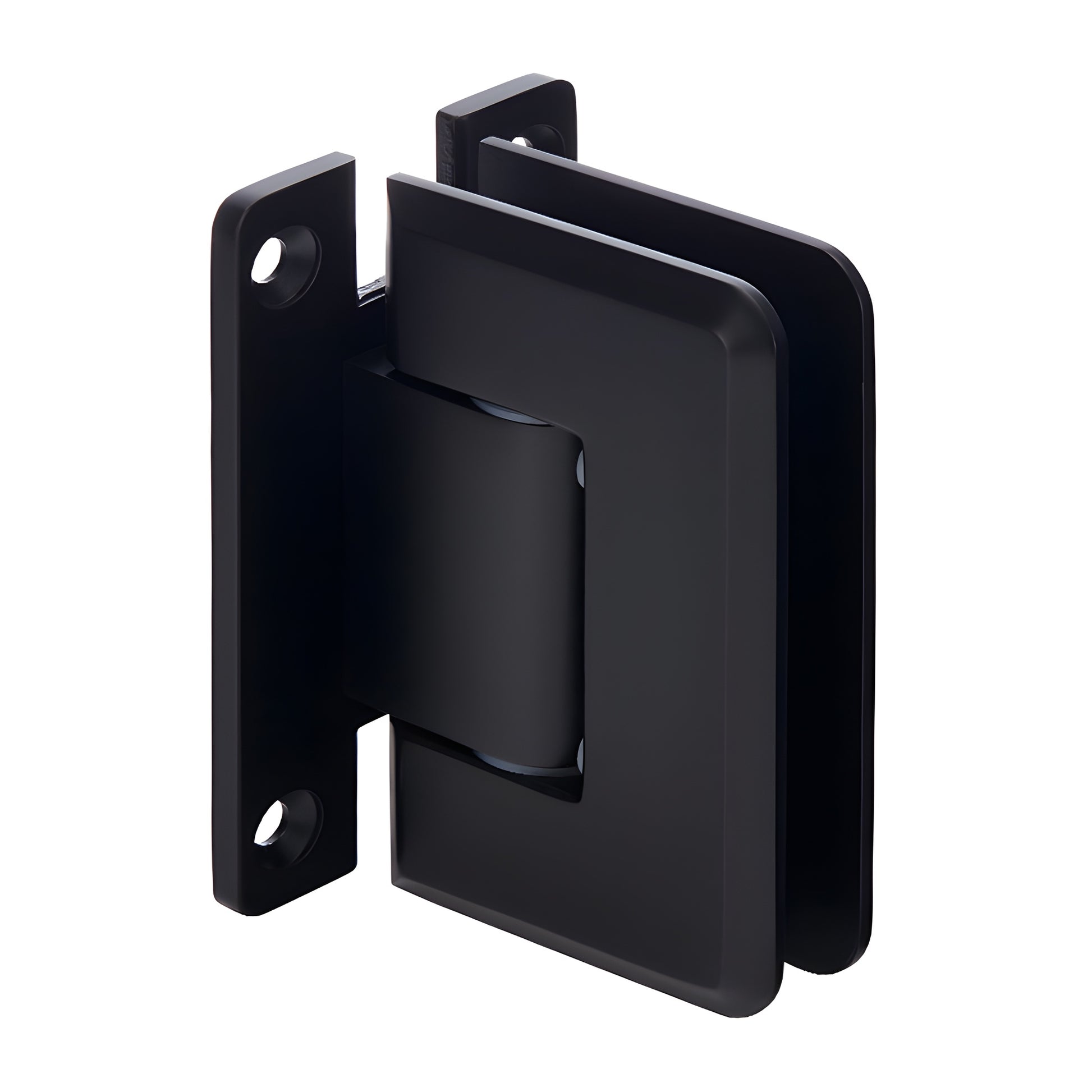

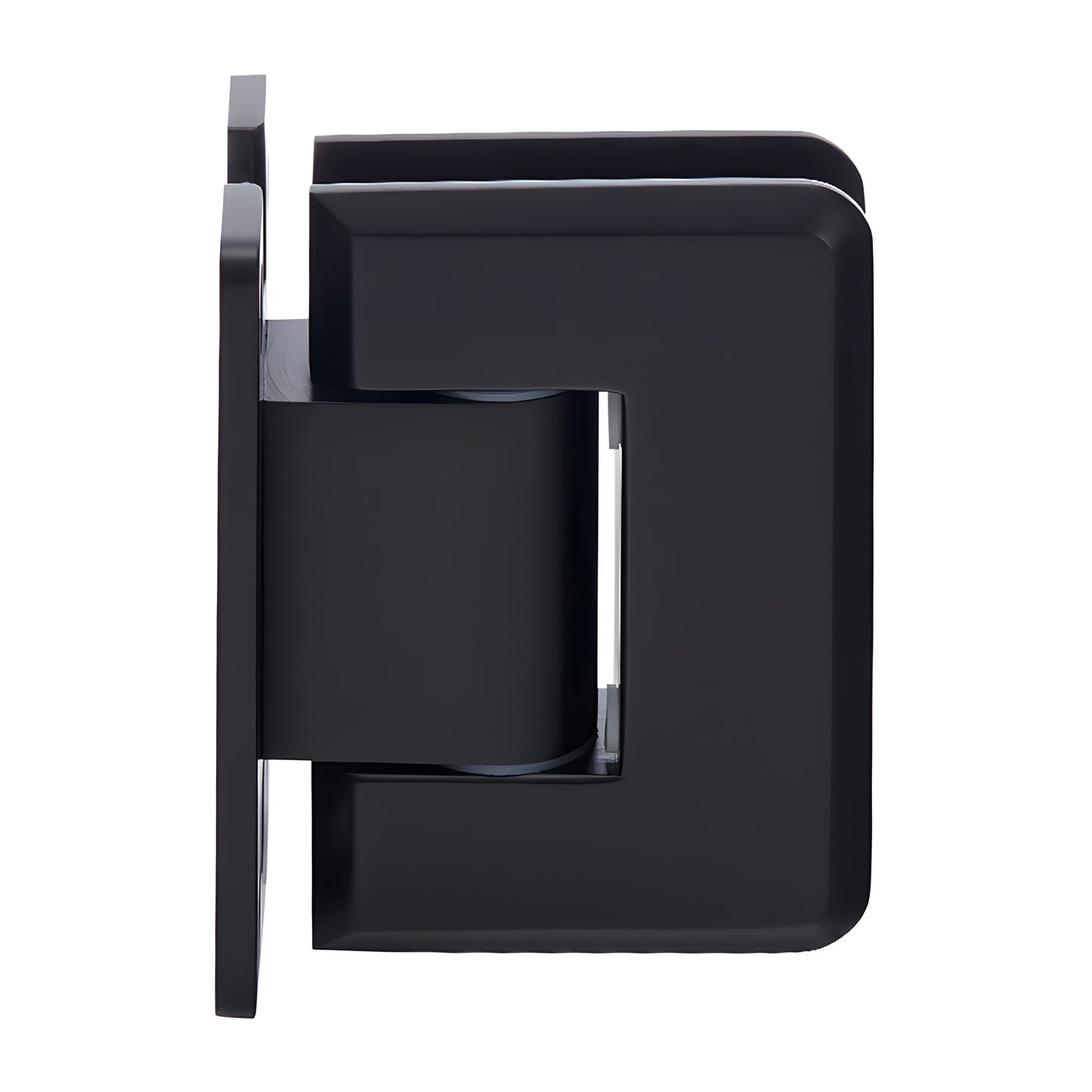

CRL Pinnacle 337 Matte Black Adjustable H-Back Hinge for Glass Doors

• Adjustable to any angle up to 90° without removing door
• Available in several beautiful finishes
• Three-year warranty

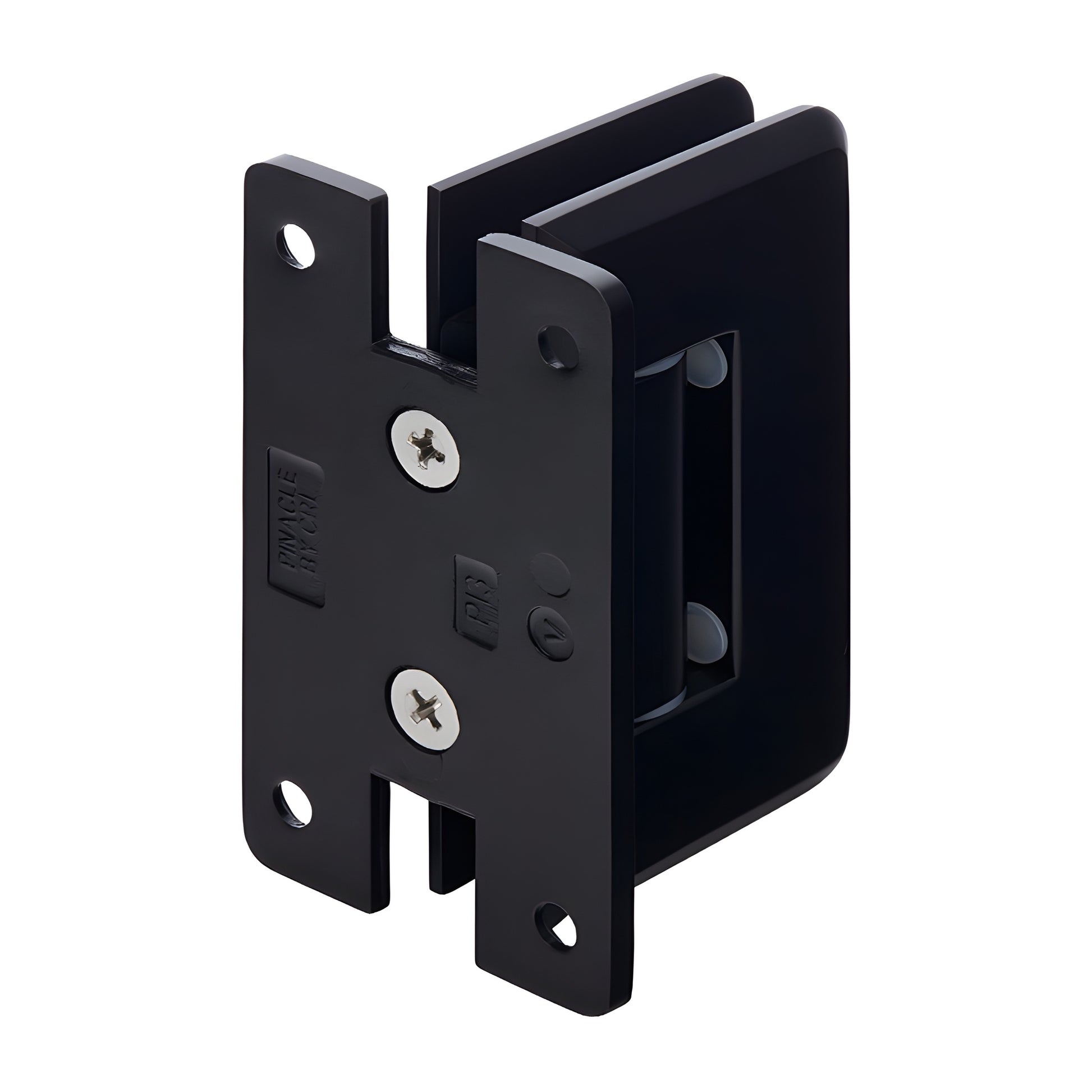

• Adjustable wall mount "H" back plate
• For use with monolithic tempered glass

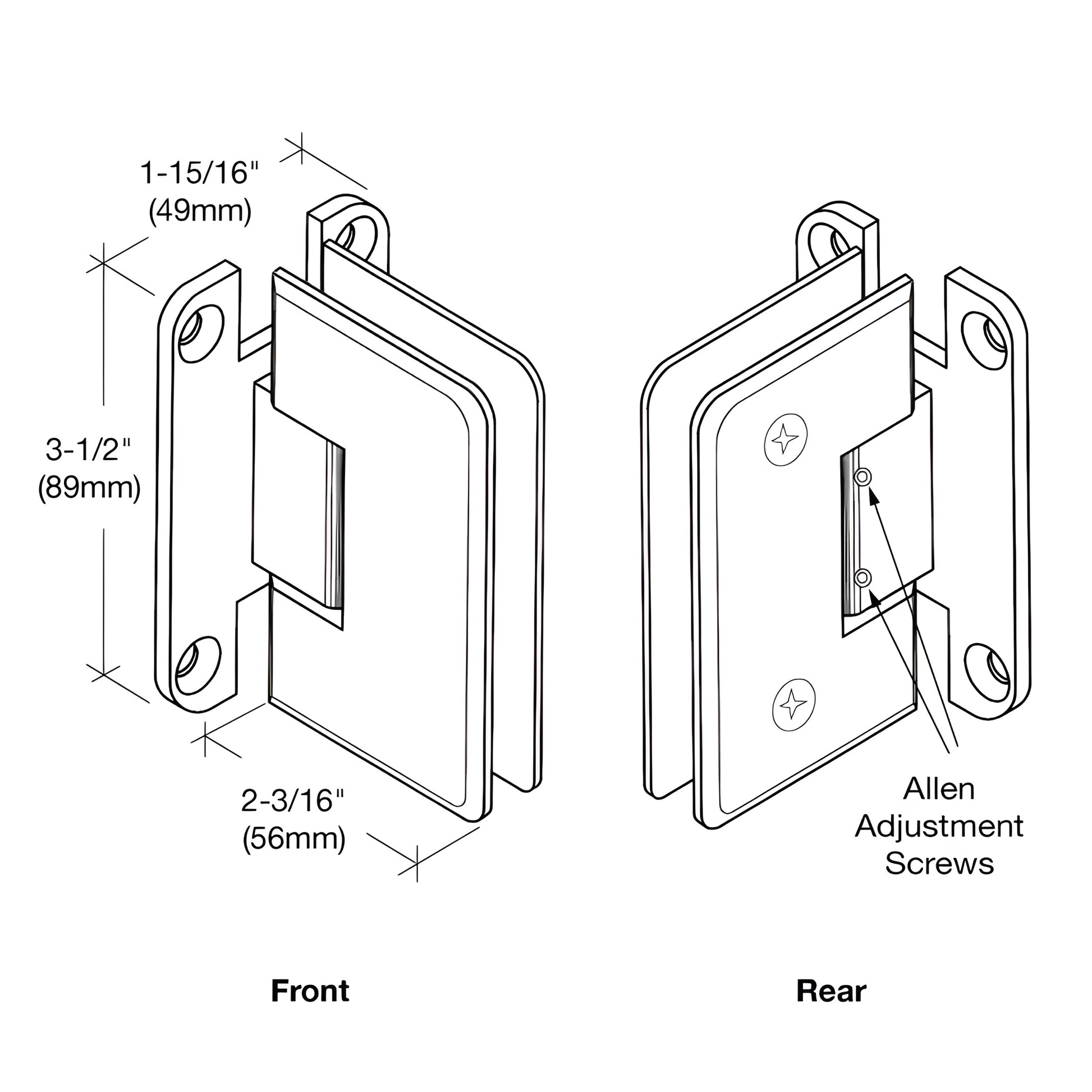

CRL Adjustable Pinnacle Series Hinges upgrade the Pinnacle hinge with post-install fine tuning. Adjust the door angle (up to 90°) after installation by loosening the Allen set screws, rotating the door to the desired closed position, then retightening—your door will self-center to the set position. The hinge allows 90° swing inward and 90° outward from the factory set position (adjusting away from factory reduces swing in that direction). For outward-swing doors using a clear door jamb, adjust to close 5° inside the shower for a snug jamb seal.

Load Capacity
Two hinges: Holds up to 80 lbs (36 kg) with 5/16"–1/2" (8–12 mm) tempered glass; maximum door width 28" (711 mm).
Three hinges: Holds up to 120 lbs (54 kg) with 5/16"–1/2" (8–12 mm) tempered glass; maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Post-install adjustable to any angle up to 90° without removing the door (adjustable shower door hinge / self-centering shower hinge)
Construction: Solid brass (durable, corrosion-resistant shower hinge)
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack required separately for 5/16" (8 mm) glass.
Replacement Hardware:

• P102** - Wall plate replacement screws
• P615** - Cover plate replacement screws

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may not match other brands.
