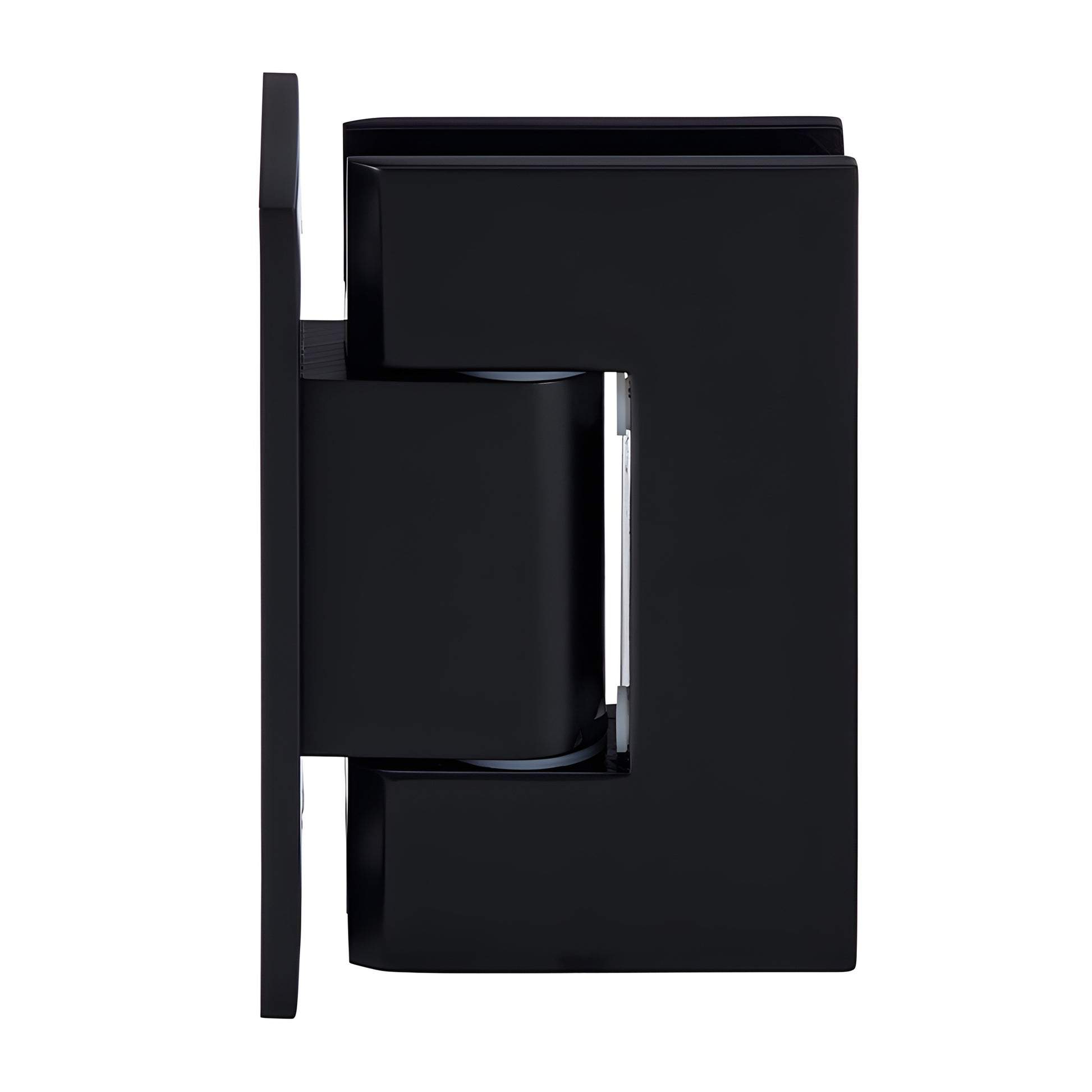

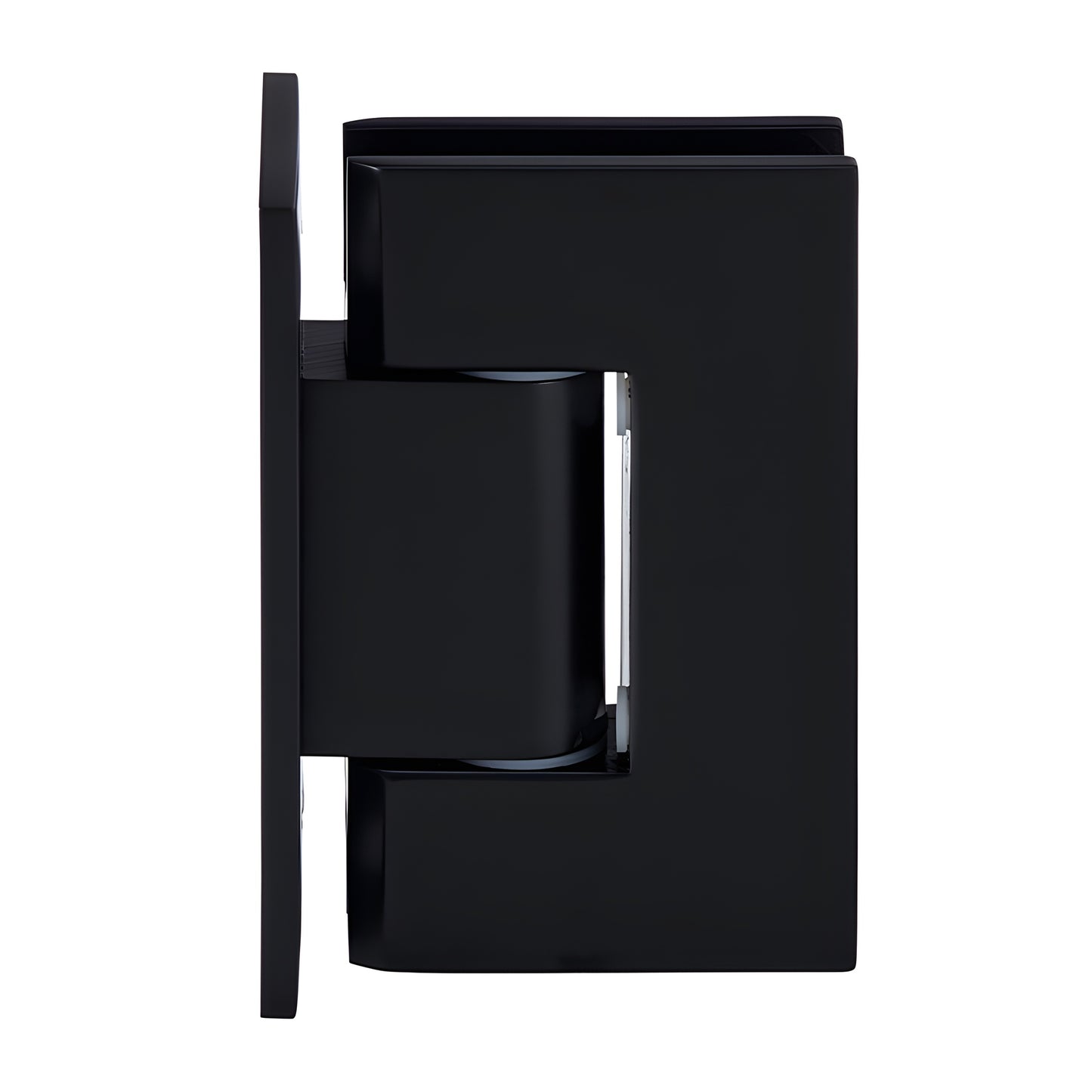

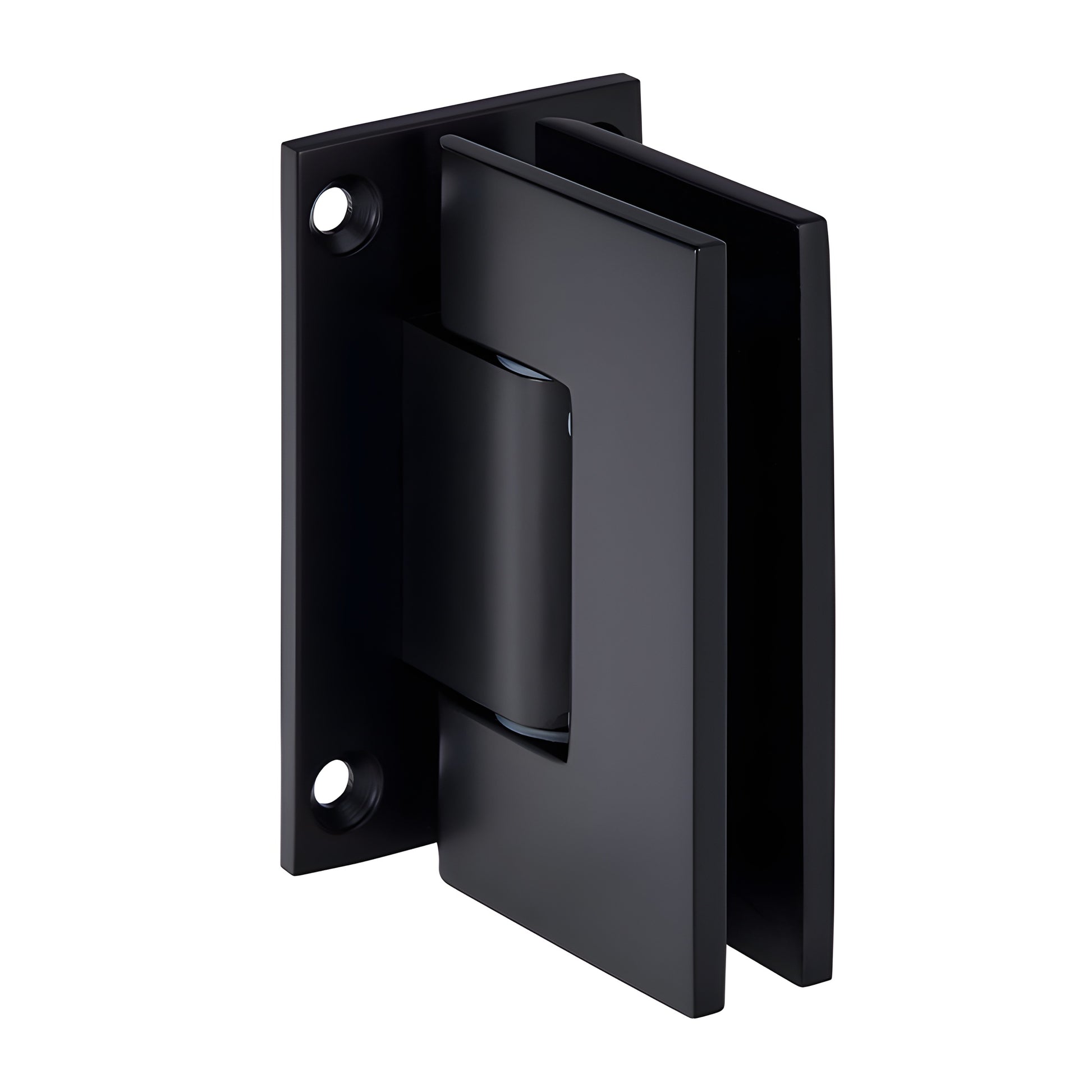

CRL Geneva 337 Matte Black Adjustable Shower Door Hinge

• Adjustable to any angle up to 90 degrees without removing door
• Available in several beautiful finishes
• Three year warranty

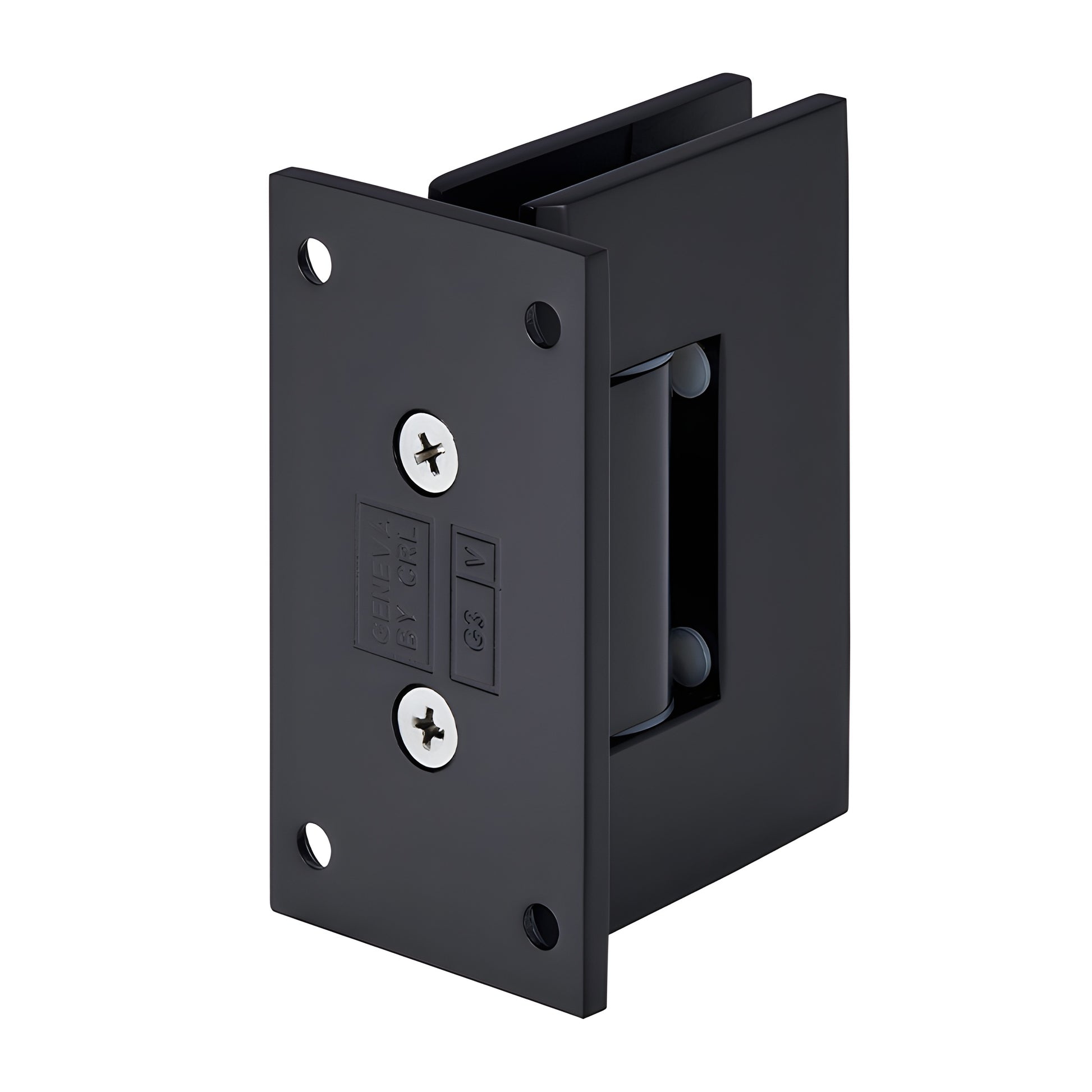

• Adjustable wall mount full back plate
• For use with monolithic tempered glass

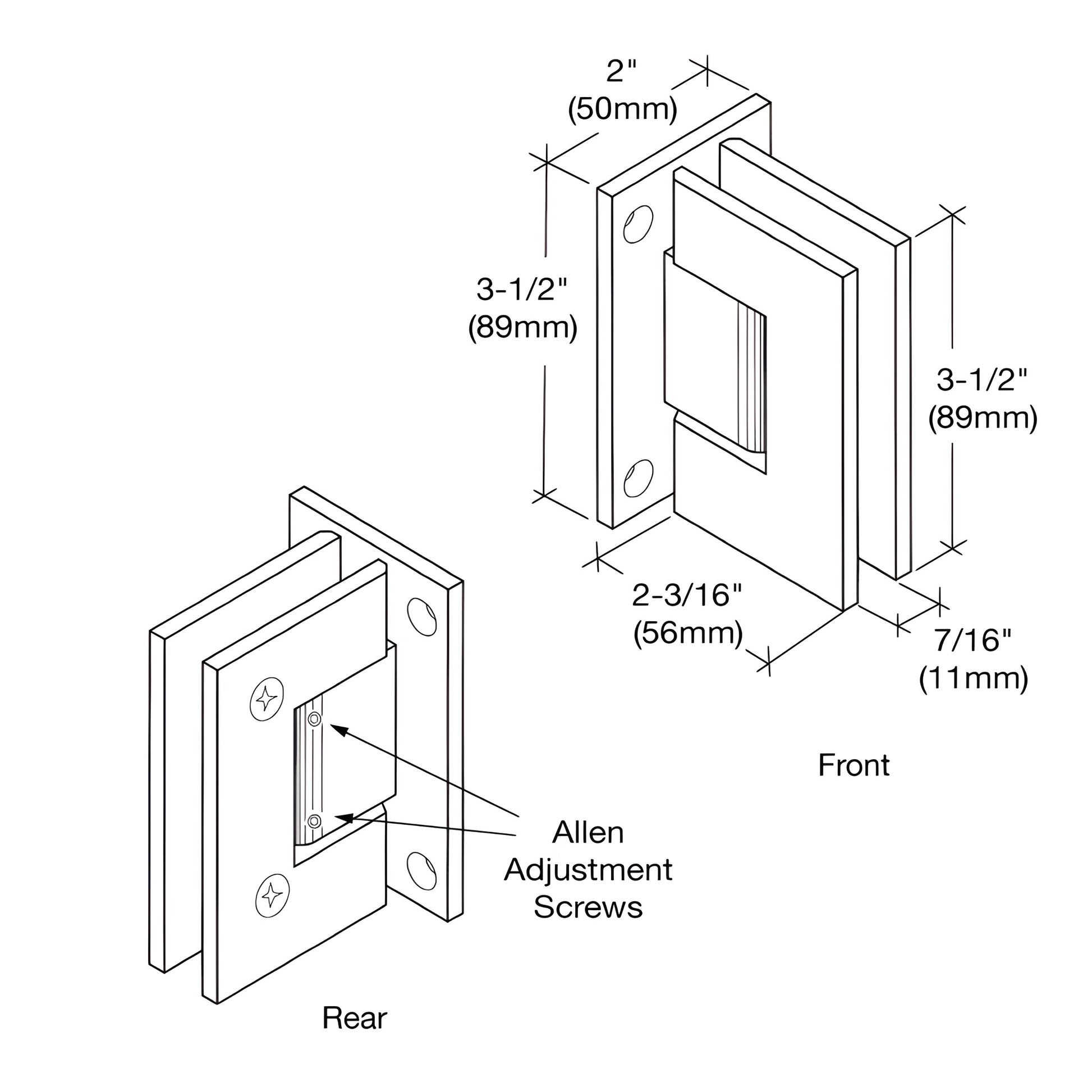

The CRL Adjustable Geneva Series elevates the popular Geneva hinge with post‑installation angle adjustment—ideal for adjustable shower door hinge installations on tempered glass. Adjust the door angle up to 90° after hanging by loosening the Allen set screws, turning the door to the desired closed position, then re‑tightening. The hinge provides self‑centering when within 15° of the closed position and allows the door to swing 90° inward and 90° outward (adjusting away from the factory set position will reduce swing in that direction). For outward‑swing doors using a clear door jamb, the hinge can be set to close 5° inside the shower for a snug seal against the jamb.

Load Capacity & Glass

Using two hinges with 5/16" to 1/2" (8–12 mm) tempered safety glass: holds up to 80 lbs (36 kg); maximum door width 28" (711 mm).

Using three hinges with 5/16" to 1/2" (8–12 mm) tempered safety glass: holds up to 120 lbs (54 kg); maximum door width 32" (813 mm).

SPECIFICATIONS:

Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass

Special Features: Adjustable to any angle up to 90° without removing the door; ideal as an adjustable shower door hinge for frameless and semi‑frameless installations.

Construction: Solid brass

Hinge Swings: 90° in and 90° out (at factory set position)

Closing Type: Self‑centering when within 15° of closed position

Cut‑Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack must be purchased separately for use with 5/16" (8 mm) glass.

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut‑out dimensions for CRL hinges may not match other brands.
